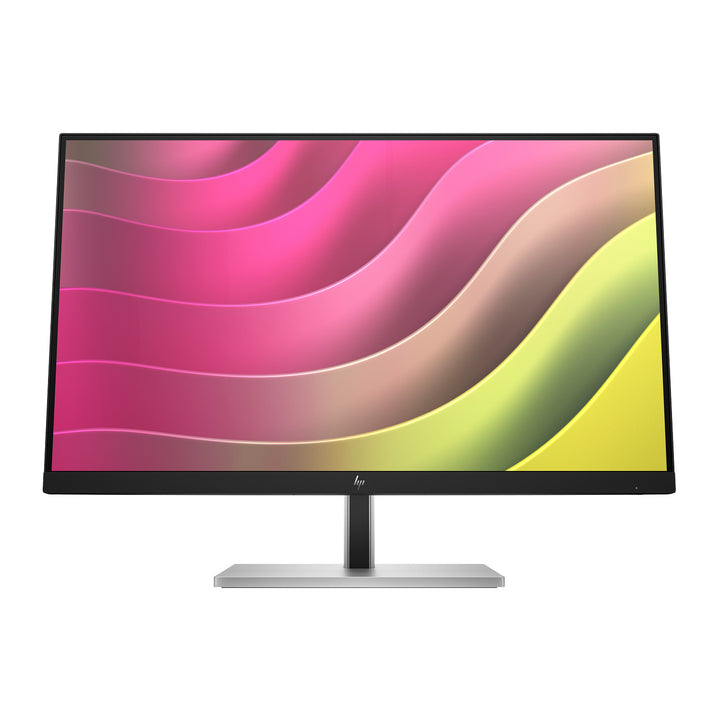

HP E24t G5 23.8-inch FHD Touch Monitor
PRODUCT DESCRIPTION

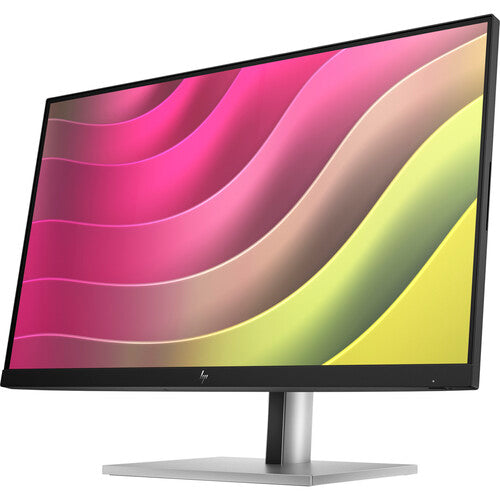

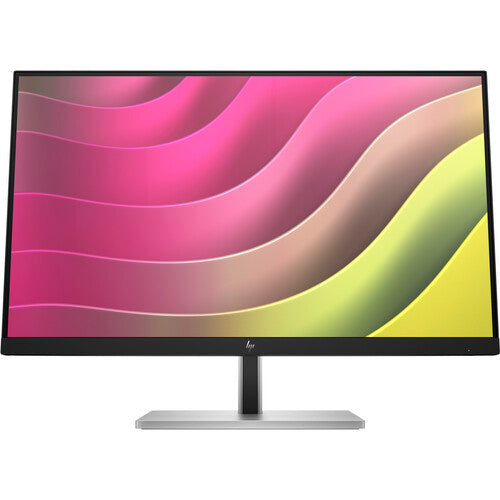

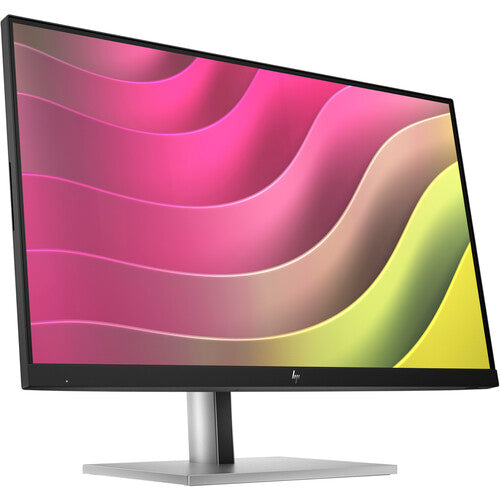

HP E24t G5 23.8-inch FHD Touch Monitor (6N6E6AA) - 3 Years Local Warranty
10-Point Touch on a 23.8-inch IPS Panel
The HP E24t G5 adds up to 10-point advanced in-cell touch to a 23.8-inch 1920 x 1080 IPS display, so staff can tap, swipe and pinch directly on screen. HP rates the panel at 300 nits, 1000:1 contrast and 99% sRGB with a refresh rate of up to 75 Hz.
Comfortable for Shared and Standing Desks
The stand adjusts 150 mm in height and tilts, swivels and pivots, which helps at counters and shared stations. HP Eye Ease, a TÜV-certified always-on low blue light filter, and a flicker-free backlight reduce strain.
Hub for Everyday Peripherals
DisplayPort 1.2 and HDMI 1.4 inputs sit alongside four USB-A 5Gbps ports (one charging). The USB-B upstream cable carries both the hub and the touch signal to the PC.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP E24t G5 Datasheet — Technical Specifications
General
| Product Name | HP E24t G5 FHD Touch Monitor |
| HP Part Number | 6N6E6AA |
| Product Line | HP E-Series G5 |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 60.5 cm (23.8") diagonal, 16:9 |
| Panel Technology | IPS; LCD |
| Touch | Up to 10-point advanced in-cell touch, self-capacitive technology |
| Native Resolution | FHD (1920 x 1080) |
| Maximum Resolution | FHD (1920 x 1080 @ 75 Hz) |
| Brightness | 300 nits |
| Contrast Ratio | 1000:1 |
| Colour Gamut | 99% sRGB |
| Panel Bit Depth | 8 bit (6 bit + FRC) |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.27 x 0.27 mm / 93 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free |
| Bezel | 3-sided borderless |

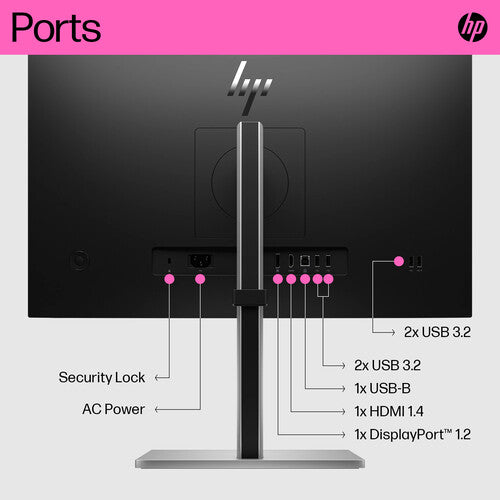

Connectivity
| DisplayPort | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 1.4 |
| USB Upstream | 1 x USB-B (hub enablement) |
| USB-A Downstream | 4 x SuperSpeed USB Type-A 5Gbps (1 charging) |
| HDCP | Yes, DisplayPort and HDMI |
| Camera | No integrated camera |

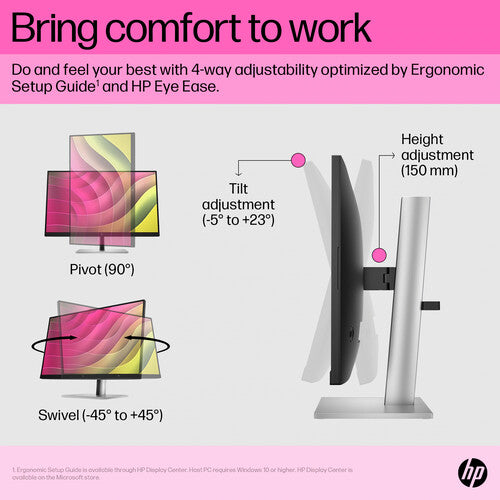

Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +23° |
| Swivel | ±45° |
| Pivot | ±90° |
| VESA Mount | 100 x 100 mm; detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 53 W (maximum), 25 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH |
Physical

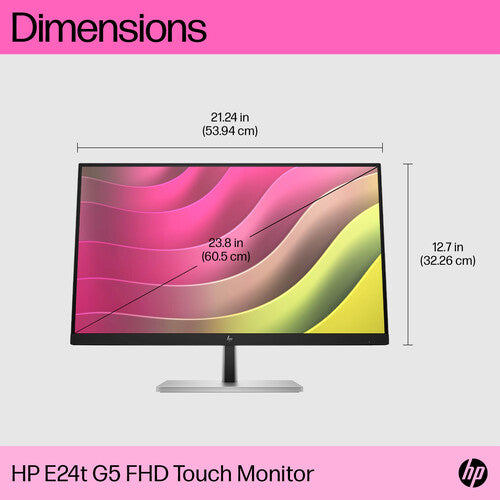

| Dimensions with Stand (W x D x H) | 53.94 x 21.1 x 50.7 cm |
| Dimensions without Stand (W x D x H) | 53.94 x 4.7 x 32.26 cm (without hinge) |
| Weight | 5.77 kg (with stand) |
| Package | 62.1 x 14 x 40 cm; 8.37 kg |
Compatibility & Software Support
PC Connection
Connect video over DisplayPort or HDMI and the USB-B upstream cable to the PC; the USB link is required for touch input and for the four USB-A ports.
Software
HP Display Center handles display settings and screen partitioning; the HP Client Management Script Library supports remote management by IT.
Typical Use
Reception and service counters, point-of-information screens, clinics, classrooms and annotation-heavy office work.
Package Contents & HP E-Series Ordering Information
In the Box
Monitor, DisplayPort cable, HDMI cable, USB Type-B to A cable, AC power cord, warranty card, quick setup poster.
HP E-Series Monitors
| Model | Key feature |
| E22 G5 | 21.5" FHD, 75 Hz, USB hub |
| E24t G5 (this listing) | 23.8" FHD, 10-point touch |
| E24mv G4 | 23.8" FHD, 5 MP camera, speakers |
| E27k G5 | 27" 4K UHD, USB-C 65 W, RJ-45 |
| E32k G5 | 31.5" 4K UHD, USB-C 65 W, RJ-45 |
Datasheet & Downloads
| HP product page | HP E24t G5 FHD Touch Monitor on hp.com Singapore |
| Specifications | HP E24t G5 full specifications |
| Manuals & drivers | HP Customer Support Singapore (search 6N6E6AA) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 6N6E6AA.
Frequently Asked Questions — HP E24t G5
How many touch points does it support?
Up to 10 points, using in-cell self-capacitive touch.
What do I need to connect for touch to work?
A video cable (DisplayPort or HDMI) plus the supplied USB Type-B to A cable to the PC.
Does it have USB-C or a webcam?
No. Inputs are DisplayPort 1.2 and HDMI 1.4, and there is no integrated camera.
Can it be wall- or arm-mounted?
Yes. The stand detaches and the monitor has a 100 x 100 mm VESA pattern.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
