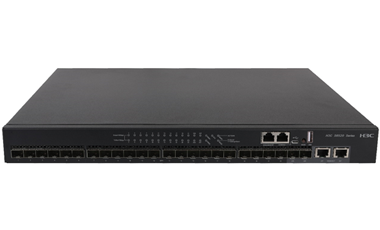

H3C S6520X-24ST-SI 24-Port 10G SFP+ L3 Switch, 2 x 10GBase-T Combo, Dual PSU Slots
PRODUCT DESCRIPTION
H3C S6520X-24ST-SI 10GE Layer 3 Switch (LS-6520X-24ST-SI-GL) - 3 Years Local Warranty
Twenty-Four 10G SFP+ Ports
The H3C S6520X-24ST-SI is a Layer 3 10GE switch with 24 x 1G/10G SFP+ ports, two of which are combo ports with 1G/10GBase-T RJ45, built for the SMB market.
Wire-Speed Performance
H3C rates the S6520X-24ST-SI at 480 Gbps port switching capacity and 357 Mpps forwarding, with a dual-core 1.6 GHz CPU, 1 GB flash and 2 GB SDRAM.
Dual Pluggable Power
Two power module slots give 1+1 redundancy with PSR75-12A modules. The switch ships without power supplies, so order at least one PSR75-12A-GL with it.
Full Layer 3 Routing and IRF2
Static, RIP, OSPF, BGP and IS-IS routing with VRRP, IRF2 stacking of up to 9 switches, M-LAG, VXLAN/EVPN and the free embedded SmartMC web manager.
H3C S6520X-24ST-SI Datasheet — Technical Specifications
General
| Product Name | H3C S6520X-24ST-SI 10GE Layer 3 Ethernet Switch |
| Model | LS-6520X-24ST-SI-GL |
| Part Number (BOM) | 0235A3NM |
| Switch Type | Layer 3 managed (S6520X-SI Series) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| 1G/10G SFP+ Ports | 24 (2 are combo ports) |
| 1G/10GBase-T Combo Ports | 2 (shared with 2 SFP+ ports) |
| Console / Management Ethernet / USB | 1 / 1 / 1 |
| PoE | Not listed by H3C for this model |
Performance
| Port Switching Capacity | 480 Gbps |
| Packet Forwarding Rate | 357 Mpps |
| Box Switching Capacity | 1.44 Tbps |
| CPU | Dual-core, 1.6 GHz |
| Flash / SDRAM | 1 GB / 2 GB |
| Packet Buffer | 3 MB |
| MAC Address Table | 32,768 entries |
| VLANs | 4,094 |
| IPv4 Routes / ARP | 16,384 / 16,384 |
| IPv6 Unicast Routes | 8,192 |
| Jumbo Frames | Up to 10,000 bytes |
| Stacking | IRF2, up to 9 members |
Power & Physical
| Power Supply | 2 power module slots, 1+1 redundancy; ships WITHOUT power supplies — order at least 1 x PSR75-12A-GL (0231A7G9) |
| Input Voltage (PSR75-12A) | 100–240 V AC, 50/60 Hz |
| Power Consumption | Idle 26 W; max 70 W (AC) |
| Cooling | Built-in fan trays (not user-replaceable), speed auto-adjusts with temperature |
| Dimensions (W x D x H) | 440 x 360 x 43.6 mm (1U) |
| Weight | ≤ 4.0 kg |
| MTBF | 89.5 years |
| Operating Temperature | 0 to 45 °C (derated 0.33 °C per 100 m above sea level) |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 95% RH, non-condensing |
Specifications from H3C's official S6520X-SI Series product page (h3c.com); power-module, fan and in-box details from the H3C S6520X-SI Switch Series Installation Guide.
Compatibility & Software Support
Management
Per H3C's S6520X-SI page: CLI via the console port, out-of-band management Ethernet port and USB port; Telnet, SSH 2.0 and SSL; SNMPv1/v2c/v3; H3C IMC; syslog, NTP, RMON, sFlow; firmware loading via XMODEM, FTP, TFTP or USB. SmartMC is a free web-based management tool embedded in the switch for small and mid-size networks.
Layer 2 & Layer 3 Features
Up to 4,094 VLANs, QinQ, VLAN mapping, STP/RSTP/MSTP, PVST+, G.8032 ERPS, LACP, LLDP; IPv4/IPv6 static routing, RIP/RIPng, OSPFv1/v2/v3, BGP, IS-IS, policy routing, ECMP and VRRP; IGMP snooping, PIM-SM/SSM/DM.
Data Centre & Resiliency
IRF2 stacking of up to 9 members over standard 10GE ports, M-LAG, VXLAN with EVPN, OpenFlow 1.3 SDN, and ISSU, as listed by H3C.
Security
802.1X, MAC authentication, AAA, RADIUS, HWTACACS, HTTPS, port isolation, IP source guard, IP/port/MAC binding, PKI, CoPP and RA Guard per H3C's specifications.
Package Contents & H3C S6520X-SI Ordering Information
H3C S6520X-SI Models (this range at SourceIT)
| Model | Ports | PoE | Power | Part No. |
| S6520X-10XT-SI | 8 x 1G/2.5G/5G/10GBase-T + 2 x 1G/10G SFP+ | — | Built-in AC | LS-6520X-10XT-SI (0235A3HK) |
| S6520X-16XT-SI | 14 x 1G/2.5G/5G/10GBase-T + 2 x 1G/10G SFP+ | — | Built-in AC | LS-6520X-16XT-SI (0235A3HL) |
| S6520X-16ST-SI | 16 x 1G/10G SFP+ (2 combo 1G/10GBase-T) | — | 2 PSU slots, ships without PSU | LS-6520X-16ST-SI-GL (0235A3NL) |
| S6520X-24ST-SI (this listing) | 24 x 1G/10G SFP+ (2 combo 1G/10GBase-T) | — | 2 PSU slots, ships without PSU | LS-6520X-24ST-SI-GL (0235A3NM) |
| PSR75-12A | 75 W AC pluggable power supply module | — | For 16ST-SI / 24ST-SI | PSR75-12A-GL (0231A7G9) |
Per the book and H3C's S6520X-SI installation guide: supports rack mounting, with front mounting brackets (and M4 screws) and a grounding cable included with the switch. Rack M6 screws and cage nuts are user-supplied. This model ships without power supplies (book: configure at least 1 x 0231A7G9 / PSR75-12A-GL). A full packing list is not published on H3C's product page — ask us if you need confirmation of the in-box contents.
Datasheet & Downloads
| H3C product page | H3C S6520X-SI Series on h3c.com |
| H3C datasheet | H3C S6520X-SI Series datasheet (download.h3c.com) |
| Technical documents | S6520X-SI Resource Center (manuals, configuration guides) |
| Installation guide | H3C S6520X-SI Switch Series Installation Guide — Hardware Information and Specifications |
| Software | S6520X-SI software downloads (h3c.com) |
Frequently Asked Questions — H3C S6520X-24ST-SI
Does the S6520X-24ST-SI include a power supply?
No. Per the H3C installation guide the switch ships with power slot 1 empty and a filler panel in slot 2. Order at least one PSR75-12A-GL (75 W AC, part 0231A7G9); fit two for 1+1 redundancy.
Which power supply does it use?
H3C lists the PSR75-12A (ordered as PSR75-12A-GL) as the removable 75 W AC power supply for the S6520X-24ST-SI.
Can I use copper on it?
Yes. Two of the 24 SFP+ ports are combo ports with 1G/10GBase-T RJ45 alternatives, per H3C.
Can I stack it?
Yes. IRF2 stacks up to 9 members using standard 10GE ports, per H3C.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
