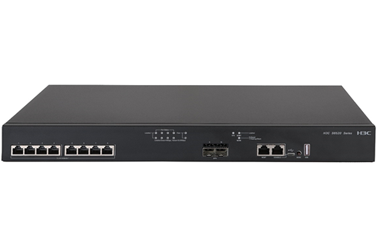

H3C S6520X-10XT-SI 8-Port 10GBase-T Multi-Gig L3 Switch, 2 x 10G SFP+
PRODUCT DESCRIPTION
H3C S6520X-10XT-SI 10GE Layer 3 Switch (LS-6520X-10XT-SI) - 3 Years Local Warranty
Eight Multi-Gig 10GBase-T Ports
The H3C S6520X-10XT-SI is a Layer 3 10GE switch with 8 x 1G/2.5G/5G/10GBase-T RJ45 ports and 2 x 1G/10G SFP+ ports in a 1U chassis, built for the SMB market.
Wire-Speed Performance
H3C rates the S6520X-10XT-SI at 200 Gbps port switching capacity and 240 Mpps forwarding, with a dual-core 1.6 GHz CPU, 1 GB flash and 2 GB SDRAM.
Full Layer 3 Routing and IRF2
Static, RIP, OSPF, BGP and IS-IS routing with VRRP, plus H3C IRF2 to virtualise up to 9 switches into one, and M-LAG for dual-homed servers.
Easy to Manage
CLI, SNMP, SSH and H3C IMC management, plus the free embedded SmartMC web tool that builds the topology automatically and backs up configurations.
H3C S6520X-10XT-SI Datasheet — Technical Specifications
General
| Product Name | H3C S6520X-10XT-SI 10GE Layer 3 Ethernet Switch |
| Model | LS-6520X-10XT-SI |
| Part Number (BOM) | 0235A3HK |
| Switch Type | Layer 3 managed (S6520X-SI Series) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| 1G/2.5G/5G/10GBase-T Ports | 8 |
| 1G/10G SFP+ Ports | 2 |
| Console / Management Ethernet / USB | 1 / 1 / 1 |
| PoE | Not listed by H3C for this model |
Performance
| Port Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| Box Switching Capacity | 1.44 Tbps |
| CPU | Dual-core, 1.6 GHz |
| Flash / SDRAM | 1 GB / 2 GB |
| Packet Buffer | 3 MB |
| MAC Address Table | 32,768 entries |
| VLANs | 4,094 |
| IPv4 Routes / ARP | 16,384 / 16,384 |
| IPv6 Unicast Routes | 8,192 |
| Jumbo Frames | Up to 10,000 bytes |
| Stacking | IRF2, up to 9 members |
Power & Physical
| Power Supply | Built-in AC (fixed); AC power cord supplied per H3C installation guide |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | Idle 17.5 W; max 34.5 W (AC) |
| Cooling | Two built-in fan trays (not removable), speed auto-adjusts with temperature |
| Dimensions (W x D x H) | 440 x 260 x 43.6 mm (1U) |
| Weight | ≤ 3.4 kg |
| MTBF | 58.1 years |
| Operating Temperature | 0 to 45 °C (derated 0.33 °C per 100 m above sea level) |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 95% RH, non-condensing |
Specifications from H3C's official S6520X-SI Series product page (h3c.com); power-module, fan and in-box details from the H3C S6520X-SI Switch Series Installation Guide.
Compatibility & Software Support
Management
Per H3C's S6520X-SI page: CLI via the console port, out-of-band management Ethernet port and USB port; Telnet, SSH 2.0 and SSL; SNMPv1/v2c/v3; H3C IMC; syslog, NTP, RMON, sFlow; firmware loading via XMODEM, FTP, TFTP or USB. SmartMC is a free web-based management tool embedded in the switch for small and mid-size networks.
Layer 2 & Layer 3 Features
Up to 4,094 VLANs, QinQ, VLAN mapping, STP/RSTP/MSTP, PVST+, G.8032 ERPS, LACP, LLDP; IPv4/IPv6 static routing, RIP/RIPng, OSPFv1/v2/v3, BGP, IS-IS, policy routing, ECMP and VRRP; IGMP snooping, PIM-SM/SSM/DM.
Data Centre & Resiliency
IRF2 stacking of up to 9 members over standard 10GE ports, M-LAG, VXLAN with EVPN, OpenFlow 1.3 SDN, and ISSU, as listed by H3C.
Security
802.1X, MAC authentication, AAA, RADIUS, HWTACACS, HTTPS, port isolation, IP source guard, IP/port/MAC binding, PKI, CoPP and RA Guard per H3C's specifications.
Package Contents & H3C S6520X-SI Ordering Information
H3C S6520X-SI Models (this range at SourceIT)
| Model | Ports | PoE | Power | Part No. |
| S6520X-10XT-SI (this listing) | 8 x 1G/2.5G/5G/10GBase-T + 2 x 1G/10G SFP+ | — | Built-in AC | LS-6520X-10XT-SI (0235A3HK) |
| S6520X-16XT-SI | 14 x 1G/2.5G/5G/10GBase-T + 2 x 1G/10G SFP+ | — | Built-in AC | LS-6520X-16XT-SI (0235A3HL) |
| S6520X-16ST-SI | 16 x 1G/10G SFP+ (2 combo 1G/10GBase-T) | — | 2 PSU slots, ships without PSU | LS-6520X-16ST-SI-GL (0235A3NL) |
| S6520X-24ST-SI | 24 x 1G/10G SFP+ (2 combo 1G/10GBase-T) | — | 2 PSU slots, ships without PSU | LS-6520X-24ST-SI-GL (0235A3NM) |
| PSR75-12A | 75 W AC pluggable power supply module | — | For 16ST-SI / 24ST-SI | PSR75-12A-GL (0231A7G9) |
Per the book and H3C's S6520X-SI installation guide: supports rack mounting, with front mounting brackets (and M4 screws) and a grounding cable included with the switch. Rack M6 screws and cage nuts are user-supplied. The 10XT/16XT models have a built-in AC power supply and H3C states an AC power cord is supplied. A full packing list is not published on H3C's product page — ask us if you need confirmation of the in-box contents.
Datasheet & Downloads
| H3C product page | H3C S6520X-SI Series on h3c.com |
| H3C datasheet | H3C S6520X-SI Series datasheet (download.h3c.com) |
| Technical documents | S6520X-SI Resource Center (manuals, configuration guides) |
| Installation guide | H3C S6520X-SI Switch Series Installation Guide — Hardware Information and Specifications |
| Software | S6520X-SI software downloads (h3c.com) |
Frequently Asked Questions — H3C S6520X-10XT-SI
Does the S6520X-10XT-SI need a separate power supply?
No. It has a built-in AC power supply (100–240 V AC). The PSR75-12A-GL module is only for the S6520X-16ST-SI and 24ST-SI.
What speeds do the RJ45 ports support?
All 8 RJ45 ports are multi-gigabit 1G/2.5G/5G/10GBase-T, per H3C. The 2 SFP+ ports take 1G or 10G optics or DAC cables.
Is it PoE?
H3C does not list PoE ports or a PoE power budget for the S6520X-10XT-SI. Ask us if you need PoE.
Can I stack it?
Yes. IRF2 stacks up to 9 members using standard 10GE ports, per H3C.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
