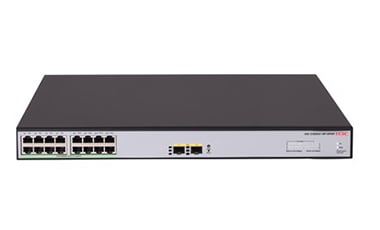

H3C S1600V2-18P-HPWR 18-Port Gigabit PoE+ Web Managed Switch, 240 W PoE, 2 x SFP
PRODUCT DESCRIPTION
H3C S1600V2-18P-HPWR 18-Port Gigabit PoE+ Web Managed Switch (LS-1600V2-18P-HPWR-GL) - 3 Years Local Warranty
16 PoE+ Ports, 240 W PoE Budget
The H3C S1600V2-18P-HPWR is a Gigabit access switch with 16 x 10/100/1000BASE-T ports, all PoE+, and 2 x 100M/1G SFP uplinks, with line-rate forwarding on all ports.
Power Your Edge Devices
H3C rates the total PoE budget at 240 W: up to 15 ports at IEEE 802.3af (15.4 W) or 8 ports at IEEE 802.3at (30 W).
Web and Cloudnet Management
H3C lists Cloudnet and web management for simple day-to-day operation, and the switch can obtain its IP address from the gateway automatically for quick deployment.
Built-in Protection
Broadcast, multicast and unknown-unicast storm suppression, black-hole MAC filtering, loopback detection and 6 kV port surge protection. 1 fan cooling, with an energy-saving, RoHS-compliant design.
H3C S1600V2-18P-HPWR Datasheet — Technical Specifications
General
| Product Name | H3C S1600V2-18P-HPWR Gigabit Access Web Managed Switch |
| Series | H3C S1600V2 Gigabit Access Web Managed Switch Series |
| Model | S1600V2-18P-HPWR (LS-1600V2-18P-HPWR-GL) |
| Part Number (BOM) | 9801A67U |
| Switch Type | Layer 2 web managed access switch |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| GE RJ45 Ports | 16 x 10/100/1000BASE-T |
| Uplink Ports | 2 x 100M/1G SFP |
| PoE | All 16 ports PoE+ (IEEE 802.3af/at) |
| PoE Budget | 240 W total; 15 ports at 802.3af (15.4 W) or 8 ports at 802.3at (30 W) |
Performance
| Switching Capacity | 36 Gbps |
| MAC Address Table | 8K entries (32 static MAC entries) |
| VLANs | 16 (port-based VLAN) |
| QoS | 8 forwarding queues |
| Jumbo Frame | 10000 bytes |
| Flash | 4 MB |
Power & Physical
| Power Input | AC 100–240 V, 50/60 Hz (built-in AC power receptacle) |
| Power Consumption | Min 8.2 W; max 279.3 W (incl. 240 W PoE) |
| Cooling | 1 fan |
| Port Surge Protection | 6 kV |
| Dimensions (H x W x D) | 44 x 440 x 260 mm |
| Weight | ≤ 3.5 kg |
| Installation | Supports rack mounting; mounting brackets included |
| Operating Temperature | -5 to 50 °C (-5 to 45 °C with transceivers under 80 km) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| MTBF | 79.35 years |
Specifications from H3C's official S1600V2 product page (hardware and software specification tables) and the H3C S1600V2 Switch Series Hardware Information and Specifications document; installation per the distributor ordering notes.
Compatibility & Software Support
Management
Web management and H3C Cloudnet support per H3C's S1600V2 product page; DHCP client allows automatic IP acquisition from the gateway.
Layer 2 Features
Port-based VLAN, static and black-hole MAC entries, DHCP snooping, port mirroring, IEEE 802.3x flow control and half-duplex backpressure, storm suppression and loopback detection.
Standards
IEEE 802.1AB (LLDP), 802.1D, 802.1p, 802.1Q, 802.1v, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af and 802.3at.
Compatible Transceivers
H3C lists SFP-GE-SX-MM850-A (550 m multimode), SFP-GE-LX-SM1310-A (10 km single-mode) and SFP-GE-T (copper) modules in the S1600V2 ordering information.
Package Contents & H3C S1600V2 Ordering Information
H3C S1600V2 Models
| Model | Ports | PoE | Part No. |
| S1600V2-6P | 5 x GE + 1 x SFP | — | 9801A67N |
| S1600V2-6P-HPWR | 5 x GE (4 PoE+) + 1 x SFP | 73 W | 9801A68X |
| S1600V2-10P | 9 x GE + 1 x SFP | — | 9801A67P |
| S1600V2-10P-HPWR | 9 x GE (8 PoE+) + 1 x SFP | 125 W | 9801A67W |
| S1600V2-18P | 16 x GE + 2 x SFP | — | 9801A682 |
| S1600V2-18P-HPWR (this listing) | 16 x GE PoE+ + 2 x SFP | 240 W | 9801A67U |
| S1600V2-26P | 24 x GE + 2 x SFP | — | 9801A67V |
| S1600V2-26P-HPWR | 24 x GE PoE+ + 2 x SFP | 370 W | 9801A67Q |
| S1600V2-26S | 24 x GE + 2 x SFP+ | — | 9801A67X |
| S1600V2-26S-HPWR | 24 x GE PoE+ + 2 x SFP+ | 370 W | 9801A67Y |
This model supports rack mounting; mounting brackets are included with the switch. H3C does not publish a full package contents list on its product page — ask us if you need confirmation of the included power cord.
Datasheet & Downloads
| H3C product page | S1600V2 Gigabit Access Web Managed Switch Series on h3c.com |
| H3C datasheet | S1600V2 Series datasheet (download.h3c.com) |
| Hardware specifications | H3C S1600V2 Switch Series Hardware Information and Specifications |
| Installation guide | H3C S1600V2 Switch Series Installation Guide |
| Technical documents & software | S1600V2 technical documents · software download |
Frequently Asked Questions — H3C S1600V2-18P-HPWR
How many PoE devices can the S1600V2-18P-HPWR power?
H3C rates the total budget at 240 W: up to 15 devices at 802.3af (15.4 W) or 8 at 802.3at (30 W).
Is it a Layer 3 switch?
No. H3C positions the S1600V2 as a Layer 2 web managed access switch; its software specifications list port-based VLAN, DHCP snooping, port mirroring and storm suppression, with no routing features listed.
Can it be rack-mounted?
Yes, it supports rack mounting and mounting brackets are included.
Does it have fans?
It uses 1 fan for cooling to support its 240 W PoE budget.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
