Ergotron Vertical Universal CPU Holder Silver
PRODUCT DESCRIPTION

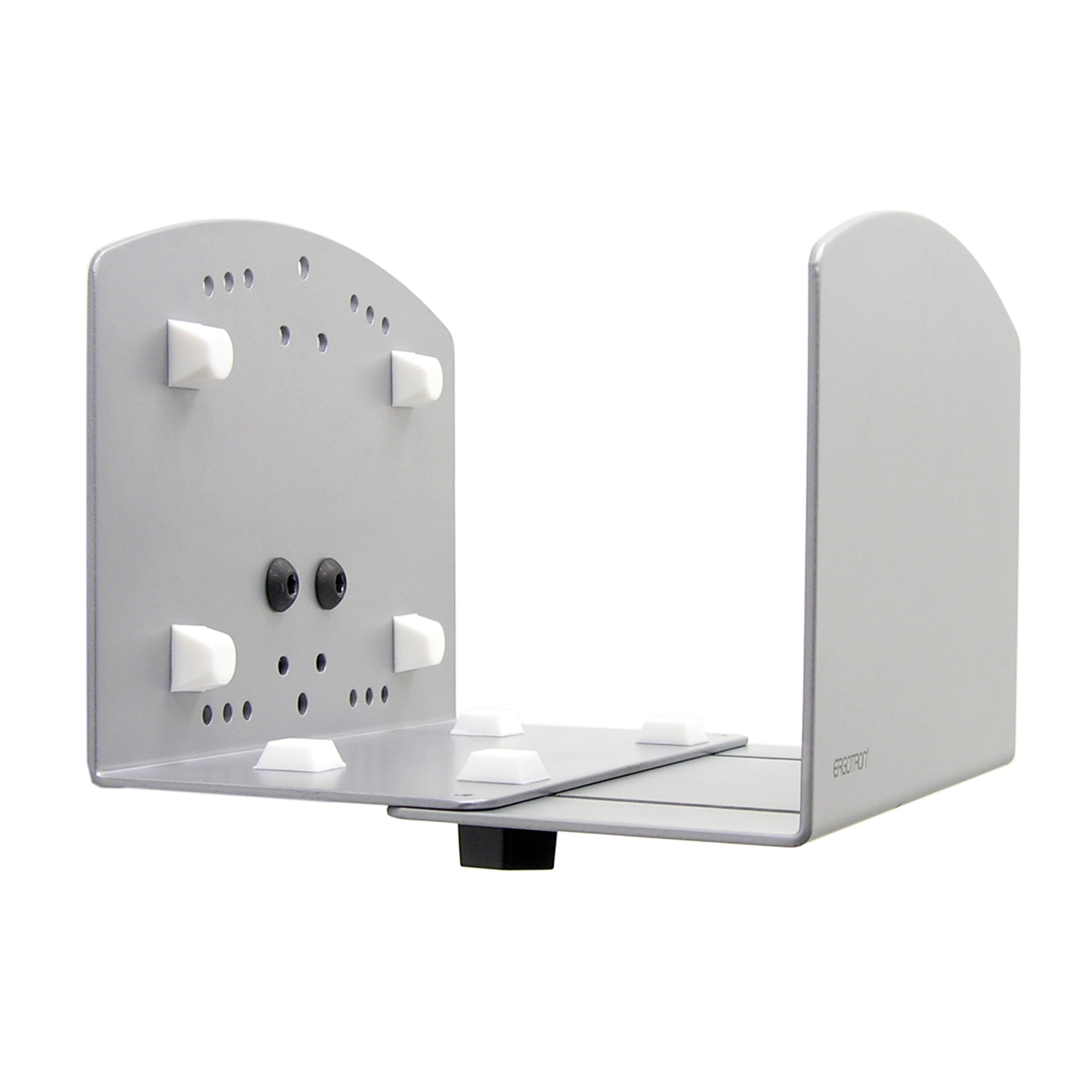

Ergotron Vertical Universal CPU Holder, Silver (97-468-202) - Local Warranty
Grips a Chassis From 2" to 8" (51 to 203 mm) Wide

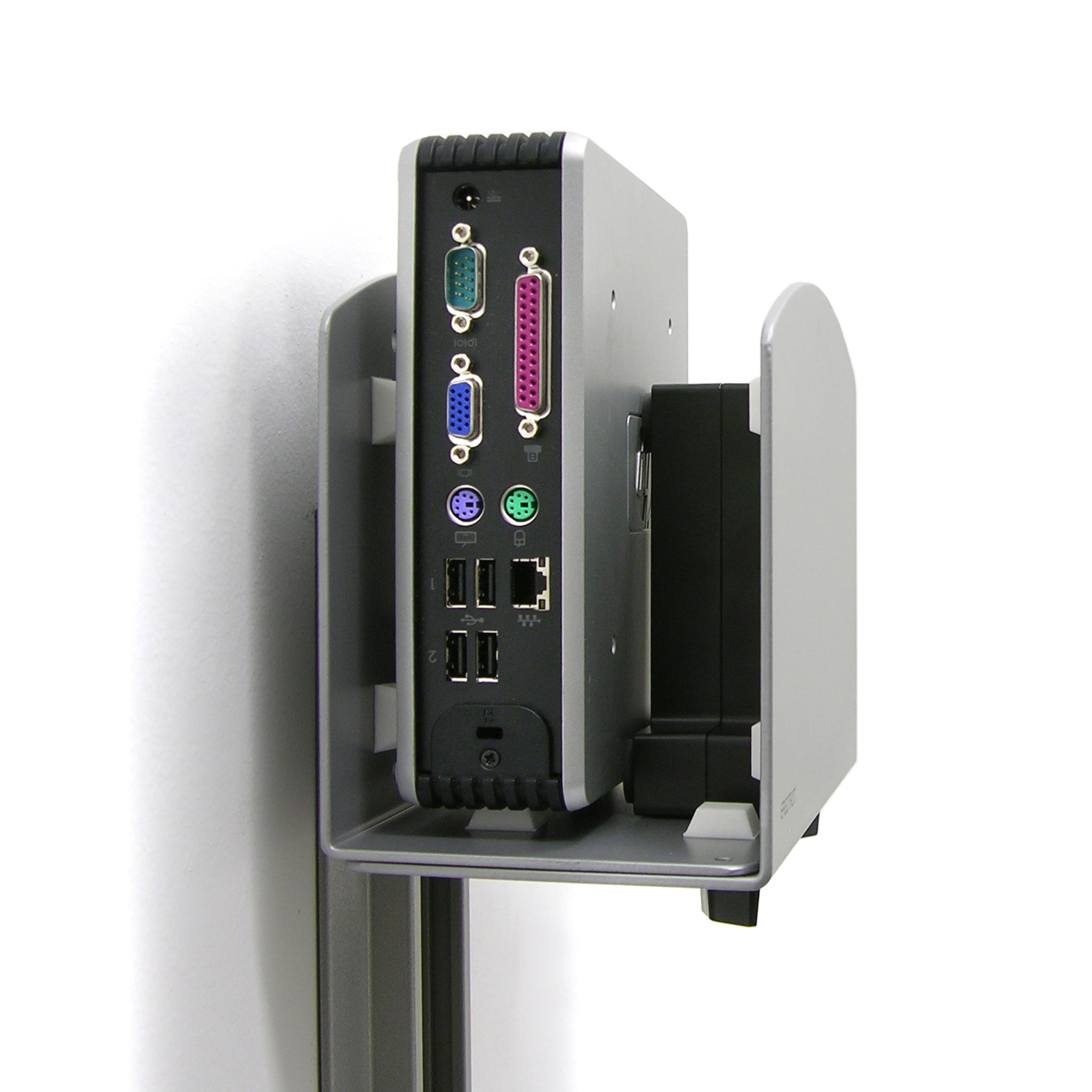

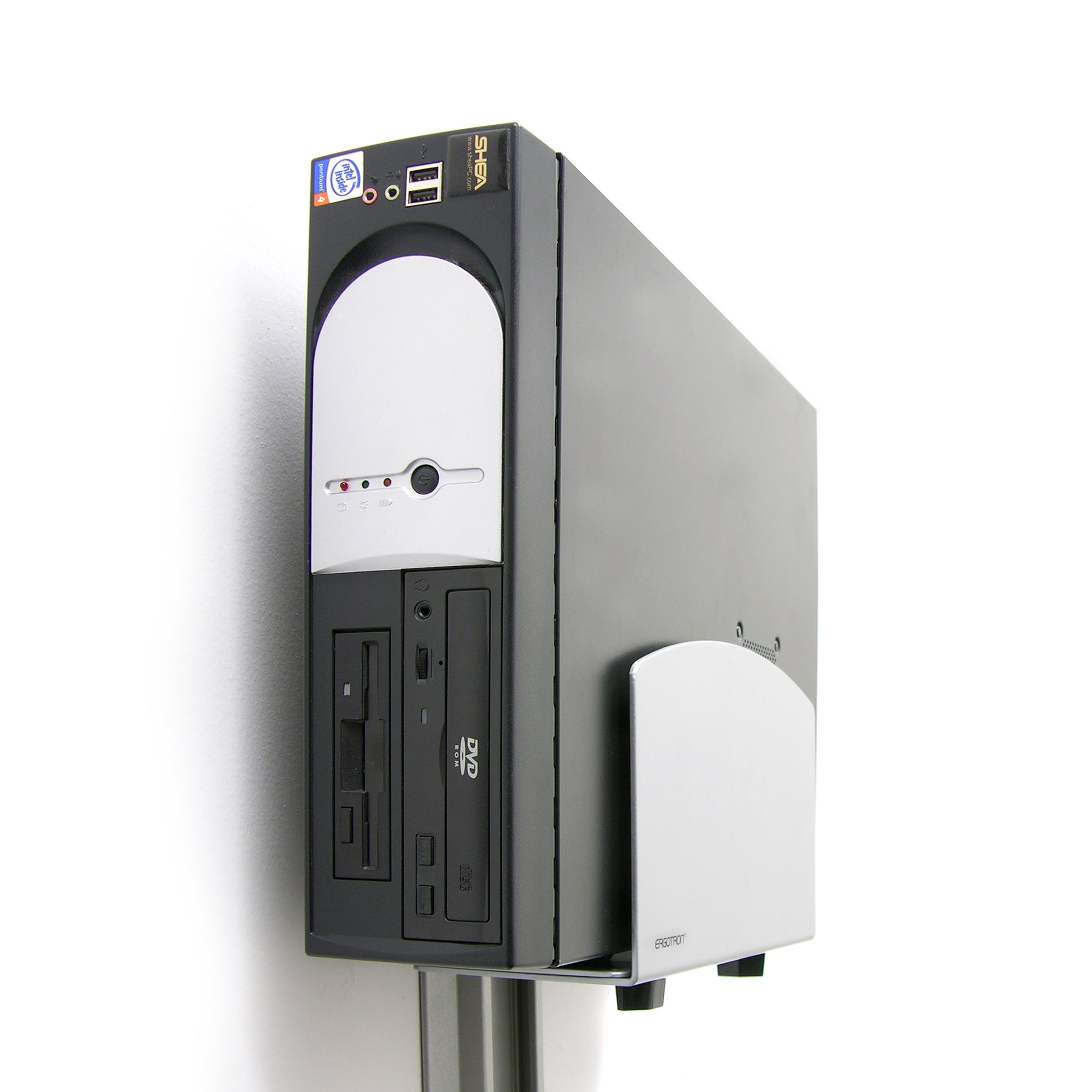

The Vertical Universal CPU Holder covers the widest span in Ergotron's CPU-holder range — 2" to 8" (51 to 203 mm) — and includes a plastic spacer so that small and ultra-small form-factor machines sit securely at the narrow end. One part number handles a mixed fleet of desktops rather than one model of it.
40 lb (18 kg) Capacity, Wall, Track or Pole
Rated to 40 lb (18 kg), the holder fixes to a wood stud or solid concrete wall using the supplied hardware, to an Ergotron Wall Track system, or to an Ergotron post using CPU Holder Bracket 60-158-100. That makes it the practical choice where the mounting surface is decided by the room rather than by preference.
Security Fasteners That Lock the Width Setting
Ergotron supplies security fasteners that lock the holder at its set width, so the machine cannot simply be slid out. The installation guide covers the fastener sets for both the 2"–4" and 4"–8" width bands.
Silver Finish, With a White Option in the Same Model
97-468-202 is the silver finish; Ergotron also lists 97-468-216 in white for white LX Wall Mount System builds. Both are the same holder.
Ergotron Vertical Universal CPU Holder Datasheet — Technical Specifications
General
| Product | Ergotron Vertical Universal CPU Holder |
| Part Number | 97-468-202 |
| Ergotron Model | 97-468 |
| Finish | Silver |
| Type | Fixed vertical CPU holder, width-adjustable |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Device Compatibility
| CPU Width Range | 2" to 8" (51 to 203 mm), plastic spacer included |
| Weight Capacity | 40 lb (18 kg) |
| CPU Height / Depth | Not specified by Ergotron — width is the governing dimension |
Adjustment & Motion
| Adjustment | Two-piece holder, width-adjustable across the range above |
| Rotation / Tilt | None — fixed vertical holder |
| Width Locking | Security fasteners supplied to lock the set width |
Design & Durability
| Wall Mounting — Concrete | M8 x 80 mm bolts into solid concrete, minimum 80 mm hole depth (not mortar) |
| Wall Mounting — Wood Stud | Fix into a stud; stud finder recommended |
| Other Mounting Options | Ergotron Wall Track system; Ergotron post via CPU Holder Bracket 60-158-100 |
| Reference Documents | Ergotron DIM-UVCPU rev. 08/26/2019; installation guide 888-80-011-W-02 rev. K |
Compatibility & Fit
Fit is set by chassis width. This holder grips 2" to 8" (51 to 203 mm) and carries up to 40 lb (18 kg), with a plastic spacer supplied for small and ultra-small form-factor machines at the narrow end of the range. Ergotron publishes no height or depth limit — width and weight are the governing figures.
Worth knowing before you choose between the two Ergotron holders: the Small holder (80-063-200 black, 80-063-216 white) carries more weight at 50 lb (22.7 kg) but takes a much narrower chassis at 1.38"–3.75". This Universal model trades capacity for width. Choose on the machine you actually have.
Mounting is flexible: a wood stud, solid concrete using the supplied M8 x 80 mm bolts at a minimum 80 mm hole depth, an Ergotron Wall Track system, or an Ergotron post using CPU Holder Bracket 60-158-100. The holder is fixed and vertical — Ergotron publishes no rotation or tilt figure for it. Note also that Ergotron's own installation guide prints a narrower 3.38"–7.63" (86–194 mm) range than the 2"–8" on its dimensional drawing and product sheets; if your machine sits close to either extreme, ask us to confirm before you order.
Package Contents & Vertical CPU Holder Ordering Information
In the box: two-piece holder, plastic spacer, bumpers, wall-mount fasteners and attachment hardware, including the security fasteners used to lock the holder's width.
Vertical CPU Holder Ordering Information
| 97-468-202 (this listing) | Vertical Universal CPU Holder — silver, 2"–8" width, 40 lb (18 kg) |
| 97-468-216 | Vertical Universal CPU Holder — white (order on request) |
Ergotron Small CPU Holders at SourceIT
| 80-063-200 | Vertical Small CPU Holder, black — 1.38"–3.75" width, 50 lb (22.7 kg) |
| 80-063-216 | Vertical Small CPU Holder, white — 1.38"–3.75" width, 50 lb (22.7 kg) |
Datasheet & Downloads
- Ergotron Vertical Universal CPU Holder product page (97-468)
- Ergotron dimensional illustration DIM-UVCPU (PDF)
- Ergotron installation guide 888-80-011-W (PDF)
Ergotron does not publish a marketing datasheet PDF for this accessory; the dimensional illustration and installation guide above are the authoritative specification documents.
Frequently Asked Questions — Ergotron Vertical Universal CPU Holder
What size of PC does the Vertical Universal CPU Holder fit?
A chassis 2" to 8" (51 to 203 mm) wide, weighing up to 40 lb (18 kg). A plastic spacer is included for small and ultra-small form-factor machines.
Why does the smaller holder carry more weight?
It is counter-intuitive but correct, and confirmed on two separate Ergotron documents: the Small CPU Holder is rated 50 lb (22.7 kg) and this Universal holder 40 lb (18 kg). The Universal model's advantage is the far wider 2"–8" grip range.
Where can I mount it?
A wood stud, solid concrete (M8 x 80 mm bolts, minimum 80 mm hole depth, into concrete rather than mortar), an Ergotron Wall Track system, or an Ergotron post via CPU Holder Bracket 60-158-100.
Does it lock?
It ships with security fasteners that lock the holder at its set width, so the machine cannot be slid free. That is a width lock, not a theft-proof enclosure — for an exposed area, add a cable lock through the PC's own security slot.
Does it rotate or tilt?
No. Ergotron publishes no rotation or tilt specification for this holder; it is fixed and vertical, with width as the only adjustment.
Is there a white version?
Yes — Ergotron lists 97-468-216 in white for white LX Wall Mount System builds. Ask us to order it if you need the finish to match.
Does it come with a warranty in Singapore?
Yes. Every Ergotron Vertical Universal CPU Holder sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current published warranty schedule does not state a term for mount accessories of this type, so we do not quote a manufacturer duration on this page — ask us and we will confirm the current term with Ergotron for your order.
