Ergotron Universal Thermal Camera Mount
PRODUCT DESCRIPTION
Ergotron Universal Thermal Camera Mount (98-503) - Local Warranty
Mounts a Thermal Imaging Camera to a Mobile Cart
Ergotron's description sets out the job exactly: a universal mount for thermal imaging cameras, like some MOBOTIX models, that works with mobile carts to detect a temperature and help maintain healthy communities. It turns a StyleView cart into a movable screening station rather than requiring a fixed installation.

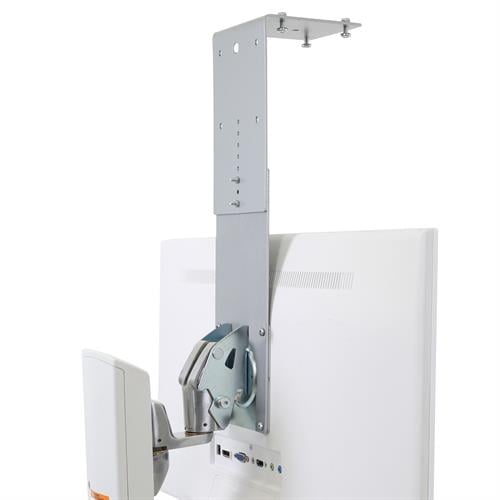

Positions the Camera Slightly Above the Screen
The mount places the thermal camera slightly above the display, which keeps the camera's field of view clear of the screen and gives a secure fit while the cart is being moved — the failure mode that improvised camera mounts usually have.
Works With Powered and Non-Powered StyleView Carts
Ergotron's thermal imaging cart material names the StyleView SV41-6300-0 Cart with LCD Pivot and the LiFe-powered SV42-6302 as the cart platforms, and Ergotron's own product page adds that it works with mobile carts whether powered or not.
Ergotron Universal Thermal Camera Mount Datasheet — Technical Specifications
General
| Product | Ergotron Universal Thermal Camera Mount |
| Part Number | 98-503 |
| Type | Universal mount for thermal imaging cameras on mobile carts |
| Camera Position | Slightly above the display |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Confirmed Compatibility
| Cameras | Thermal imaging cameras — Ergotron states "some MOBOTIX models" and publishes no model list |
| Carts Named by Ergotron | StyleView SV41-6300-0 Cart with LCD Pivot; StyleView SV42-6302 Cart with LCD Pivot, LiFe Powered |
| General | Works with powered or non-powered mobile carts |
Published Specification Limits
| Camera Weight Capacity | Not published in a form we can verify — see the note below |
| Mounting Thread or Interface Size | Not reliably readable from Ergotron's guide |
| Dimensions, Weight, Materials, Finish, Box Contents | Not published by Ergotron |
| Reference Documents | Ergotron installation guide 888-98-181-G; Ergotron thermal imaging cart brochure |
Compatibility & Fit
Two things to settle before ordering, and we would rather raise them than let you discover them on site.
The camera. Ergotron says the mount works with thermal imaging cameras "like some MOBOTIX models", and publishes no compatible-camera list. Its thermal imaging cart brochure also discusses Hikvision cameras. Send us the exact camera model you intend to mount and we will confirm the interface with Ergotron before you commit.
The load rating. Ergotron's installation guide for this mount is a diagram-based document, and the weight capacity could not be read from it reliably — two separate readings returned figures differing by roughly a factor of two. Rather than publish a load rating that might be wrong by half, we publish none. If your camera is heavy, or if a facilities sign-off needs the figure, ask us and we will get it confirmed. The carts themselves are the StyleView SV41-6300-0 and the LiFe-powered SV42-6302, and those are well documented.
Package Contents & StyleView Ordering Information

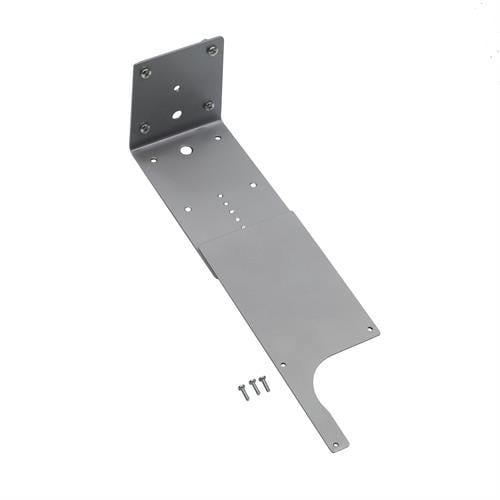

Ergotron publishes no itemised box-contents list for this mount. It ships as the camera mounting bracket with its hardware; the installation guide describes a socket-head nut for adjusting lift tension.
Thermal Imaging Cart Ordering Information
| 98-503 (this listing) | Universal Thermal Camera Mount |
| SV42-6302-3 | StyleView Cart with LCD Pivot, LiFe Powered |
| SV41-6300-0 | StyleView Cart with LCD Pivot (order on request) |
Related StyleView Carts at SourceIT
| SV41-6200-0 | StyleView Cart with LCD Arm, full-featured medical cart |
| SV41-6100-0 | StyleView Laptop Cart |
Datasheet & Downloads
- Ergotron Universal Thermal Camera Mount product page (98-503)
- Ergotron Universal Thermal Camera Mount installation guide 888-98-181-G (PDF)
- Ergotron thermal imaging cart brochure (PDF)
The installation guide is a diagram-based PDF. We link it so your installer can read the hardware and load figures directly from the drawing, which is more reliable than any transcription.
Frequently Asked Questions — Ergotron Universal Thermal Camera Mount
Which thermal cameras does it fit?
Ergotron says it works with thermal imaging cameras "like some MOBOTIX models" and does not publish a compatible-camera list. Send us your camera model and we will confirm the interface with Ergotron.
How much does the mount hold?
Ergotron's installation guide is diagram-based and its weight capacity could not be read reliably — two readings differed by around a factor of two. We publish no figure rather than risk one that is wrong by half. Ask us if you need it confirmed.
Which carts does it work with?
Ergotron's thermal imaging cart material names the StyleView SV41-6300-0 Cart with LCD Pivot and the LiFe-powered SV42-6302 (SV42-6302-3). Its product page adds that it works with powered or non-powered mobile carts generally.
Where does the camera sit relative to the screen?
Slightly above the display, which keeps the camera's view clear and holds it securely while the cart is moved.
Can I retrofit this to a cart already in service?
That is its purpose — it is a universal mount for existing mobile carts rather than a factory build option.
Is this still a relevant product?
It came out of the temperature-screening era, but the mount itself is simply a way to carry a thermal imaging camera on a mobile cart, which still applies to clinical, industrial inspection and facilities work.
Does it come with a warranty in Singapore?
Yes. Every Ergotron Universal Thermal Camera Mount sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current published warranty schedule (rev. 4 August 2026) sets terms by product category and has no category covering accessories or kits of this type, so we do not quote a manufacturer duration on this page — ask us and we will confirm the current term with Ergotron for your order.
