Ergotron Neo-Flex® Cantilever, VHD
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Cantilever, VHD (45-385-223) - 3 Years Local Warranty
Very-Heavy-Duty Full-Motion Wall Mount
The Ergotron Neo-Flex Cantilever, VHD securely holds large flat-panel displays and TVs up to 63 inches and 36.3 kg, bringing a big screen off the floor and out to the perfect viewing position. Reinforced extruded-aluminium arms give a stable, wobble-free hold for boardrooms, training centres and digital-signage installs across Singapore.
Tilt, Pan and Extend for Any Seat
Full-motion articulation — 20° tilt, 180° pan and up to 14 inches of extension — lets you angle the display to suit any seat in the room and reduce glare, then fold it back to a slim 3.2-inch profile against the wall when it is not in use.
Space-Saving, Professional Installation
By moving the display onto the wall, the cantilever frees floor and surface space for a clean, modern look. The low-profile design and integrated cable management keep the installation tidy in busy, shared rooms.
Built for High-Traffic Reliability
High-grade aluminium construction resists sag and holds position over years of daily use, protecting the investment in an expensive large display. A bundled Spider 46 adapter simplifies fitting to a wide range of panels.
Ergotron Neo-Flex Cantilever VHD Datasheet — Technical Specifications
General
| Product | Neo-Flex® Cantilever, VHD |
| Part Number | 45-385-223 |
| Finish | Black |
| Displays Supported | 1 |
| Mounting Type | Wall mount (cantilever, full motion) |
Display Compatibility
| Screen Size | Up to 63" (32–63") |
| Weight Capacity | Up to 80 lbs (36.3 kg) |
| VESA Compatibility | 200 x 100 mm to 600 x 400 mm |
Adjustment & Motion
| Tilt | 20° |
| Pan | 180° |
| Reach / Extension | Up to 14" (357 mm) |
| Folded Profile | 3.2" (82 mm) from wall |
Design & Durability
| Construction | Extruded aluminium arms |
| Cable Management | Integrated |
| Shipping Weight | 11 lbs (5 kg) |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit

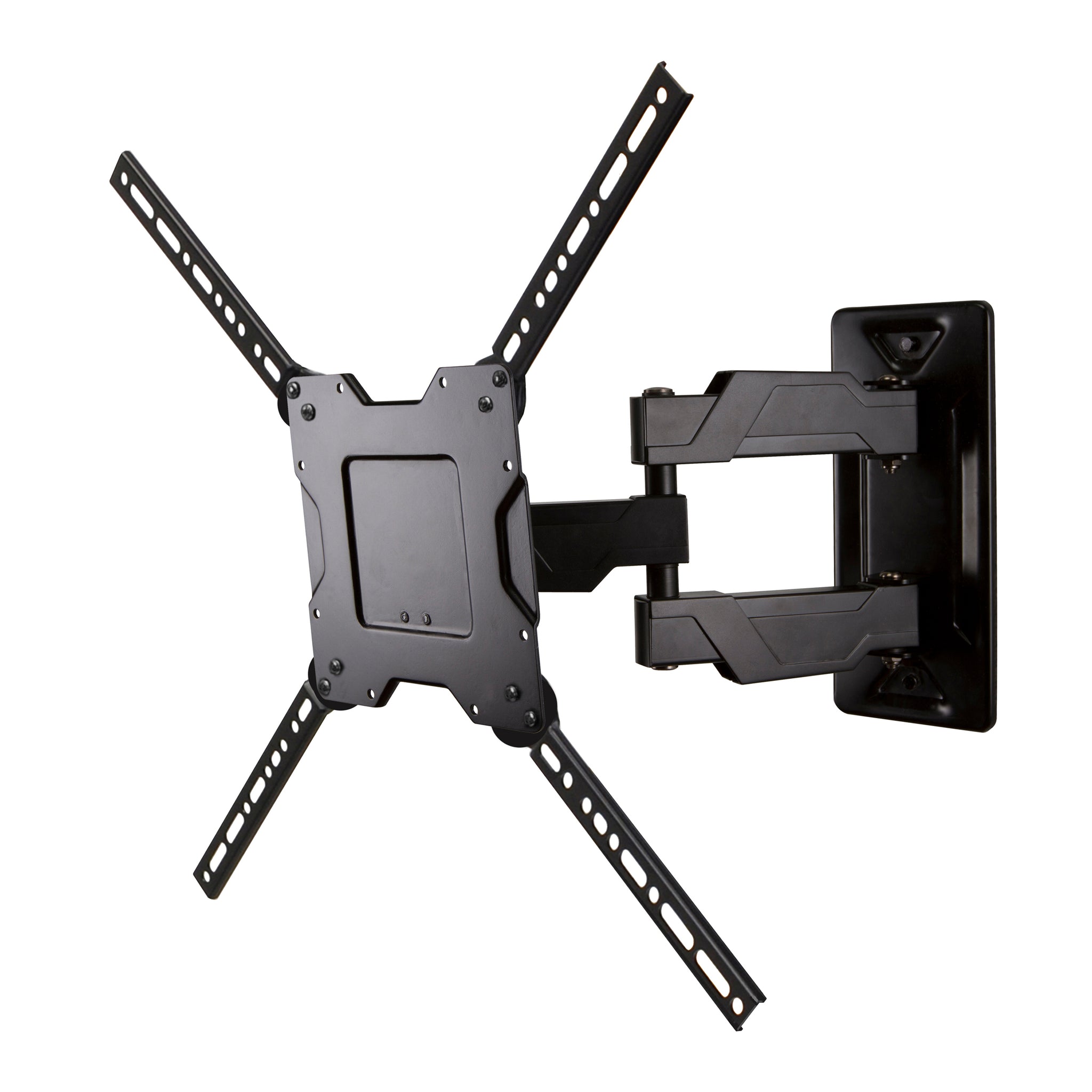

The Neo-Flex Cantilever, VHD is a single-display wall mount for large flat panels of 32–63 inches weighing up to 80 lbs (36.3 kg). It supports a wide VESA range from 200 x 100 mm up to 600 x 400 mm, with a Spider 46 adapter included to fit most panels.
It is designed for large commercial displays, interactive whiteboards and conference-room TVs. If you need even more capacity and reach for a very large panel, step up to the Neo-Flex Cantilever, UHD (61-132-223), which handles up to 120 lbs (54.4 kg).
Package Contents & Neo-Flex Cantilever Ordering Information
In the box: Wall plate, cantilever arm, monitor plate, cable management, Spider 46 adapter and complete installation hardware.
Neo-Flex Cantilever Range
| Cantilever, VHD (up to 63", 36.3 kg) | 45-385-223 (this listing) |
| Cantilever, UHD (37"+, up to 54.4 kg) | 61-132-223 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Neo-Flex Cantilever VHD
What size and weight of TV or display does it hold?
Large flat panels from 32 to 63 inches, weighing up to 80 lbs (36.3 kg).
How is it different from the UHD cantilever?
The VHD (45-385-223) supports up to 63" / 80 lbs with 14" of reach; the UHD (61-132-223) is heavier-duty, up to 120 lbs with 18.8" of reach.
What VESA patterns does it support?
From 200 x 100 mm up to 600 x 400 mm, and a Spider 46 adapter is included to fit most panels.
How far does it extend and fold back?
It extends up to 14 inches (357 mm) and folds back to a 3.2-inch (82 mm) profile against the wall.
Can it tilt and swivel for better viewing angles?
Yes — 20° tilt and 180° pan let you angle the screen to suit the room.
Is it covered by a Singapore warranty?
Yes. Every Ergotron Neo-Flex Cantilever VHD sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Cantilever VHD with a 3-year manufacturer warranty.
