Ergotron LX Pro Wall Mount System Dark Grey
PRODUCT DESCRIPTION
Ergotron LX Pro Wall Mount System Dark Grey (45-696-293) - 10 Years Local Warranty
A Complete Wall Workstation on a Single Track

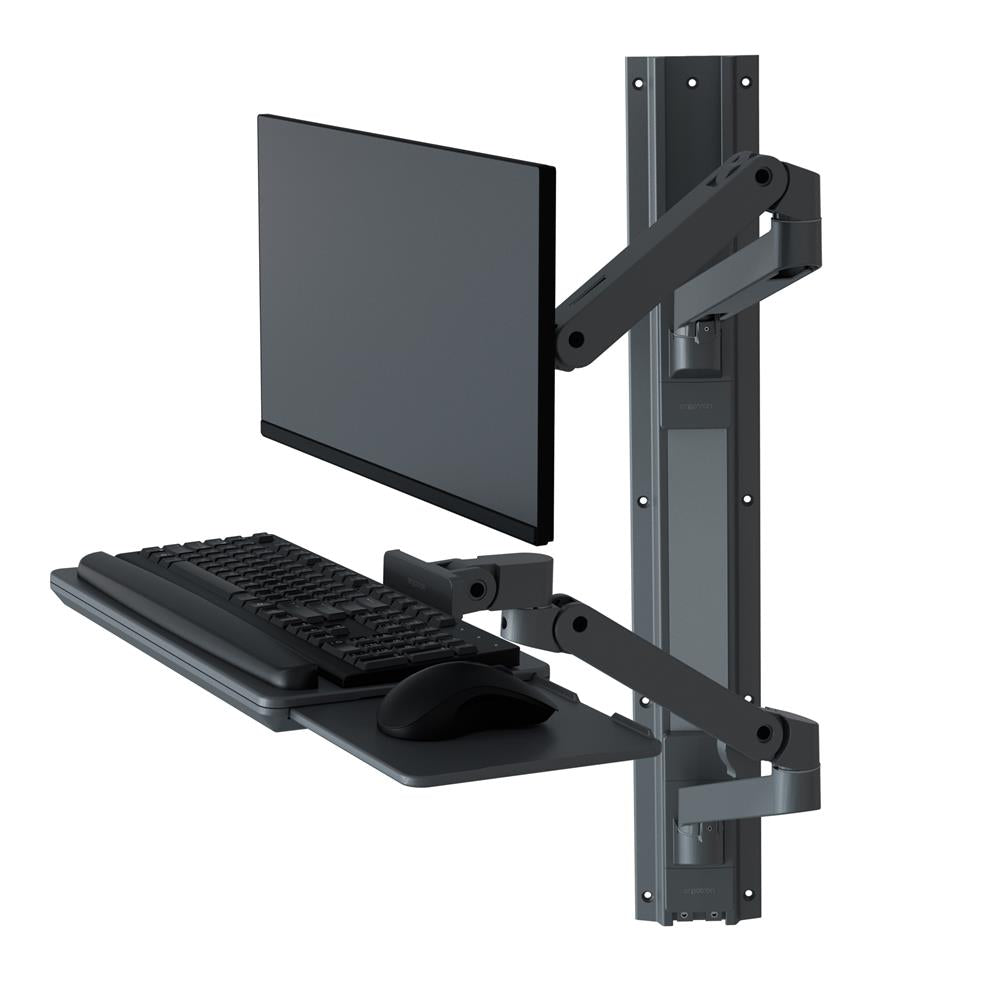

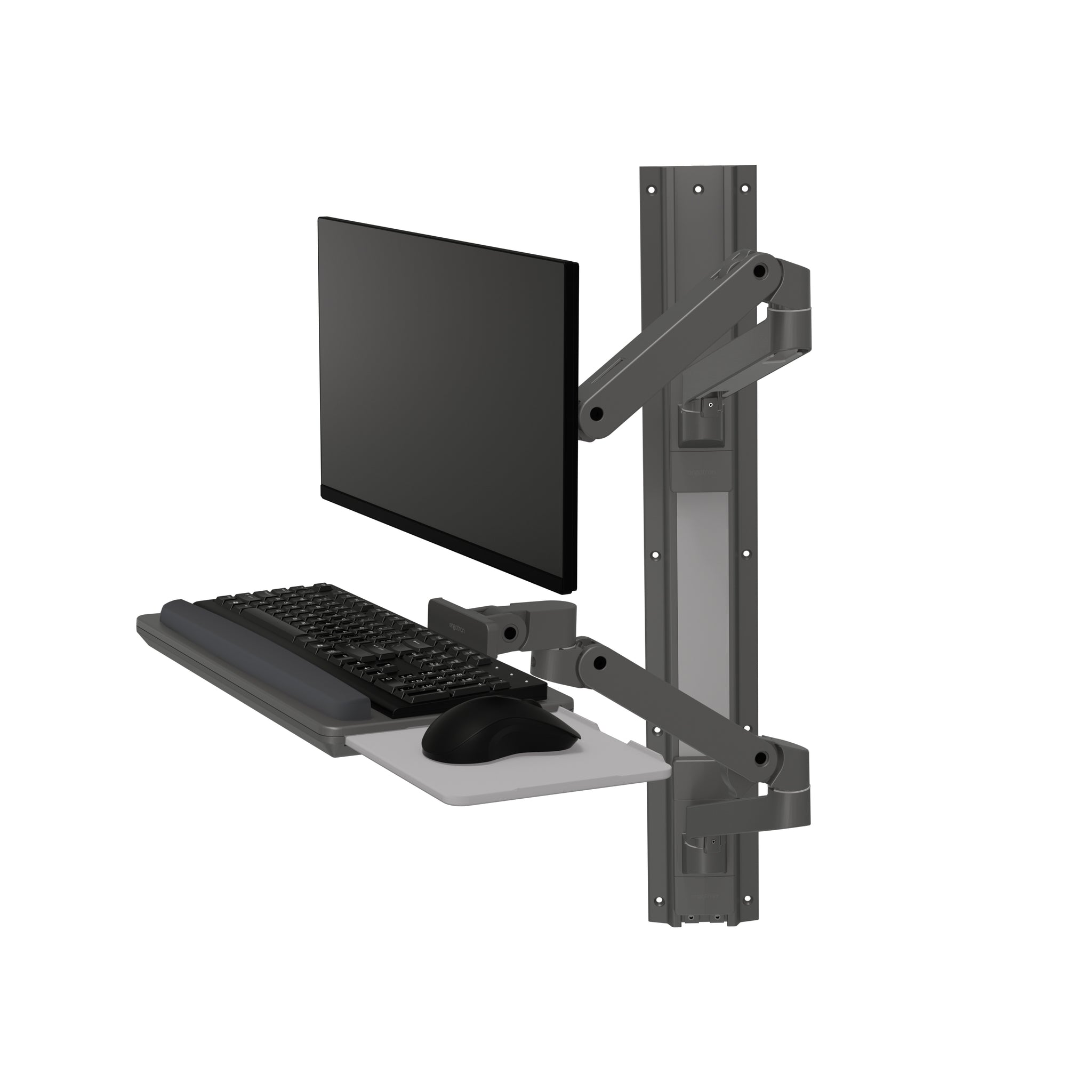

The LX Pro Wall Mount System in Dark Grey (45-696-293) puts a full-motion monitor arm and an independent keyboard arm on one wall track, turning a bare wall into a working station. It is the configuration Singapore clinics, labs, workshops and stockrooms reach for when floor space cannot be given to a desk but a real display-and-keyboard position is still required.
Display and Keyboard Move Independently

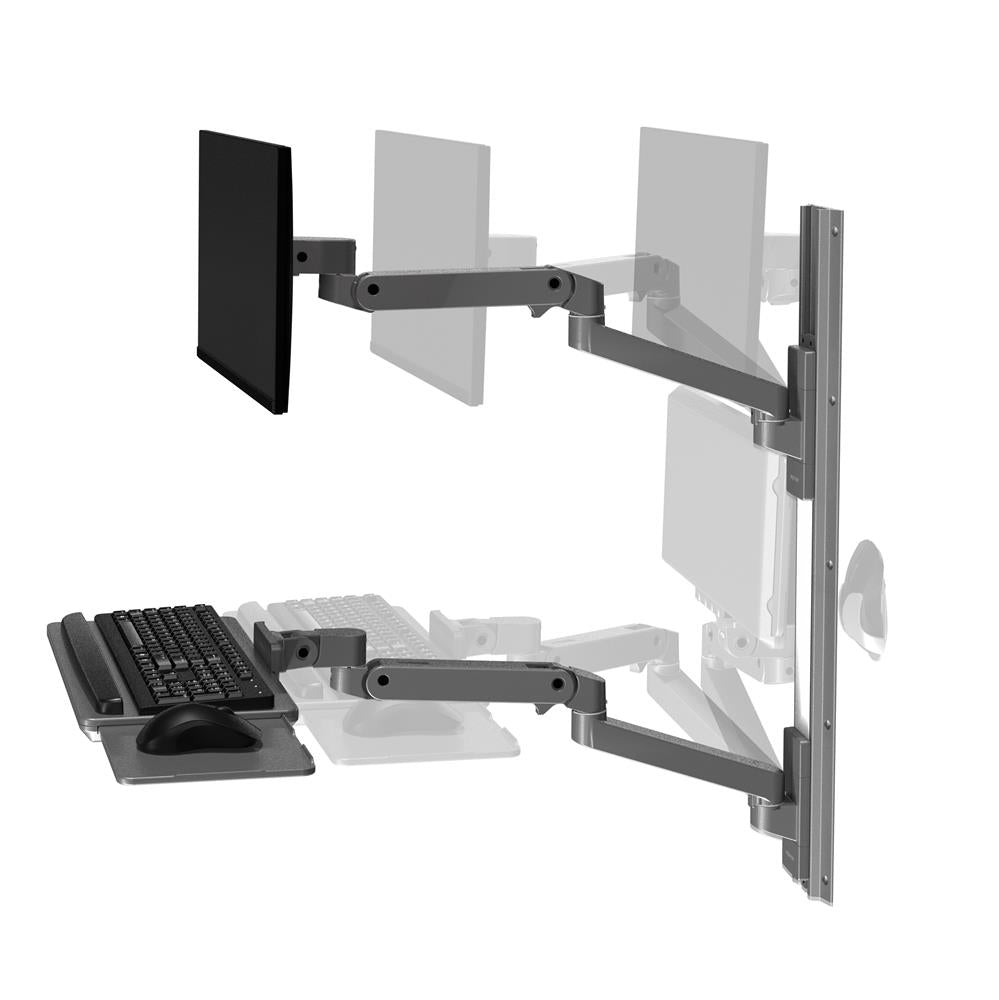

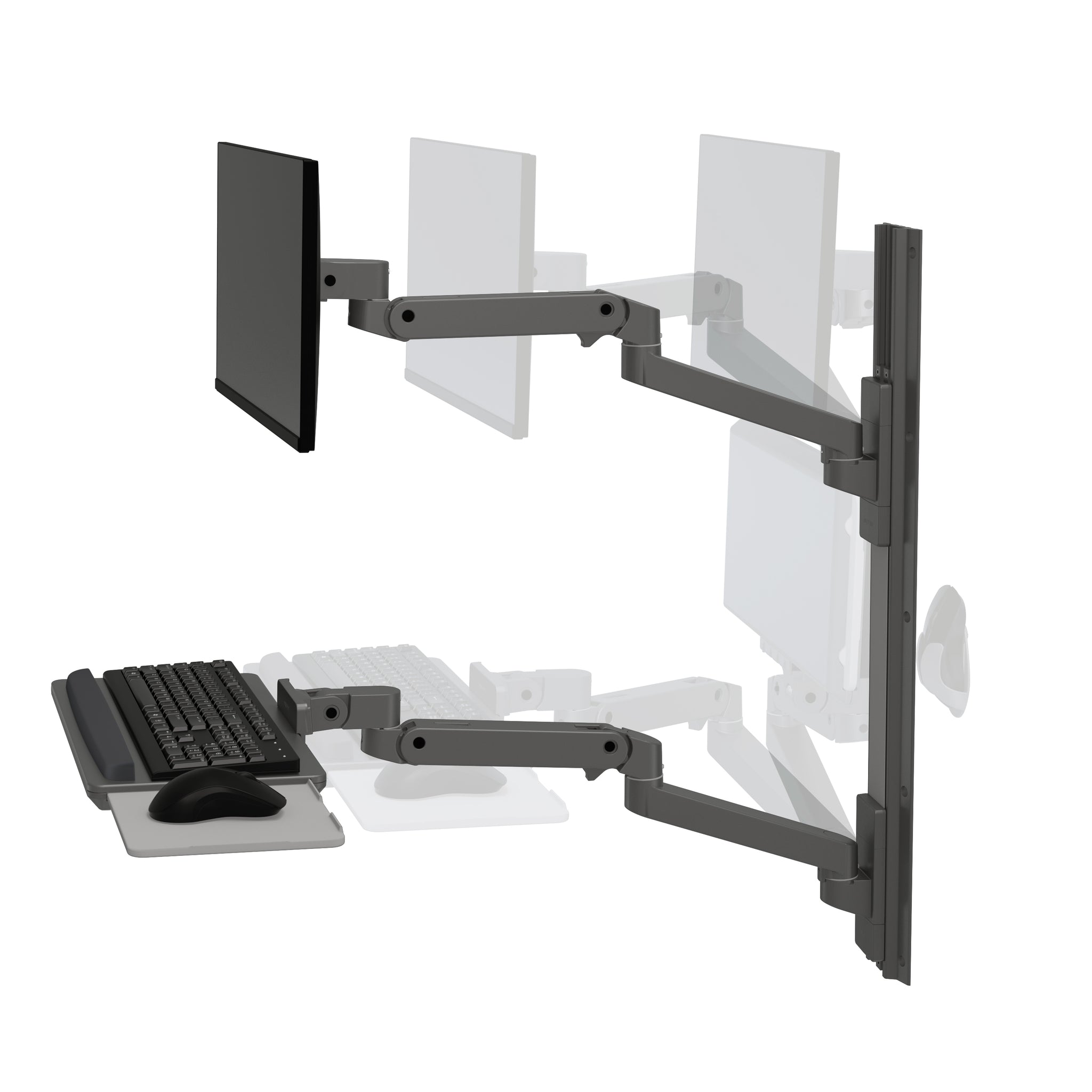

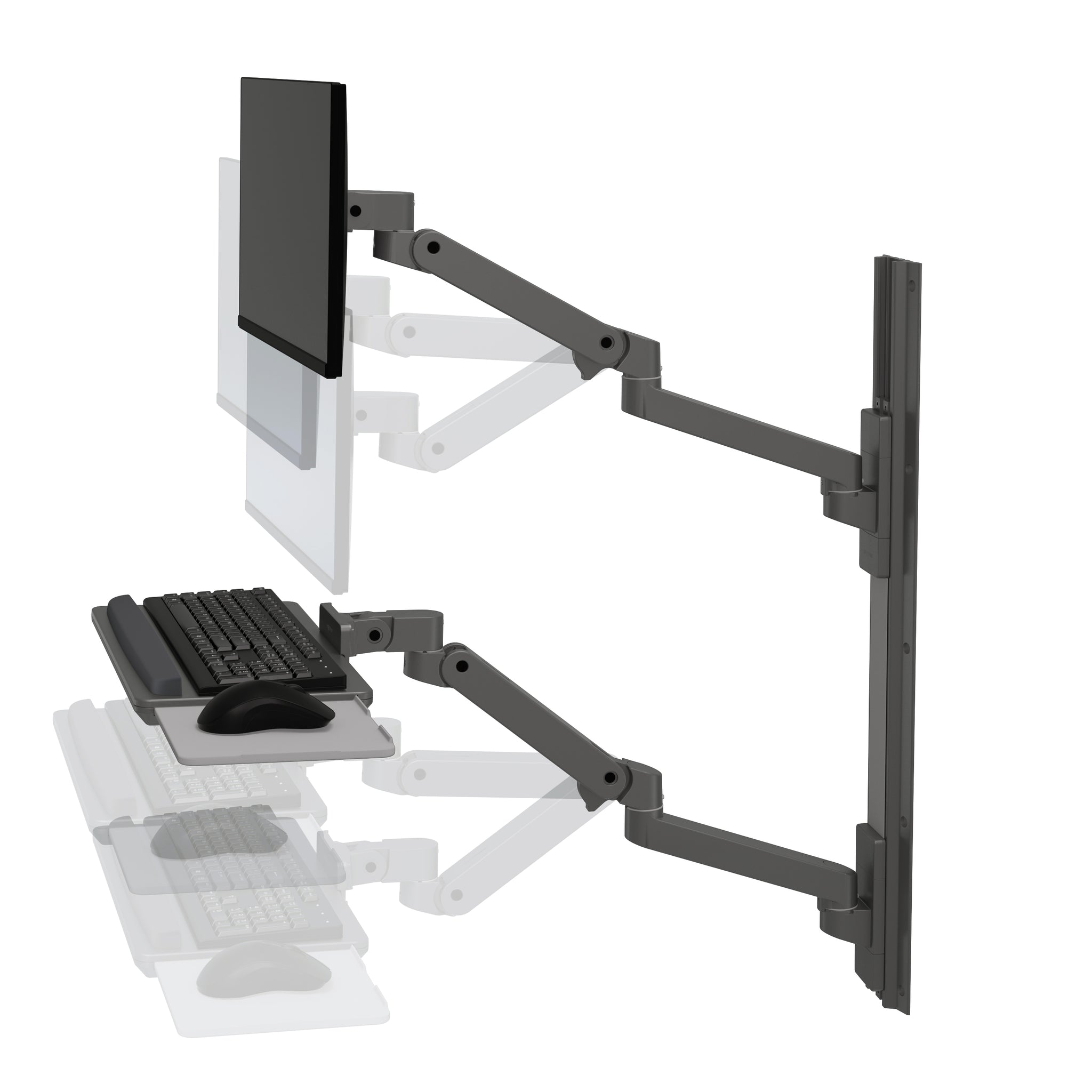

The monitor carries 4–22 lbs (1.8–10 kg) at up to 34", with 13" (33 cm) of Constant Force lift, 85° of tilt (+70° / -15°), 180° of monitor pan and 360° of rotation. The keyboard tray pivot sits on its own arm, so a standing user and a seated user can each find a neutral posture without recompromising the other.
Wall Track Mounting with a 180° Rotation Stop

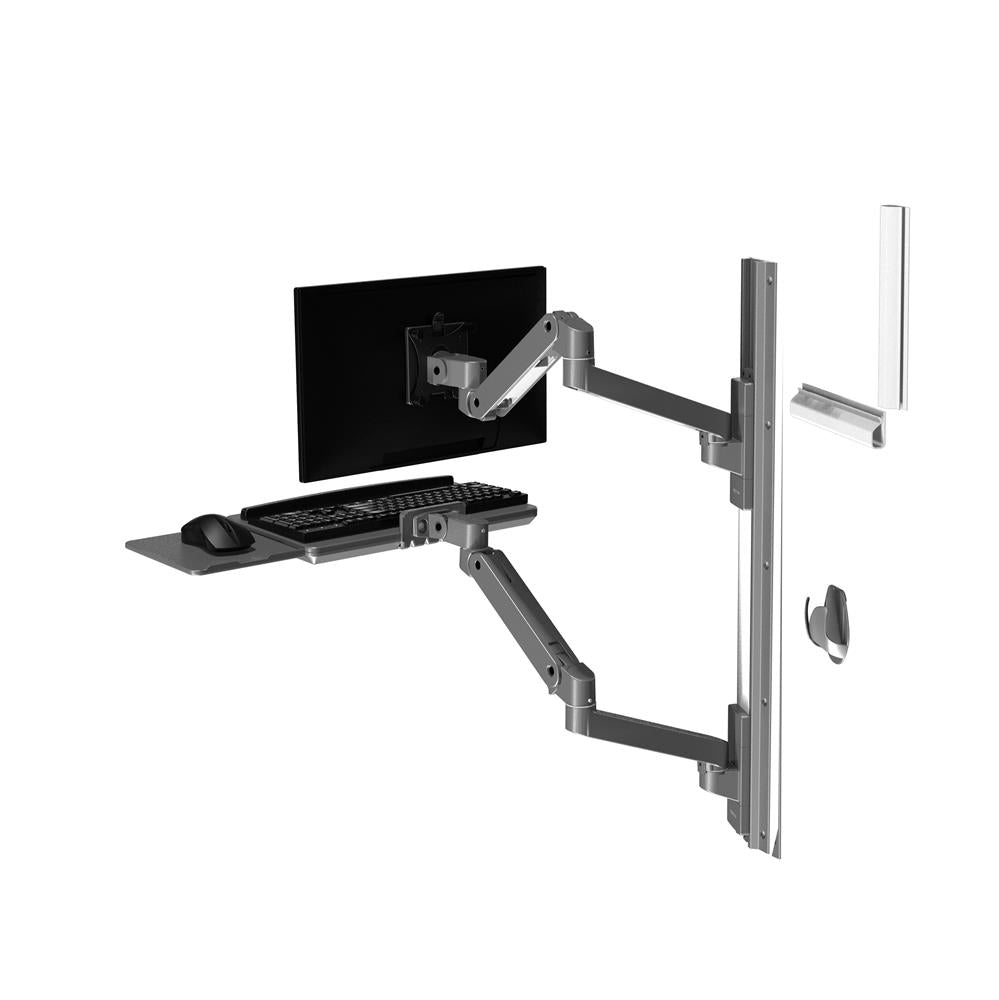

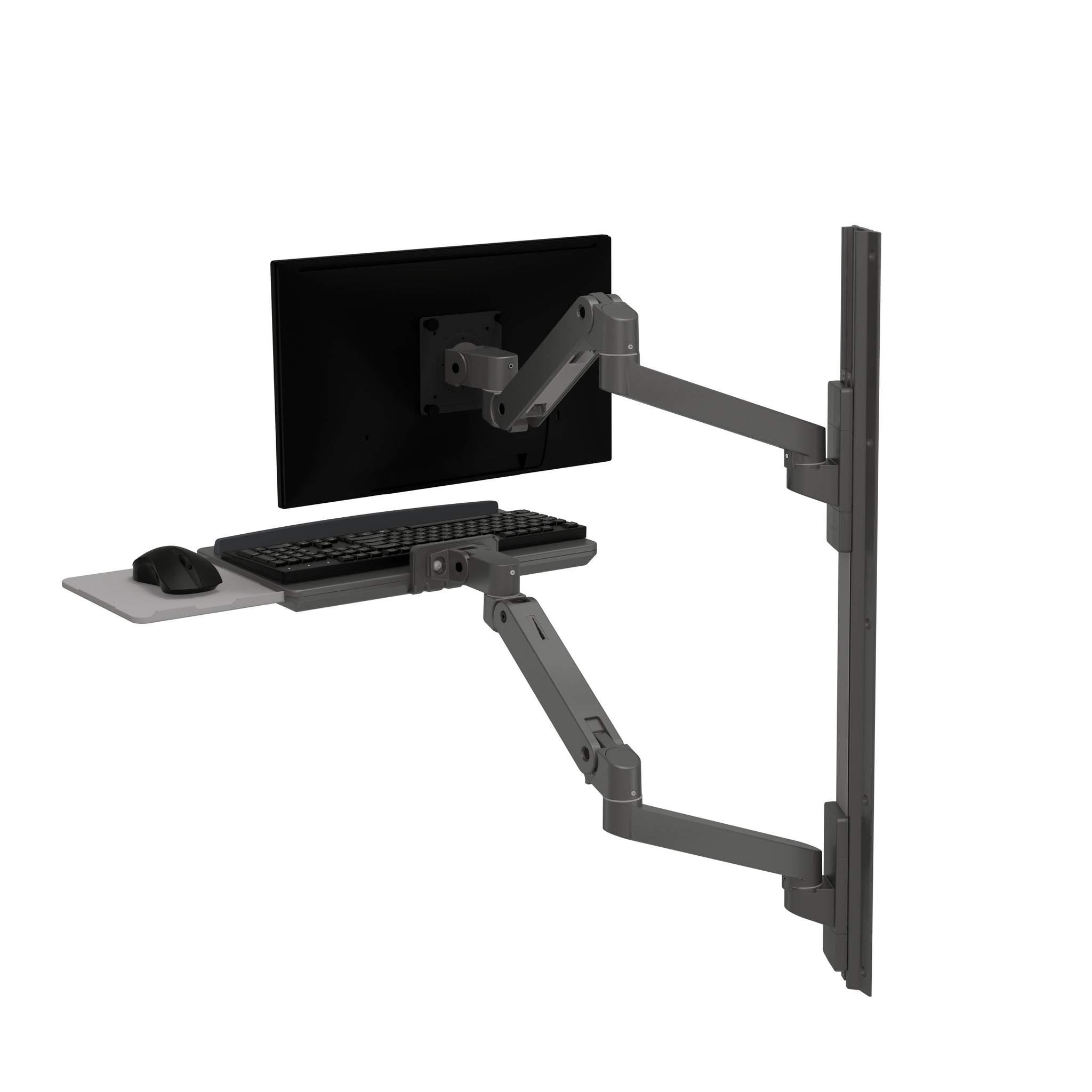

The system mounts on a wall track with a wall-mount base, and the base arm pans 180° with the rotation stop engaged — useful where the station sits beside a doorway or a traffic lane. Maximum extension is 25" (64 cm), and the pivot is VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm).
Complete in the Box, Backed for 10 Years
The carton includes both arms and extensions, the monitor pivot, the wall track and base, the keyboard tray pivot, a mouse holder, a wrist pad and all attachment hardware. Aluminium construction, integrated cable management and a 10-year Ergotron manufacturer warranty round it out; SourceIT adds local Singapore warranty support and a GST invoice.
Ergotron LX Pro Wall Mount System Datasheet — Technical Specifications
General
| Product Type | Wall-mounted monitor-and-keyboard workstation on a wall track |
| Mounting | Wall-mount base with wall track (attachment hardware included) |
| Lift Technology | Constant Force motion technology |
| Cable Management | Integrated cable management with cable cover |
| Construction | Durable aluminium construction |
| Shipping Weight | 33.8 lbs (15.3 kg) |
| Shipping Dimensions | 37.2"L x 18.4"W x 6.5"H (94.5 x 46.8 x 16.5 cm) |
Display Compatibility
| Typical LCD Size | ≤ 34" |
| Weight Capacity | 4–22 lbs (1.8–10 kg) |
| Number of Displays | 1 (plus an independent keyboard tray) |
| VESA Pattern | VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm) |
Adjustment & Motion
| Lift (Height Adjustment) | 13" (33 cm) |
| Tilt | 85° (+70° / -15°) |
| Monitor Pan | 180° |
| Base Arm Pan | 180° with rotation stop engaged |
| Monitor Rotation | 360° (portrait / landscape) |
| Maximum Extension | ≤ 25" (64 cm) |
Design & Durability
| Part Number | 45-696-293 |
| Finish | Dark Grey |
| Series | Ergotron LX Pro |
| Materials | Aluminium construction |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
Display. One screen of typically ≤ 34" weighing 4–22 lbs (1.8–10 kg), on a full-motion arm, plus an independent keyboard tray pivot on its own arm.
VESA. VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm). A display with no VESA pattern requires the manufacturer's adapter plate.
Mounting. Wall only, via the supplied wall track and wall-mount base. No desk clamp or grommet option applies, so desk thickness is not a consideration. Verify the wall substrate and select fixings to suit; attachment hardware is included. Note that the base arm pans 180° with the rotation stop engaged, which is the figure to plan around when the station sits next to a door or a corridor.
Ultrawide and curved screens. Confirm the panel weighs no more than 22 lbs (10 kg) with its VESA plate fitted. Very wide panels also need lateral clearance for the 180° monitor pan.
Keyboard. Ergotron's datasheet for this system does not publish a separate keyboard tray size or tray load rating, so SourceIT does not quote one. If you need those published figures, the standalone LX Pro Wall Keyboard Arm is specified at ≤ 17.6" x 9.5" and ≤ 5 lbs (2.3 kg).
Package Contents & LX Pro Ordering Information
What's in the Box

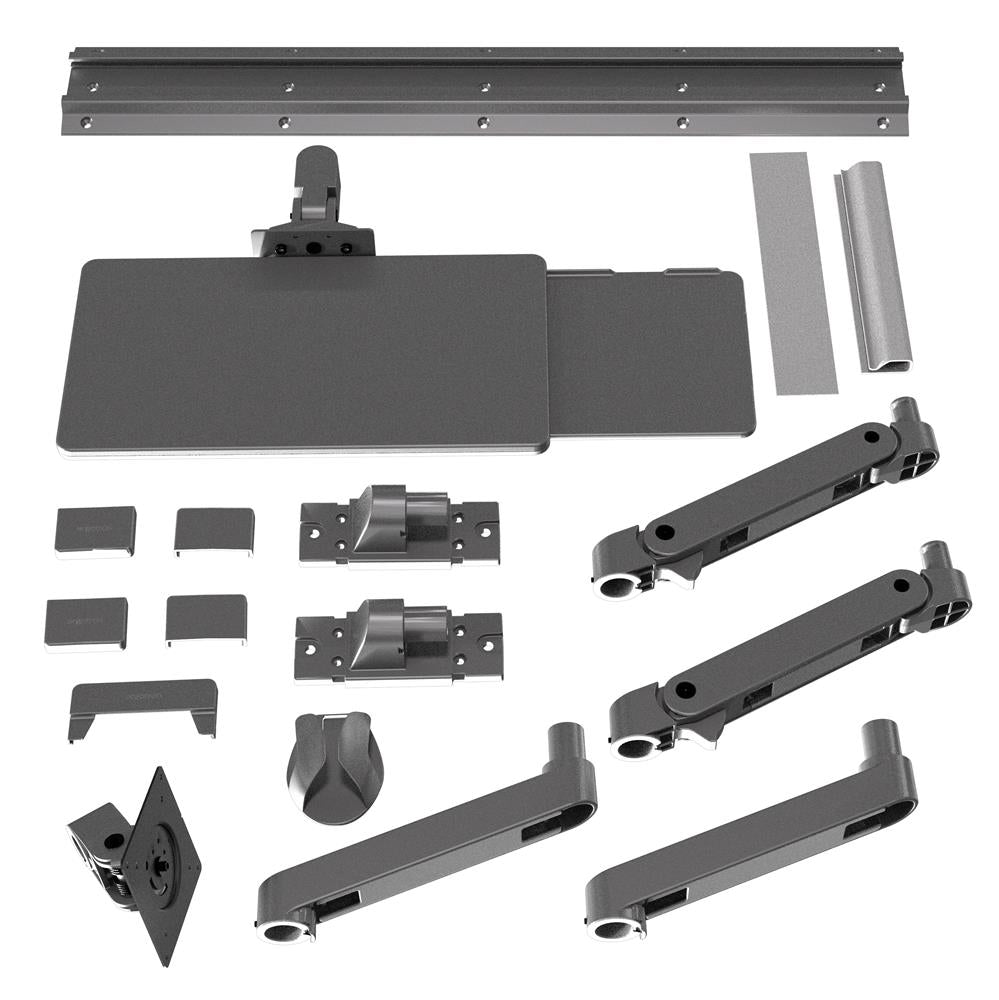

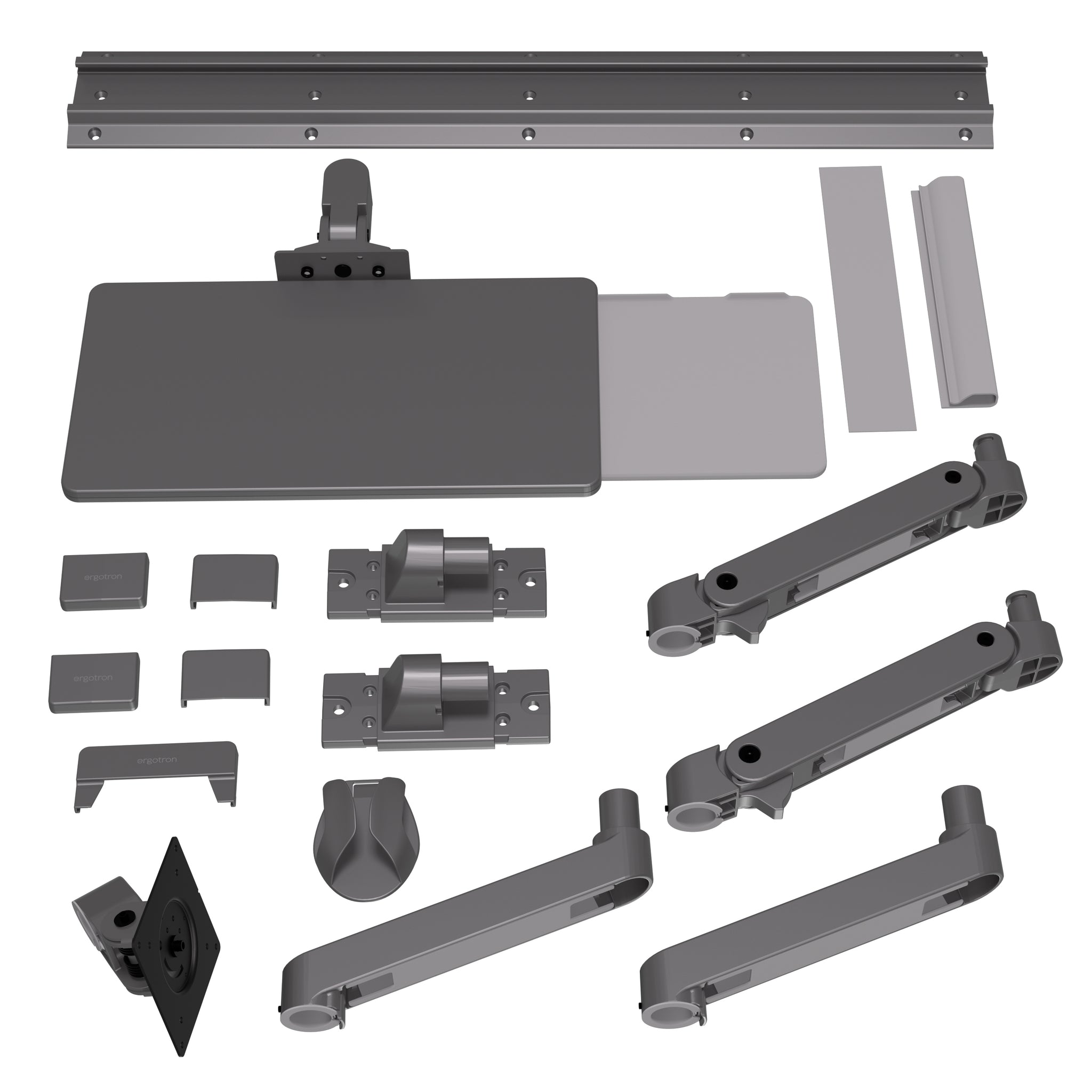

(2) Arms, (2) extensions, monitor pivot, wall-mount base, wall track, keyboard tray pivot, mouse holder, wrist pad, attachment hardware
LX Pro Wall Mount System Series Ordering Information — Finishes
| 45-696-292 | Matte Black |
| 45-696-293 | Dark Grey (this listing) |
| 45-696-290 | White |
Related Ergotron LX Models at SourceIT
Other LX Pro Models in This Batch
| 45-683 | LX Pro Wall Monitor Arm |
| 45-685 | LX Pro Wall Keyboard Arm |
| 45-690 | LX Pro Dual Stacking Arm |
Datasheet & Downloads
- LX Pro Wall Mount System Datasheet (PDF) — official Ergotron datasheet
- Ergotron LX Pro Series Specification Sheet (PDF)
Ergotron does not publish a separate public product page for this part number that SourceIT could verify at the time of writing, so only the verified datasheet PDFs are linked above.
Frequently Asked Questions — Ergotron LX Pro Wall Mount System
Do the Matte Black, Dark Grey and White versions differ in any way other than colour?
No. 45-696-292, 45-696-293 and 45-696-290 are the same LX Pro Wall Mount System with the same published specifications; only the finish differs. This listing is the Dark Grey version (45-696-293).
What exactly comes in the box?
Two arms and two extensions, a monitor pivot, the wall-mount base and wall track, a keyboard tray pivot, a mouse holder, a wrist pad and all attachment hardware — a complete wall workstation in one carton.
What size and weight of display does it carry?
A single display of typically ≤ 34" weighing 4–22 lbs (1.8–10 kg), on VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm) pivots.
Can I mount two monitors on it?
No — the system supplies one monitor pivot plus a keyboard tray pivot. For two displays, look at the desk-mounted LX Pro Dual Stacking Arm (45-690).
How does it fix to the wall, and does desk thickness matter?
It fixes to the wall via the supplied wall track and wall-mount base; there is no desk-clamp or grommet variant, so desk thickness is not a factor. Confirm your wall substrate and use fixings rated for the combined weight of the system and the display.
Is it suitable for a standing workstation?
Yes. The monitor arm gives 13" (33 cm) of Constant Force lift and the keyboard sits on its own independently adjustable arm, so a standing user and a seated user can each set a neutral posture at the same station.
How does it compare with the older LX Sit-Stand Wall Mount arms?
The LX Sit-Stand Wall Mount LCD Arm (45-353-026) and LX Sit-Stand Wall Keyboard Arm (45-354-026) are the previous-generation parts bought separately; the LX Pro Wall Mount System delivers the equivalent monitor-plus-keyboard station as one current-platform kit on a shared wall track.
Does this come with a Singapore warranty and a GST invoice?
Yes. Every Ergotron LX Pro Wall Mount System sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Pro Wall Mount System with a 10-year manufacturer warranty.
