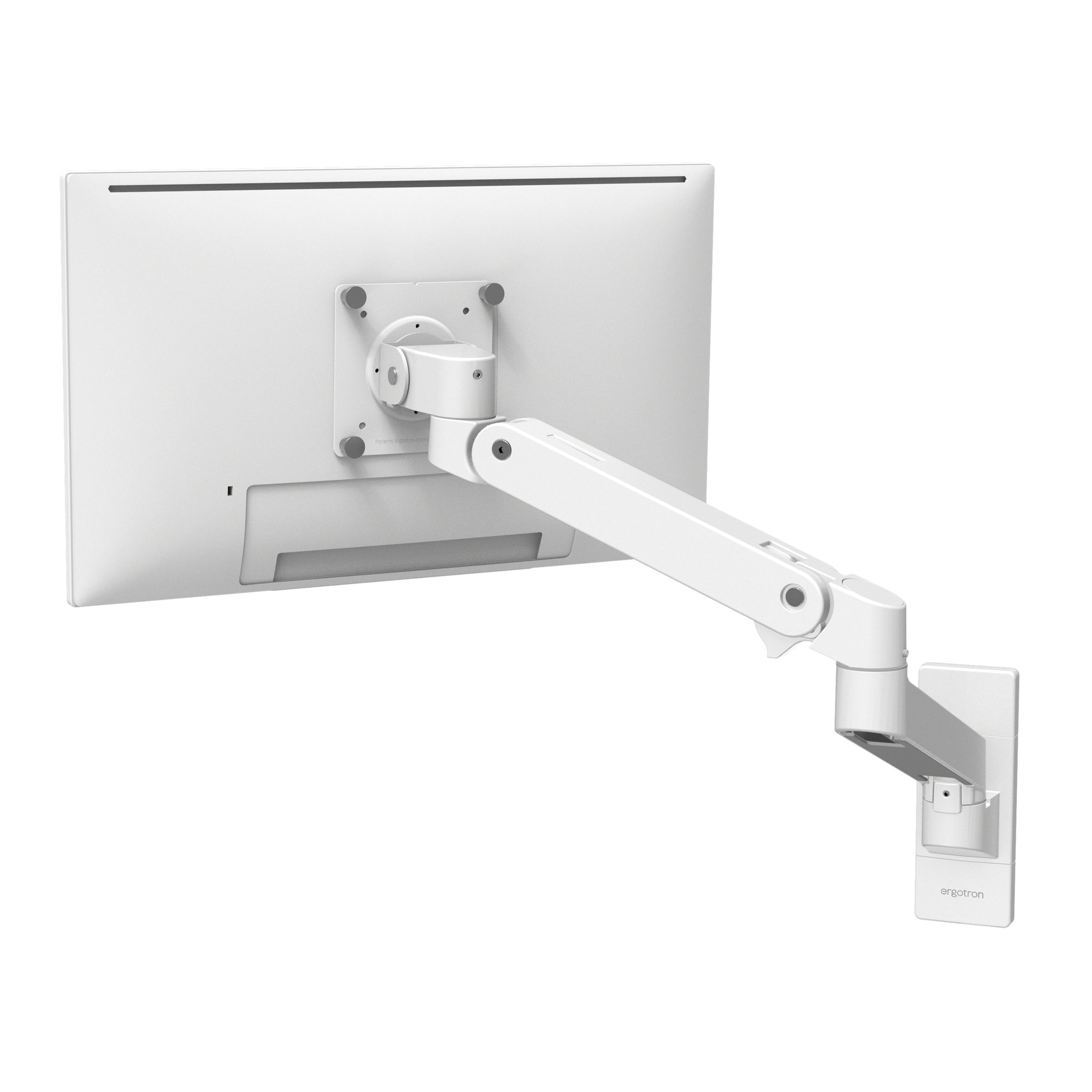

Ergotron LX Pro Wall Monitor Arm White
PRODUCT DESCRIPTION
Ergotron LX Pro Wall Monitor Arm White (45-683-290) - 10 Years Local Warranty
Full-Motion Wall Mounting That Frees the Entire Desk

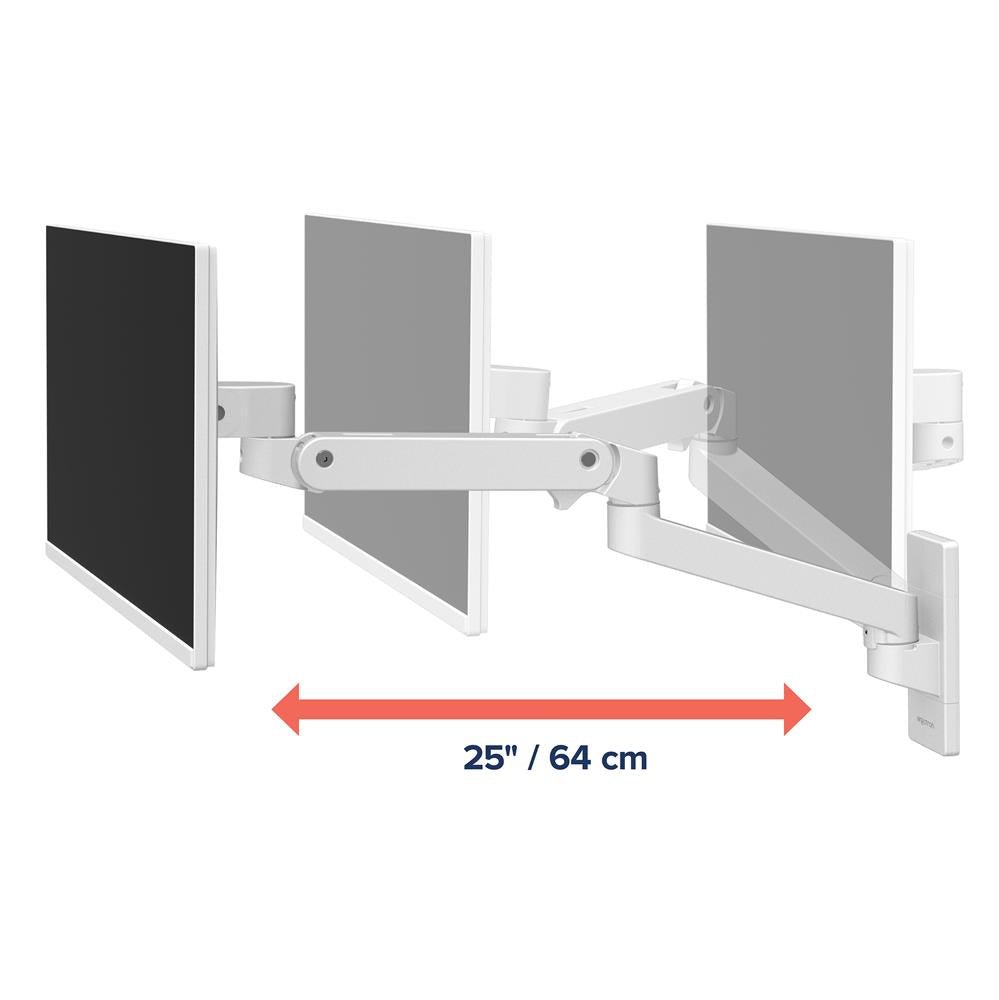

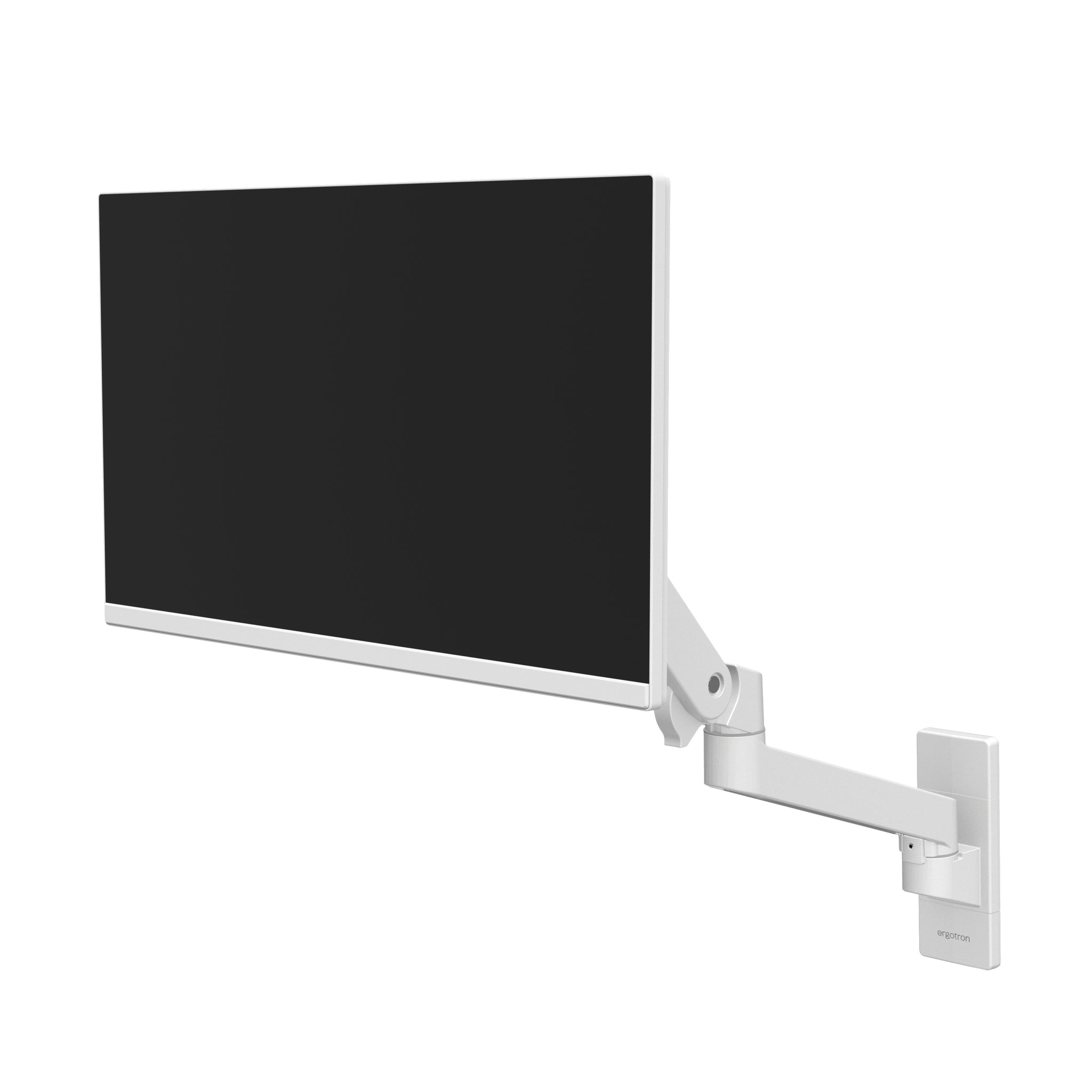

The LX Pro Wall Monitor Arm in White (45-683-290) takes the display off the desk altogether and puts it on the wall, where you can still move it. It carries a single monitor up to 34" weighing 4–22 lbs (1.8–10 kg) and extends up to 25" (64 cm) from the wall, so the screen comes to you instead of the other way round. In Singapore offices, clinics and retail counters where every square foot of worksurface is costed, that reclaimed desk space is the point.
Constant Force Technology for One-Touch Height Adjustment

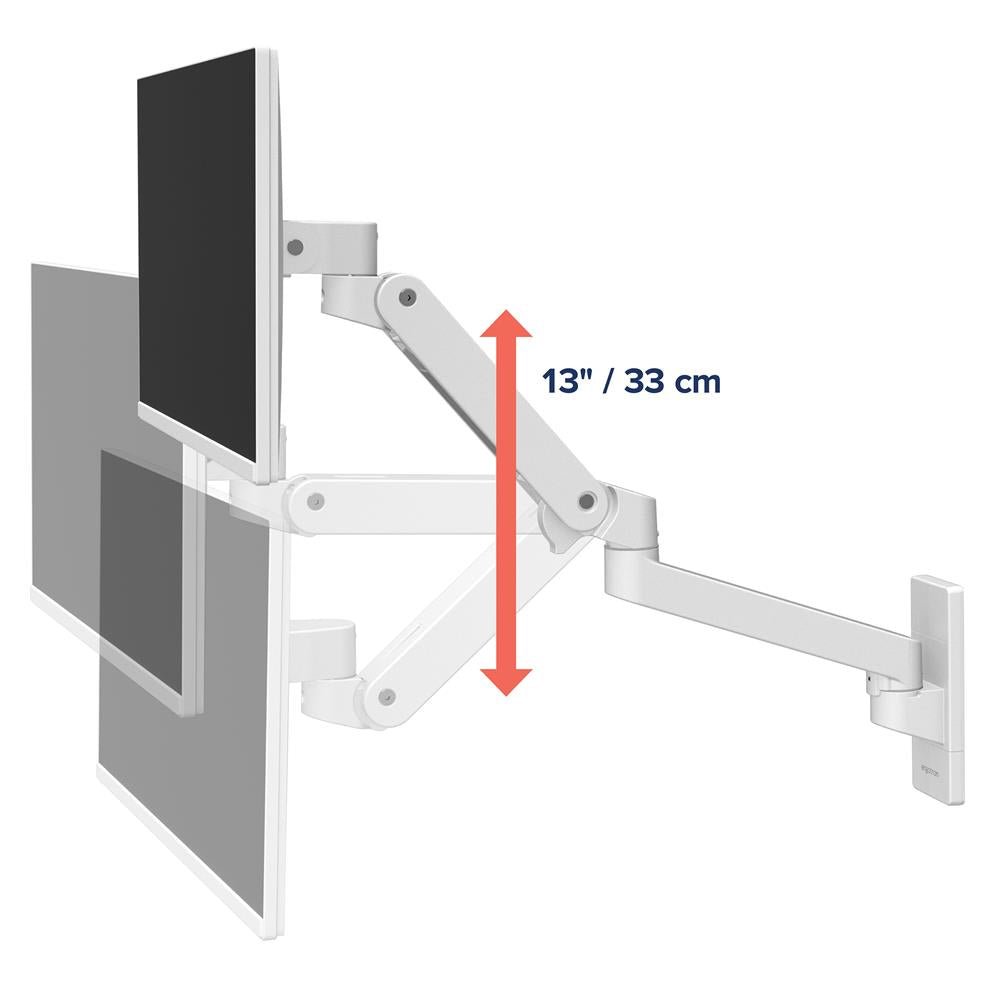

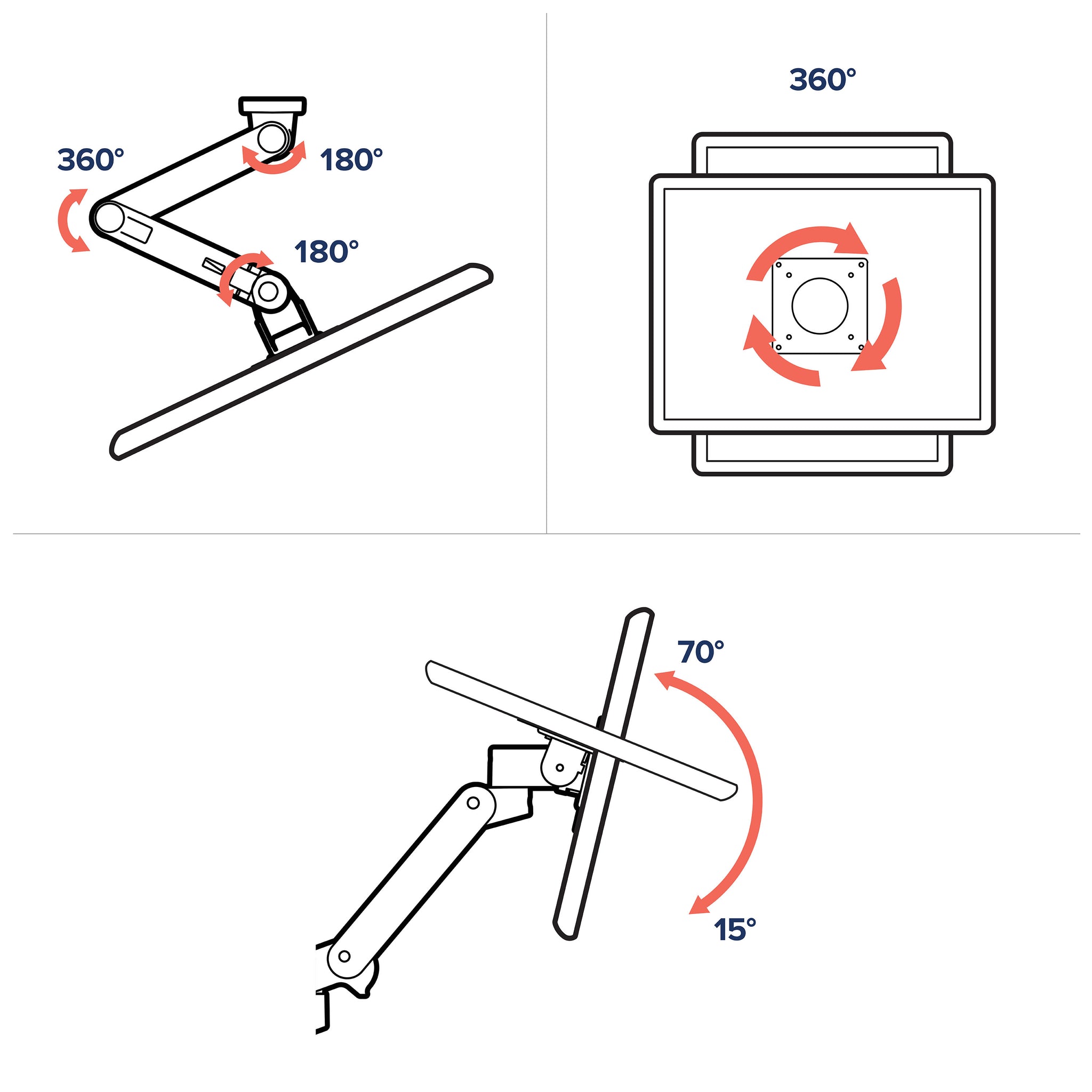

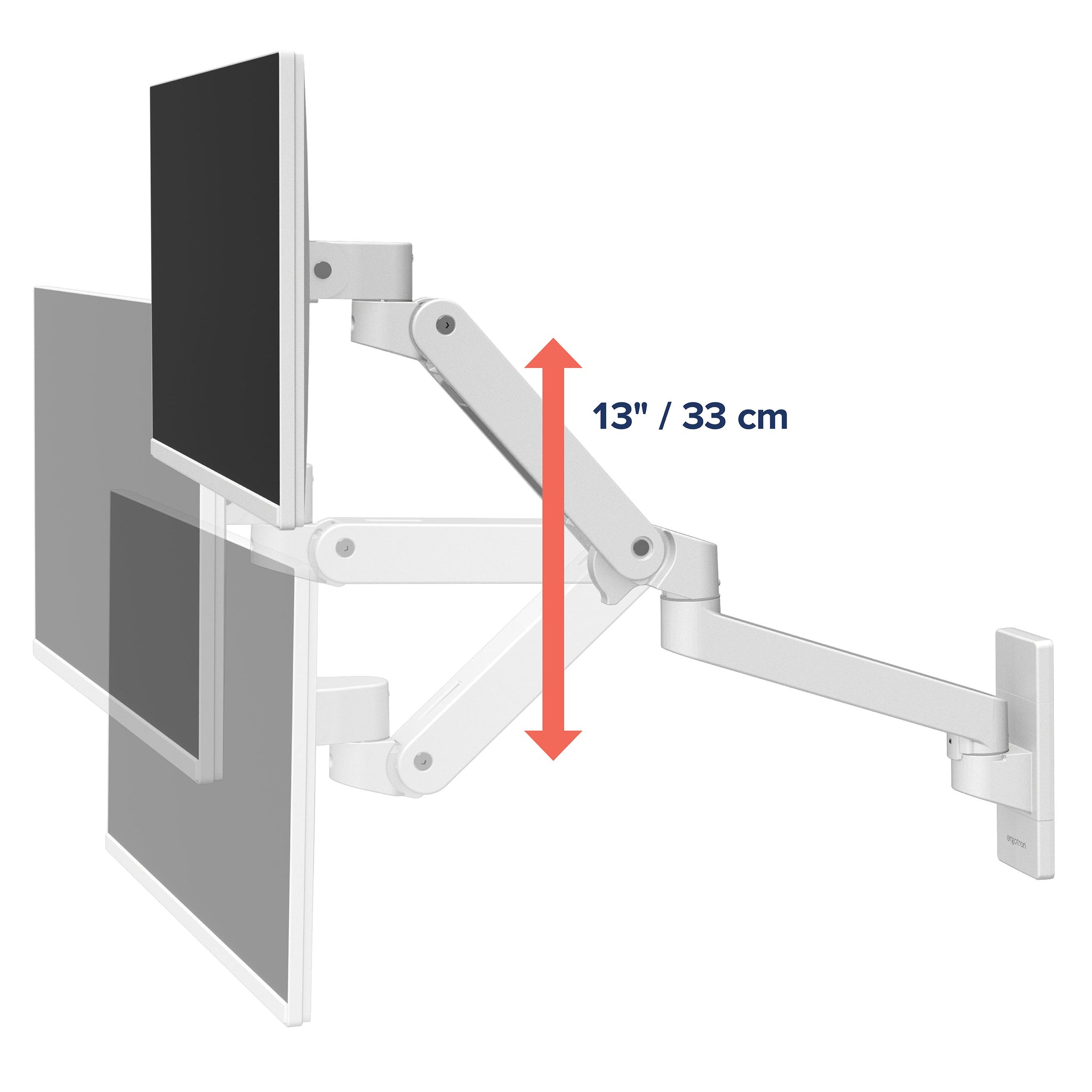

Ergotron's Constant Force motion technology lets you reposition the screen with a fingertip and have it stay exactly where you left it. The arm delivers 12.6" (32 cm) of lift, 85° of tilt (+70° / -15°), 180° of monitor pan and 360° of base arm pan — with a rotation stop that limits the base to 180° when the arm sits near a corner or a walkway.
Portrait or Landscape, VESA 75 x 75 and 100 x 100
Full 360° monitor rotation means the same arm handles a landscape spreadsheet and a portrait code or document view. The pivot is VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm), which covers the overwhelming majority of business displays.
Built in Aluminium, Backed for a Decade

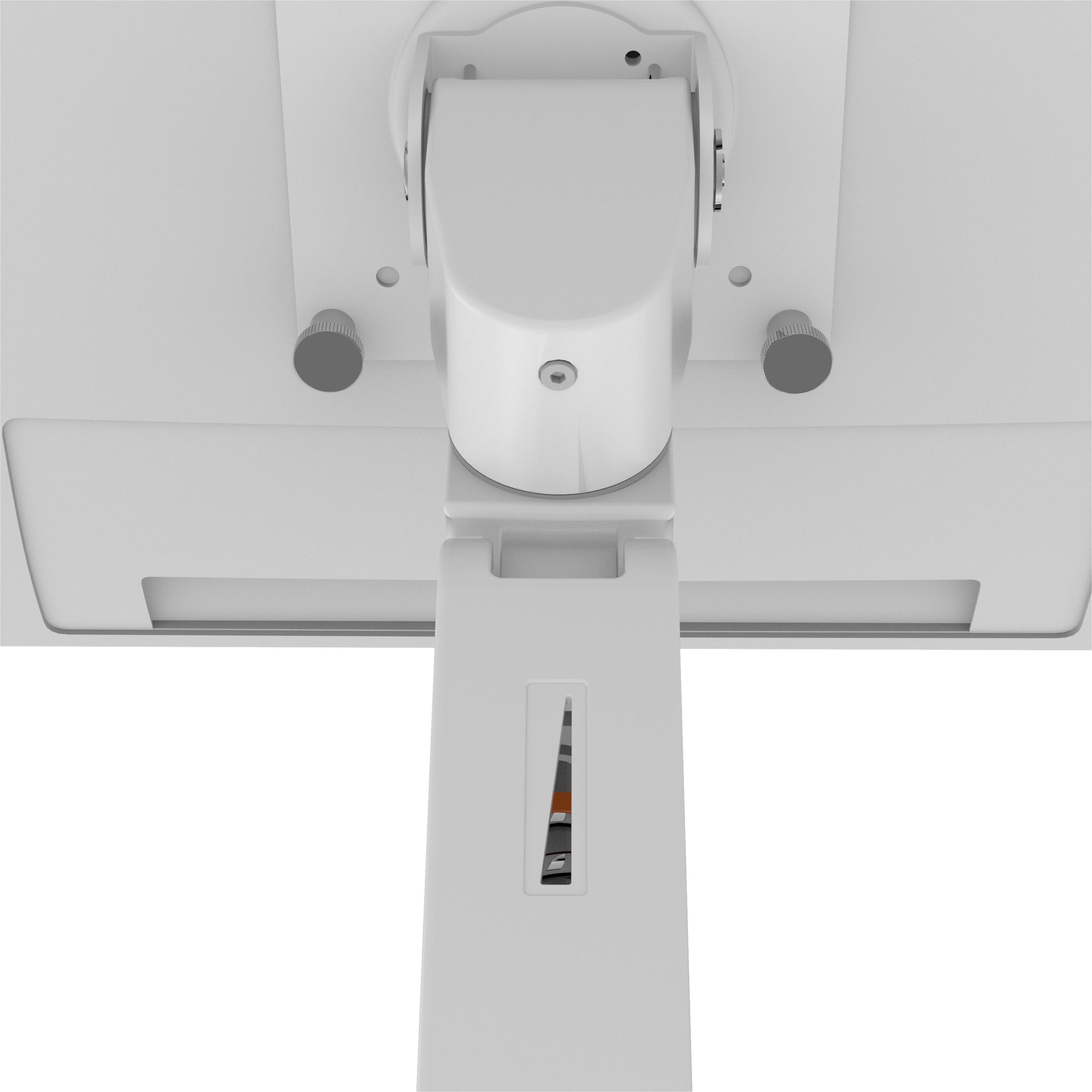

Durable aluminium construction and integrated cable management with a cable cover keep the installation looking deliberate rather than improvised. Ergotron backs the LX Pro Wall Monitor Arm with a 10-year manufacturer warranty, and SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron LX Pro Wall Monitor Arm Datasheet — Technical Specifications
General
| Product Type | Single-monitor wall-mount arm, full motion |
| Mounting | Wall-mount base (attachment hardware included) |
| Lift Technology | Constant Force motion technology |
| Cable Management | Integrated cable management with cable cover |
| Construction | Durable aluminium construction |
| Shipping Weight | 11.4 lbs (5.2 kg) |
| Shipping Dimensions | 16.3"L x 13.8"W x 6.5"H |
Display Compatibility
| Typical LCD Size | ≤ 34" |
| Weight Capacity | 4–22 lbs (1.8–10 kg) |
| Number of Displays | 1 |
| VESA Pattern | VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm) |
Adjustment & Motion
| Lift (Height Adjustment) | 12.6" (32 cm) |
| Tilt | 85° (+70° / -15°) |
| Monitor Pan | 180° |
| Base Arm Pan | 360° (180° with rotation stop engaged) |
| Monitor Rotation | 360° (portrait / landscape) |
| Maximum Extension | ≤ 25" (64 cm) |
Design & Durability
| Part Number | 45-683-290 |
| Finish | White |
| Series | Ergotron LX Pro |
| Materials | Aluminium construction |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
Display. One screen of typically ≤ 34" weighing 4–22 lbs (1.8–10 kg). Weigh the panel with its VESA plate attached; a display below the 4 lb floor may be too light for the Constant Force mechanism to hold position.
VESA. VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm). Displays with no VESA pattern need the manufacturer's own adapter plate.
Mounting. Wall only, using the supplied wall-mount base and attachment hardware — there is no desk-clamp or grommet variant of this part number, so desk thickness does not apply. Confirm the wall substrate (stud, concrete or masonry) and choose fixings rated for the combined arm and display weight. Where the arm sits near a corner or a walkway, engage the rotation stop to limit base arm pan to 180°.
Ultrawide and curved screens. A curved or ultrawide panel is fine provided it stays within 34" typical size and 22 lbs (10 kg) with the VESA plate fitted; allow lateral clearance for the 180° monitor pan and the 25" (64 cm) extension.
Need a keyboard position too? The LX Pro Wall Mount System combines a monitor arm and a keyboard arm on one wall track.
Package Contents & LX Pro Ordering Information
What's in the Box

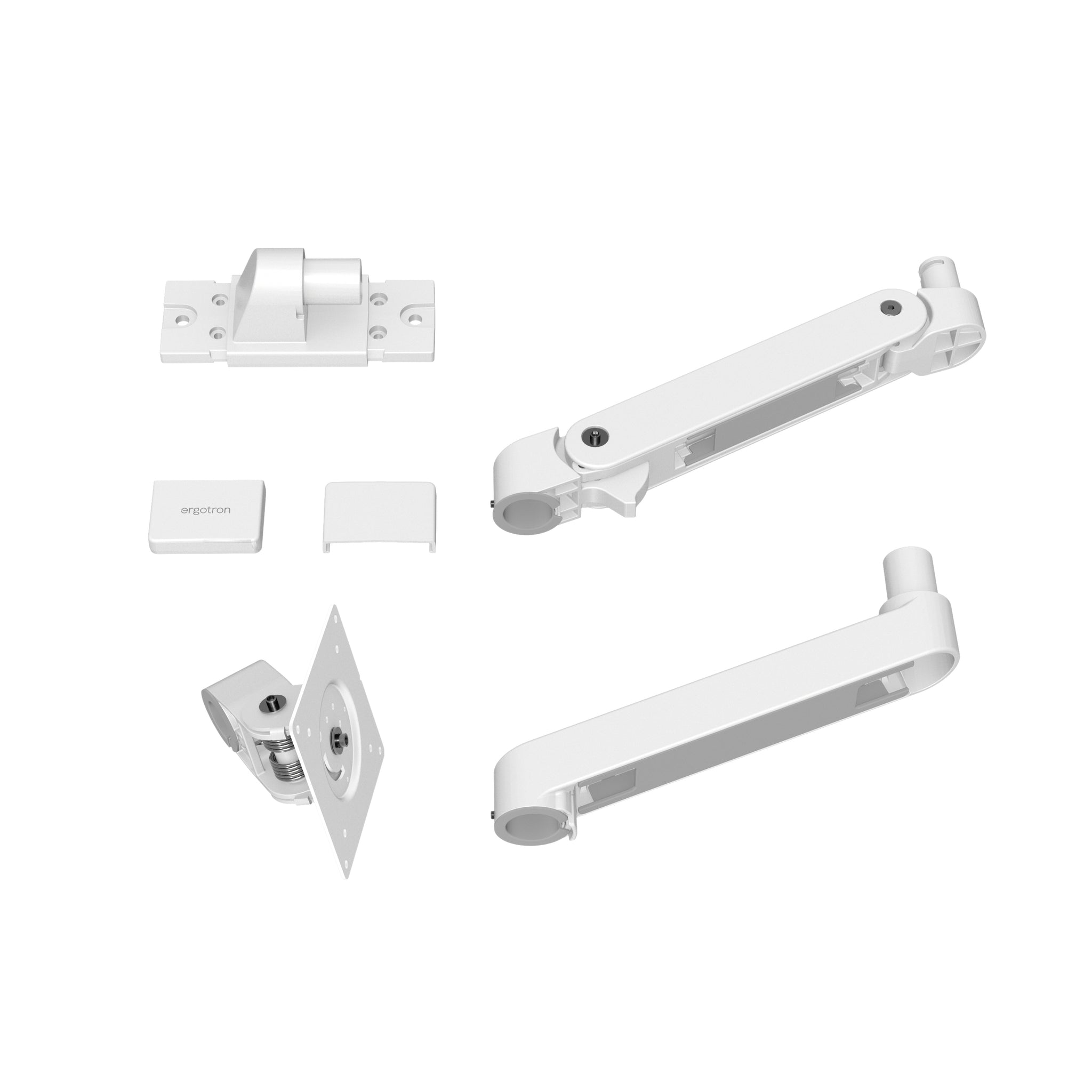

Arm, extension, monitor pivot, wall-mount base, attachment hardware
LX Pro Wall Monitor Arm Series Ordering Information — Finishes
| 45-683-292 | Matte Black |
| 45-683-293 | Dark Grey |
| 45-683-290 | White (this listing) |
Additional Factory Finish
| 45-683-026 | Polished Aluminum — listed on the LX Pro series spec sheet; not currently stocked by SourceIT |
Related Ergotron LX Models at SourceIT
Other LX Pro Models in This Batch
| 45-685 | LX Pro Wall Keyboard Arm |
| 45-690 | LX Pro Dual Stacking Arm |
| 45-696 | LX Pro Wall Mount System |
Datasheet & Downloads
Frequently Asked Questions — Ergotron LX Pro Wall Monitor Arm
Do the Matte Black, Dark Grey and White versions differ in any way other than colour?
No. 45-683-292, 45-683-293 and 45-683-290 are the same LX Pro Wall Monitor Arm with the same published specifications; only the finish differs. This listing is the White version (45-683-290).
What size and weight of monitor does it support?
A single display of typically ≤ 34" weighing 4–22 lbs (1.8–10 kg). Weigh the panel with its VESA plate fitted, and note the 4 lb lower limit — a very light screen may not hold position on a Constant Force arm.
Can I mount two displays on this arm?
No — 45-683 is a single-display arm. For two screens, see the LX Pro Dual Stacking Arm (45-690), which stacks two displays of up to 24" on a desk-mounted pole.
Can it be clamped to a desk instead of the wall?
Not this part number — 45-683 is the wall-mount configuration and ships with a wall-mount base. Ergotron's desk-mount equivalent in the same platform is the LX Pro Desk Arm (45-682-xxx), with grommet and C-clamp versions also published; contact SourceIT to order those.
Do I need a VESA adapter plate?
Only if your monitor has no VESA holes. The pivot is VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm). Displays without a VESA pattern require the manufacturer's own adapter.
Is it suitable for a standing or shared workstation?
Yes. It offers 12.6" (32 cm) of Constant Force lift plus 85° of tilt, so a standing user and a seated user can each set the screen to a neutral eye line at the same position, tool-free.
How does it compare with the Ergotron LX HD Sit-Stand Wall Arm?
The LX HD Sit-Stand Wall Arm (45-383-026) is a heavy-duty sit-stand arm with a longer vertical travel for larger displays; the LX Pro Wall Monitor Arm is the current-platform general-purpose wall arm for displays up to 34" and 22 lbs, in three modern finishes.
Does this come with a Singapore warranty and a GST invoice?
Yes. Every Ergotron LX Pro Wall Monitor Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Pro Wall Monitor Arm with a 10-year manufacturer warranty.
