Ergotron LX Pro Wall Keyboard Arm Dark Grey
PRODUCT DESCRIPTION
Ergotron LX Pro Wall Keyboard Arm Dark Grey (45-685-293) - 10 Years Local Warranty
Ergonomic Typing Without a Desk

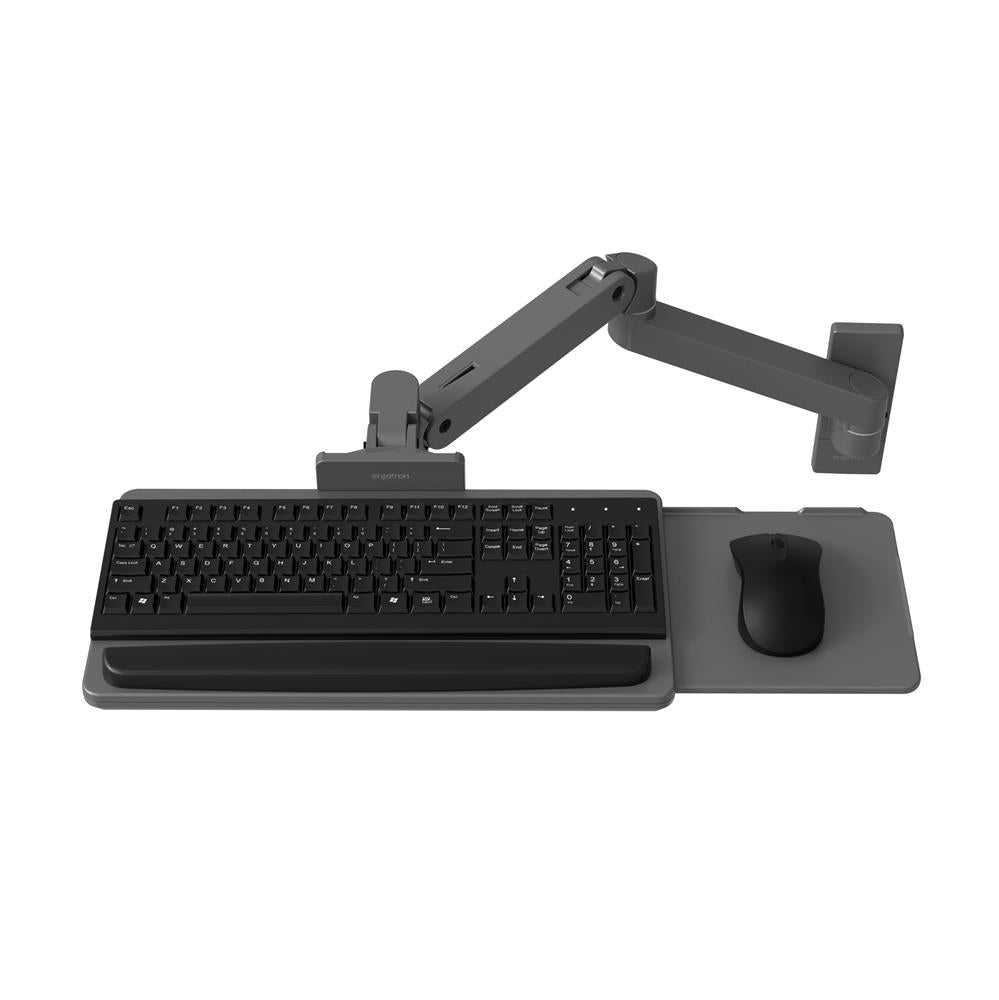

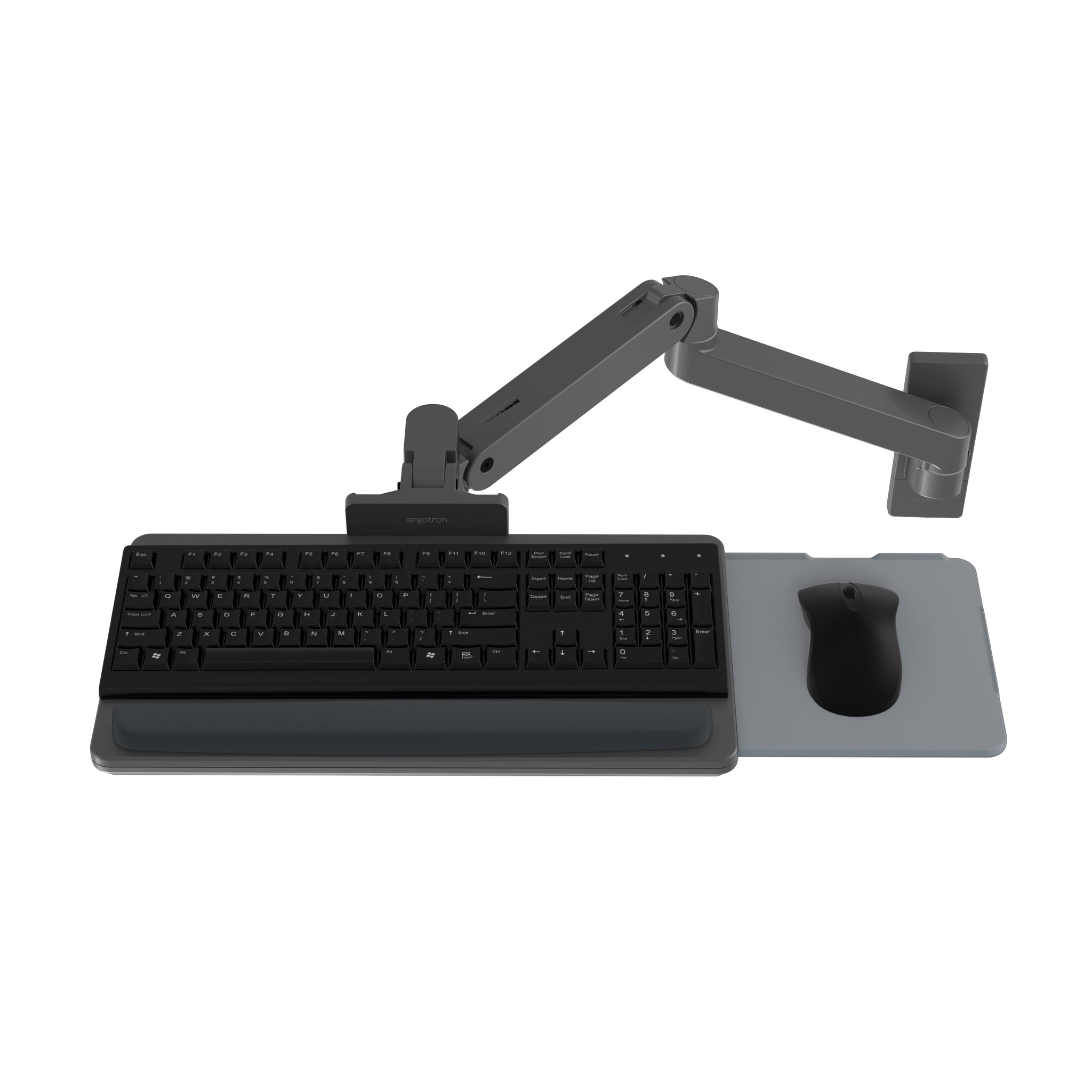

The LX Pro Wall Keyboard Arm in Dark Grey (45-685-293) mounts a keyboard tray straight to the wall and lets you place it exactly where typing feels neutral. It suits point-of-care bays, workshop benches, retail back-of-house and standing checkpoints across Singapore — anywhere a permanent desk is impractical but hours of keyboard work still happen.
Folds to 3.5" Deep When You Walk Away
The arm folds upright 90° and collapses to just 3.5" (9 cm) of depth against the wall, clearing the corridor or the bench behind it. In the down working position the tray back-tilts 5° to keep wrists in a neutral posture.
35" of Reach and Constant Force Lift

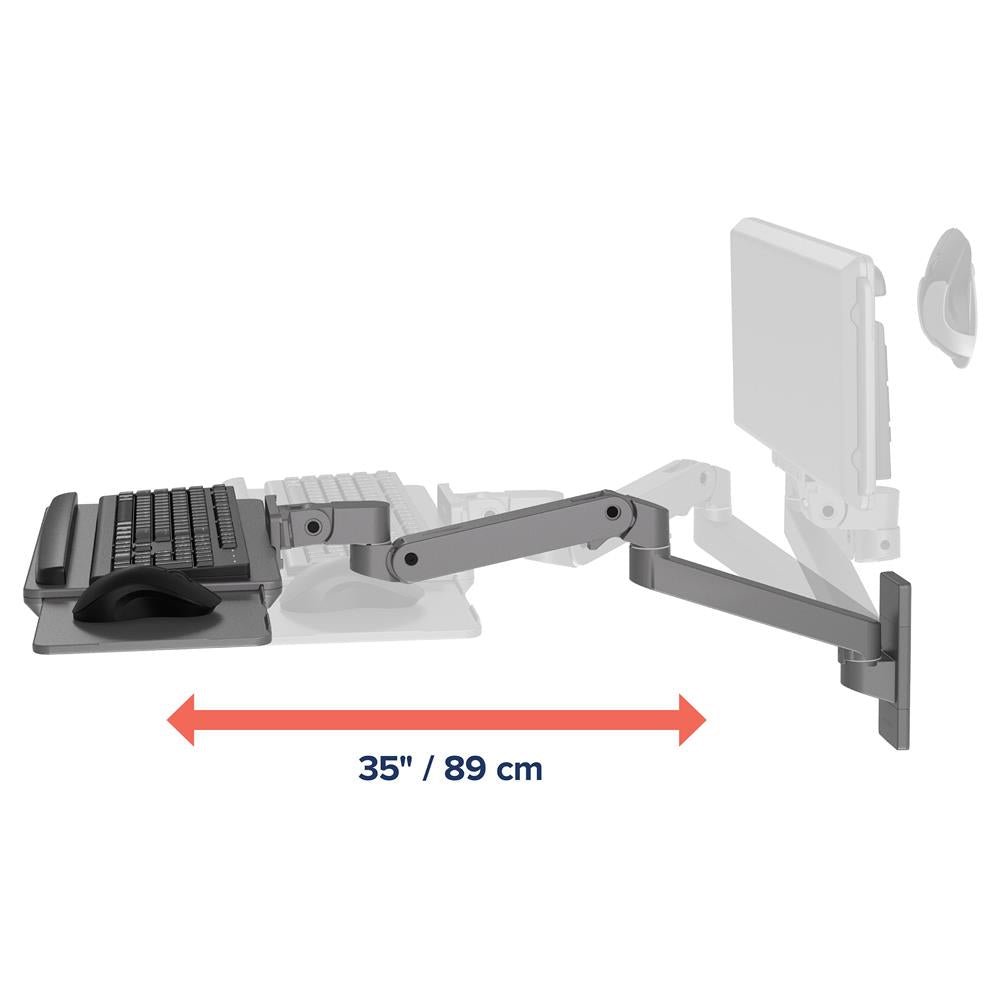

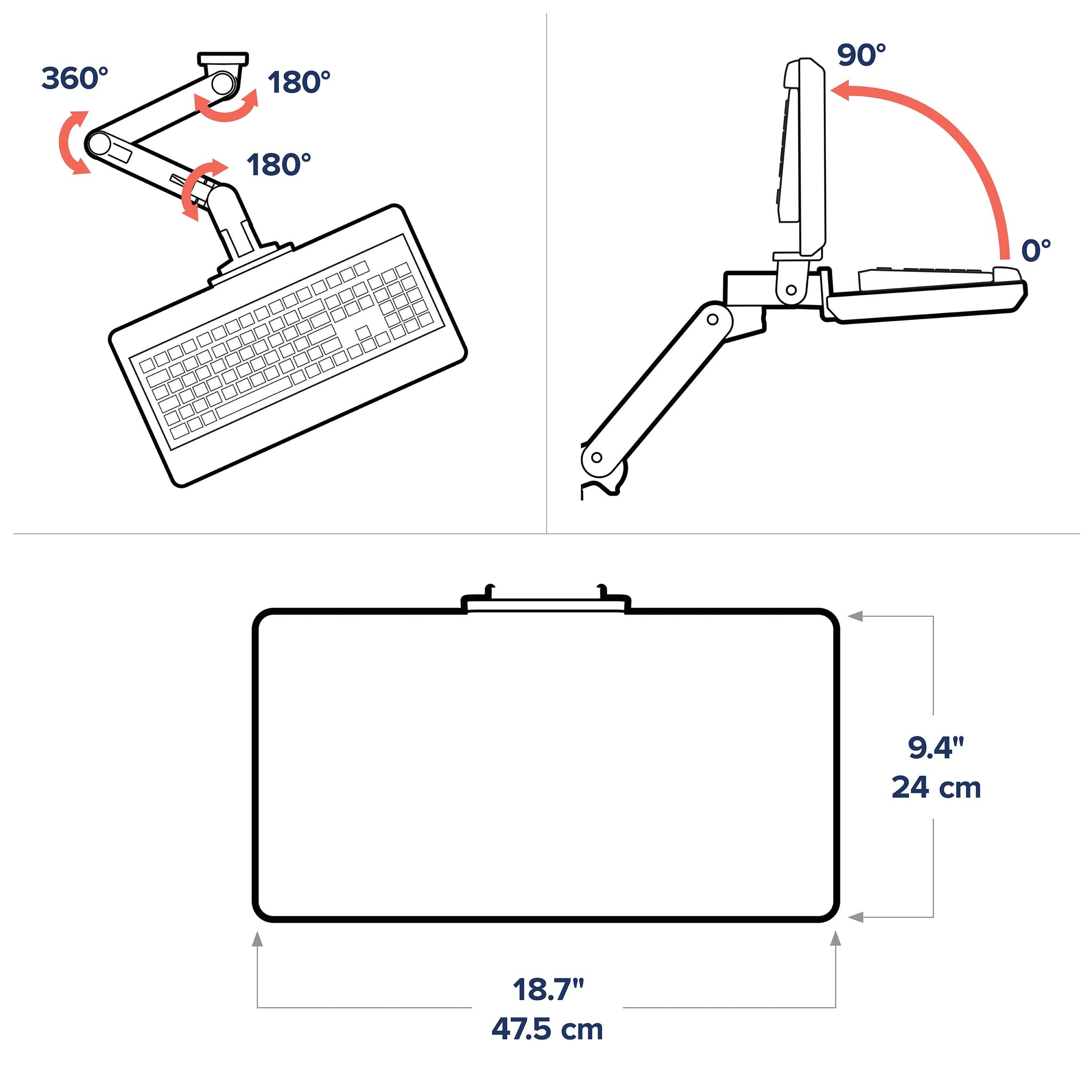

With up to 35" (89 cm) of extension, 12.6" (32 cm) of Constant Force lift, 180° of pan and 360° of rotation, the keyboard travels to the user rather than forcing a lean. The base arm pans a full 360°, or 180° with the rotation stop engaged.
Complete Kit, Aluminium Build, 10-Year Warranty
The tray takes a keyboard up to 17.6" x 9.5" and a load up to 5 lbs (2.3 kg), and the box includes a mouse holder and a wrist pad so the station is complete out of the carton. Aluminium construction and a 10-year Ergotron manufacturer warranty back years of heavy daily use.
Ergotron LX Pro Wall Keyboard Arm Datasheet — Technical Specifications
General
| Product Type | Wall-mount keyboard arm, full motion, fold-away |
| Mounting | Wall-mount base (attachment hardware included) |
| Lift Technology | Constant Force motion technology |

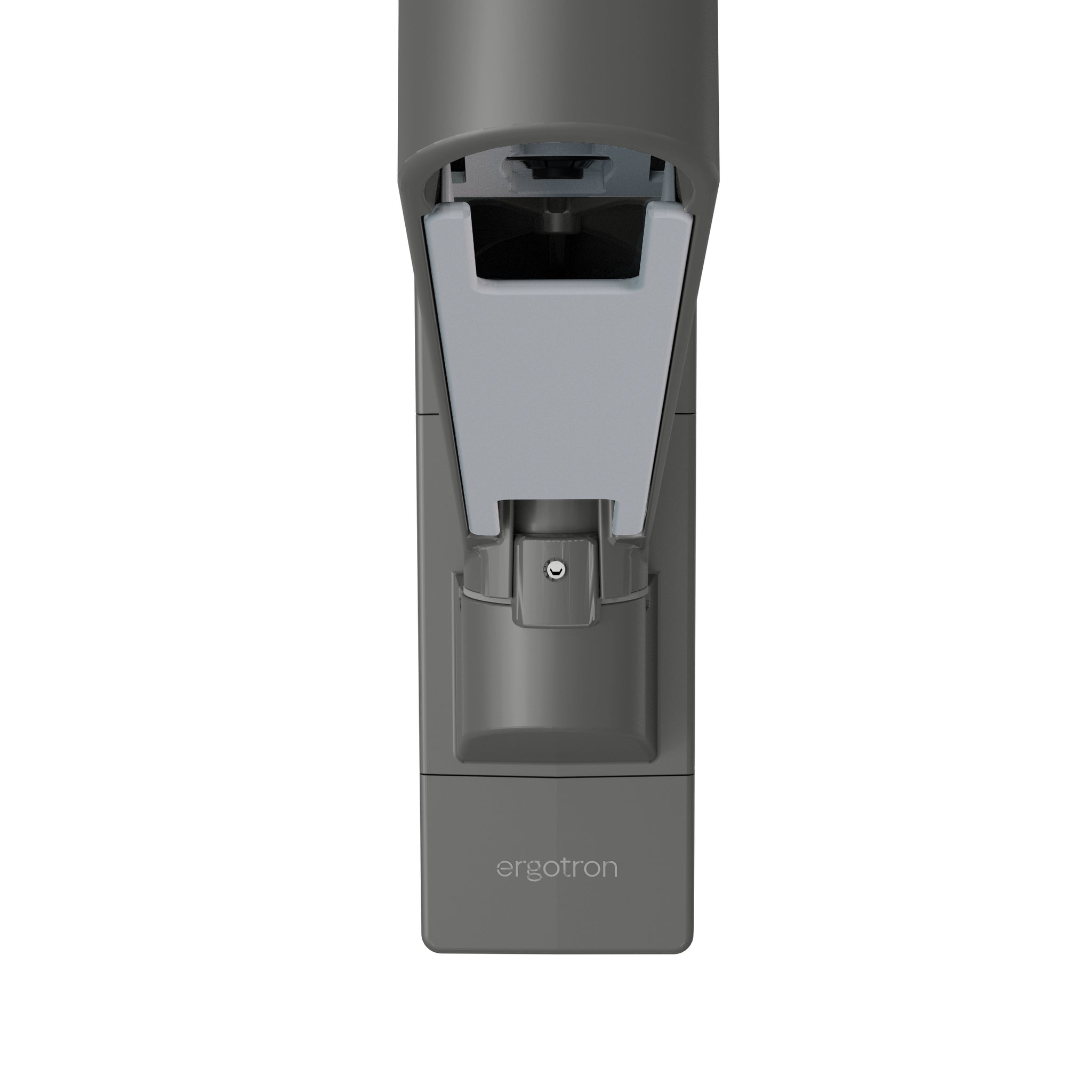

| Cable Management | Integrated cable management with cable cover |
| Construction | Durable aluminium construction |
| Folded Depth | 3.5" (9 cm) |
| Shipping Weight | 16.2 lbs (7.3 kg) |
| Shipping Dimensions | 21.3"L x 16.9"W x 6"H |
Keyboard & Load Compatibility
| Keyboard Size Supported | ≤ 17.6" x 9.5" |
| Weight Capacity | ≤ 5 lbs (2.3 kg) |
| Mounting Interface | VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm) |
Adjustment & Motion

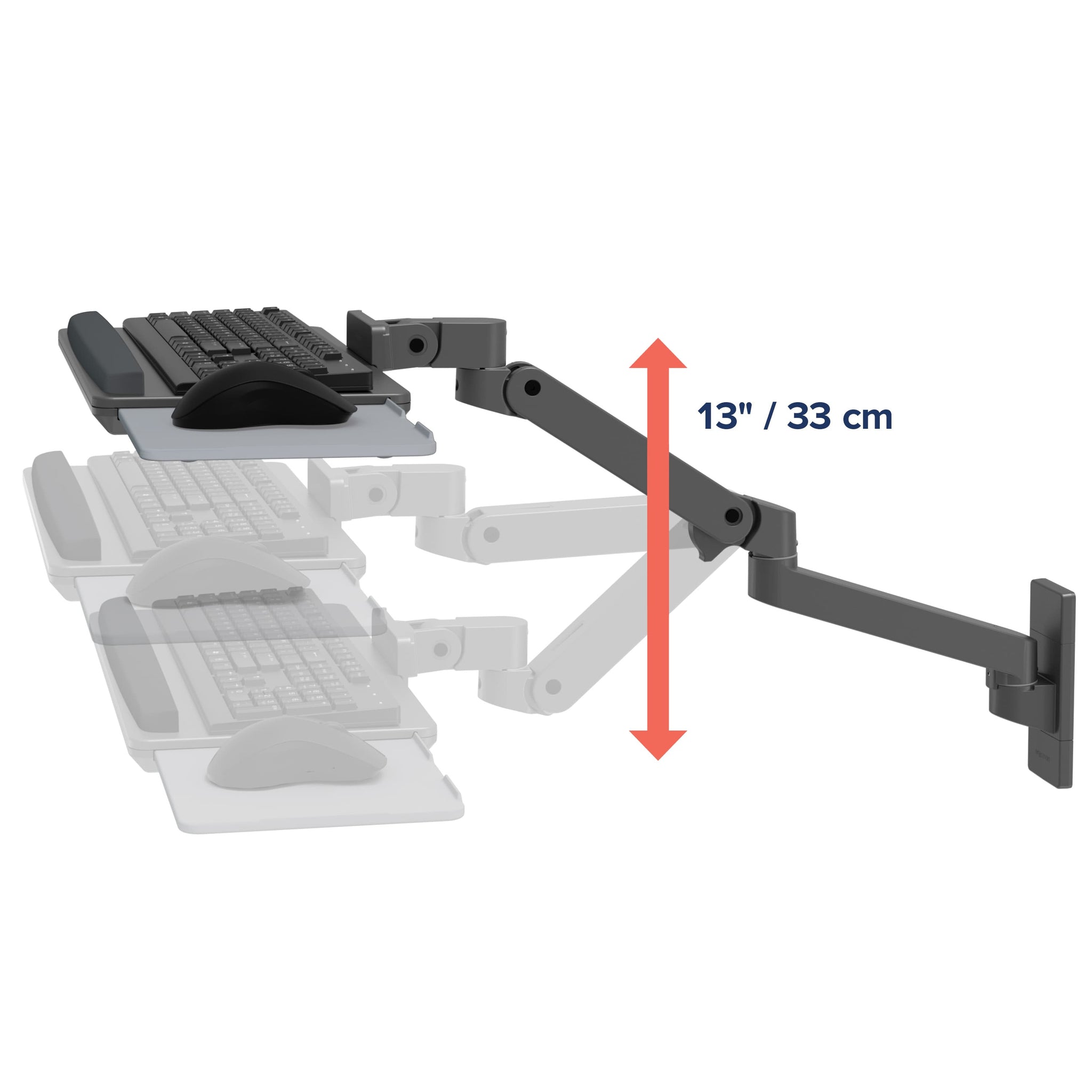

| Lift (Height Adjustment) | 12.6" (32 cm) |
| Tilt | Back-tilt 5° in the down position; folds upright 90° for storage |
| Pan | 180° |
| Base Arm Pan | 360° (180° with rotation stop engaged) |
| Rotation | 360° |
| Maximum Extension | 35" (89 cm) |
Design & Durability
| Part Number | 45-685-293 |
| Finish | Dark Grey |
| Series | Ergotron LX Pro |
| Materials | Aluminium construction |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The LX Pro Wall Keyboard Arm is a keyboard-and-mouse positioning arm, not a display mount. It accepts a keyboard up to 17.6" x 9.5" and a total load of ≤ 5 lbs (2.3 kg), and the supplied mouse holder and wrist pad complete the working surface.
Mounting. This model mounts to a wall only — there is no desk-clamp or grommet option, so no desk-thickness figure applies. Attachment hardware is supplied in the box; confirm the wall substrate (stud, concrete or masonry) and use fixings appropriate to it. The arm folds to 3.5" (9 cm) deep, which is the clearance to allow behind a walkway.
Mounting interface. VESA MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm).
Pairing with a display. To build a full wall station with a monitor arm on the same track, order the LX Pro Wall Mount System instead, which supplies both arms and the wall track together.
Package Contents & LX Pro Ordering Information
What's in the Box

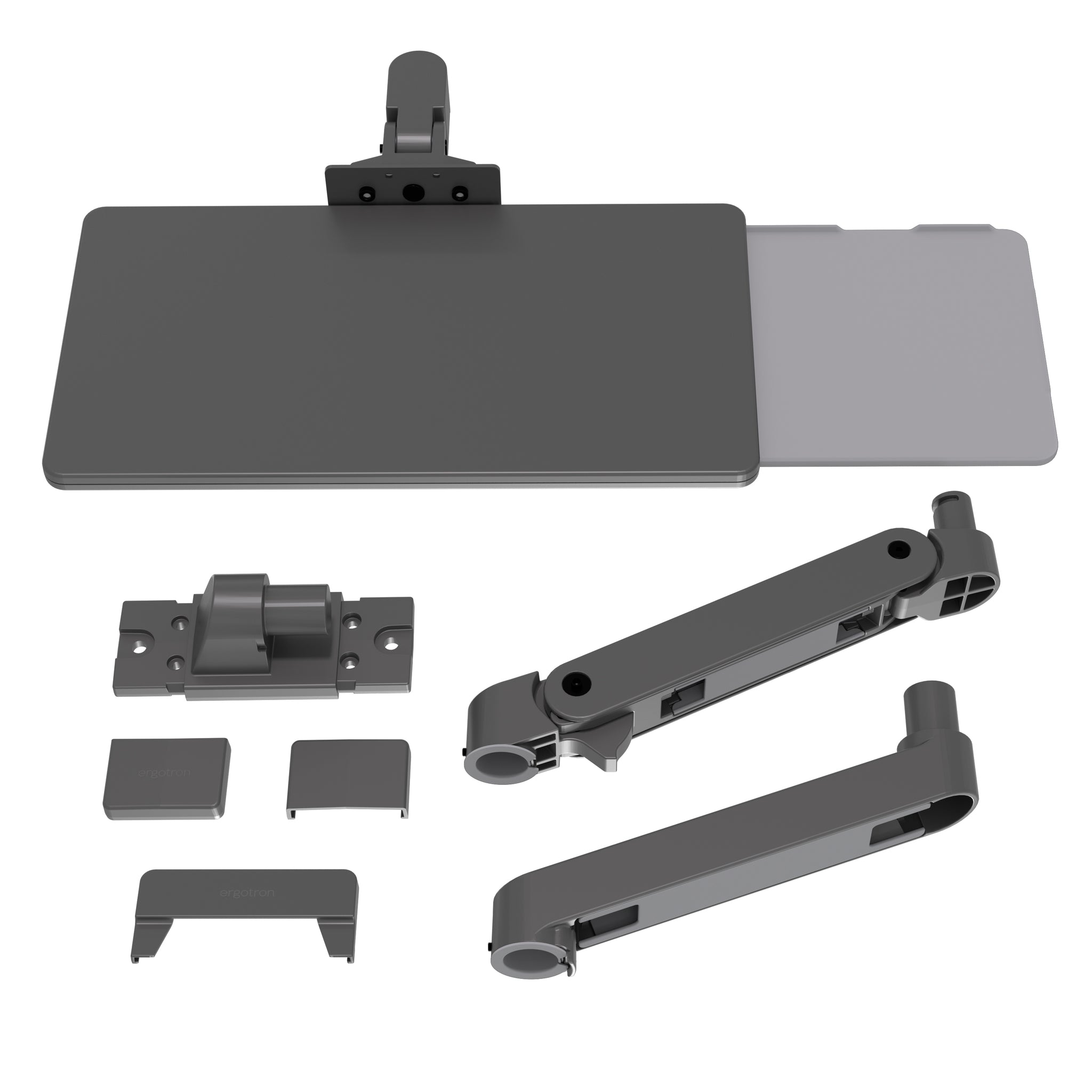

Arm, extension, keyboard tray pivot, wall-mount base, mouse holder, wrist pad, attachment hardware
LX Pro Wall Keyboard Arm Series Ordering Information — Finishes
| 45-685-292 | Matte Black |
| 45-685-293 | Dark Grey (this listing) |
| 45-685-290 | White |
Related Ergotron LX Models at SourceIT
Other LX Pro Models in This Batch
| 45-683 | LX Pro Wall Monitor Arm |
| 45-690 | LX Pro Dual Stacking Arm |
| 45-696 | LX Pro Wall Mount System |
Datasheet & Downloads
Frequently Asked Questions — Ergotron LX Pro Wall Keyboard Arm
Do the Matte Black, Dark Grey and White versions differ in any way other than colour?
No. 45-685-292, 45-685-293 and 45-685-290 are the same LX Pro Wall Keyboard Arm with the same published specifications; only the finish differs. This listing is the Dark Grey version (45-685-293).
What size keyboard fits, and how much can the tray hold?
The tray accepts a keyboard up to 17.6" x 9.5" and a total load of ≤ 5 lbs (2.3 kg). A mouse holder and a wrist pad are included in the box.
Can I mount a monitor on this arm as well?
No — this part number supplies a keyboard tray pivot only. For a monitor and a keyboard on the same wall track, order the LX Pro Wall Mount System (45-696), which includes both arms, the wall track, the mouse holder and the wrist pad.
How much wall clearance does it need when folded away?
It folds upright 90° and sits 3.5" (9 cm) deep against the wall, which is the clearance to allow if it overhangs a walkway. In use it extends up to 35" (89 cm).
What wall types can it be fixed to?
The box includes attachment hardware, but the correct fixing depends on your wall. Confirm whether you are fixing into stud, concrete or masonry and select fixings rated for the arm plus its load. There is no desk-clamp or grommet option for this model.
Does it adjust for both seated and standing users?

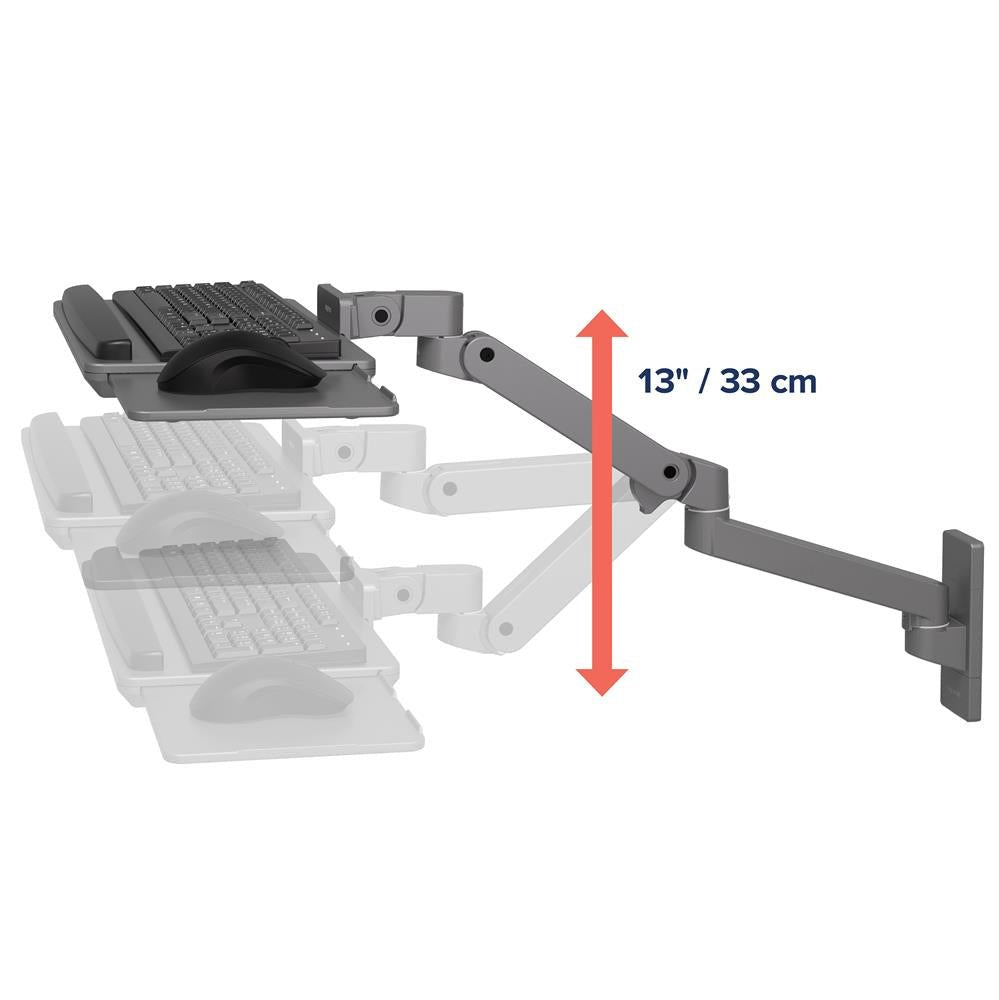

Yes. The arm provides 12.6" (32 cm) of Constant Force lift, so the tray can be raised and lowered by hand and will hold position — suitable for shared stations where users alternate between sitting and standing.
How does it compare with the older Ergotron LX Wall Keyboard Arm?
The LX Wall Keyboard Arm (45-246-026) is the previous-generation design in polished aluminium; the LX Pro is the current platform, offered in three modern finishes with integrated cable management and a cable cover. If you need a longer sit-stand travel range, look at the LX Sit-Stand Wall Keyboard Arm (45-354-026).
Does this come with a Singapore warranty and a GST invoice?
Yes. Every Ergotron LX Pro Wall Keyboard Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Pro Wall Keyboard Arm with a 10-year manufacturer warranty.
