Ergotron Interactive Arm, HD
PRODUCT DESCRIPTION

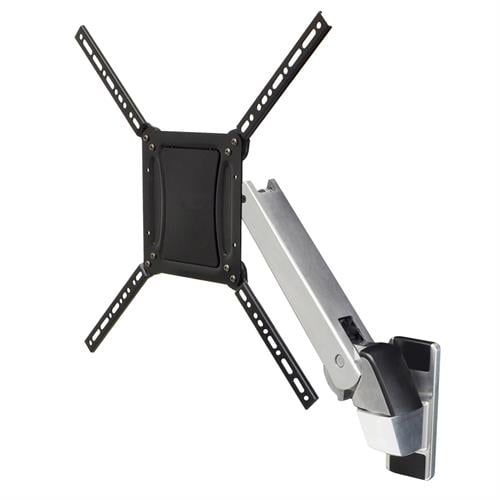

Ergotron Interactive Arm, HD (45-296-026) - 5 Years Local Warranty
Heavy-Duty Motion for Large Interactive Displays
The Ergotron Interactive Arm, HD is built to pull large touchscreens and displays forward, tilt them down for hands-on interaction and glide them back to a wall-mounted viewing position. Rated for screens from 30 to 55 inches and up to 18 kg, it suits collaborative rooms, wayfinding and clinical points-of-decision where people touch the screen all day.
Constant Force, Light-Touch Adjustment
Ergotron's Constant Force™ technology carries the weight of a big panel so a single hand can reposition it smoothly and it stays put. A 20-inch (51 cm) lift range and 24-inch reach let users bring the display to a comfortable height and angle, then retract it to just 5.5 inches from the wall.
Angle It for Touch, Return It for Viewing
With 15° up / 10° down tilt, 180° pan and a firm, controlled feel, the HD arm moves a heavy interactive screen from upright viewing into an ergonomic touch angle and back — ideal for shared kiosks, boardrooms and education spaces.
Durable Aluminium-and-Steel Build
Polished aluminium with black trim and steel internals give the Interactive Arm, HD the rigidity to support large displays through constant daily use, delivering long-term reliability in busy, high-traffic environments.
Ergotron Interactive Arm HD Datasheet — Technical Specifications
General
| Product | Interactive Arm, HD |
| Part Number | 45-296-026 |
| Finish | Polished aluminium with black trim |
| Displays Supported | 1 |
| Mounting Type | Wall mount (bracket included) |
| Lift Technology | Constant Force™ motion |
Display Compatibility
| Screen Size | 30–55" |
| Weight Capacity | 18–40 lbs (8–18 kg) |
| VESA Compatibility | MIS-E / MIS-F |
Adjustment & Motion
| Height / Lift | 20" (51 cm) |
| Tilt | 15° up, 10° down |
| Pan | 180° |
| Rotation | 10° |
| Reach / Extension | 24" (61 cm) extended; retracts to 5.5" (14 cm) |
Design & Durability
| Construction | Aluminium and steel |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The Interactive Arm, HD is a wall-mounted arm for a single large interactive display of 30–55 inches weighing 18–40 lbs (8–18 kg), using MIS-E or MIS-F VESA patterns. The wall bracket is included.
It is purpose-built for touch: users pull the screen out (up to 24" reach), tilt it down to work hands-on, then push it back to within 5.5 inches of the wall. For lighter or smaller interactive screens (up to 42", 7–25 lbs), the Interactive Arm, LD (45-361-026) is the better fit.
Package Contents & Interactive Arm Ordering Information
In the box: Interactive Arm HD, wall-mount bracket, VESA hardware and cable management.
Interactive Arm Range
| Interactive Arm, HD (30–55", 8–18 kg) | 45-296-026 (this listing) |
| Interactive Arm, LD (≤42", 3.2–11.3 kg) | 45-361-026 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Interactive Arm HD
How large a display can the HD arm hold?
Interactive touchscreens and displays from 30 to 55 inches, weighing 18–40 lbs (8–18 kg).
How is it different from the Interactive Arm, LD?
The HD (45-296-026) is for larger, heavier screens (30–55", up to 18 kg) with 10° rotation; the LD (45-361-026) is for lighter screens up to 42" and offers full 360° rotation.
Does it mount to a wall or a desk?
It is a wall-mounted arm and includes the wall bracket.
How far does it pull out from the wall?
Up to 24 inches (61 cm) of reach, retracting to just 5.5 inches for a low profile when not in use.
Can I tilt the screen down for touch use?
Yes — it tilts 15° up and 10° down and pans 180°, so you can angle it for comfortable hands-on interaction.
Is there a local warranty?
Yes. Every Ergotron Interactive Arm HD sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Interactive Arm HD with a 5-year manufacturer warranty.
