Ergotron Interactive Arm, VHD
PRODUCT DESCRIPTION
Ergotron Interactive Arm, VHD (45-304-026) - 5 Years Local Warranty
Looking for a genuine Ergotron Interactive Arm, VHD in Singapore? The Interactive Arm, VHD (45-304-026) is an official Ergotron monitor arm in polished aluminum finish. It takes displays of 30–65" (76.2–165.1 cm), holds 18–40 lbs (8.2–18.1 kg), offers 20" (50.8 cm) of height adjustment and uses VESA MIS-E/F mounting. SourceIT supplies it with the 5-year Ergotron warranty, local support and a GST invoice for businesses, schools, hospitals and government agencies in Singapore.
Interactive Arm — Heavy Monitor or TV Mount

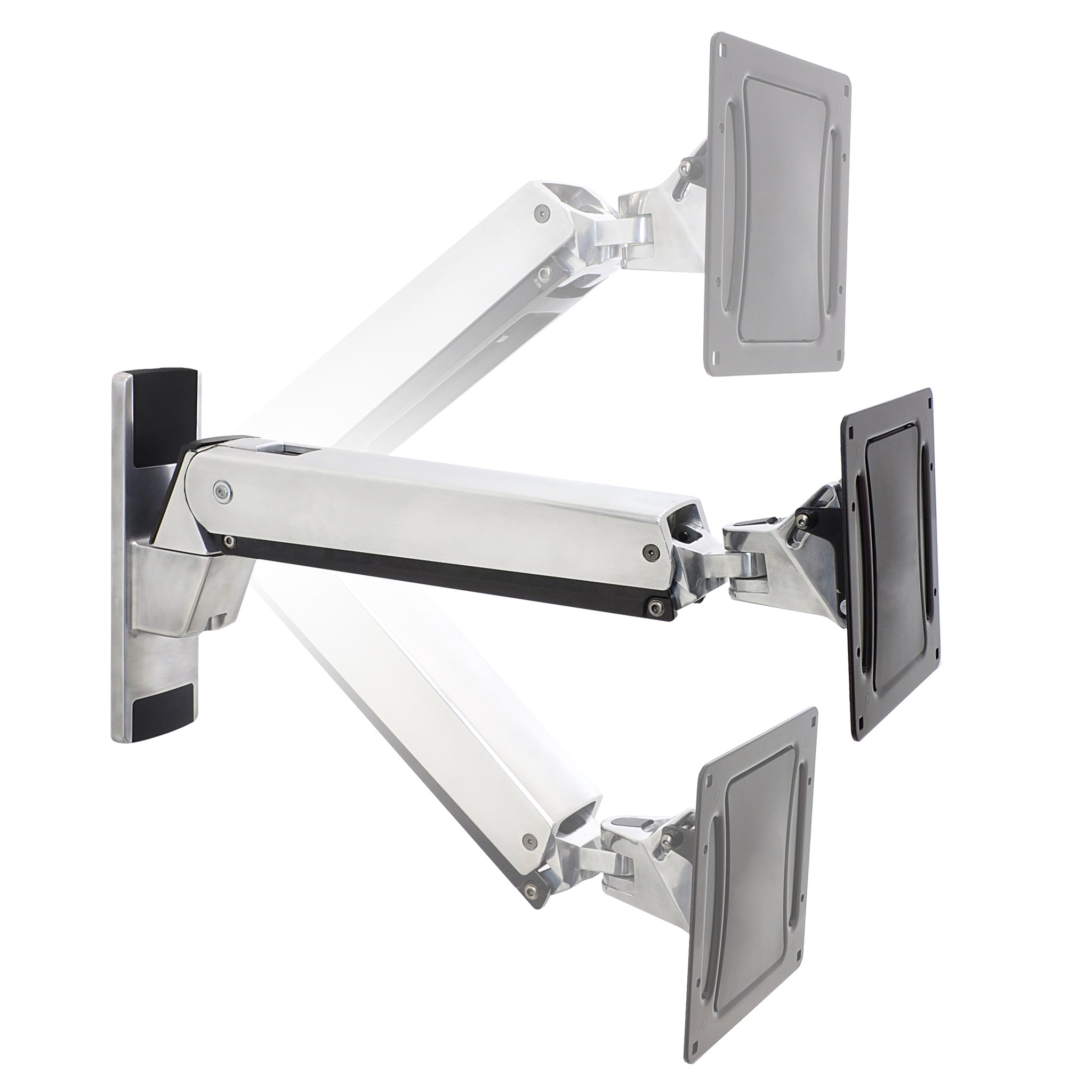

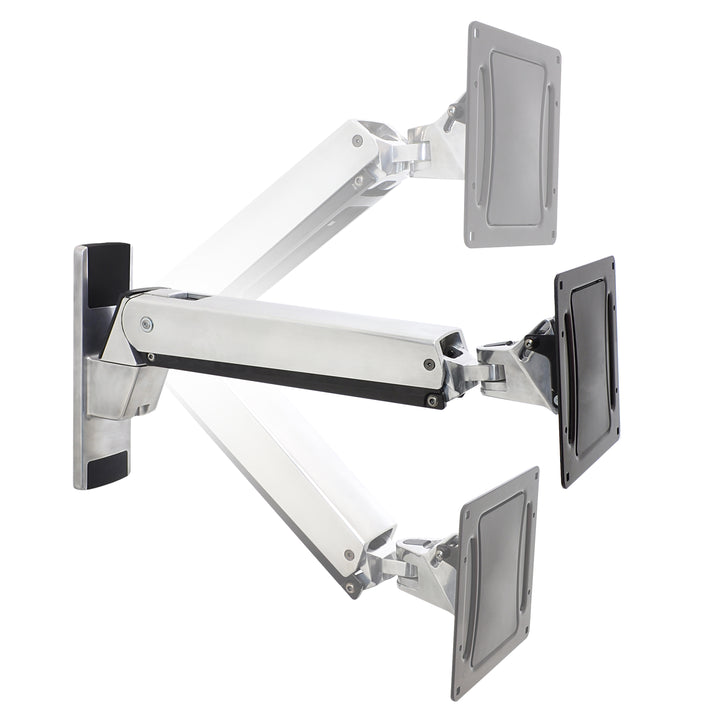

Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 180° motion to either side. Now anyone can effortlessly move a TV or heavy monitor into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Key Features of the Interactive Arm, VHD
Constant Force™ technology enables light-touch adjustments
Gravity pivot enables tilting capabilities without the need of knobs or levers
Improves ergonomic viewing for heavy displays mounted high on the wall
Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
Tilt and pan for maximum viewing flexibility
Cable management clips on the underside of the arm to route and hide cords
Passes Ergotron’s 7,500-cycle motion test, ensuring years of trouble-free height adjustment
Popular Uses for the Interactive Arm, VHD
- Home office and hybrid-work desks that need more usable desk space
- Hot-desking and open-plan offices where every user adjusts the screen to their own height
- Sit-stand desks — the arm clamps to the worksurface and moves with it
- Trading, design and control-room desks where screens are repositioned through the day
Buy the Interactive Arm, VHD in Singapore from SourceIT
Ergotron backs the Interactive Arm, VHD with a 5-year manufacturer warranty. SourceIT supplies it with local Singapore warranty support and a GST invoice, and can quote volume pricing for corporate, education, government and healthcare projects.
Ergotron Interactive Arm, VHD Datasheet — Technical Specifications
General
| Product Name | Interactive Arm, VHD |
| Part Number | 45-304-026 |
| Finish / Colour | Polished Aluminum |
| Capacity Option | 35–70 Lbs / 15.9–31.8 Kg |
| Product Type | Heavy Monitor or TV Mount |
| Series | Interactive |
| Product Category | Wall Mount |
| Mount Type | Arm |
| Device Type | 1 monitor |
| Technology | Constant Force™ |
| GTIN / UPC | 698833021905 |
Specifications
| Height Adjustment | 20" (50.8 cm) |
| Display Size | 30–65" (76.2–165.1 cm) |
| VESA Compliance | VESA MIS-E/F |
| Tilt | 25° |
| Pan | 180° |
| Screen Rotation | 10° |
| Weight Capacity | 18–40 lbs (8.2–18.1 kg) |
| Display Size | 40–90" (101.6–228.6 cm) |
| Weight Capacity | 35–70 lbs (15.9–31.8 kg) |
Dimensions & Weight
| Product Weight | 26.9 lbs (12.2 kg) |
| Shipping Weight | 31.9 lbs (14.5 kg) |
| Shipping Dimensions (W x H x D) | 26 x 7.5 x 12" (66 x 19.1 x 30.5 cm) |
Certifications & Compliance
| CF Technology | Constant Force™ motion technology |
| VESA Compliant | VESA Mount Standard Compliant |
Warranty
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT with local warranty support and GST invoice |
Compatibility & Fit
Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 180° motion to either side.
- Display size: 30–65" (76.2–165.1 cm)
- Weight capacity: 18–40 lbs (8.2–18.1 kg)
- VESA: VESA MIS-E/F mounting interface
- Designed for: 1 monitor
Not sure it fits? Send our team the model numbers of your display, desk, wall or cart and we will confirm compatibility before you order.
Package Contents & Ordering Information
In the box: the Ergotron Interactive Arm, VHD (45-304-026) with the mounting hardware Ergotron supplies for it. The installation manual under Datasheet & Downloads lists every part included.
Other Options in This Ergotron Family
| Part Number | Description |
| 45-296-026 | Interactive Arm, HD |
| 45-304-026 (this listing) | Interactive Arm, VHD |
Need a different configuration or finish? Tell our team what you need and we will quote the correct Ergotron part number.
Datasheet & Downloads
- Ergotron Interactive Arm — official product page (ergotron.com)
- Product Sheet: Interactive Arms (PDF, media.ergotron.com)
- Dimensional Drawing: dim-interactvhd (PDF, media.ergotron.com)
- Installation Manual: 888-45-255-w (PDF, media.ergotron.com)
Specifications on this page are taken from Ergotron's official product data. For a written quotation, stock position or delivery lead time in Singapore, contact SourceIT.
Frequently Asked Questions — Ergotron Interactive Arm, VHD
What warranty does the Ergotron Interactive Arm, VHD come with in Singapore?
Ergotron provides a 5-year manufacturer warranty. Every unit sold by SourceIT comes with local Singapore warranty support and a GST invoice.
How much weight does it support?
Ergotron rates it at 18–40 lbs (8.2–18.1 kg). Check your device's published weight before ordering.
What display size does it take?
Ergotron lists a display size of 30–65" (76.2–165.1 cm). Heavier panels are limited by the weight capacity rather than the diagonal.
Is it VESA compatible?
Yes. It uses the VESA MIS-E/F mounting interface found on most business monitors.
Where can I find the installation instructions?
Ergotron's installation manual is linked under Datasheet & Downloads on this page.
Can SourceIT supply this for a corporate, education or healthcare project?
Yes. Contact SourceIT for a written quotation, volume pricing and delivery lead time in Singapore.
