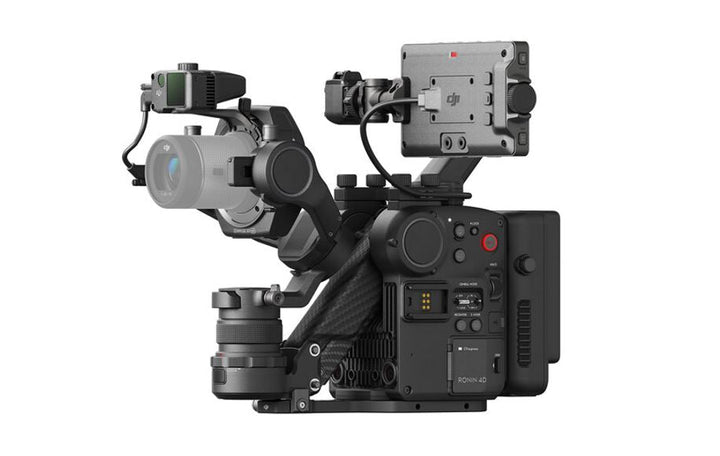

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit (CP.RN.00000176.01)

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit (CP.RN.00000176.01) - Local Warranty

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in Apple ProRes 422 HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.

All-in-One Camera Gimbal System
This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components.
Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.
This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
Combination design reduces your setup time at the start of the day and in between setups and locations
Included modular components:

• Left and right control handgrips
• LiDAR range finder
• Top handle
• Baseplate
• Separately available components:
• 7" high-bright, touchscreen monitor
• Wireless video transmitter
• ProSSD 1TB media drive
• X9 focus motor
• Leica M lens mount
• 3-channel FIZ lens control unit
• Note:
• A wireless video transmitter is not included in this combo kit.
• v01.04.0200 Firmware Update
• Added support for Leica L-mount lenses.
• Manual calibration added for zoom lenses.
• Playback support for anamorphic de-squeeze on High-Bright monitor.
• Supports applied LUTs for HDMI output in clean output.
• Optimized the camera start-up time.
• Enhanced fine controls in manual focus mode.
• Added playback and zoom control support to handgrips.
• Fixed E-mount lens focus at infinity and manual iris reading.
• Fixed various gimbal settings issues.
• Fixed green tinge on video playback.
• Fixed LiDAR focus issues when waveform appeared normal.
• CineCore 3.0 Imaging Processing System
• The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
• The Ronin 4D uses the CineCore 3.0 system to support internal ProRes 422 HQ and H.264 video
• Industry-standard ACES workflow support provides easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization

• Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
• Z-axis stabilization is built into the camera; 3-axis stabilization in the gimbal
• Tilt stabilization uses dual, symmetrical motors
• Pan and X (roll) axes with additional stiffness buffering
• Downward ToF (time of flight) sensor
• Forward and downward-facing dual-vision sensors
• Built-in IMU (inertial measurement unit) and barometer
• New and improved stabilization algorithm

Zenmuse X9-6K Camera with DL Lens Mount

• The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
• Full-frame capture with all but the 16mm DL lens
• Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
• Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
• Please see the current lens compatibility list here

ProRes 422 HQ and H.264 Capture

• Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
• Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
• Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full frame

Dual Native ISO

• 800/5000 dual native ISO
• EI 200 to 12800
• 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions
• In-Camera ND Filters
• Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
• Especially handy for outdoor shoots with changing cloud cover
• Motorized filter system
• Carry in "built" mode for easy company moves

LiDAR Focus Control

• LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
• Excellent focusing performance even in low-light environments
• Focus pulling can be viewed graphically, thanks to a built-in depth meter
• Intuitive and highly accurate focusing system
• Modular LiDAR focusing module attached to the front of the D4 rig
• Autofocus Features
• Maintains focus, even when motion blur is produced by fast-moving subjects
• Separately available focus motor for use with manual lenses
• Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Single User or Crew-Assisted Operation

• Top-notch stabilization in a lightweight form
• Ideal for both solo operators as well as assistant-accompanied shoots
• Designed to counter footsteps from inexperienced gimbal shooters
• Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
• Sport mode is available with the touch of a button, accommodating faster-paced action
• Use in standard, underslung, jib, and crane setups
• Automated Manual Focus
• The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
• Operators can grab the focus wheel of the right handgrip at any time to manually focus
• Hand grip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

• DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
• ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

Dual Focus, Iris, and Control Grips

• Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
• Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode
• Media Storage Options
• Requires a ProSSD 1TB drive (not included) to capture raw footage
• USB Type-C port for external recording, no reader needed to offload footage
• Integrated CFexpress Type-B card slot

Built-In 5.5" Touchscreen Monitor

• 5.5" 1920 x 1080 monitor
• 1000 cd/m² display
• Touchscreen control
• Rotates for optimal viewing
• Audio Recording
• Integrated stereo microphones capture dual-channel 24-bit audio
• Built-in 3.5mm audio input port and XLR port via expander plate
• Power Options
• Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
• Each battery provides up to 2.5 hours of capture time
• Batteries charge fully in approximately 1.5 hours
• Support auto-heating for cold weather use
• AC adapter for uninterrupted shooting
