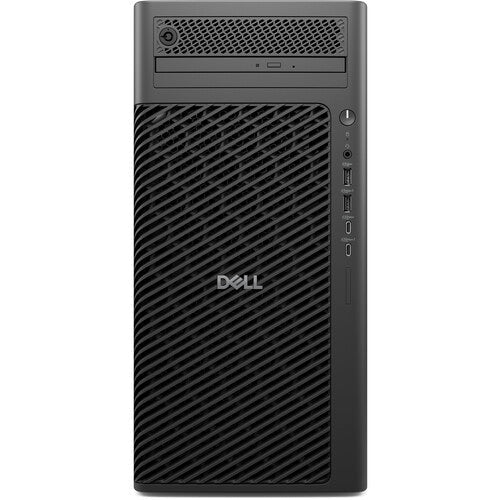

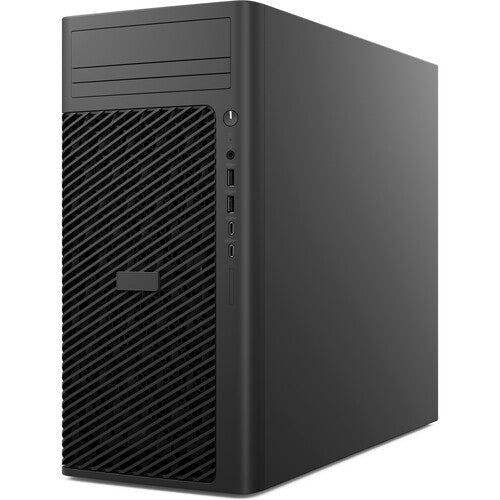

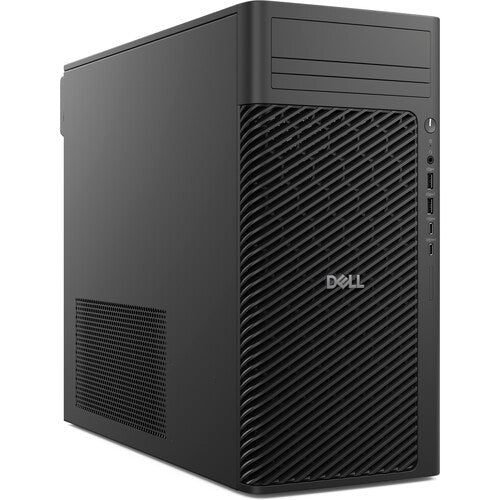

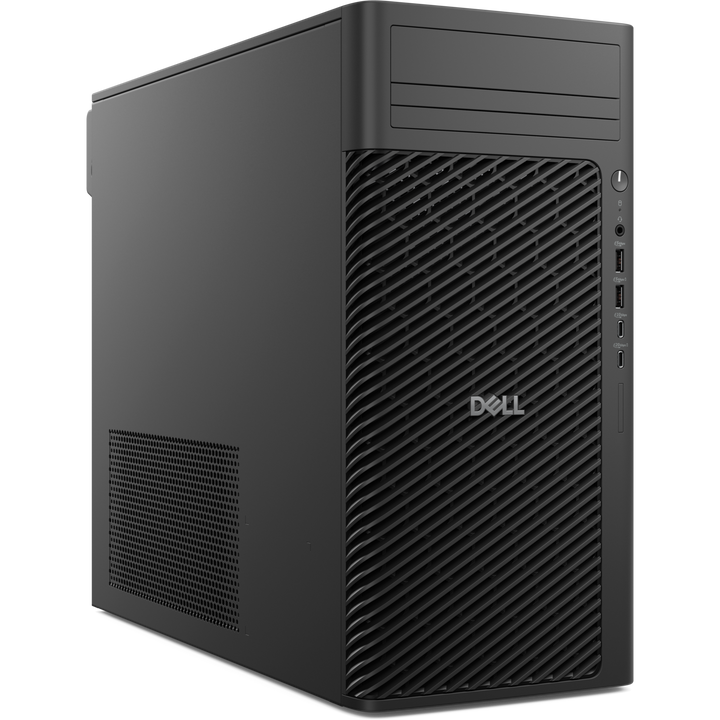

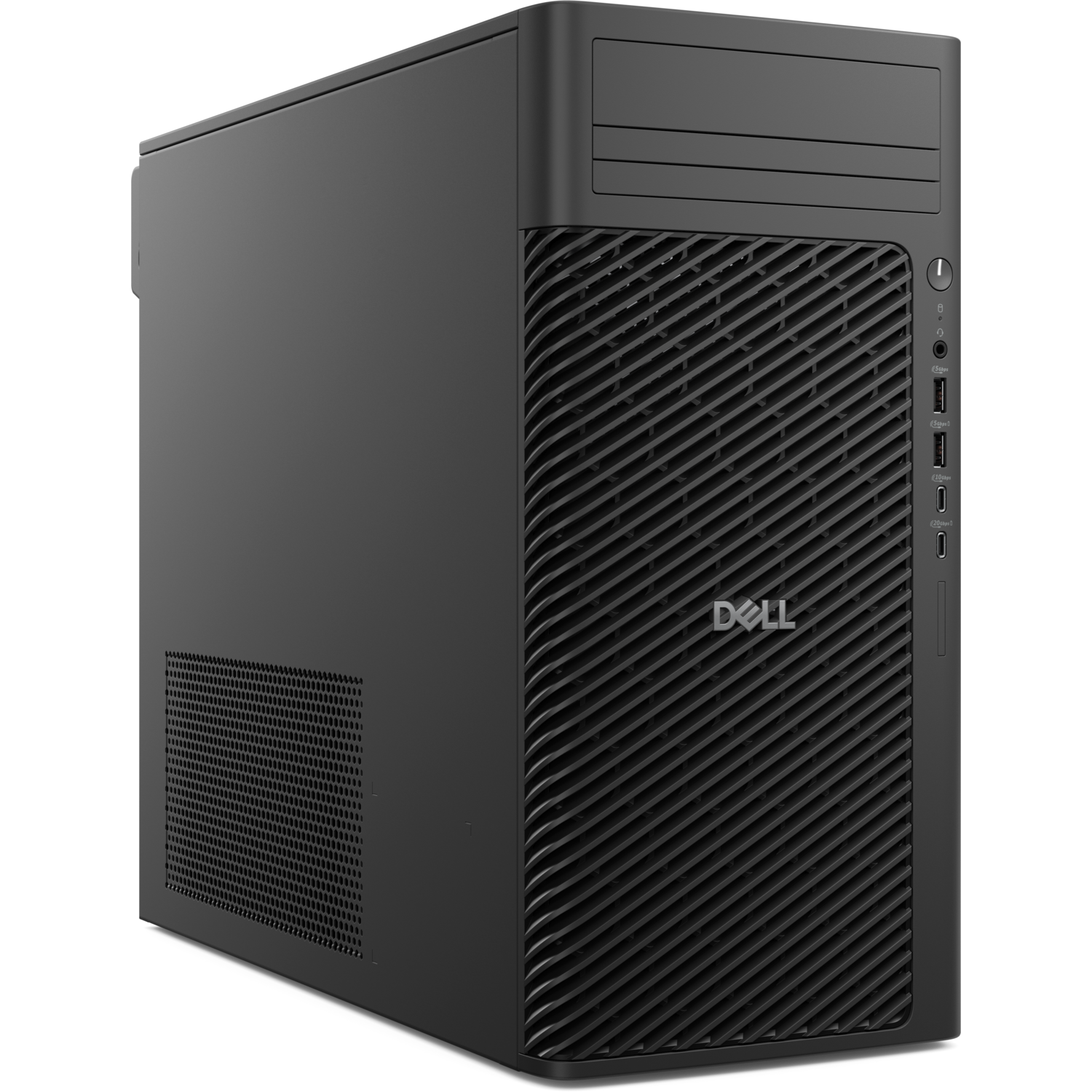

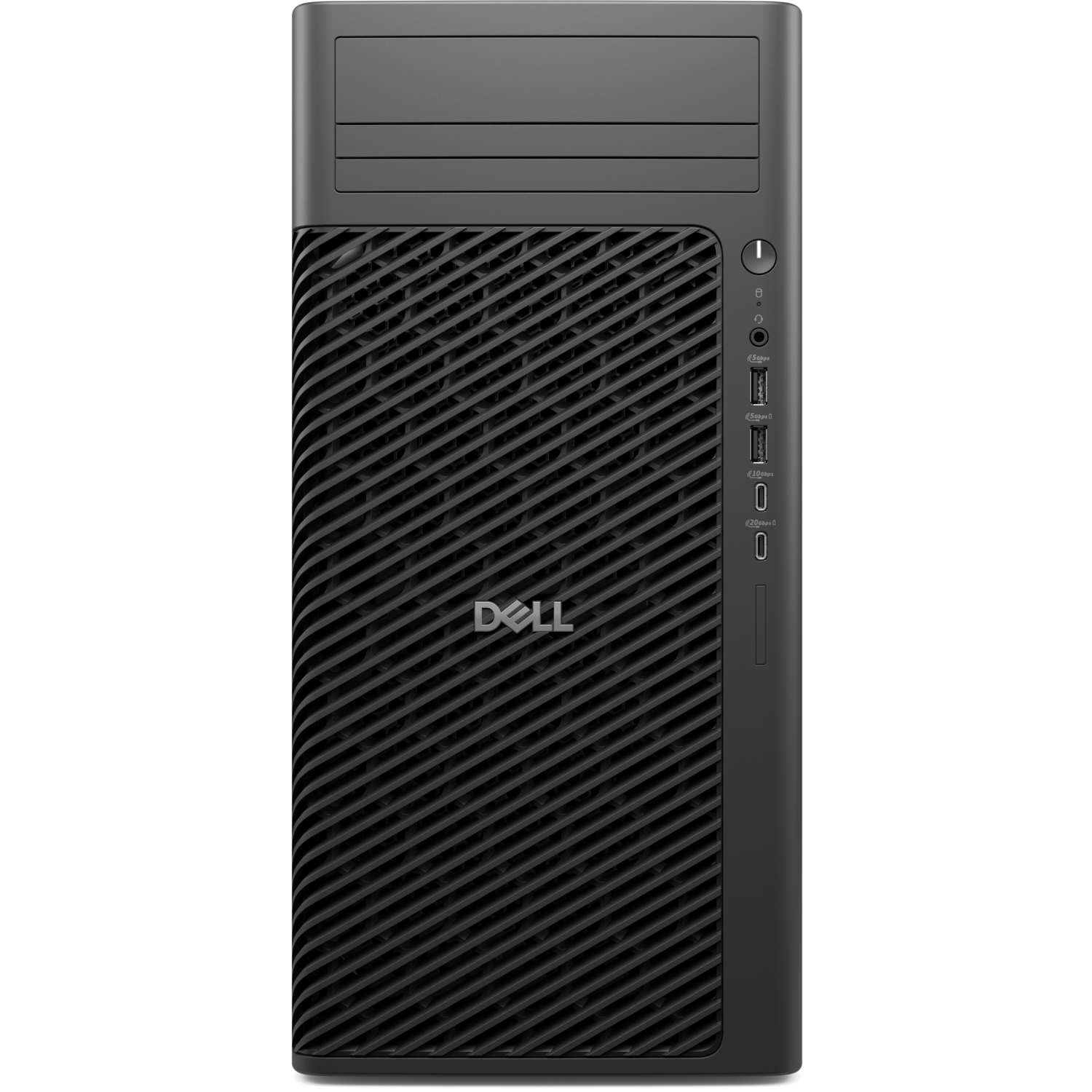

Dell Pro Max Tower T2 FCT2250 U7-265 /A400 /32GB /512GB SSD+2TB SATA
PRODUCT DESCRIPTION
Dell Pro Max Tower T2 FCT2250 U7-265 /NVIDIA A400 /32GB /512GB SSD+2TB SATA (DPMFCT2250C732G512+2TBD2) - 3 Year Local Onsite Warranty

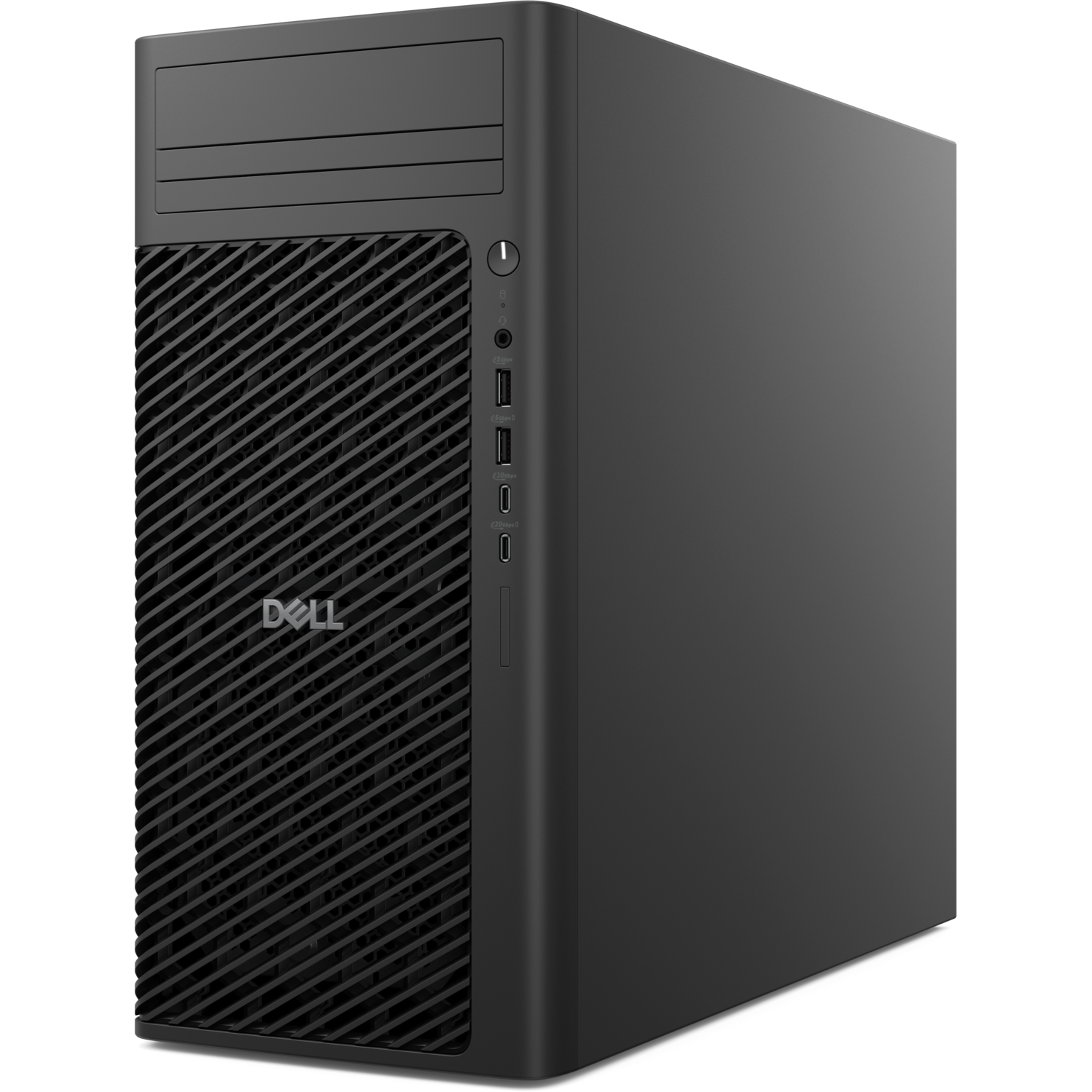

Workstation-Grade Tower Design for Maximum Performance
The Dell Pro Max Tower T2 FCT2250 (DPMFCT2250C732G512+2TBD2) is built for demanding professional environments that require high compute power, expandability, and reliability. Its large tower chassis supports better cooling and component scalability, making it suitable for engineering teams, AI workloads, and enterprise deployments.
Intel Core Ultra 7 with AI Acceleration
Powered by the Intel Core Ultra 7 265 processor, this system delivers up to 20 cores with boost speeds around 5.3GHz, enabling smooth multitasking and high-performance computing. It also includes an integrated AI engine (NPU), allowing faster execution of AI-driven applications and automation workflows.
Professional NVIDIA RTX A400 Graphics
Equipped with the NVIDIA RTX A400 (4GB GDDR6), this workstation is optimised for professional applications such as CAD, 3D modelling, and visualisation. It offers certified drivers and stability required for enterprise workloads, ensuring consistent performance compared to consumer GPUs.
Balanced Storage: Speed + Capacity
This configuration includes a 512GB PCIe Gen4 NVMe SSD for fast system performance and a 2TB SATA HDD for bulk storage. This hybrid setup is ideal for users handling large datasets, project files, and long-term storage needs.
High Memory Capacity for Heavy Multitasking
With 32GB DDR5 RAM, the system supports intensive multitasking, virtual machines, and large-scale applications. The platform is also expandable up to 128GB memory and multi-terabyte storage, making it future-ready for scaling workloads.
Enterprise Features and Expandability
The Dell Pro Max Tower T2 supports enterprise features such as vPro, advanced security, and modular expansion. With PCIe slots, multiple storage bays, and upgrade paths for higher-end GPUs, it is designed as a long-term workstation platform for evolving business needs.
Technical Specification
Processor
• Intel Core Ultra 7 265
• Up to ~5.3GHz Turbo Boost
• 20 cores, 20 threads
• 30MB Intel Smart Cache
• Built-in AI Boost NPU for AI workloads
Graphics (Dedicated GPU)
• NVIDIA RTX A400 (Professional Workstation GPU)
• 4GB GDDR6 VRAM
• 4 × mini DisplayPort outputs
• Certified for CAD, BIM, 3D modelling, and professional apps
Memory
• 32GB DDR5 RAM (2 x 16GB)
• Memory speed up to 5600 MT/s
• Dual-channel configuration
• Supports ECC (config dependent)
• Expandable up to 128GB
Storage
• 512GB M.2 PCIe Gen4 NVMe SSD (Primary)
• 2TB 3.5” SATA HDD (Secondary, 7200 RPM)
• SSD for speed + HDD for bulk storage
• Supports large-scale expansion (up to enterprise-level storage configs)
Operating System
• Windows 11 Pro (business-ready OS)
Form Factor & Design
• Tower (T2) workstation form factor

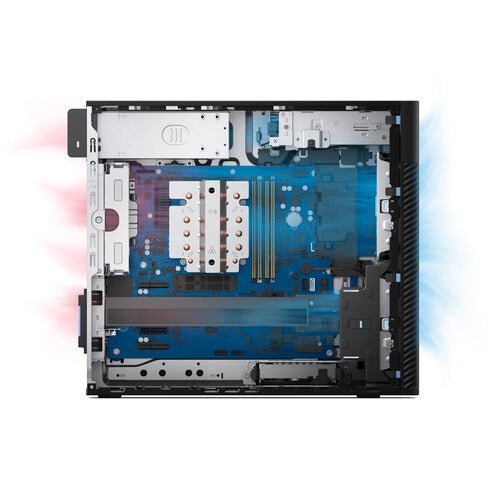

• High airflow chassis for sustained performance

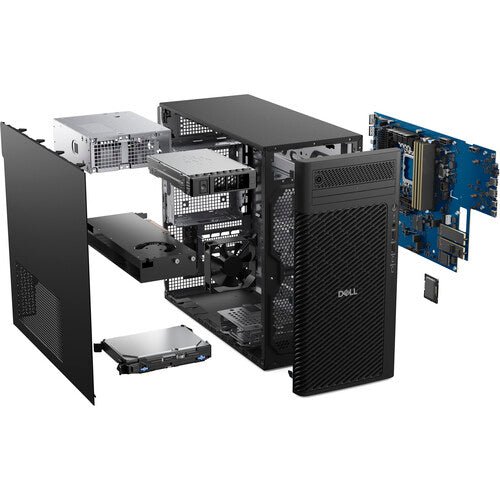

• Tool-less internal access
• Designed for engineering and enterprise workloads
Chipset / Platform
• Intel business-class platform
• Optional Intel vPro Enterprise support
• Optimised for stability, remote management, and AI workloads
Ports & Connectivity
• Front:
• USB-C
• USB-A high-speed ports
• Headset combo jack

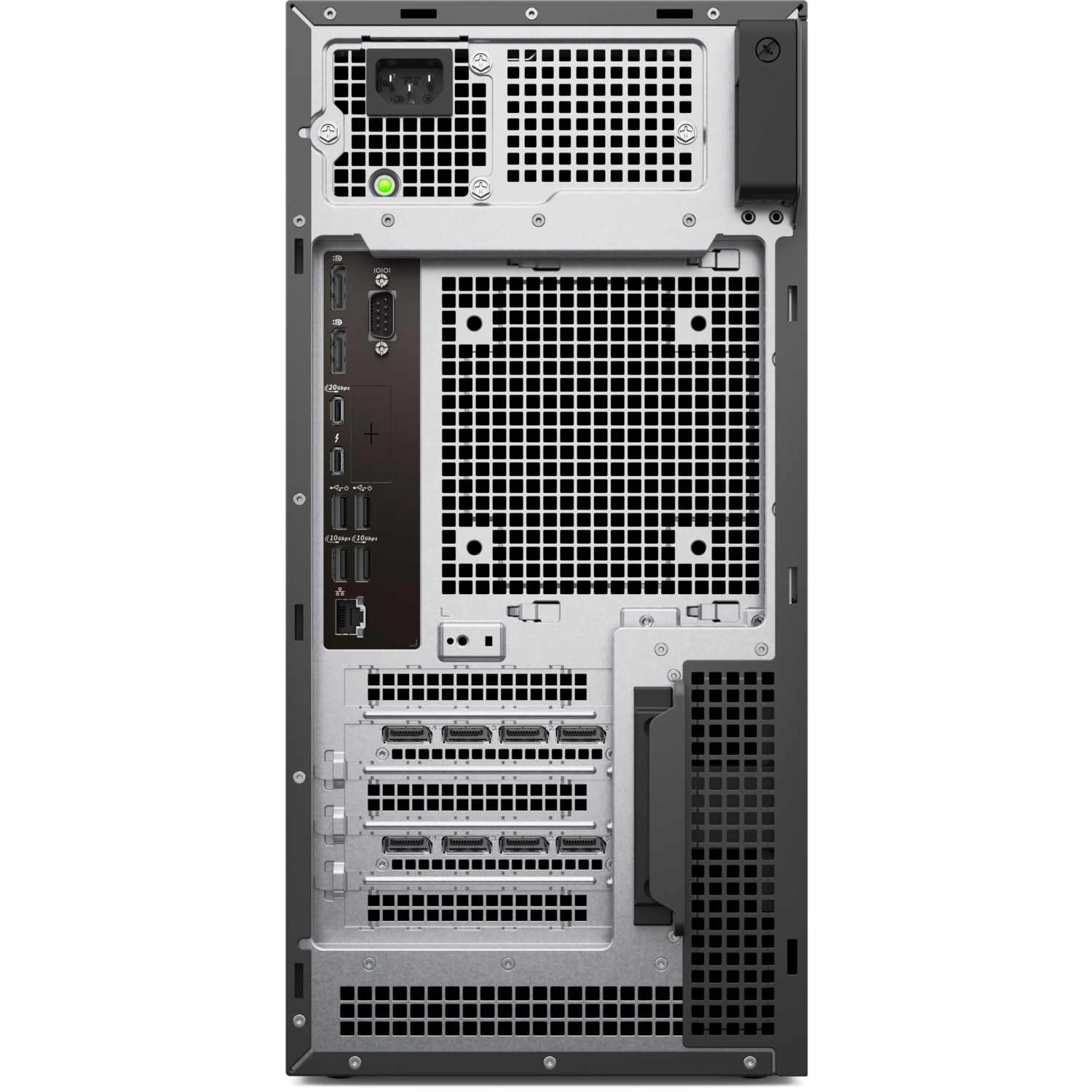

• Rear:
• Multiple USB-A ports
• Display outputs via GPU (mini DP)
• Optional HDMI / DP (config dependent)
• RJ-45 Ethernet
• Audio line-in / line-out
• LAN: Gigabit Ethernet
• WiFi: Optional (not included by default)
Expansion & Slots
• PCIe x16 slot (GPU installed – RTX A400)
• Additional PCIe slots for expansion
• Multiple M.2 SSD slots
• Multiple SATA bays for HDD/SSD
• Highly expandable vs SFF / Mini systems
Audio
• Integrated HD audio codec
• Line-in, line-out, microphone support
Security (Enterprise Grade)
• TPM 2.0 hardware security
• BIOS-level protection
• Chassis intrusion / lock support
• Optional Intel vPro security suite
Power Supply
• ~500W PSU (80 Plus Platinum)
• Designed to support workstation GPU
• High efficiency and stable power delivery
Included Accessories
• Dell wired keyboard (KB216)
• Dell wired mouse
• Power cable
Physical Design & Build
• Full tower workstation chassis
• Optimised airflow for long-duration workloads
• Suitable for desk-side or under-desk deployment
Use Case
• CAD / BIM (AutoCAD, Revit, SolidWorks)
• 3D modelling and rendering (entry–mid level)
• AI inference and data workloads
• Engineering and simulation tasks
• Enterprise workstation deployment
Positioning Summary
• True workstation vs standard desktop
• RTX A400 gives professional GPU certification advantage
• 32GB RAM + dual storage = ready for heavy workloads
• Best suited for users needing expandability + stability + pro graphics
Detailed Specification:
Dell Pro Max Tower T2 (FCT2250) CTO Base
Intel Core Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 1.8 GHz to 5.3 GHz, 65W)
Dell Pro Max Tower T2 with 360W (80 Plus Platinum) PSU
NVIDIA A400, 4 GB GDDR6, 4 mDP to DP adapters
32GB: 1 x 32 GB, DDR5, 5600 MT/s, ECC
8x DVD+/-RW 9.5mm RAM ODD
2 TB, 7200 RPM, 3.5-inch, SATA, HDD
512GB SSD TLC with DRAM M.2 2280 PCIe Gen4 SED Ready
Dell Wired Keyboard - KB216 - US English - Black
Dell Wired Mouse - MS116 - Black
No Wireless LAN Card
Intel vPro Active Magagement Technology
Windows 11 Pro
3 Years ProSupport Warranty
