Dell Pro 75 Plus P7525QT 75" 4K Touch Monitor
PRODUCT DESCRIPTION
Dell Pro 75 Plus 4K Touch Monitor P7525QT (210-BRJD) - 3 Years Local Warranty
20-point InGlass Touch
Twenty simultaneous touchpoints with palm rejection and two included styluses let several people annotate and collaborate at once.
One-cable USB-C
A single USB-C connection carries 4K video, 5Gbps data and up to 90 W of laptop charging.
Built for the meeting room
A 74.5" 4K IPS panel, 2 x 20 W speakers, an OptiPlex/Dell Pro Micro holder and Crestron remote management fit conference-room deployments.
Equipping a team or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P7525QT Datasheet — Technical Specifications
General
| Product Name | Dell Pro 75 Plus 4K Touch Monitor - P7525QT |
| Model | P7525QT |
| Dell SKU | 210-BRJD |
| Local Warranty (Singapore) | 3 Years Limited Hardware and Advanced Exchanged Service (Dell), supplied by SourceIT with a GST invoice |
| Colour | Black |
| Operation Hours | 16 Hours/ 7 Days |
Display
| Viewable Screen Size | 1892.7 mm (74.5") |
| Panel Technology | In-plane Switching (IPS) Technology |
| Screen Mode | 4K UHD |
| Maximum Resolution | 3840 x 2160 at 60 Hz |
| Maximum Refresh Rate | 60 Hz |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.4296 mm x 0.4296 mm |
| Pixels Per Inch (PPI) | 59 |
| Brightness | 400 cd/m² (typical) |
| Native Contrast Ratio | 1,200:1 (typical) |
| Response Time Details | 8 ms GTG (Normal mode) |
| Colour Gamut | 72% NTSC (CIE 1931) |
| Colour Supported | 1.07 Billion Colours |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight Technology | LED Edgelight System |
| Screen Surface | Anti-glare |
| HDCP Supported | Yes |
Touch
| Touch Technology | 20-point InGlass Touch |
| Number of Simultaneous Touchpoints | 20 |
| Palm Rejection | Yes |
| Stylus | 2 x stylus included (with 2 x spare nibs) |
| Software | Dell Display and Peripheral Manager (Windows and macOS) |
| Remote Management | Crestron Connected and Crestron XiO Cloud; RJ45 for remote management; RS232 |
| Room Integration | Compartment/holder for Dell OptiPlex / Dell Pro Micro desktop |

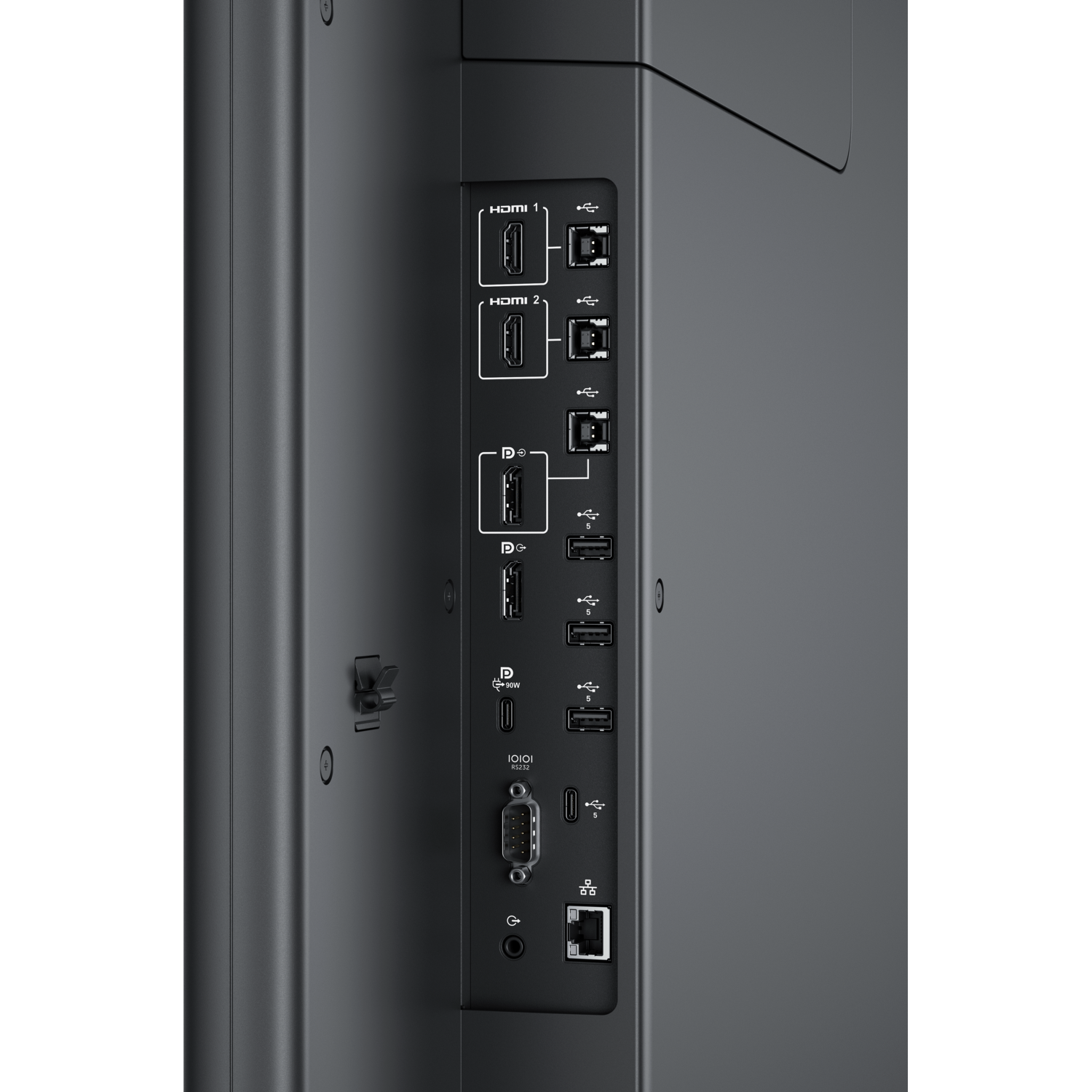

Connectivity
| Connectivity | 1 x DisplayPort 1.4 in (HDCP 2.2) (up to 4K 3840 x 2160 60 Hz, DSC) |
| Connectivity | 1 x DisplayPort 1.4 out (HDCP 2.2) (up to 4K 3840 x 2160 60 Hz, MST) |
| Connectivity | 2 x HDMI 2.0 (HDCP 2.2) (up to 4K 3840 x 2160 60 Hz) |
| Connectivity | 1 x USB-C 5Gbps upstream (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W) |
| Connectivity | 1 x USB-C 5Gbps downstream (Power Delivery up to 15 W) |
| Connectivity | 3 x USB-A 5Gbps downstream |
| Connectivity | 3 x USB-B 5Gbps upstream |
| Connectivity | 1 x analogue audio line-out (3.5 mm jack) |
| Connectivity | 1 x RJ45 (1 GbE, remote management) |
| Connectivity | 1 x RS232 |
| Daisy Chain | Yes (DisplayPort MST) |
| USB-C Power Delivery | Up to 90 W |
Audio & Camera
| Speakers | 2 x 20 W integrated speakers |
Ergonomics
| VESA Mount Standard | 400 x 400 mm |
| Eye Comfort | ComfortView Plus (always-on low blue light) |
Power
| Input Voltage Range | 100 V AC to 240 V AC, 50/60 Hz, 9.5 A |
| Operating Power Consumption | 128 W |
| Maximum Power Consumption | 410 W |
| Standby Power Consumption | 0.5 W |
| Off-Mode Power Consumption | 0.3 W |
Physical
| Height | 1027.16 mm |
| Width | 1745.89 mm |
| Depth | 87.80 mm |
| Bezel Width (Top/Left/Right) | 48.11 mm |
| Bezel Width (Bottom) | 51.11 mm |
| Weight (Panel only, approx.) | 59.09 kg |
| Weight with cables/accessories | 60.12 kg |
| Weight with Packaging | 82.43 kg |
Environmental & Certifications
| Operating Temperature Range | 0°C to 40°C |
| Non-operating Temperature Range | -20°C to 60°C |
| Operating Humidity Range | 10% to 80% (non-condensing) |
| Non-operating Humidity Range | 5% to 90% (non-condensing) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Certification | EPEAT Gold (Climate+) |
| Environmental Compliance | RoHS; BFR/PVC free (excluding external cables); arsenic-free glass and mercury-free panel |
| Energy Efficiency Compliance | ErP Lot 5 |
| Remote Asset Management | Dell Command | Monitor / DDPM |
Compatibility & Software Support
Sources
Connect a laptop over USB-C (DisplayPort 1.4 Alt Mode, up to 90 W charging), or PCs over 2 x HDMI 2.0 and DisplayPort 1.4 in (all up to 4K 60 Hz). DisplayPort out supports MST daisy chain.
Touch
20-point InGlass Touch with palm rejection; two styluses and spare nibs are included. The display is driven by a connected PC; Dell does not list a built-in operating system.
Room Integration
Holder for a Dell OptiPlex / Dell Pro Micro desktop with its own power cable, remote control, 2 x 20 W speakers and a 3.5 mm audio line-out.
Management
Crestron Connected and Crestron XiO Cloud, RJ45 and RS232 for remote management, and Dell Display and Peripheral Manager (Windows and macOS). VESA 400 x 400 mm mounting.
Package Contents & Dell Pro Plus Large-Format Monitors Ordering Information
In the Box
Monitor, OptiPlex / Dell Pro Micro holder, Remote control, 2 x AAA batteries, 2 x Stylus, 2 x Stylus nib, Power cable, Power cable for OptiPlex/Dell Pro Micro connection, DisplayPort-DisplayPort 1.4 cable (3.0 m), HDMI cable (3.0 m), USB A-to-B upstream cable, USB-C to USB-C upstream cable (1.8 m), Quick Start Guide, Safety, Environmental and Regulatory Information.
Dell Pro Plus Large-Format Monitors
| Model | Key feature |
| P5525QC | 55" 4K conference room monitor |
| P6524QT | 65" 4K interactive touch |
| P7525QT (this listing) | 75" 4K 20-point InGlass touch, USB-C 90 W |
Datasheet & Downloads
| Datasheet (PDF) | P7525QT datasheet on delltechnologies.com |
| Manuals & drivers | P7525QT manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P7525QT.
Frequently Asked Questions — Dell P7525QT
How many touch points does it support?
20 simultaneous touchpoints (InGlass Touch) with palm rejection; two styluses are included.
Can I charge my laptop over USB-C?
Yes, the USB-C upstream port provides DisplayPort 1.4 Alt Mode and Power Delivery up to 90 W.
Can I mount a PC to it?
Yes, a holder for a Dell OptiPlex / Dell Pro Micro desktop is included, along with a dedicated power cable for it.
Does it have speakers and remote management?
Yes, 2 x 20 W integrated speakers, plus RJ45 and RS232 for remote management and Crestron Connected / XiO Cloud support.
What warranty do I get?
3 Years Limited Hardware and Advanced Exchanged Service (Dell), supplied locally by SourceIT with a GST invoice.
