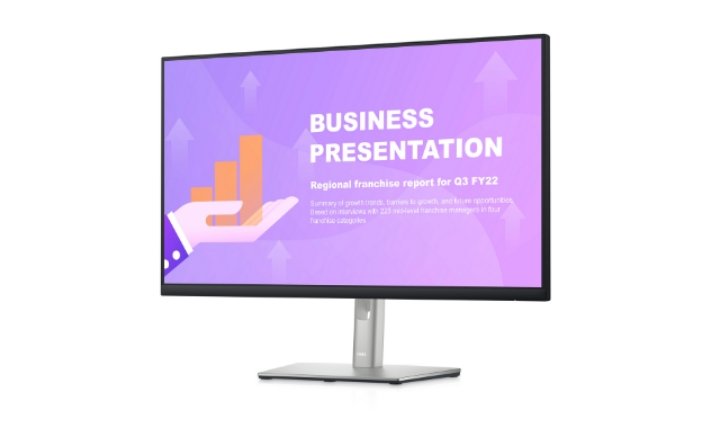

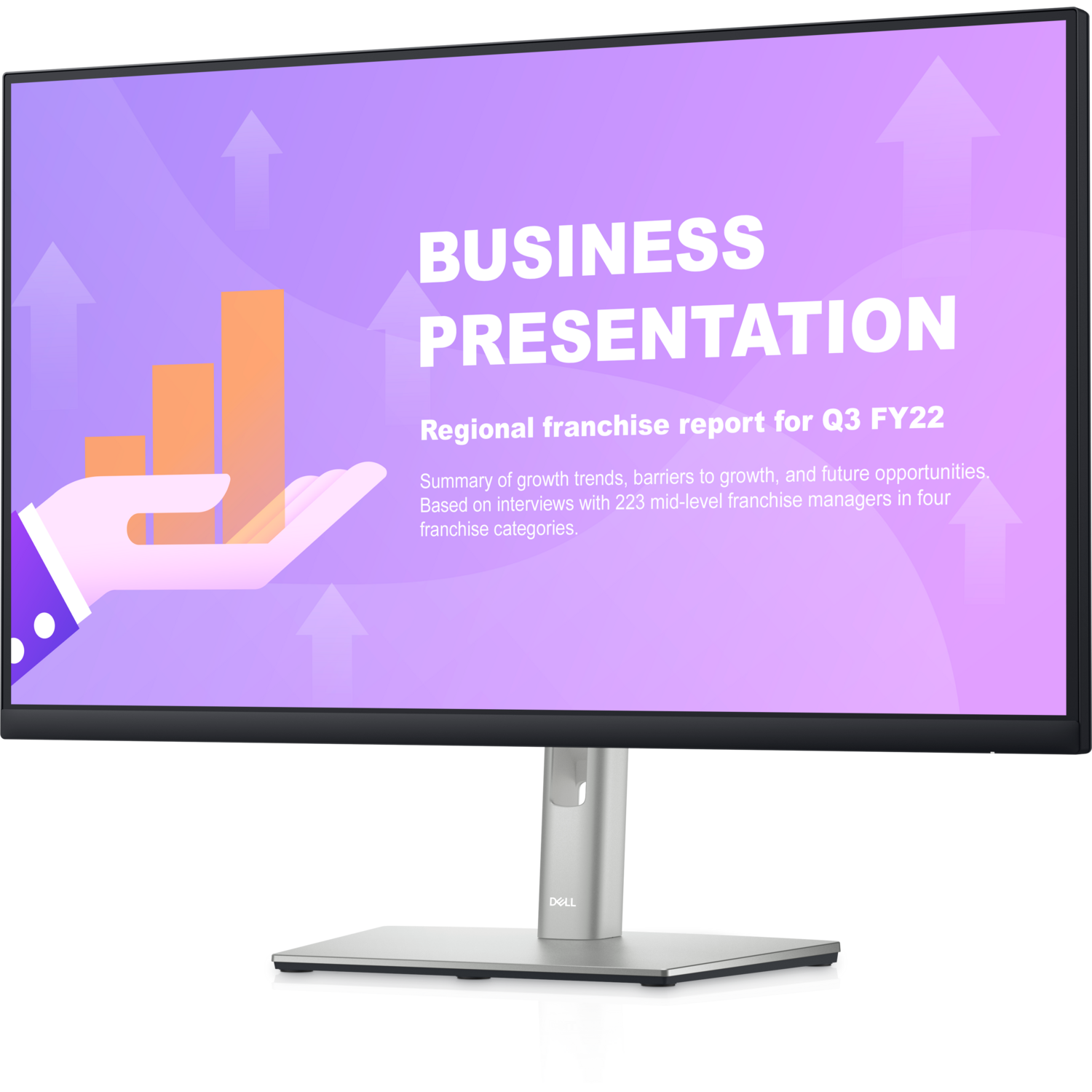

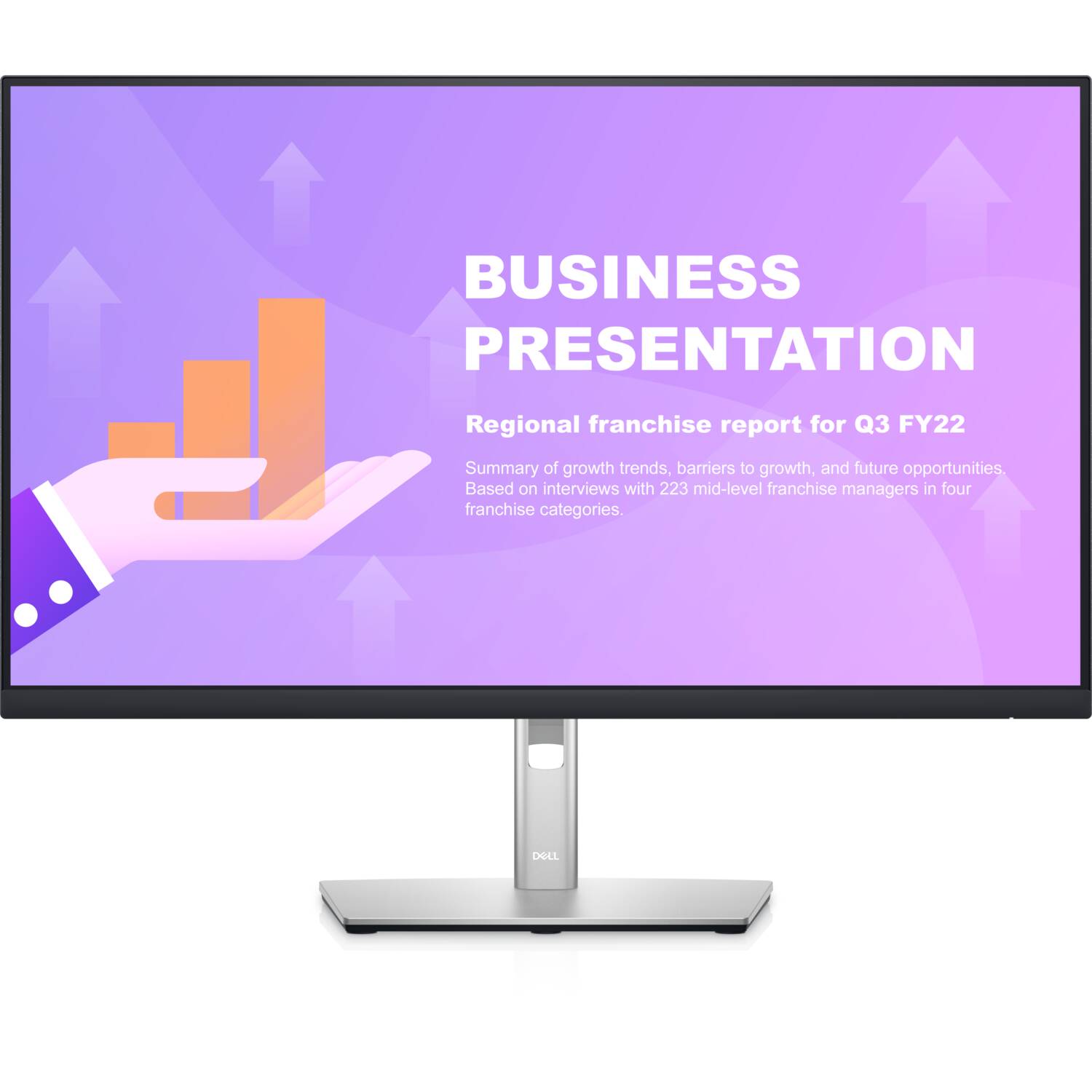

Dell P2722HE 27" Full HD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell 27 USB-C Hub Monitor P2722HE (210-BBHF) - 3 Years Local Warranty
One Cable for Video, Data, Network and 65 W Power
Single-cable USB-C connectivity carries video, data, network and up to 65 W of power to charge a connected laptop.
A Real Docking Hub on Your Desk
Built-in hub with four USB 3.2 Gen 1 (5 Gbps) ports, RJ45 Ethernet and DisplayPort out with MST for daisy-chaining a second monitor.
Full HD IPS with Eye Comfort
27" Full HD IPS panel with 99% sRGB, ComfortView Plus flicker-free eye comfort and a fully adjustable height/tilt/swivel/pivot stand.
Equipping a whole office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell P2722HE Datasheet — Technical Specifications
Display
| Screen Size | 27" (686 mm) diagonal, 27" viewable |
| Active Area | 597.89 mm x 336.31 mm |
| Panel Type | IPS (In-Plane Switching), LED-backlit LCD / TFT active matrix |
| Backlight | WLED (edge-lit) |
| Resolution | Full HD 1920 x 1080 at 60 Hz |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.3114 mm |
| Pixels Per Inch | 82 |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Colour Support | 16.7 million colours |
| Colour Gamut | 99% sRGB |
| Response Time | 8 ms grey-to-grey (normal); 5 ms grey-to-grey (fast) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Screen Coating | Anti-glare |

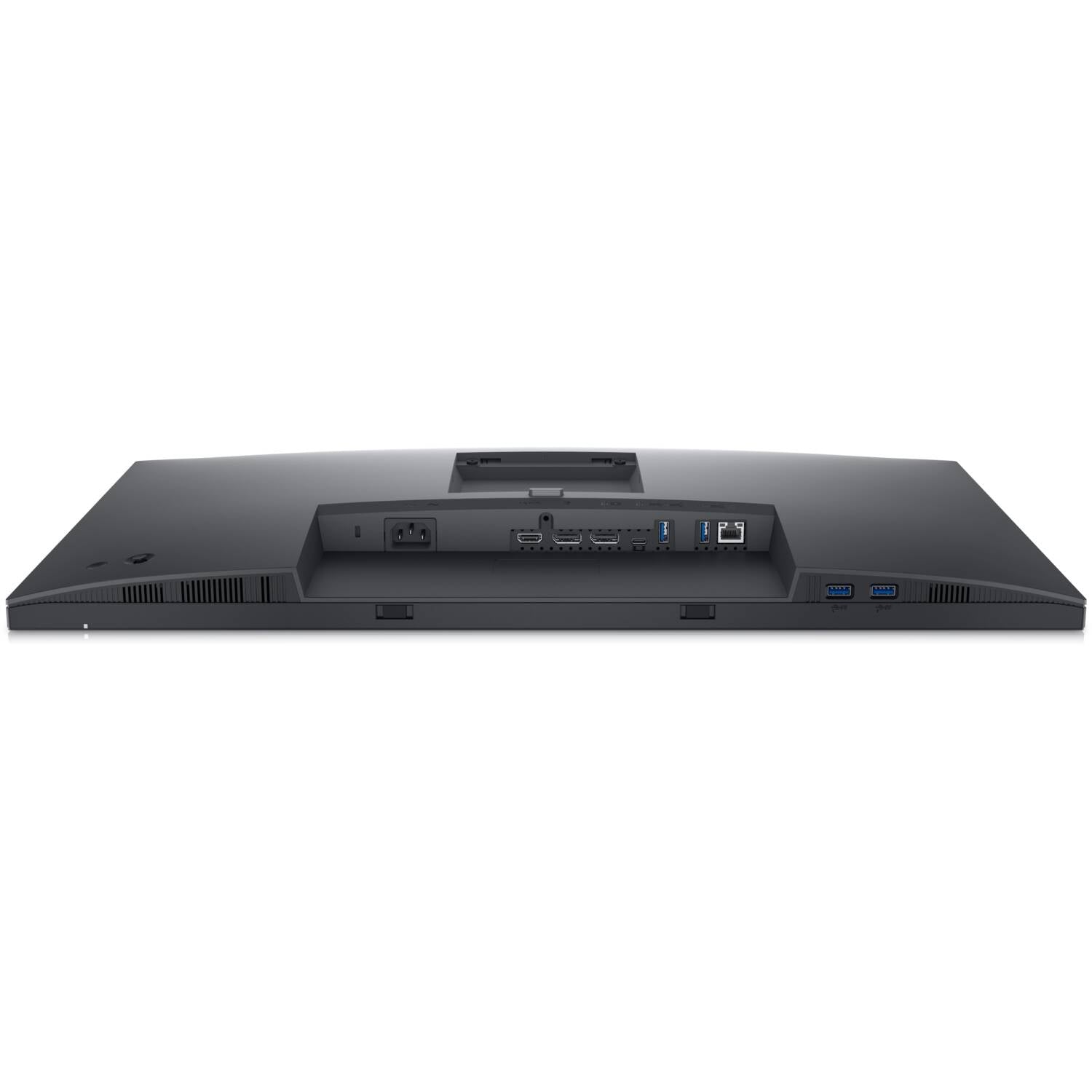

Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4) |
| DisplayPort In | 1 x DisplayPort 1.2 (HDCP 1.4) |
| DisplayPort Out | 1 x DisplayPort output with MST (HDCP 1.4) |
| USB-C | 1 x USB-C upstream (DisplayPort 1.2 Alt Mode, Power Delivery up to 65 W) |
| USB Downstream | 4 x USB 3.2 Gen 1 (5 Gbps) |
| Network | 1 x RJ45 |
| Software | Dell Display Manager; remote management via Dell Command | Monitor |

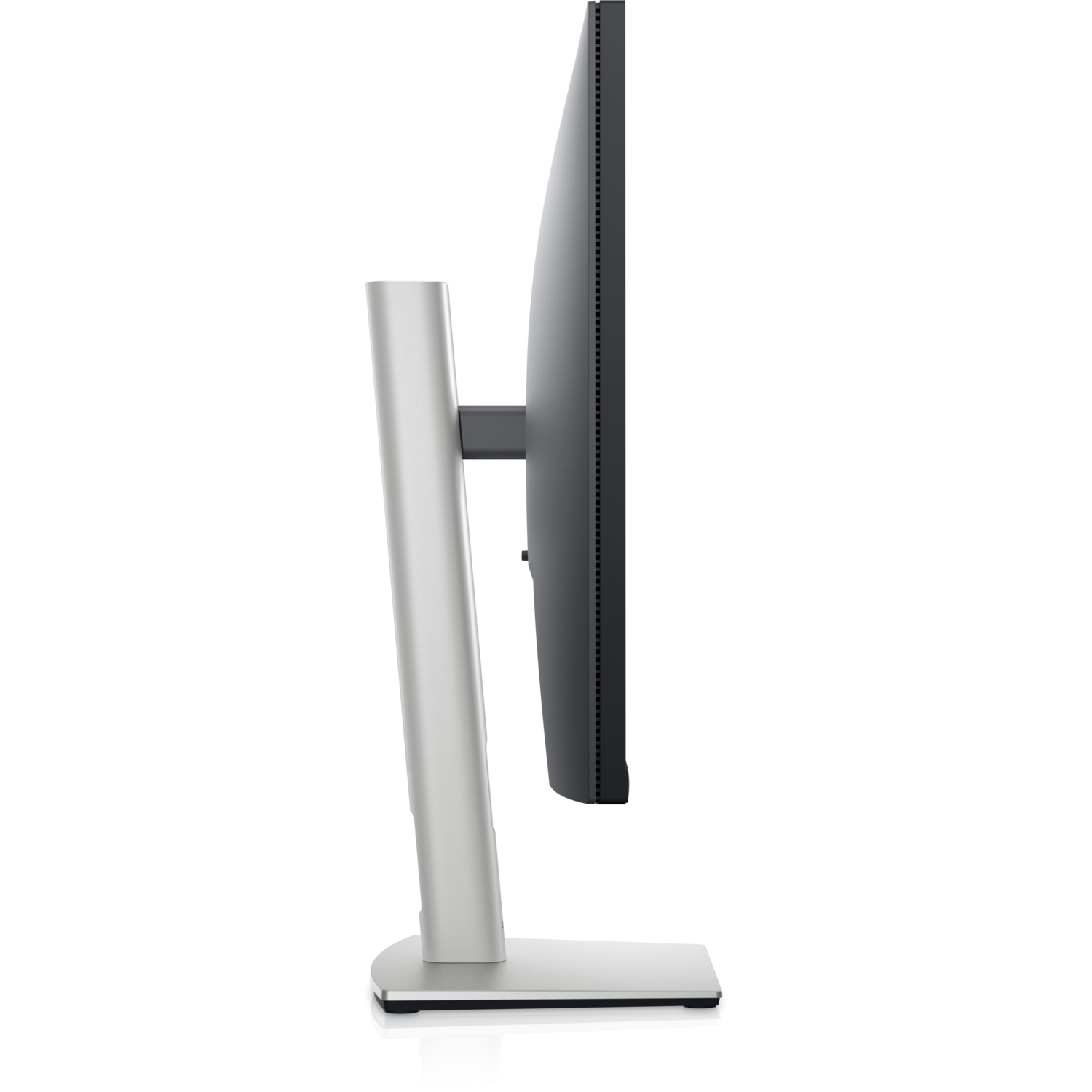

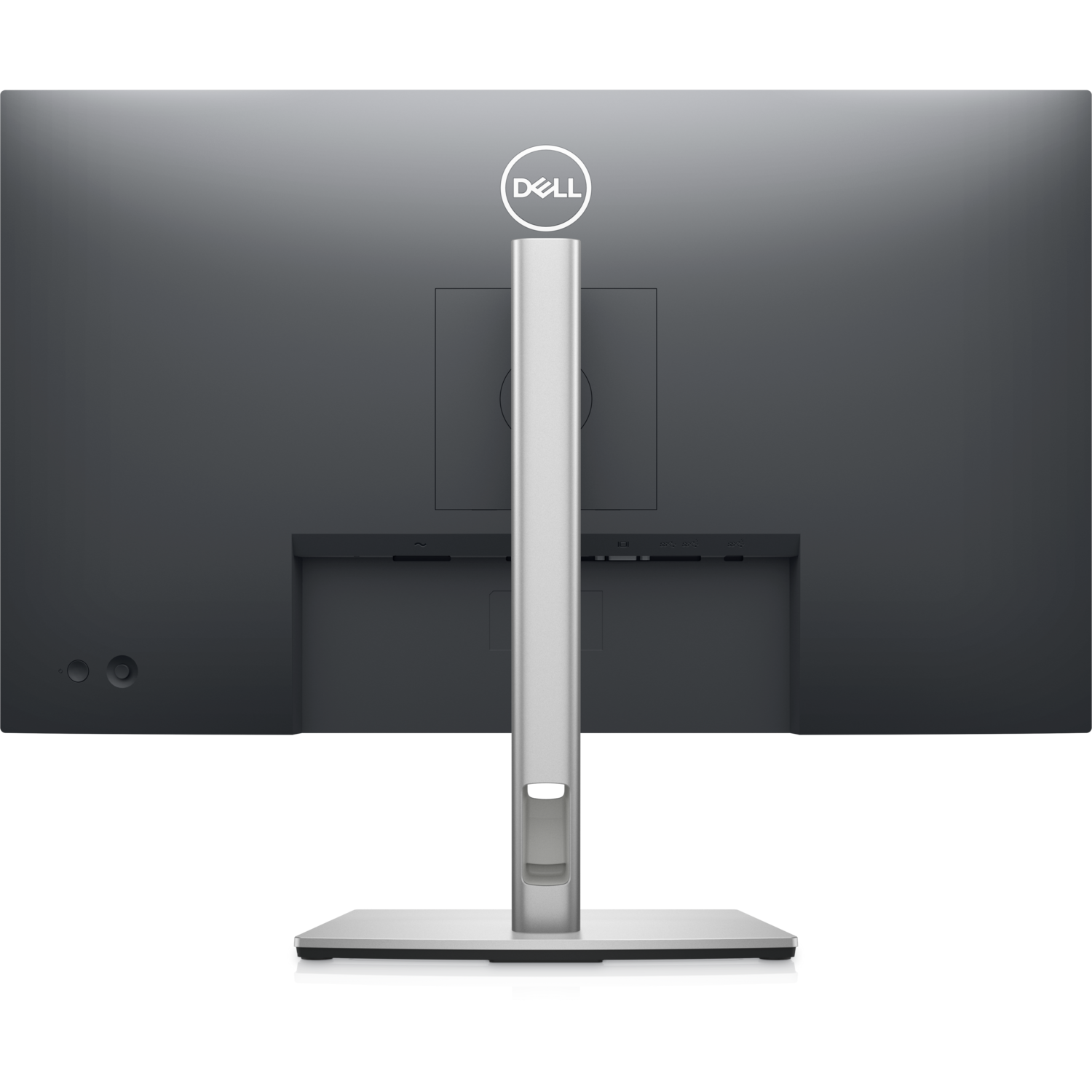

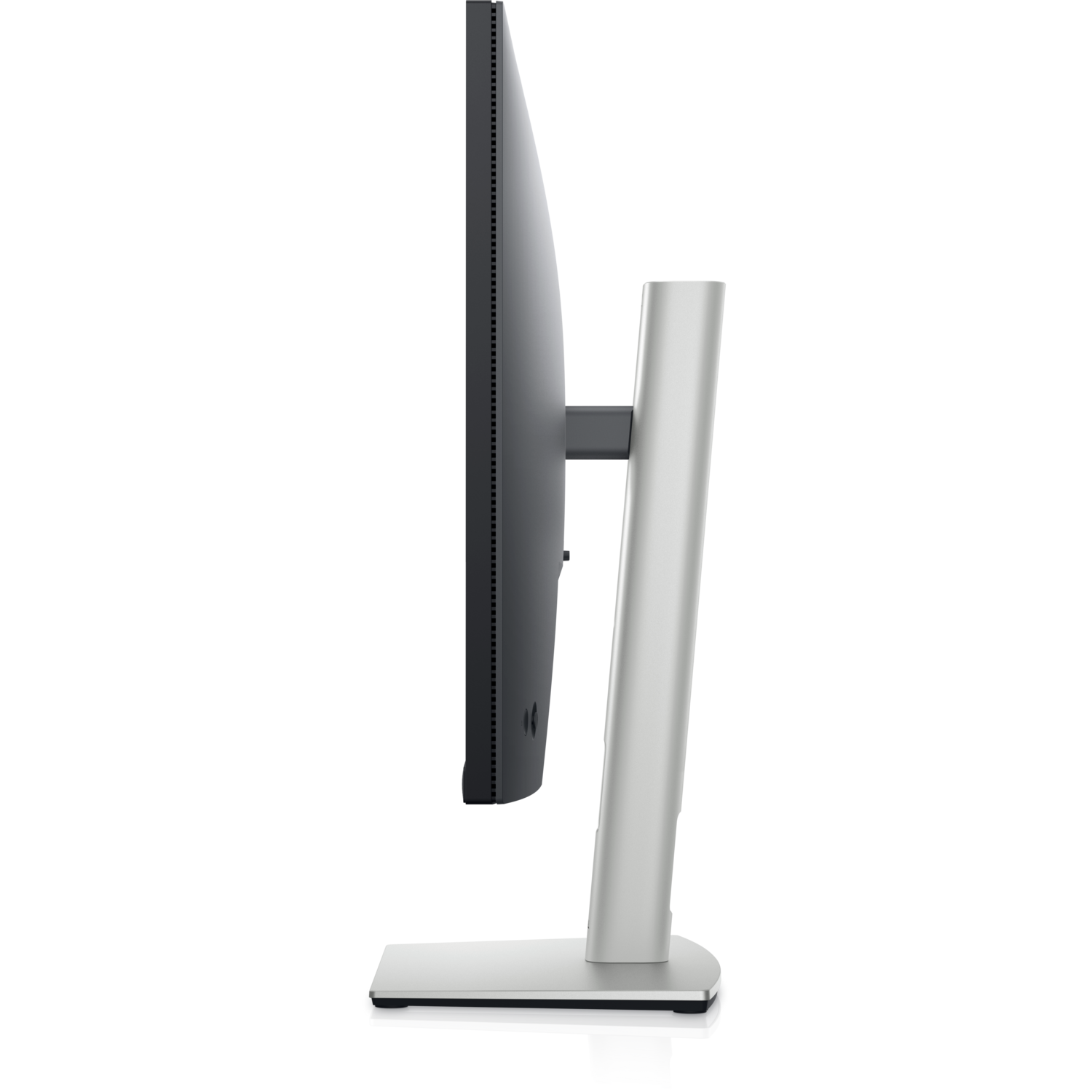

Ergonomics
| Adjustments | Height, tilt, swivel, pivot |
| Height Adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |
| VESA Mount | 100 x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Eye Comfort
| ComfortView Plus | Yes (built-in low blue light) |
| Flicker-Free | Yes |
Power
| AC Input | 100-240 V AC, 50/60 Hz |
| On Mode | 17.1 W |
| Maximum | 132 W |
| Off Mode | 0.2 W |
| USB-C Power Delivery | Up to 65 W |
Physical
| Dimensions with Stand (W x D x H) | 609.9 mm x 190.1 mm x 534.15 mm |
| Weight with Stand | 7.14 kg |
| Weight Panel Only (no stand) | 4.92 kg |
| Shipping Weight | 9.62 kg |
| Environmental | ENERGY STAR certified, TCO Certified Edge, RoHS compliant, BFR/PVC-free (excluding external cables), arsenic-free glass, mercury-free |
| Compliance | TAA compliant |
Warranty
| Local Warranty (Singapore) | Dell Singapore: 3 years Advanced Exchange Service and Limited Hardware Warranty; supplied by SourceIT with a GST invoice |
Compatibility & Software Support
USB-C Laptops
Single-cable video, USB data, Ethernet and up to 65 W charging need a laptop USB-C port with DisplayPort Alt Mode and USB Power Delivery.
Daisy-Chaining
DisplayPort out with Multi-Stream Transport (MST) lets a second monitor be chained from this one; the source must support DisplayPort MST.
Software
Dell Display Manager for Easy Arrange window layouts and display settings (Windows).
Package Contents & Dell P-Series 27-inch Monitors Ordering Information
In the Box
Monitor with stand, power cable, DisplayPort to DisplayPort cable (1.8 m), USB-C cable (1.8 m), cable tie, Quick Setup Guide, safety and regulatory information.
Dell P-Series 27-inch Monitors
| Model | Key feature |
| P2722H 27" Full HD | FHD IPS, HDMI/DP/VGA, USB hub |
| P2722HE 27" Full HD USB-C Hub (this listing) | FHD IPS, USB-C 65 W, RJ45, DP out |
| P2723D 27" QHD | QHD IPS, HDMI + DP 1.2, USB hub |
| P2723DE 27" QHD USB-C Hub | QHD IPS, USB-C 90 W, RJ45, DP out |
| Pro 27 Plus P2725H FHD | Current FHD successor |
| Pro 27 Plus P2725HE FHD USB-C Hub | Current FHD USB-C hub successor |
| Pro 27 Plus P2725D QHD | Current QHD successor |
| Pro 27 Plus P2725DE QHD USB-C Hub | Current QHD USB-C hub successor |
Datasheet & Downloads
| User guide | Dell P2722HE Monitor User's Guide (PDF) |
| Datasheet | Dell 27 USB-C Hub Monitor P2722HE Datasheet (Spanish, Dell Technologies) (PDF) |
| Dell Singapore | P2722HE on dell.com/en-sg |
| Manuals & drivers | P2722HE on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2722HE.
Frequently Asked Questions — Dell P2722HE
Can the P2722HE charge my laptop over USB-C?
Yes. The USB-C upstream port supports DisplayPort 1.2 Alt Mode and Power Delivery up to 65 W.
Does it have an Ethernet port?
Yes, it has an RJ45 network port, available when connected to a computer via USB-C.
Can I daisy-chain two monitors?
Yes. The DisplayPort output supports MST (Multi-Stream Transport) for daisy-chaining a second monitor.
What is the resolution and refresh rate?
Full HD 1920 x 1080 at 60 Hz on a 27" IPS panel with 99% sRGB colour gamut.
What warranty does Dell provide in Singapore?
3 years Advanced Exchange Service and Limited Hardware Warranty.
Is it in stock?
Dell Singapore currently lists this model as temporarily out of stock. Email sales@sourceit.com.sg for availability or the current Dell successor.
