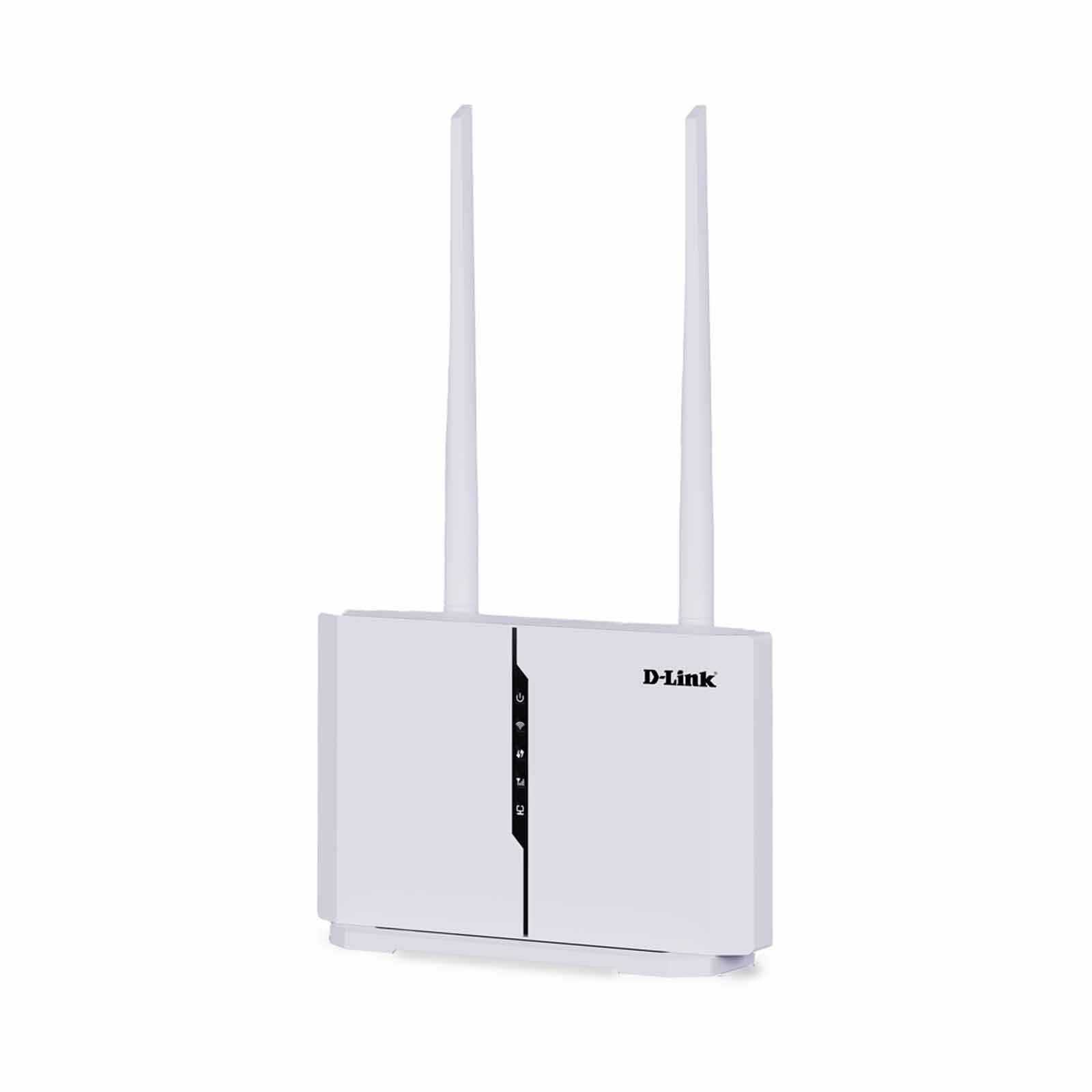

D-Link DWR-M972V LTE CAT7 WiFi AC1200 Router

The D-Link DWR-M972V LTE CAT7 WiFi AC1200 Router is a high-performance 4G+ router designed for users who need both mobility and stable broadband backup. It combines LTE Cat7 speeds, dual-band AC1200 WiFi, and even built-in battery support, making it suitable for home, SME, and on-the-go usage.

4G+ LTE Cat7 for Faster Mobile Speeds

This router supports LTE Cat7 with up to 300 Mbps download and 100 Mbps upload, offering significantly faster speeds compared to basic 4G routers. It also supports carrier aggregation for better stability in strong signal areas.

AC1200 Dual-Band WiFi Performance

With dual-band WiFi (2.4GHz + 5GHz), it delivers combined speeds up to 1200 Mbps, allowing smoother streaming, video calls, and multi-device usage compared to N300 models.

Supports Up to 64 Devices

The router can handle up to 64 connected devices, making it suitable for busy environments like offices, retail shops, or shared homes.

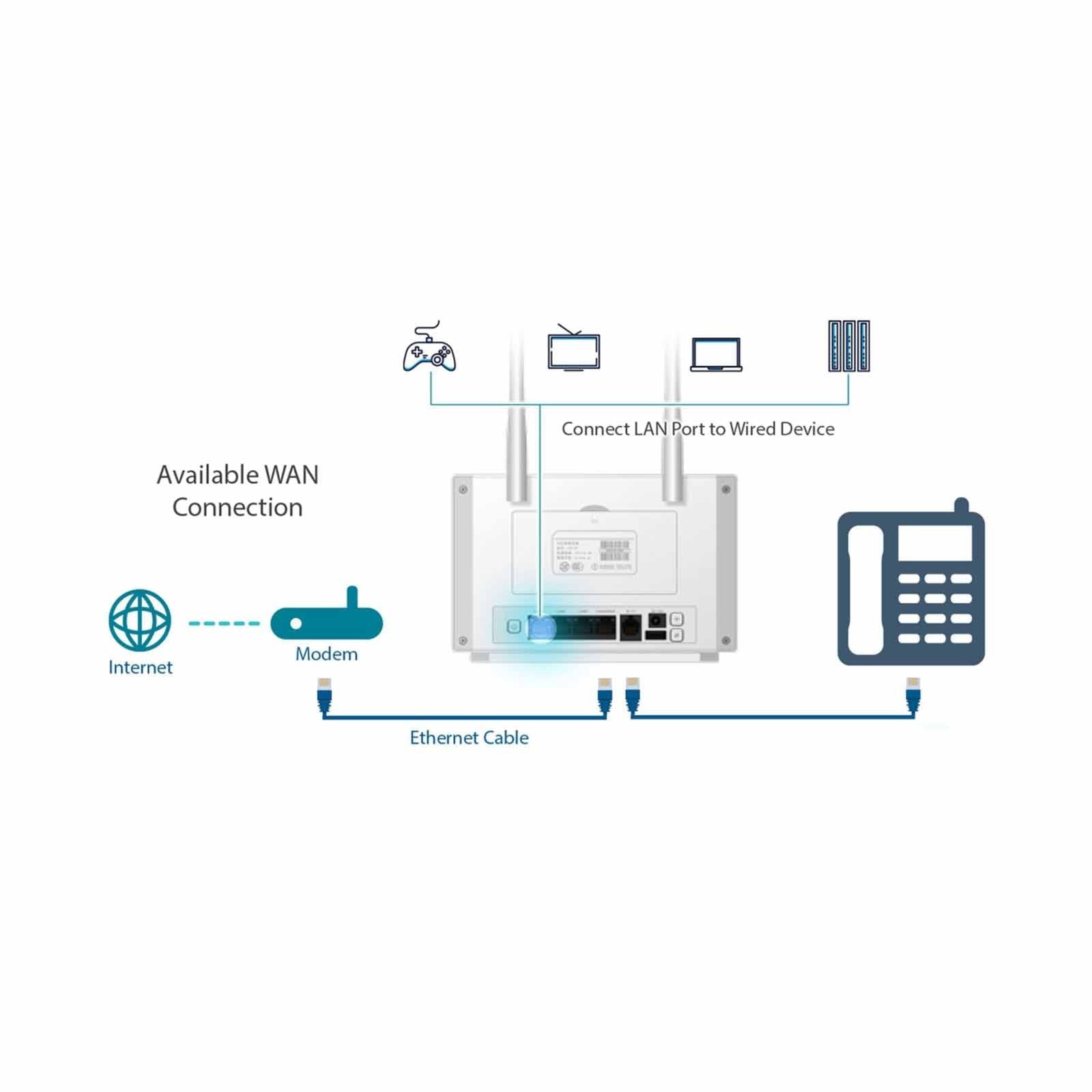

Gigabit Ports + WAN Failover

It includes 3 × Gigabit LAN ports and 1 × WAN/LAN port, enabling high-speed wired connections. It also supports failover between wired broadband and 4G, ensuring continuous internet if one connection drops.

Built-in Battery & VoLTE Support

Unlike most routers, the DWR-M972V comes with a built-in battery (dual cells) for temporary use during power outages or mobile scenarios. It also supports VoLTE telephony, allowing connection to a phone line for voice calls via SIM.

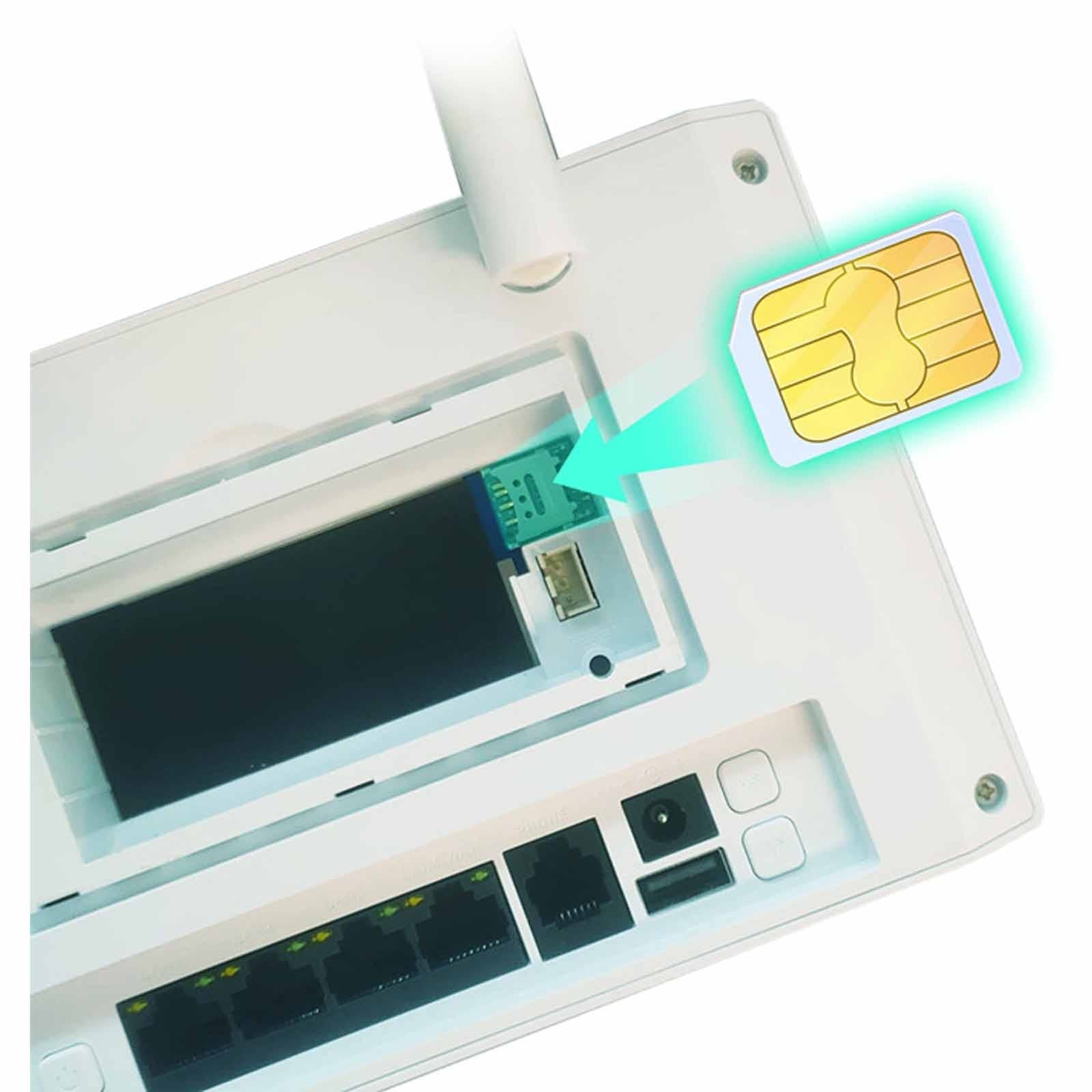

Plug-and-Play with SIM Card

Setup is simple—insert a nano SIM card and start sharing internet instantly. It works out of the box with minimal configuration, making it user-friendly for both home users and businesses.

Technical Specifications

General
Model: DWR-M972V
Product Type: 4G+ LTE Cat7 Wi-Fi Router
Deployment: Home, SME, temporary sites, failover internet
Usage Mode: SIM-based + wired broadband hybrid router

Mobile Network (WAN)
4G LTE: Supported (Cat 7, up to 300 Mbps DL / 100 Mbps UL)
3G Fallback: Supported (DC-HSPA+)
SIM Slot: 1 × Nano SIM
Plug & Play: Insert SIM card to instantly share internet
Carrier Aggregation: Supported (4G+ LTE)

Wireless Specifications
Wi-Fi Standard: IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
Frequency Band: Dual-band (2.4 GHz + 5 GHz)
Wireless Speed: Up to 1200 Mbps (AC1200)
• 2.4 GHz: up to 300 Mbps
• 5 GHz: up to 866 Mbps
Coverage: Suitable for home / small office environments
Max Connected Devices: Up to ~64 users

Antenna Design
External Antennas: 2 × LTE antennas
Internal Antennas: 2 × Wi-Fi antennas
Purpose: Stable 4G+ reception and dual-band Wi-Fi coverage

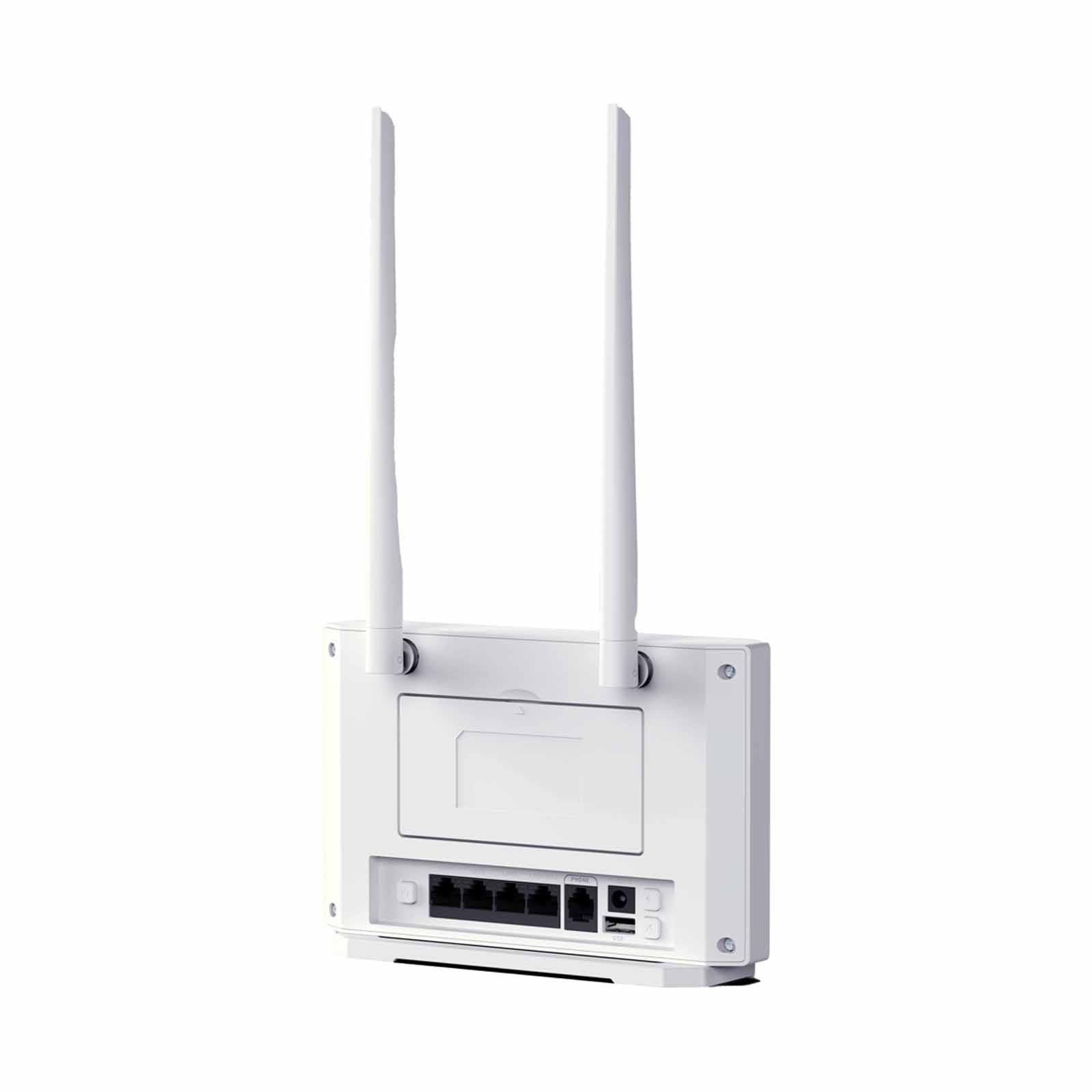

Ports & Interfaces
LAN Ports: 3 × Gigabit Ethernet LAN
WAN/LAN Port: 1 × Gigabit configurable WAN/LAN
SIM Slot: 1 × Nano SIM
RJ11 Port: 1 × Telephone port (VoLTE support)
Buttons: Power / Reset / WPS / Wi-Fi
LED Indicators: 4G, Wi-Fi, WPS, LAN, Battery

Operating Modes
4G Router Mode (primary use)
Wireless Router Mode (Ethernet WAN)
Failover Internet (4G backup for fixed line)

Security
Wireless Encryption: WPA / WPA2 / WPA3
Firewall: NAT + SPI firewall protection
Access Control: URL filtering / MAC filtering

Performance & Features
Internet Sharing: High-speed 4G+ with dual-band Wi-Fi
Ease of Use: Plug-and-play SIM setup
Stability: Designed for continuous connectivity with failover
VoLTE Support: Enables voice calls via SIM
Battery Backup: Built-in battery for mobility (~2.5 hours usage)
Use Case: Home office, SME, temporary deployment, mobile setup

Power
Power Input: External power adapter
Power Type: 12V DC
Battery: Built-in (dual battery design)

Physical Specifications
Dimensions: ~180 × 110 × 29 mm
Weight: ~300 g (without battery) / ~394 g (with battery)
Form Factor: Desktop / portable router

Package Contents
Router unit
Power adapter
Ethernet cable
Quick installation guide

Key Features
4G+ LTE Cat7 with faster speeds vs Cat4/6
Dual-band AC1200 Wi-Fi
Gigabit LAN + WAN ports
Supports up to ~64 devices
VoLTE telephony support (RJ11)
Built-in battery for portability
Automatic WAN failover for uptime

Typical Use Cases
Home office with SIM-based internet
SME requiring failover connectivity
Retail / POS with backup internet
Temporary sites / events
Mobile deployment with battery support
