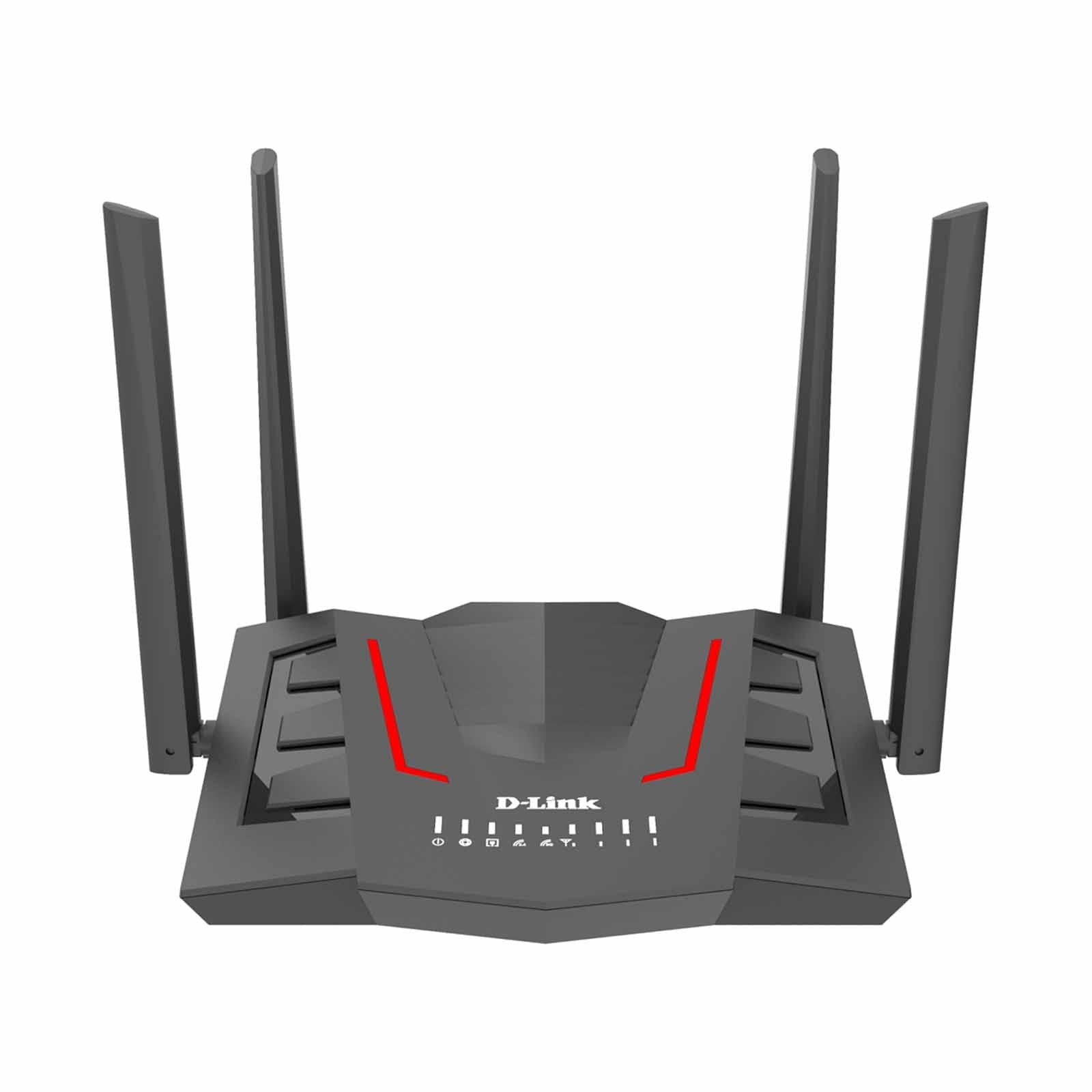

D-Link DWR-M955X Wireless AX1500 4G LTE Router

The D-Link DWR-M955X Wireless AX1500 4G LTE Router is a step up from basic N300 routers, designed for users who want faster speeds, better coverage, and more stable connectivity. It combines 4G LTE SIM-based internet with Wi-Fi 6 (AX1500), making it suitable for both home and small office environments where performance matters.

Wi-Fi 6 AX1500 for Faster Speeds

Unlike older N300 routers, this model supports Wi-Fi 6 dual-band speeds up to 1500 Mbps (300 Mbps on 2.4GHz + 1204 Mbps on 5GHz). This allows smoother streaming, video calls, and multiple users without lag.

4G LTE Backup or Primary Internet

It supports 4G LTE connectivity up to 150 Mbps download, allowing you to use a SIM card for internet access. This is ideal for locations without fibre or as a backup line to keep your business online during outages.

WAN Failover for Reliable Connectivity

A key feature is automatic failover between 4G LTE and wired broadband (WAN). If your primary internet fails, it switches automatically to 4G, ensuring continuous connectivity—useful for SME or critical operations.

Gigabit Ports for Wired Performance

The router includes 3 × Gigabit LAN ports and 1 × WAN/LAN port, allowing high-speed wired connections for desktops, switches, or servers. This makes it more suitable for office setups compared to basic routers.

Stronger Coverage with External Antennas

Equipped with external LTE and WiFi antennas, the DWR-M955X improves signal reception and overall coverage. This helps maintain stable performance even in areas with weaker mobile signal.

Enhanced Security and VPN Support

Security features include WPA3 encryption, NAT firewall, access control, and VPN support, ensuring secure communication for both home and business use.

Technical Specifications

General
Model: DWR-M955X
Product Type: 4G LTE Wi-Fi 6 Wireless Router
Deployment: Home, SME, temporary sites, failover internet
Usage Mode: SIM-based + wired broadband hybrid router

Mobile Network (WAN)
4G LTE: Supported (Cat 4, up to 150 Mbps DL / 50 Mbps UL)
3G Fallback: Supported
SIM Slot: 1 × Nano SIM
Plug & Play: Insert SIM card for instant internet
WAN Failover: LTE ↔ Ethernet auto failover supported

Wireless Specifications
Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band: Dual-band (2.4 GHz + 5 GHz)
Wireless Speed: Up to 1500 Mbps (AX1500)
• 2.4 GHz: up to 300 Mbps
• 5 GHz: up to 1204 Mbps
Coverage: Suitable for medium homes / offices
Max Connected Devices: Multiple devices (higher capacity vs N300 routers)

Antenna Design
External Antennas: 4 total
• 2 × LTE antennas (~3 dBi)
• 2 × Wi-Fi antennas (~5 dBi)
Purpose: Stronger signal, better coverage and stability

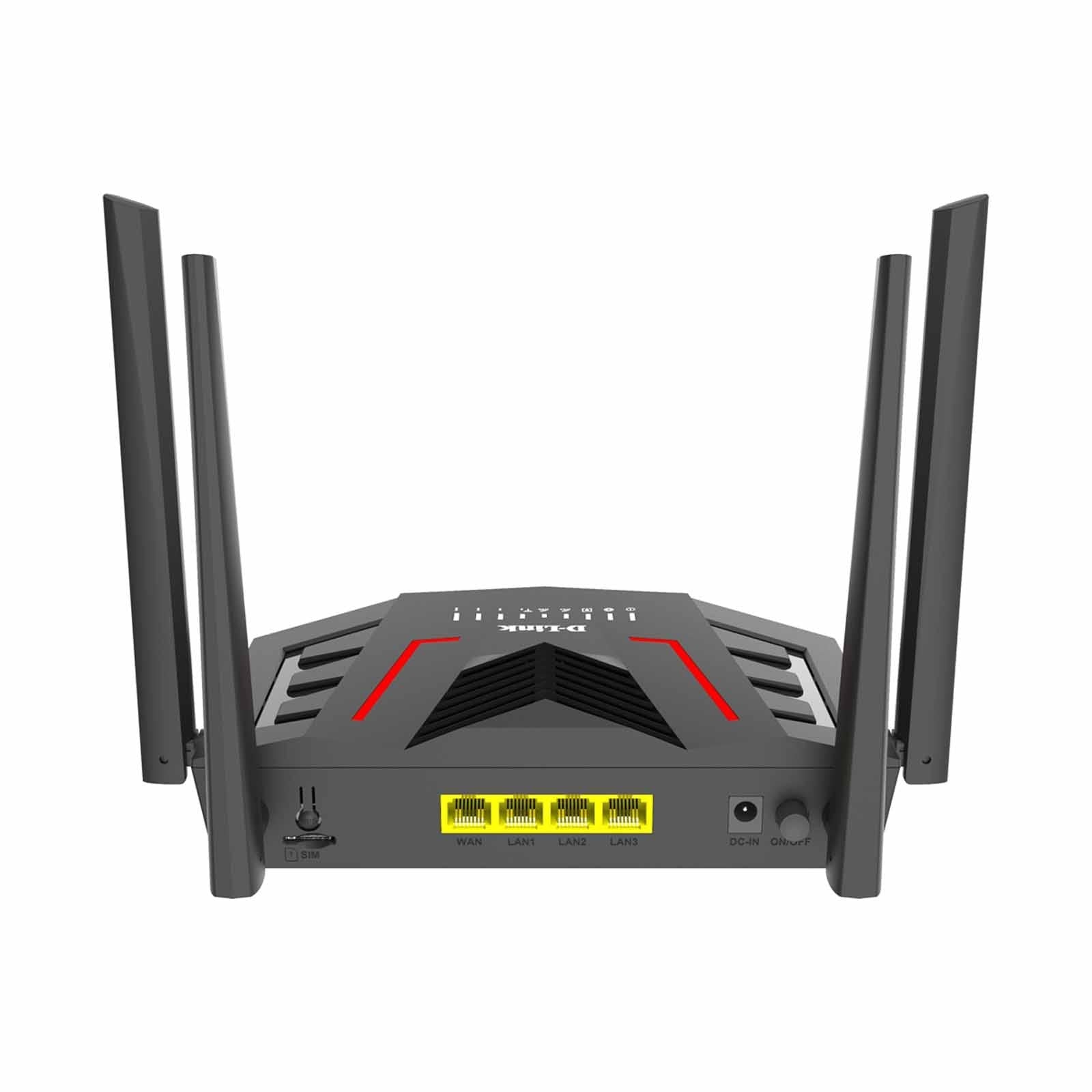

Ports & Interfaces
LAN Ports: 3 × Gigabit Ethernet LAN
WAN/LAN Port: 1 × Gigabit configurable WAN/LAN
SIM Slot: 1 × Nano SIM
Buttons: WPS / Reset / Power
LED Indicators: Power, Internet, LAN, Wi-Fi, LTE

Operating Modes
4G Router Mode (primary use)
Wireless Router Mode (Ethernet WAN)
Access Point Mode
Failover Internet (4G backup for fixed line)

Security
Wireless Encryption: WPA / WPA2 / WPA3
Firewall: NAT + SPI firewall protection
Access Control: IP / MAC filtering
VPN Support: Supported (secure remote connectivity)

Performance & Features
Internet Sharing: High-speed 4G + Wi-Fi 6 for multiple users
Ease of Use: Web UI + setup wizard
Stability: Designed for continuous 4G + wired hybrid usage
WAN Failover: Automatic switching ensures uptime
Use Case: SME, heavy home usage, streaming, backup WAN

Power
Power Input: External power adapter
Power Type: 12V DC

Physical Specifications
Dimensions: ~164 × 101 × 187 mm
Weight: ~180 g
Form Factor: Desktop router

Package Contents
Router unit
Power adapter
Ethernet cable
Quick installation guide

Key Features
Wi-Fi 6 AX1500 dual-band performance
4G LTE SIM + Gigabit WAN hybrid support
Gigabit LAN ports for high-speed wired devices
External antennas for stronger signal
Automatic WAN failover (business continuity)
Suitable for heavier workloads vs N300 models

Typical Use Cases
SME office with failover internet
Home users needing faster Wi-Fi 6
Retail / POS systems requiring uptime
Temporary sites with higher bandwidth demand
Backup internet with better performance than N300
