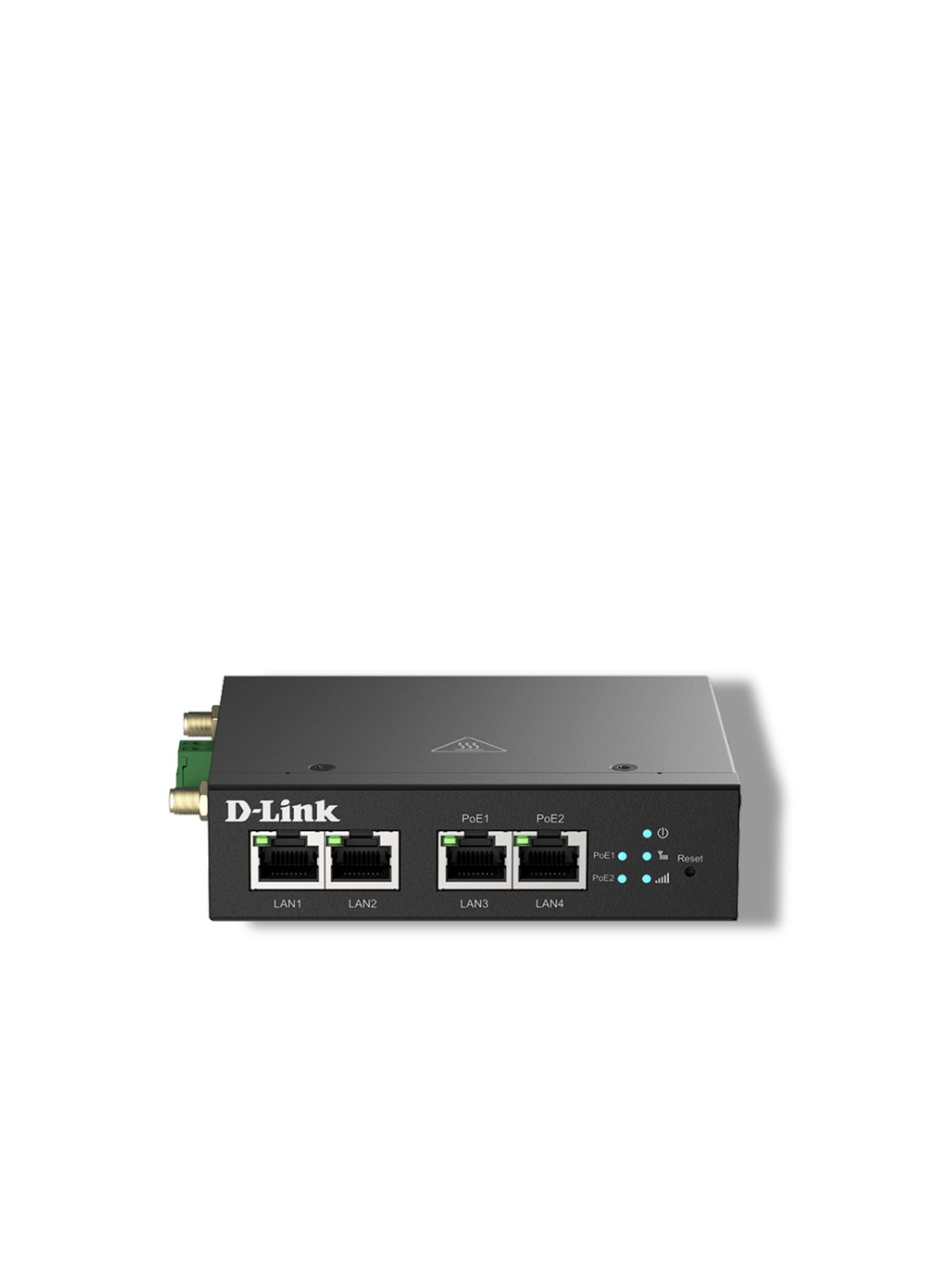

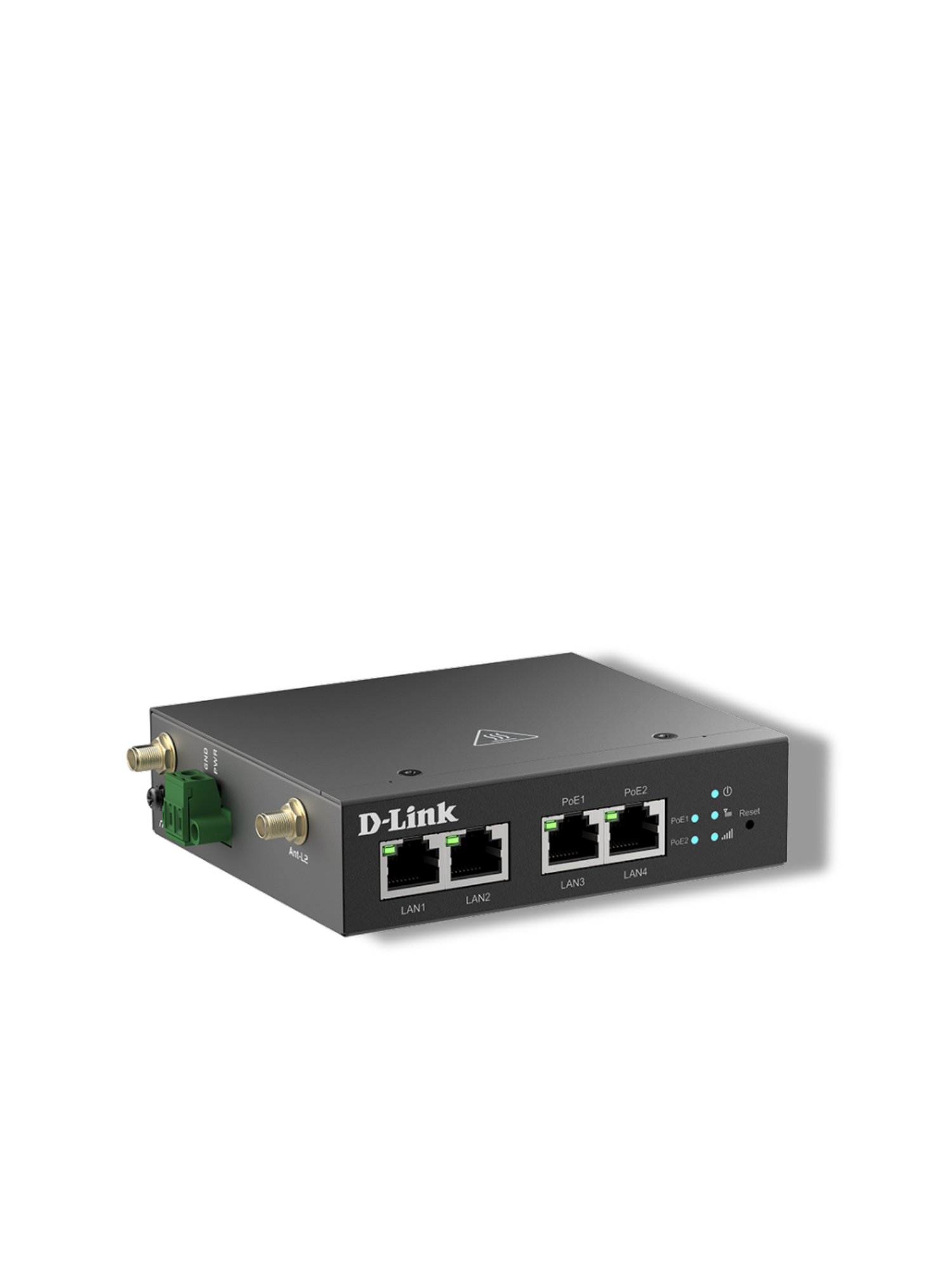

D-Link DWM-314-TP 4G LTE Multi-Connect Industrial M2M PoE Modem
PRODUCT DESCRIPTION
D-Link DWM-314-TP 4G LTE Multi-Connect Industrial M2M PoE Modem (DWM-314-TP) - 3 Years Local Warranty
4G Uplink for Four Devices, Two of Them Powered
The D-Link DWM-314-TP is a rugged 4G LTE Cat.4 M2M modem with two Fast Ethernet LAN ports plus two Fast Ethernet PoE ports (IEEE 802.3at, 30 W max per port, 60 W total budget). Cameras or access points draw power and data from the modem while other devices share the same 4G link at up to 150 Mbps downlink.
Smart PoE Functions
PD failure check and PoE scheduling help keep powered devices responsive and save energy out of hours.
Industrial-Grade Design
A zinc-plated steel case, -30 to 70 °C operating range and wall or DIN-rail mounting (DIN-rail kit included) suit roadside and outdoor cabinets.
Secure, Centrally Managed
OpenVPN, an IPS firewall and MAC/IP filtering protect traffic, and the modem is listed against the EN 18031-1, EN 18031-2 and EN 303645 cyber-security standards. Web UI and D-Link D-ECS2 handle management.
Need help choosing? Email sales@sourceit.com.sg with your site, carrier and PoE devices and we will recommend the right M2M modem.
D-Link DWM-314-TP Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-314-TP 4G Multi-Connect PoE Modem |
| Part Number | DWM-314-TP |
| Series | D-Link 5G/4G LTE Industrial M2M PoE Modems |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 4G LTE Cat 4 |
| LTE Bands (EU SKU) | FDD B1/B3/B7/B8/B20/B28A; TDD B38/B40/B41 |
| Max Throughput | LTE: 150 Mbps (DL) / 50 Mbps (UL) |
Interfaces & PoE
| Ethernet | 2 x FE LAN, 2 x FE PoE LAN (PoE-PSE 802.3at) |
| PoE Max Power per Port | 30 W |
| PoE Power Budget | 60 W |
| PoE Functions | PD failure check, PoE scheduling |
| SIM Slot | 1 x SIM (Nano SIM) |
| Antenna Connectors | 2 x SMA(F) cellular |
| Power Input | DC 48-57 V terminal block |
Network, Security & Administration
| Network Features | Cellular NAT, ping-query reboot, DHCP server, static routing, DDNS (DynDNS, No-IP, Dynamic DO) |
| VPN | OpenVPN |
| Firewall & Access Control | IPS, port forward; MAC/IP filter |
| Cyber Security | EN 18031-1, EN 18031-2, EN 303645 |
| Management | Web UI, D-Link D-ECS2; FW upgrade, reboot and reset |
Physical & Environmental
| Dimensions | 115 x 99 x 31 mm |
| Housing & Mounting | Zinc-plated steel; wall or DIN-rail |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0 to 95% (non-condensing) |
| Certifications | CE, UKCA |
Compatibility & Software Support
Management
Web UI locally; D-Link D-ECS2 for central cloud management.
Typical Use
Small unmanned sites needing a 4G uplink for several devices, two of which are PoE powered — surveillance cameras, access points, parking and ticketing systems.
Package Contents & M2M PoE Modem Ordering Information
Package Contents
2 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M PoE Modem Models
| Model | Cellular | LAN / SIM | Part No. |
| DWM-311-TP | 4G LTE Cat.4 | 1 x FE PoE / 1 SIM | DWM-311-TP |
| DWM-311-GP | 5G NR / 4G LTE | 1 x 2.5GE PoE / 2 SIM | DWM-311-GP |
| DWM-314-TP (this listing) | 4G LTE Cat.4 | 2 x FE + 2 x FE PoE / 1 SIM | DWM-314-TP |
| DWM-314-GP | 5G NR / 4G LTE | 2 x GE + 2 x GE PoE / 2 SIM | DWM-314-GP |
Datasheet & Downloads
| D-Link datasheet | DWM-314-TP Datasheet (PDF) |
| D-Link product page | DWM-314-TP on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-314-TP.
Frequently Asked Questions — D-Link DWM-314-TP
How much PoE power is available?
60 W in total across the two PoE ports, up to 30 W per port (IEEE 802.3at).
How many devices can I connect?
Four wired devices: two on standard FE ports and two on PoE FE ports.
What power input does it need?
DC 48-57 V via a terminal block; a power adapter is included.
What SIM size does it use?
One Nano-SIM.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
