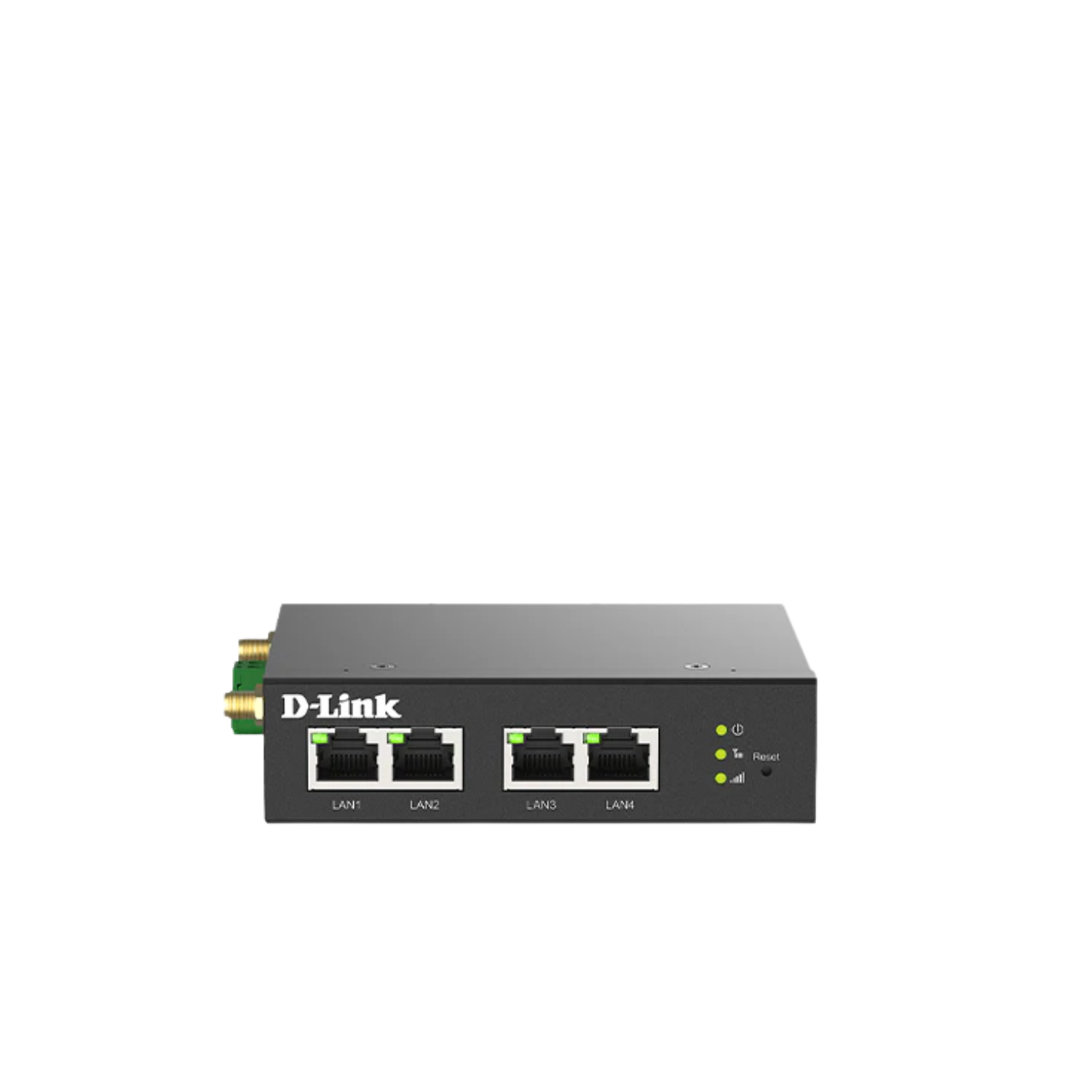

D-Link DWM-314-T 4G LTE Multi-Connect Industrial M2M Modem
PRODUCT DESCRIPTION
D-Link DWM-314-T 4G LTE Multi-Connect Industrial M2M Modem (DWM-314-T) - 3 Years Local Warranty
One 4G Link for Four Devices
The D-Link DWM-314-T is a rugged 4G LTE Cat.4 M2M modem with four Fast Ethernet LAN ports, so several devices at one site — a parking pay station, barrier controller and camera, for example — can share a single cellular connection at up to 150 Mbps downlink.
Plug and Play
Insert a Nano-SIM (4FF) and power up: the DWM-314-T connects to the 4G network without complex configuration.
Industrial-Grade Design
A corrosion-resistant zinc-plated steel case, -30 to 70 °C operating range, wide DC 9-36 V terminal-block input and wall or DIN-rail mounting (DIN-rail kit included) suit harsh environments.
VPN Security and Remote Management
An OpenVPN client, IPS firewall and packet/MAC filtering protect transactions, while Web UI, SSH and D-Link D-ECS2 cloud management plus SMS event alerts simplify fleet operation.
Need help choosing? Email sales@sourceit.com.sg with your site, carrier and device count and we will recommend the right M2M modem.
D-Link DWM-314-T Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-314-T 4G Multi-Connect Modem |
| Part Number | DWM-314-T |
| Series | D-Link 5G/4G LTE Industrial M2M Modems |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 4G LTE Cat.4 |
| LTE Bands | FDD B1/B3/B7/B8/B20/B28A; TDD B38/B40/B41 |
| Max Throughput | LTE: 150 Mbps (DL) / 50 Mbps (UL) |
Interfaces
| Ethernet | 4 x LAN FE |
| SIM Slot | 1 x SIM (4FF Nano) |
| Antenna Connectors | 2 x SMA(F) cellular |
| Power Input | DC 9-36V (terminal block, 2-pin) |
Network, Security & Administration
| Network Features | Cellular NAT, ICMP checking, DHCP Server, Virtual Server, DDNS (DynDNS, No-IP, Dynamic DO), static routing, IPv4/v6 |
| VPN | OpenVPN (client mode) |
| Firewall & Access Control | IPS; Packet Filter, MAC Filter |
| Configuration | Web UI, SSH |
| Management | D-Link D-ECS2 |
| System & Scheduling | FW upgrade, reboot & reset, system time, NTP; reboot rule policy, working day |
Physical & Environmental
| Dimensions | 115 x 99 x 31 mm |
| Housing & Mounting | Zinc-plated steel; wall or DIN-rail |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0 to 95% (non-condensing) |
| Certifications | CE, UKCA |
Compatibility & Software Support
Management
Web UI and SSH for local configuration; D-Link D-ECS2 for central cloud management; SMS inbox and event management.
Typical Use
Shared 4G uplink for several wired devices at unmanned sites — parking systems, vending and ticketing machines, kiosks and remote cabinets.
Package Contents & M2M Modem Ordering Information
Package Contents
2 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M Modem Models
| Model | Cellular | LAN / SIM | Part No. |
| DWM-311 | 4G LTE | 1 x GE / 1 SIM | DWM-311 |
| DWM-311-G | 5G NR / 4G LTE | 1 x 2.5GE / 1 SIM | DWM-311-G |
| DWM-314-T (this listing) | 4G LTE Cat.4 | 4 x FE / 1 SIM | DWM-314-T |
| DWM-314-G | 5G NR / 4G LTE | 4 x GE / 2 SIM | DWM-314-G |
Datasheet & Downloads
| D-Link datasheet | DWM-314-T Datasheet (PDF) |
| D-Link product page | DWM-314-T on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-314-T.
Frequently Asked Questions — D-Link DWM-314-T
How many devices can I connect?
Four wired devices directly, via the 4 x Fast Ethernet LAN ports.
Does the DWM-314-T have Wi-Fi?
No. D-Link's datasheet lists Ethernet and cellular interfaces only.
What SIM size does it use?
One Nano-SIM (4FF).
What power input does it accept?
DC 9-36 V via a 2-pin terminal block; a power adapter is included.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
