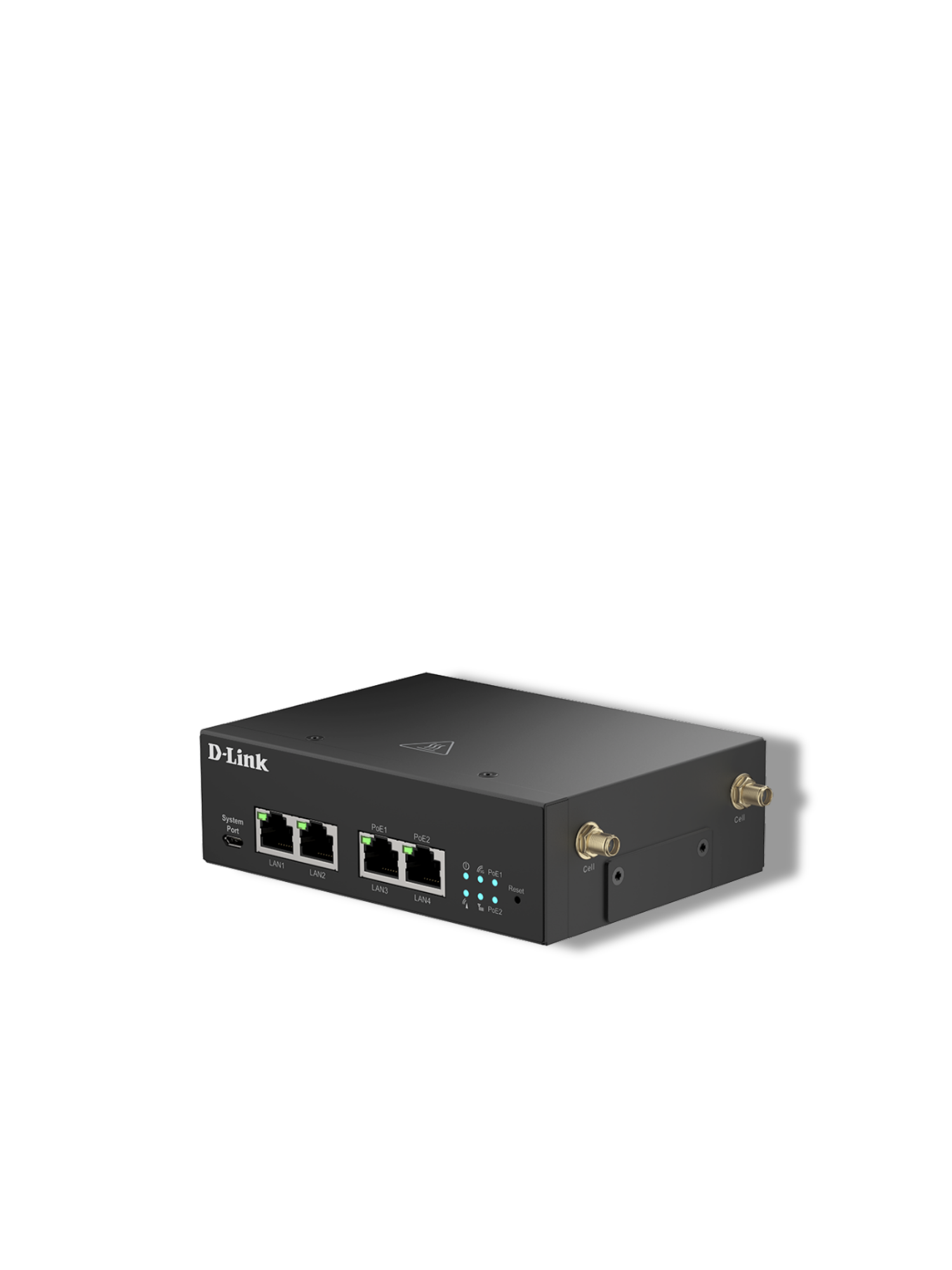

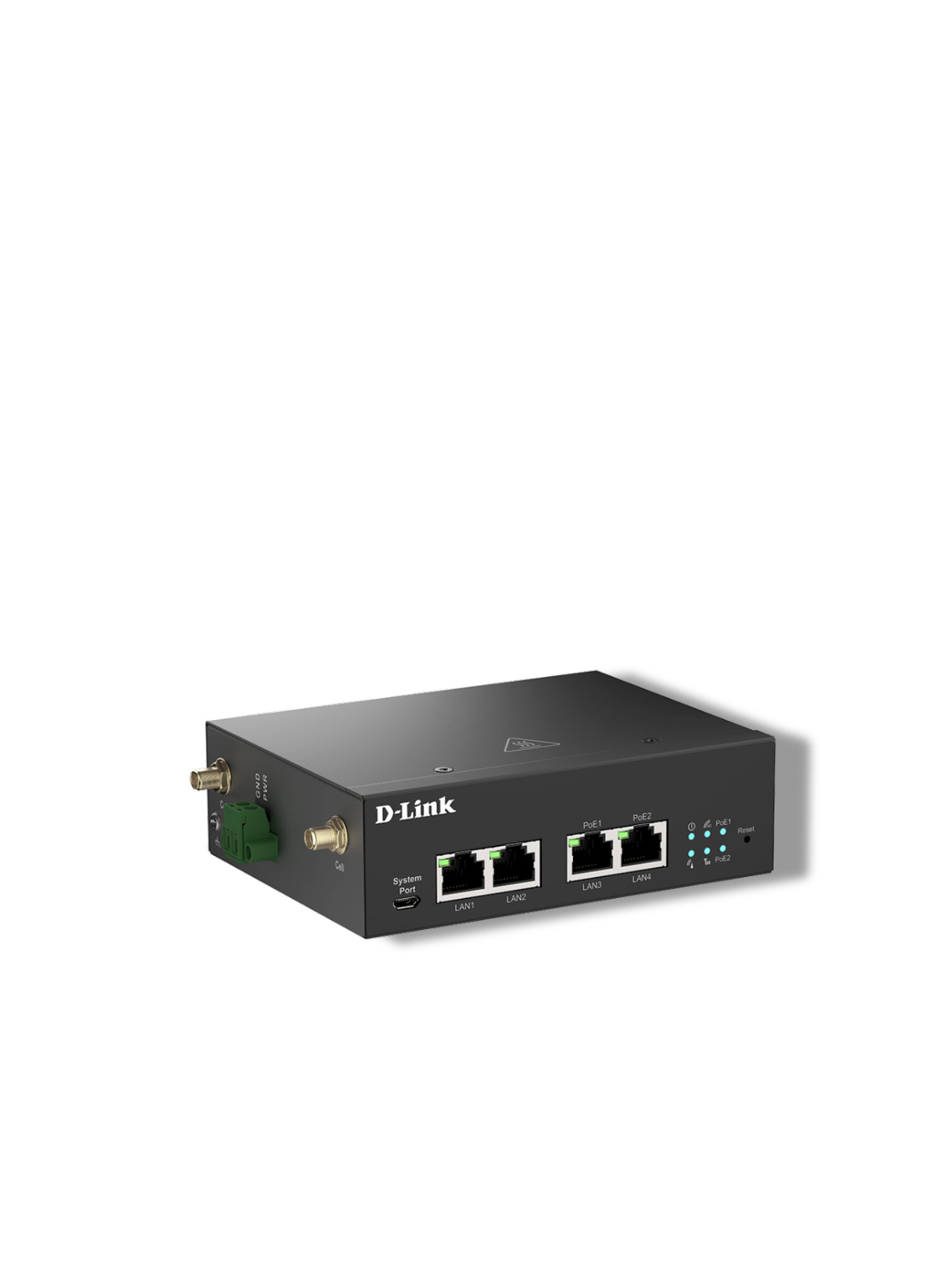

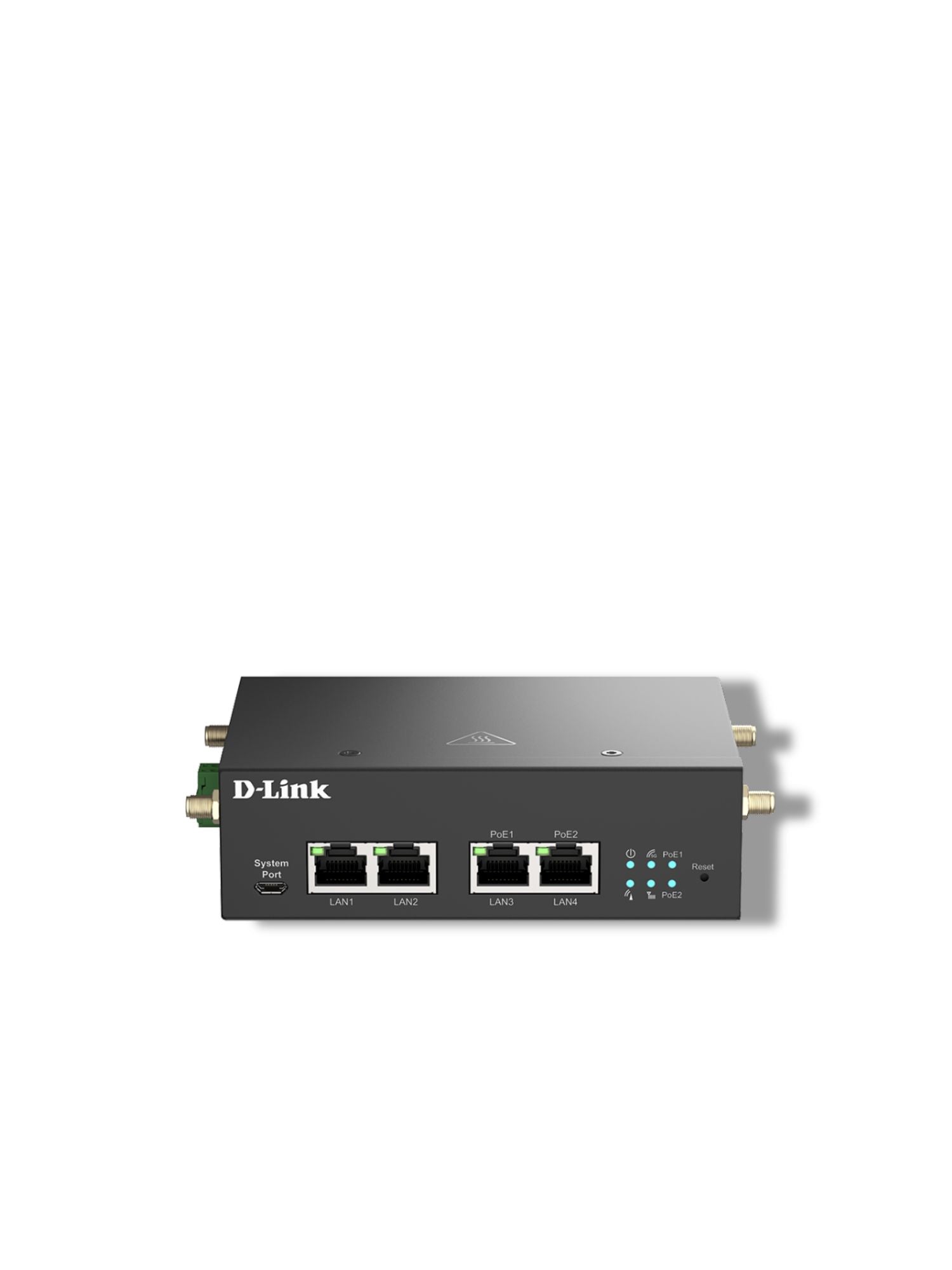

D-Link DWM-314-GP 5G NR Multi-Connect Dual-SIM Industrial M2M PoE Modem
PRODUCT DESCRIPTION
D-Link DWM-314-GP 5G NR Multi-Connect Dual-SIM Industrial M2M PoE Modem (DWM-314-GP) - 3 Years Local Warranty
5G for Four Devices, Two of Them Powered
The D-Link DWM-314-GP combines a 3GPP Rel. 16 5G/4G module with two Gigabit LAN ports and two Gigabit PoE ports (IEEE 802.3af/at). Cameras or access points take power and data from the modem while all four devices share a 5G uplink rated by D-Link at up to 3.4 Gbps downlink (5G NSA).
Reliable 5G Failover
Dual Micro-SIM slots provide carrier failover for continuous connectivity, and PoE power control with network-check ON/OFF and scheduling can automatically power-cycle an unresponsive device.
Suitable for Harsh Environments
A metal casing, -30 to 70 °C operating range and included DIN-rail kit suit outdoor cabinets, EV charging sites and smart-city poles.
Secure and Centrally Managed
OpenVPN and WireGuard clients, IPS firewall and packet/MAC control protect data; Web UI, command script, SSH, SMS event management and D-Link D-ECS2 simplify fleet operation.
Need help choosing? Email sales@sourceit.com.sg with your site, carriers and PoE devices and we will recommend the right M2M modem.
D-Link DWM-314-GP Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-314-GP 5G Multi-Connect PoE Modem |
| Part Number | DWM-314-GP |
| Series | D-Link 5G/4G LTE Industrial M2M PoE Modems |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 5G NR / 4G LTE 3GPP Rel. 16 |
| Cellular Standards | 5G NR (Sub-6GHz), 4G LTE (DL Cat.19 / UL Cat.18) |
| 5G NSA Throughput | 3.4 Gbps (DL) / 550 Mbps (UL) |
| 5G SA Throughput | 2.4 Gbps (DL) / 900 Mbps (UL) |
| LTE Throughput | 1.6 Gbps (DL) / 200 Mbps (UL) |
Interfaces & PoE
| Ethernet | 2 x LAN GE, 2 x LAN GE with PoE-PSE 802.3at |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Control | Power Control, ON/OFF by network checking, Scheduled ON/OFF |
| SIM Slots | 2 x SIM (3FF Micro) |
| Antenna Connectors | 4 x SMA(F) cellular |
| Power Input | DC 50-57V (terminal block, 2-pin) |
Network, Security & Administration
| Network Features | ICMP checking, DHCP Server, Virtual Server, DDNS (DynDNS, No-IP), static routing, IPv4/v6 |
| VPN | OpenVPN, WireGuard (client mode) |
| Firewall & Access Control | IPS, Block WAN Ping; Packet Filter, MAC Control |
| Configuration | Web UI, Command Script, SSH |
| Management | D-Link D-ECS2 |
| SMS Service | SMS Inbox, SMS Event Management |
Physical & Environmental
| Dimensions | 131 x 99 x 40 mm |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0 to 95% (non-condensing) |
| Certifications | CE, UKCA, FCC, PTCRB |
Compatibility & Software Support
Management
Web UI, command script and SSH locally; D-Link D-ECS2 for central cloud management; SMS inbox and event management.
Typical Use
High-availability 5G uplink for several wired devices where two need PoE — surveillance, outdoor Wi-Fi, EV charging and smart-city deployments.
Package Contents & M2M PoE Modem Ordering Information
Package Contents
4 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M PoE Modem Models
| Model | Cellular | LAN / SIM | Part No. |
| DWM-311-TP | 4G LTE Cat.4 | 1 x FE PoE / 1 SIM | DWM-311-TP |
| DWM-311-GP | 5G NR / 4G LTE | 1 x 2.5GE PoE / 2 SIM | DWM-311-GP |
| DWM-314-TP | 4G LTE Cat.4 | 2 x FE + 2 x FE PoE / 1 SIM | DWM-314-TP |
| DWM-314-GP (this listing) | 5G NR / 4G LTE | 2 x GE + 2 x GE PoE / 2 SIM | DWM-314-GP |
Datasheet & Downloads
| D-Link datasheet | DWM-314-GP Datasheet (PDF) |
| D-Link product page | DWM-314-GP on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-314-GP.
Frequently Asked Questions — D-Link DWM-314-GP
How many PoE ports does it have?
Two Gigabit PoE ports (IEEE 802.3af/at) plus two standard Gigabit LAN ports.
Does it support dual-SIM failover?
Yes, two Micro-SIM (3FF) slots.
Which VPN types are supported?
OpenVPN and WireGuard, in client mode.
What power input does it need?
DC 50-57 V via a 2-pin terminal block; a power adapter is included.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
