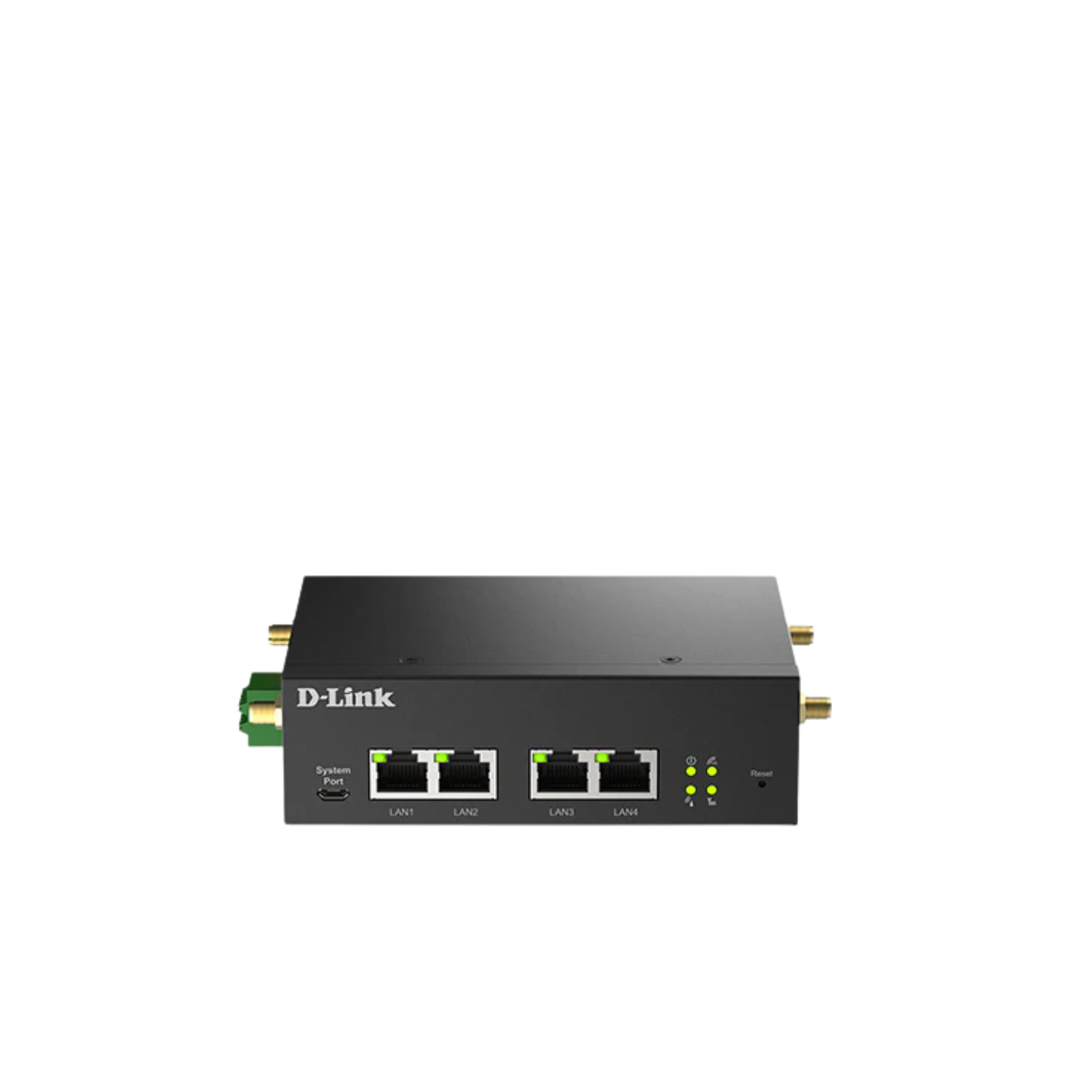

D-Link DWM-314-G 5G NR Multi-Connect Dual-SIM Industrial M2M Modem
PRODUCT DESCRIPTION
D-Link DWM-314-G 5G NR Multi-Connect Dual-SIM Industrial M2M Modem (DWM-314-G) - 3 Years Local Warranty
5G for Every Device on Site
The D-Link DWM-314-G combines a 3GPP Rel. 16 5G/4G module with four Gigabit Ethernet LAN ports, giving multiple wired devices a shared 5G uplink with D-Link-rated throughput of up to 3.4 Gbps downlink (5G NSA).
Dual-SIM Failover
Two Micro-SIM slots let the modem switch carriers automatically if one network drops, keeping payment terminals, signage and cameras online.
Robust Build Quality

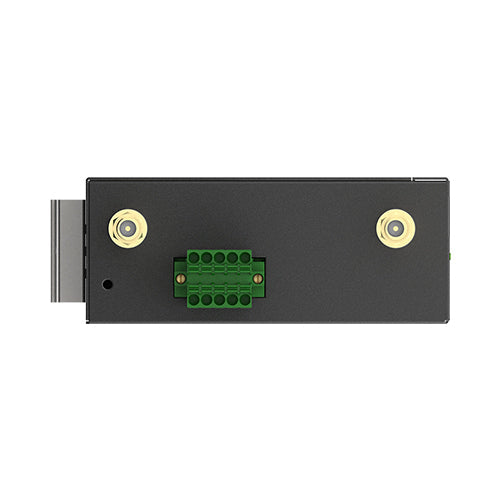

A corrosion-resistant zinc-plated steel case, -30 to 70 °C operating range, DC 9-36 V terminal-block input and wall or DIN-rail mounting (DIN-rail kit included) make it suitable for harsh environments.
Secure, Centrally Managed
OpenVPN and WireGuard clients, an IPS firewall and packet/MAC control protect data; Web UI, command script, SSH and D-Link D-ECS2 cloud management plus SMS event alerts keep fleets under control.
Need help choosing? Email sales@sourceit.com.sg with your site, carriers and bandwidth needs and we will recommend the right M2M modem.
D-Link DWM-314-G Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-314-G 5G Multi-Connect Modem |
| Part Number | DWM-314-G |
| Series | D-Link 5G/4G LTE Industrial M2M Modems |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 5G/4G 3GPP Rel. 16 |
| Cellular Standards | 5G NR (Sub-6GHz), 4G LTE (DL Cat.19 / UL Cat.18) |
| 5G NSA Throughput | 3.4 Gbps (DL) / 550 Mbps (UL) |
| 5G SA Throughput | 2.4 Gbps (DL) / 900 Mbps (UL) |
| LTE Throughput | 1.6 Gbps (DL) / 200 Mbps (UL) |
| 5G NR Bands (EU SKU) | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 |
| 4G LTE Bands (EU SKU) | FDD B1/B3/B5/B7/B8/B20/B28/B32/B71; TDD B38/B40/B41/B42/B43 |
Interfaces
| Ethernet | 4 x LAN GE |
| SIM Slots | 2 x SIM (3FF Micro) |
| Antenna Connectors | 4 x SMA(F) cellular |
| Power Input | DC 9-36V (terminal block, 2-pin) |
Network, Security & Administration
| Network Features | Cellular NAT, ICMP checking, DHCP Server, Virtual Server, DDNS (DynDNS, No-IP, Dynamic DO), static routing, IPv4/v6 |
| VPN | OpenVPN, WireGuard (client mode) |
| Firewall & Access Control | IPS, Block WAN Ping; Packet Filter, MAC Control |
| Configuration | Web UI, Command Script, SSH |
| Management | D-Link D-ECS2 |
| SMS Service | SMS Inbox, SMS Event Management |
Physical & Environmental
| Dimensions | 131 x 99 x 40 mm |
| Housing & Mounting | Zinc-plated steel; wall or DIN-rail |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0 to 95% (non-condensing) |
| Certifications | CE, UKCA |
Compatibility & Software Support
Management
Web UI, command script and SSH locally; D-Link D-ECS2 for central cloud management; SMS inbox and event management.
Typical Use
High-availability 5G uplink for several wired devices — EV charging sites, parking systems, digital signage, kiosks and surveillance cabinets.
Package Contents & M2M Modem Ordering Information
Package Contents
4 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M Modem Models
| Model | Cellular | LAN / SIM | Part No. |
| DWM-311 | 4G LTE | 1 x GE / 1 SIM | DWM-311 |
| DWM-311-G | 5G NR / 4G LTE | 1 x 2.5GE / 1 SIM | DWM-311-G |
| DWM-314-T | 4G LTE Cat.4 | 4 x FE / 1 SIM | DWM-314-T |
| DWM-314-G (this listing) | 5G NR / 4G LTE | 4 x GE / 2 SIM | DWM-314-G |
Datasheet & Downloads
| D-Link datasheet | DWM-314-G Datasheet (PDF) |
| D-Link product page | DWM-314-G on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-314-G.
Frequently Asked Questions — D-Link DWM-314-G
Does it support dual-SIM failover?
Yes, two Micro-SIM (3FF) slots provide carrier failover.
How many devices can I connect?
Four wired devices directly via the 4 x Gigabit Ethernet LAN ports.
Which VPN types are supported?
OpenVPN and WireGuard, in client mode.
Does it have Wi-Fi?
No. D-Link's datasheet lists Ethernet and cellular interfaces only.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
