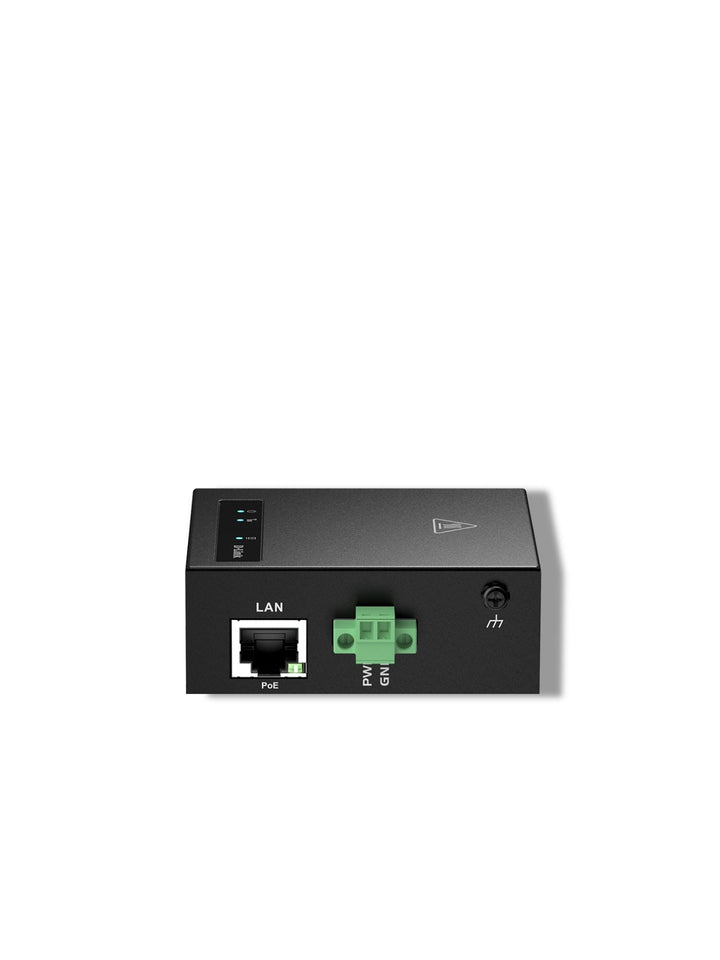

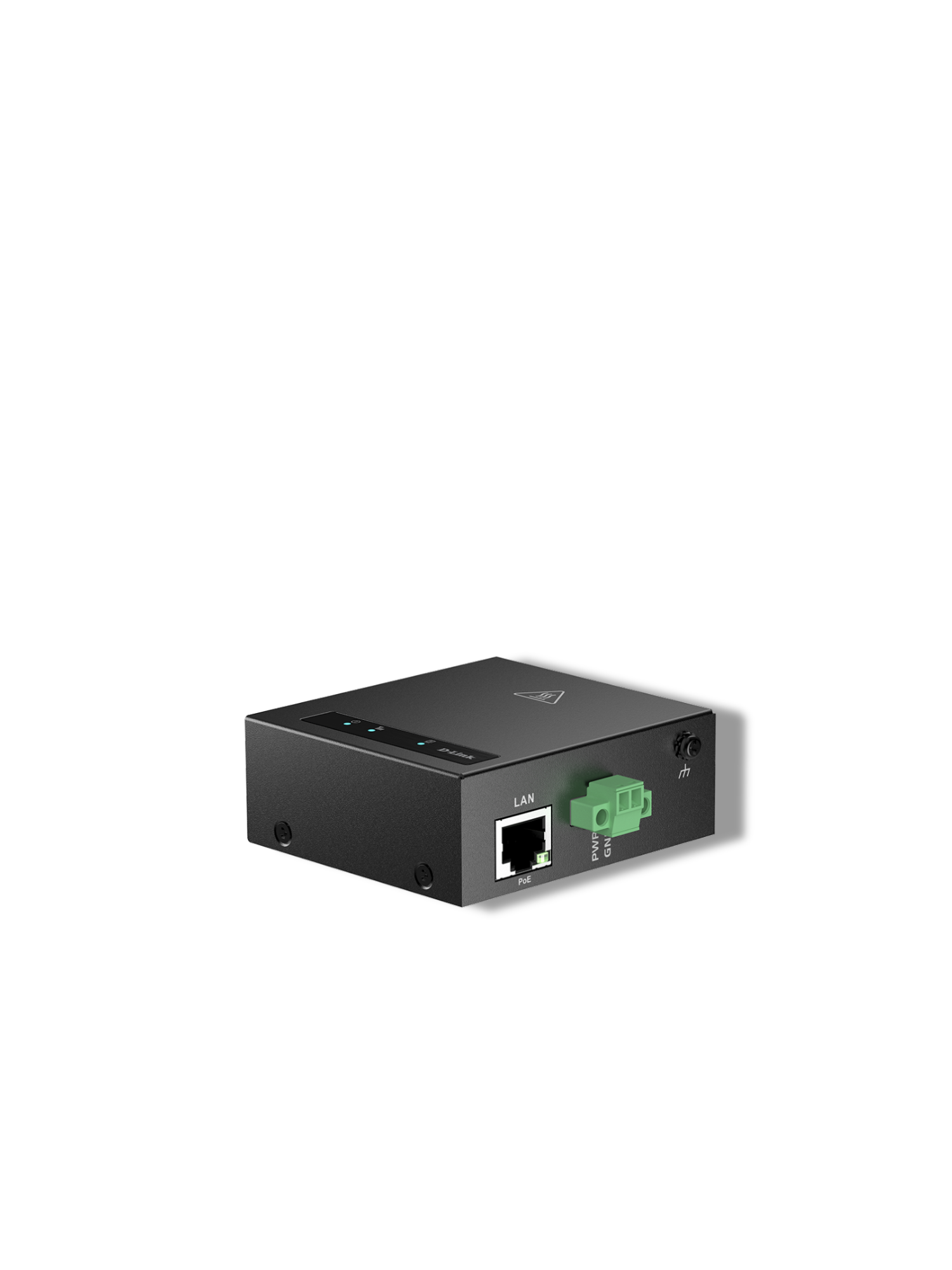

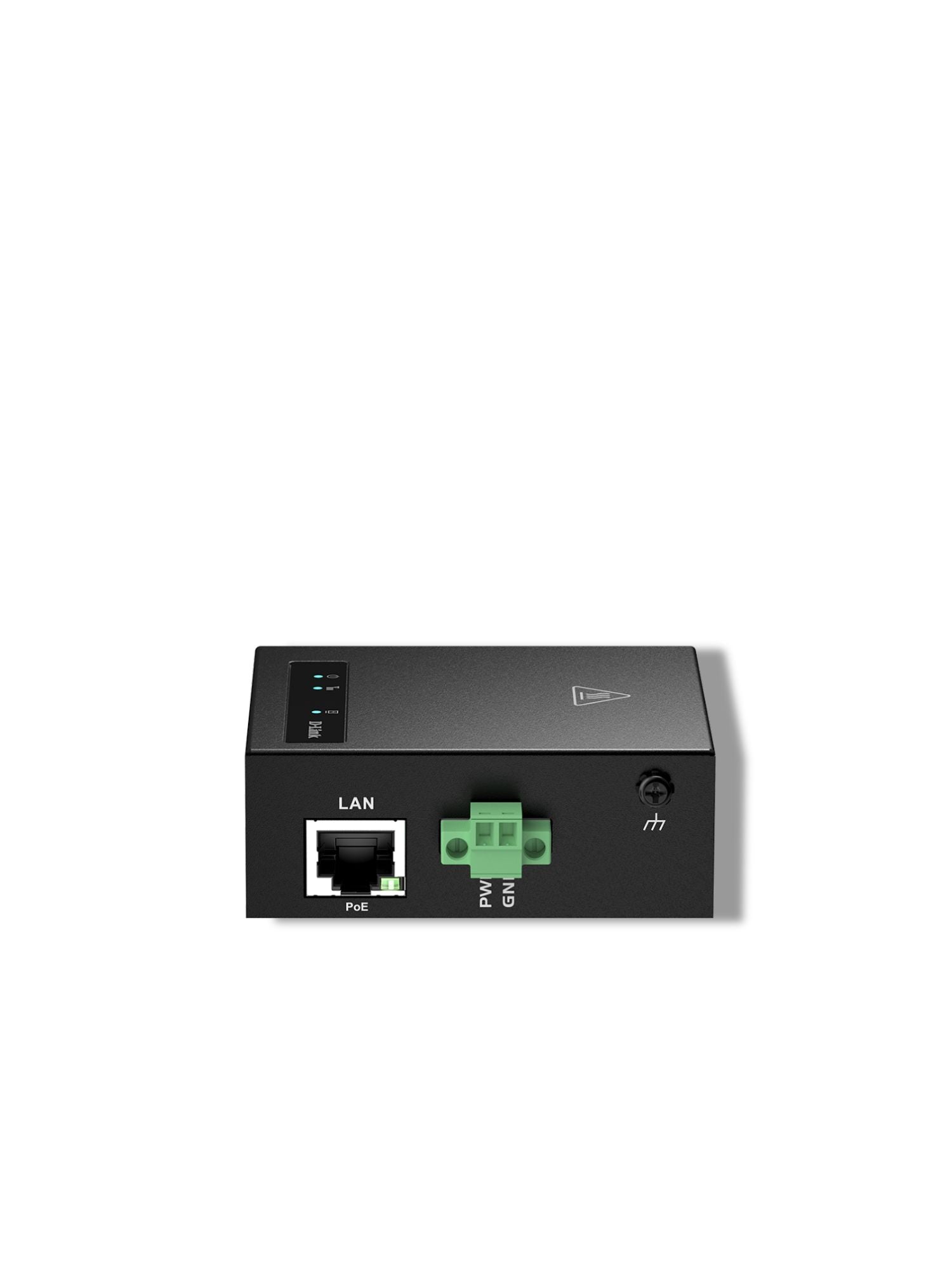

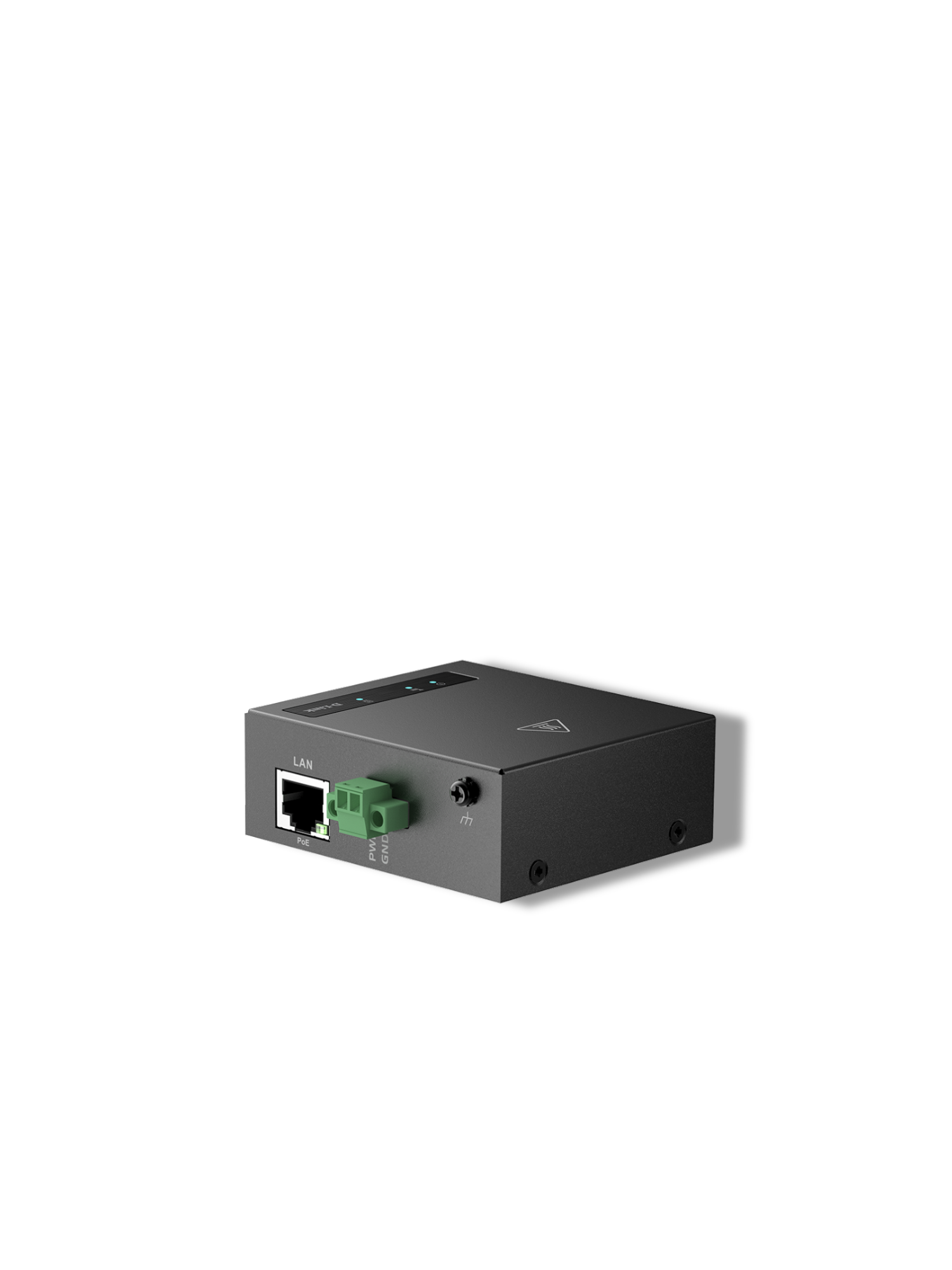

D-Link DWM-311-TP 4G LTE Industrial M2M PoE Modem
PRODUCT DESCRIPTION
D-Link DWM-311-TP 4G LTE Industrial M2M PoE Modem (DWM-311-TP) - 3 Years Local Warranty
4G Connectivity and Power on One Cable
The D-Link DWM-311-TP is a 4G LTE Cat.4 M2M modem whose single Fast Ethernet LAN port also supplies IEEE 802.3af/at PoE. One cable delivers both data and power to an IP camera, access point or sensor — no separate power run at the device.
Smart PoE Control
PoE power control, automatic ON/OFF by network checking and scheduled ON/OFF let you remotely reboot a hung powered device or save energy out of hours.
Harsh-Environment Design
An industrial-grade metal casing, -30 to 70 °C operating range and included DIN-rail kit suit traffic cabinets, small shops, surveillance poles and autonomous mobile robots.
VPN and Cloud Management
An OpenVPN client and IPS firewall protect traffic; Web UI, SSH, SMS event management and D-Link D-ECS2 give remote control of deployed units.
Need help choosing? Email sales@sourceit.com.sg with your site, carrier and PoE devices and we will recommend the right M2M modem.
D-Link DWM-311-TP Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-311-TP 4G PoE Modem |
| Part Number | DWM-311-TP |
| Series | D-Link 5G/4G LTE Industrial M2M PoE Modems |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 4G LTE Cat.4 |
| LTE Bands (EU SKU) | FDD B1/B3/B7/B8/B20/B28A; TDD B38/B40/B41 |
| Max Throughput | LTE: 150 Mbps (DL) / 50 Mbps (UL) |
Interfaces & PoE
| Ethernet | 1 x RJ45 LAN FE with PoE-PSE 802.3at |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Control | Power Control, ON/OFF by network checking, Scheduled ON/OFF |
| SIM Slot | 1 x SIM (4FF Nano) |
| Antenna Connectors | 2 x SMA(F) cellular |
| Power Input | DC 50-57V (terminal block, 2-pin) |
Network, Security & Administration
| Network Features | NAT, Bridge, ICMP checking, DHCP Server, Virtual Server, DDNS (DynDNS, No-IP, Dynamic DO), IPv4/v6 |
| VPN | OpenVPN (client mode) |
| Firewall & Access Control | IPS; Packet Filter, MAC Filter |
| Configuration | Web UI, SSH |
| Management | D-Link D-ECS2 |
| SMS Service | SMS Inbox, SMS Event Management |
Physical & Environmental
| Dimensions | 78 x 70 x 29 mm |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0 to 95% (non-condensing) |
| Certifications | CE, UKCA |
Compatibility & Software Support
Management
Web UI and SSH locally; D-Link D-ECS2 for central cloud management; SMS inbox and event management.
Typical Use
Powering and connecting a single PoE device over 4G — traffic-light controllers, small shops, remote surveillance cameras and autonomous mobile robots (AMR).
Package Contents & M2M PoE Modem Ordering Information
Package Contents
2 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x DIN-rail kit.
D-Link M2M PoE Modem Models
| Model | Cellular | LAN / SIM | Part No. |
| DWM-311-TP (this listing) | 4G LTE Cat.4 | 1 x FE PoE / 1 SIM | DWM-311-TP |
| DWM-311-GP | 5G NR / 4G LTE | 1 x 2.5GE PoE / 2 SIM | DWM-311-GP |
| DWM-314-TP | 4G LTE Cat.4 | 2 x FE + 2 x FE PoE / 1 SIM | DWM-314-TP |
| DWM-314-GP | 5G NR / 4G LTE | 2 x GE + 2 x GE PoE / 2 SIM | DWM-314-GP |
Datasheet & Downloads
| D-Link datasheet | DWM-311-TP Datasheet (PDF) |
| D-Link product page | DWM-311-TP on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-311-TP.
Frequently Asked Questions — D-Link DWM-311-TP
Can it power my IP camera?
Yes. The LAN port is a PoE PSE supporting IEEE 802.3af and 802.3at (PoE+).
Can I reboot the powered device remotely?
Yes. PoE power control, ON/OFF by network checking and scheduled ON/OFF are supported.
What power input does it need?
DC 50-57 V via a 2-pin terminal block; a power adapter is included.
What SIM size does it use?
One Nano-SIM (4FF).
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
