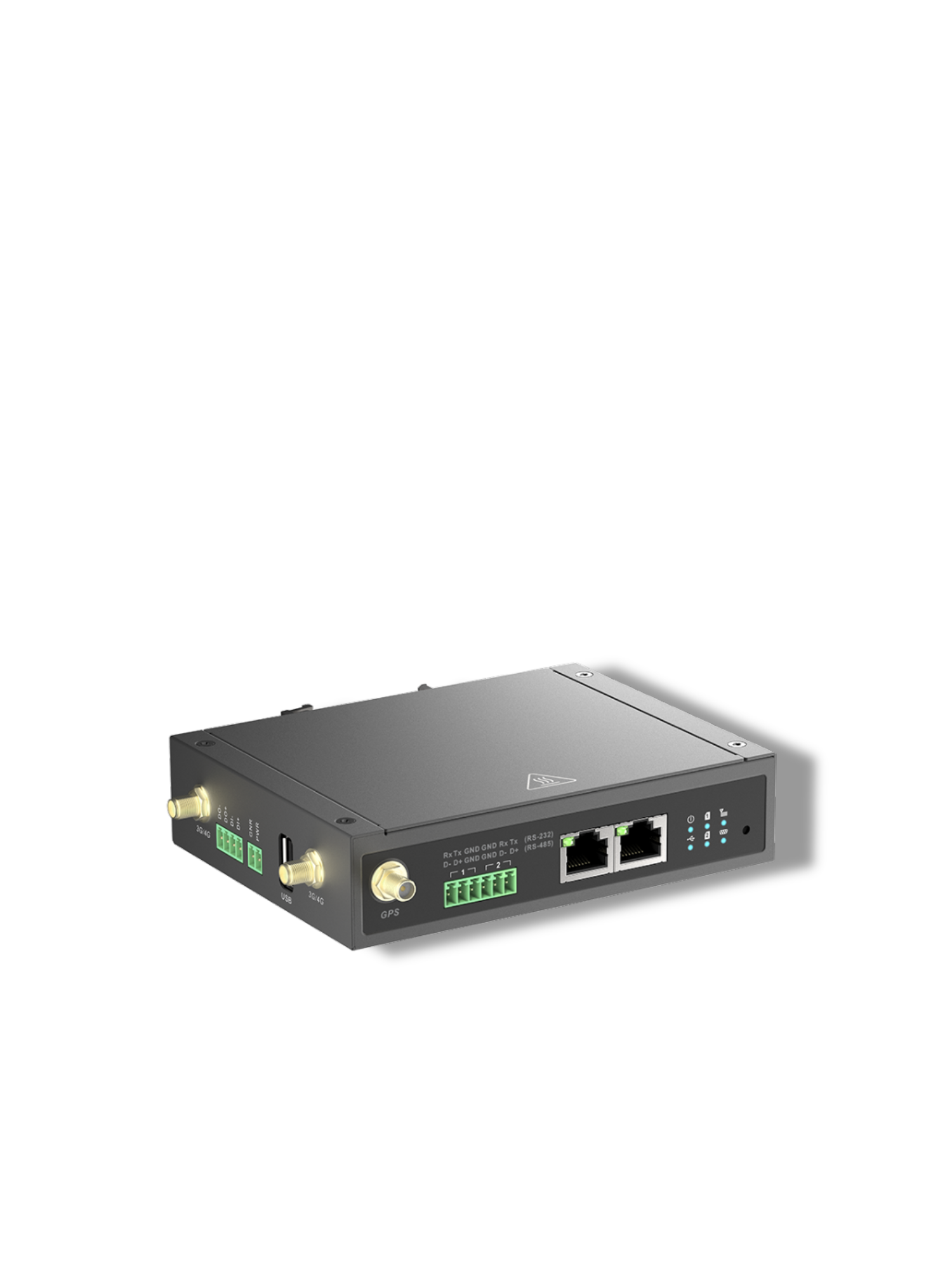

D-Link DOM-530-TSO 4G LTE Industrial IoT Gateway
PRODUCT DESCRIPTION
D-Link DOM-530-TSO 4G LTE Industrial IoT Dual-SIM Gateway (DOM-530-TSO) - 3 Years Local Warranty
4G IIoT Gateway with Dual-SIM Failover
The D-Link DOM-530-TSO connects field sites over 4G LTE Cat.4 (up to 150 Mbps down / 50 Mbps up) with two Micro-SIM slots and multi-WAN failover between cellular and Gigabit Ethernet WAN.
Seamless IT/OT Integration
Two serial ports (RS-232 or RS-485), isolated digital input, relay digital output, Modbus TCP/RTU/ASCII master/slave and virtual COM bring PLCs and sensors onto IP networks.
Telemetry, Location and Logging
GPS location, SMS event management and data logging to Micro SD and USB 2.0 support remote monitoring and troubleshooting.
Industrial-Grade and Secure
Metal casing, -30 to 70 °C operation, DC 9-36 V input and DIN-rail kit; IPSec, OpenVPN, PPTP, L2TP and GRE VPN with SPI firewall and IPS, managed via SNMP or D-Link D-ECS2.
Need help choosing? Email sales@sourceit.com.sg with your sensors, PLCs and site details and we will recommend the right IIoT device.
D-Link DOM-530-TSO Datasheet — Technical Specifications
General
| Product Name | D-Link DOM-530-TSO 4G IIoT Gateway |
| Part Number | DOM-530-TSO |
| Series | D-Link 5G/4G LTE Industrial IoT (IIoT) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 4G LTE Cat.4 |
| LTE Throughput | 150 Mbps (DL) / 50 Mbps (UL) |
| LTE Bands (EU SKU, HW A1) | FDD B1/B3/B7/B8/B20/B28A; TDD B38/B40/B41 |
| LTE Bands (US SKU, HW A2) | B2/B4/B5/B12/B13/B14/B66 |
| SIM Slots | 2 x SIM (Micro SIM) |
Interfaces & I/O

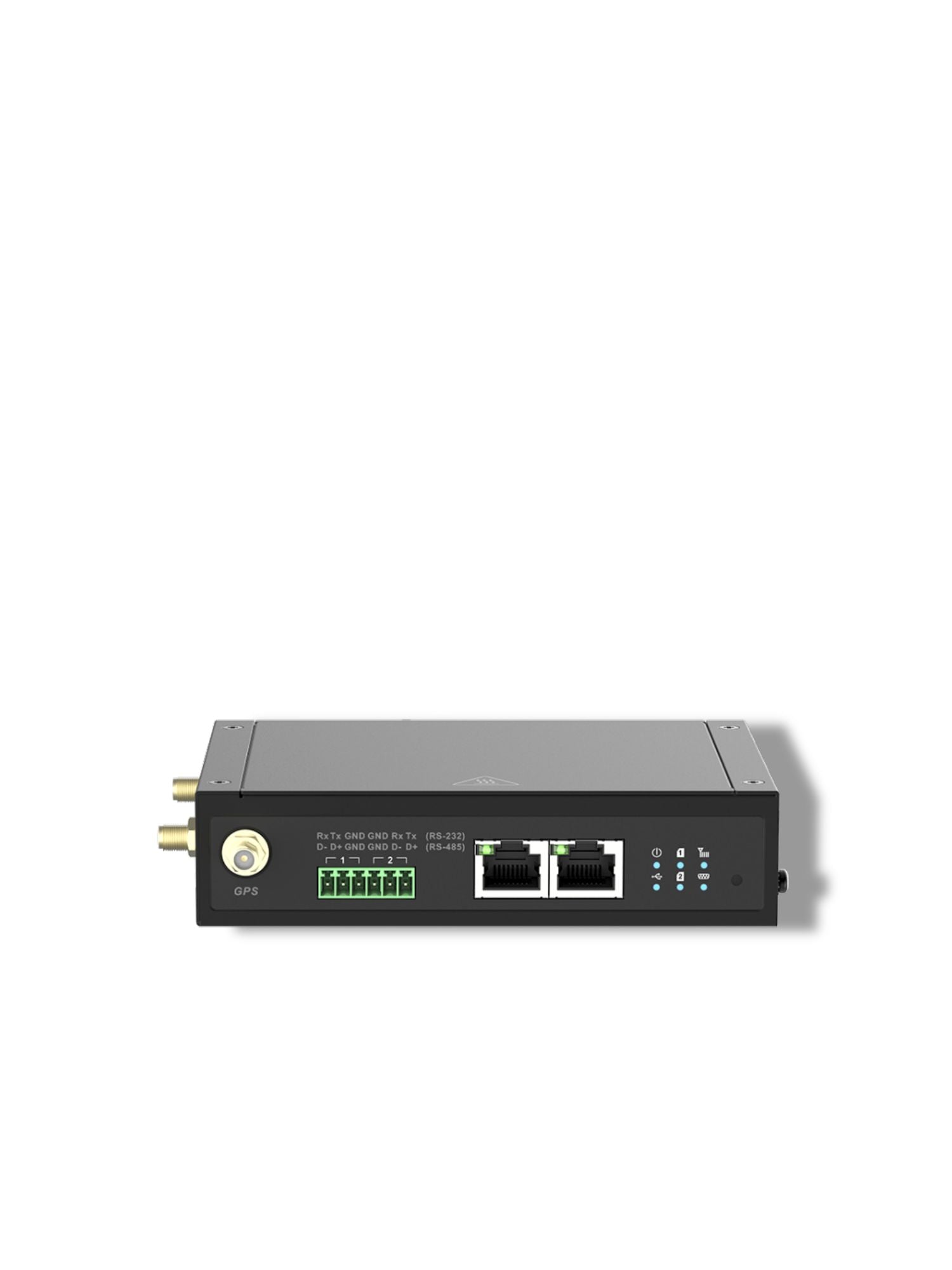

| Ethernet | 1 x WAN/LAN GE, 1 x LAN GE |
| Serial Ports | 2 x RS-232 or RS-485 (terminal block) |
| Digital I/O | 1 x DI (isolated, logic 0: 0-2V, logic 1: 5-30V); 1 x DO (relay mode, max. 30V) |
| USB | 1 x USB 2.0 Type-A for log |
| Storage | 1 x Micro SD for log |
| Antenna Connectors | 2 x SMA(F) cellular, 1 x SMA(F) GPS |
| Power Input | DC 9-36V (terminal block) |
Industrial Protocols
| Modbus | Modbus TCP/RTU/ASCII master/slave access |
| Virtual COM | TCP client, TCP server, UDP |
Network, Security & Administration
| WAN | Multi-WAN: cellular, Ether-WAN, WAN failover |
| VPN | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Firewall & Access Control | SPI firewall with stealth mode, IPS, Block WAN Ping; packet filter, MAC control |
| Routing | Static, dynamic RIPv1/v2, OSPF, BGP |
| DDNS | DynDNS, No-IP, Dynamic DO |
| Configuration | Web UI, CLI, command script |
| Management | SNMPv1/2/3, D-Link D-ECS2; diagnostic tools, packet analyzer |
| Events | Event management, notifying events, SMS |
Physical & Environmental
| Dimensions | 131 x 99 x 31 mm |

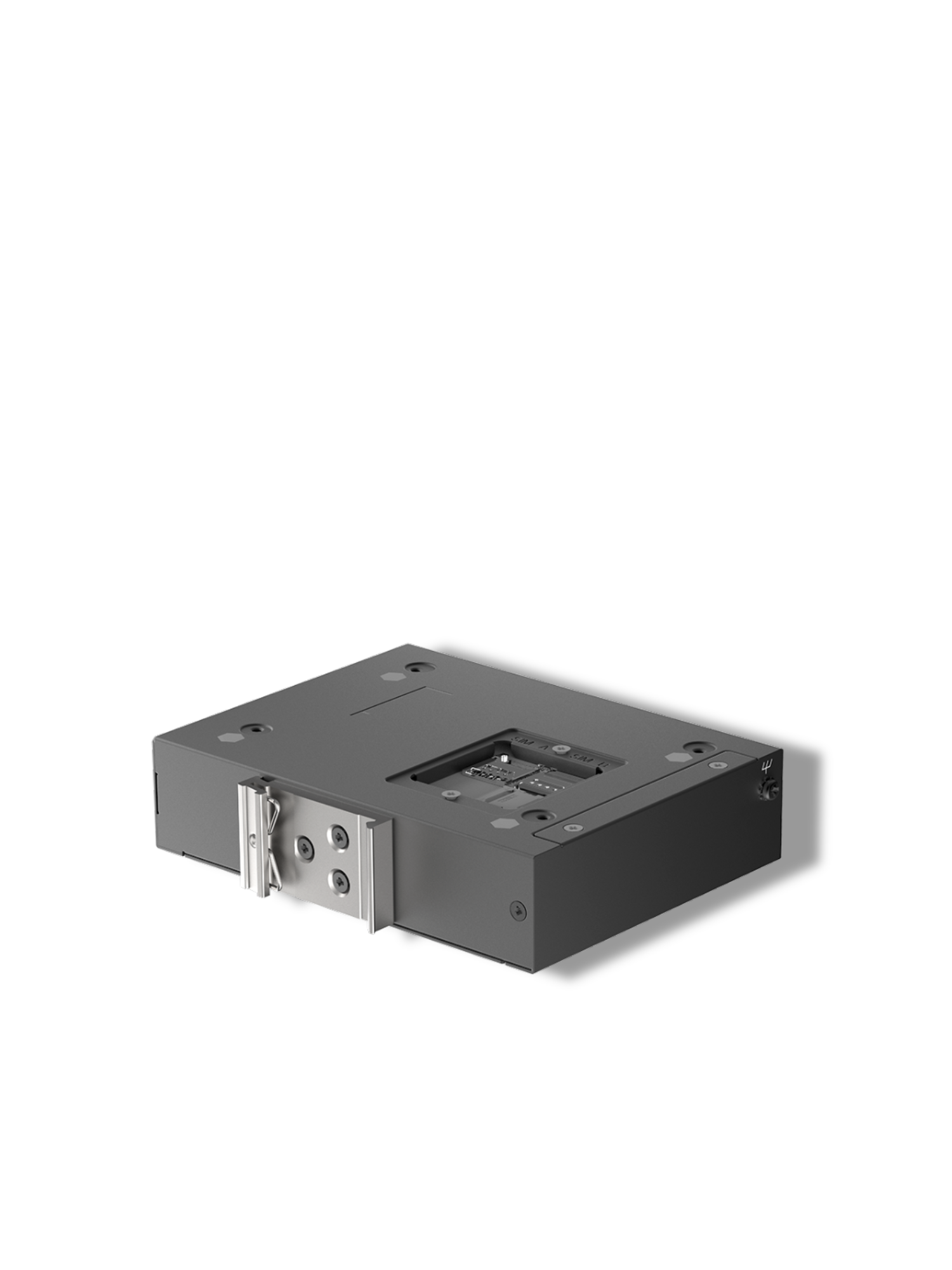

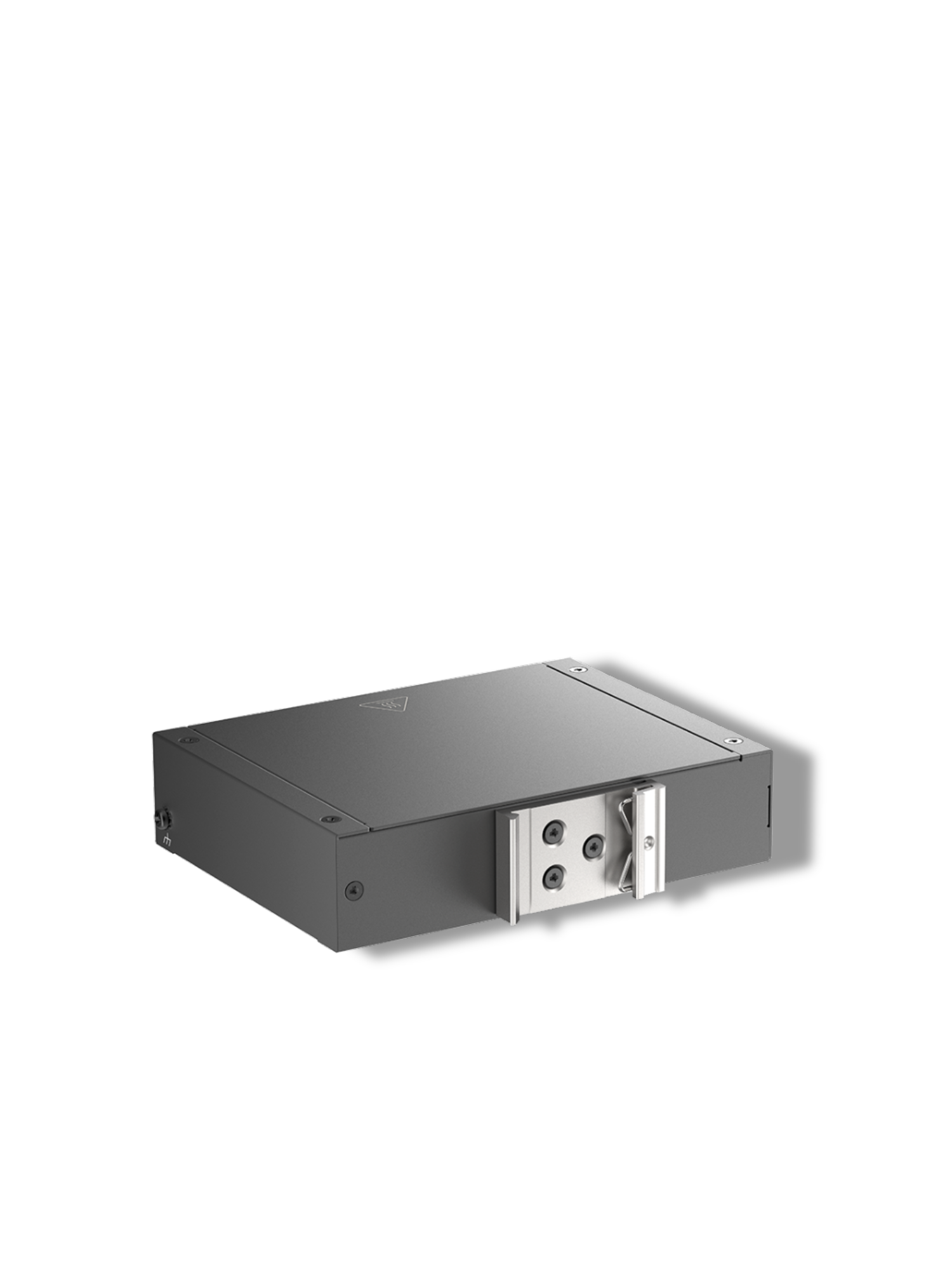

| Housing & Mounting | Metal casing; DIN-rail kit included |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95%; storage 0% to 95% (non-condensing) |
| Certifications | CE, UKCA, RCM |
Compatibility & Software Support
Management
Web UI, CLI and command script locally; SNMPv1/2/3 and D-Link D-ECS2 for central management; SMS alerts and commands.
Typical Use
Factory automation, solar power stations, environment monitoring, power plants, traffic and street lights, elevators and gas stations.
Package Contents & IIoT Ordering Information
Package Contents
2 x cellular SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block (2-pin), 1 x terminal block (4-pin), 1 x terminal block (6-pin), 1 x DIN-rail kit.
D-Link IIoT Models
| Model | Type | Ethernet / SIM | Serial / I/O | Part No. |
| DOM-311-TSO | 4G IIoT RTU | 1 x LAN FE / 1 Nano SIM | 1 x RS-232/485, 3 DI, 2 DO | DOM-311-TSO |
| DOM-530-TSO (this listing) | 4G IIoT Gateway | 1 x WAN/LAN GE + 1 x LAN GE / 2 Micro SIM | 2 x RS-232/485, 1 DI, 1 DO, USB, Micro SD, GPS | DOM-530-TSO |
Datasheet & Downloads
| D-Link datasheet | DOM-530-TSO Datasheet (PDF) |
| D-Link product page | DOM-530-TSO on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DOM-530-TSO.
Frequently Asked Questions — D-Link DOM-530-TSO
Does it support dual-SIM failover?
Yes, two Micro-SIM slots plus Ethernet WAN failover.
Which industrial protocols does it support?
Modbus TCP/RTU/ASCII master/slave and virtual COM (TCP client/server, UDP).
Can it log data locally?
Yes, to Micro SD or a USB 2.0 drive.
Does it have GPS?
Yes, with a dedicated SMA GPS connector.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
