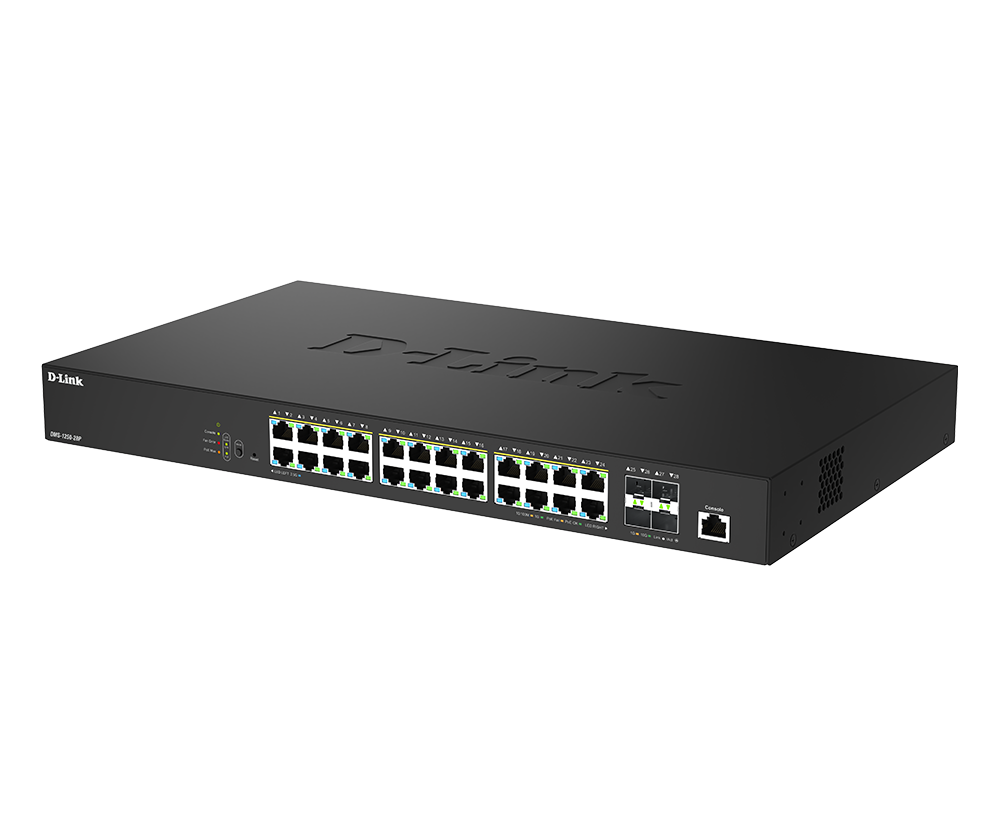

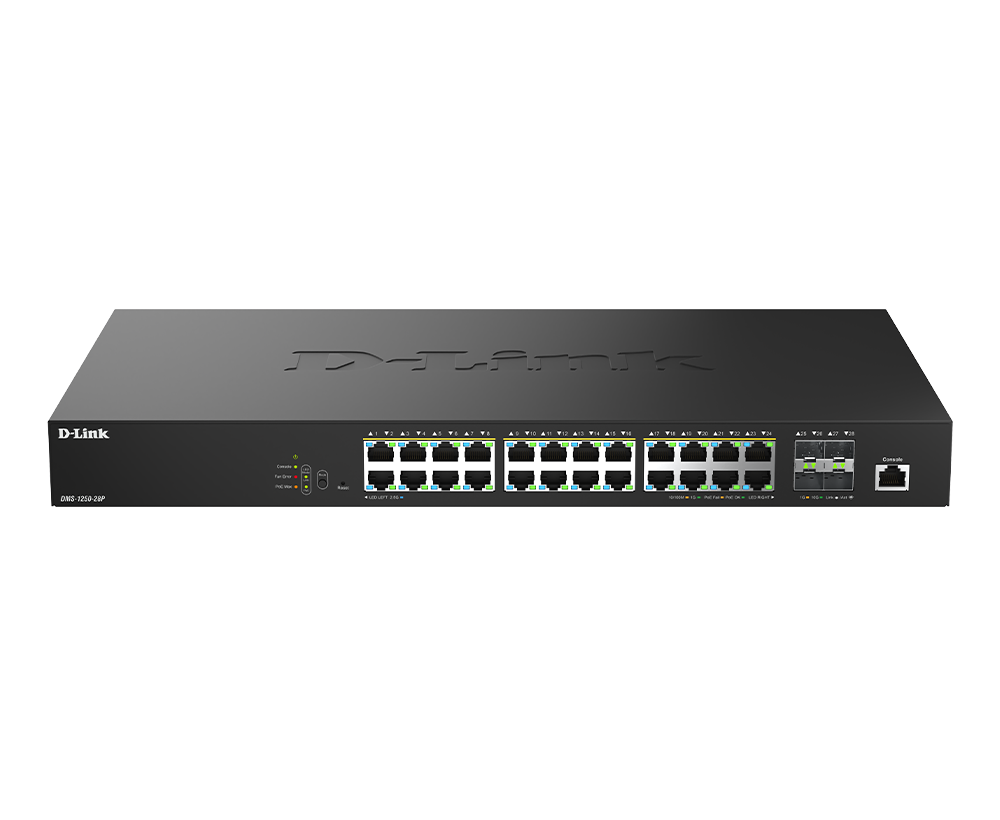

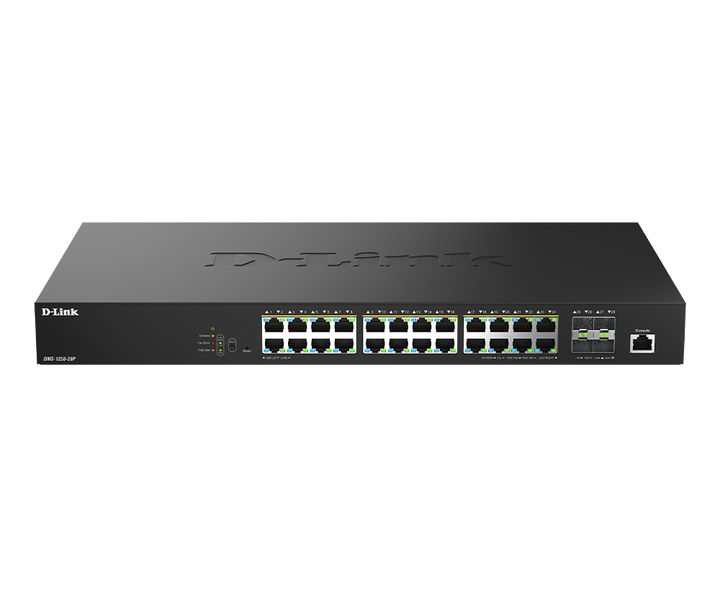

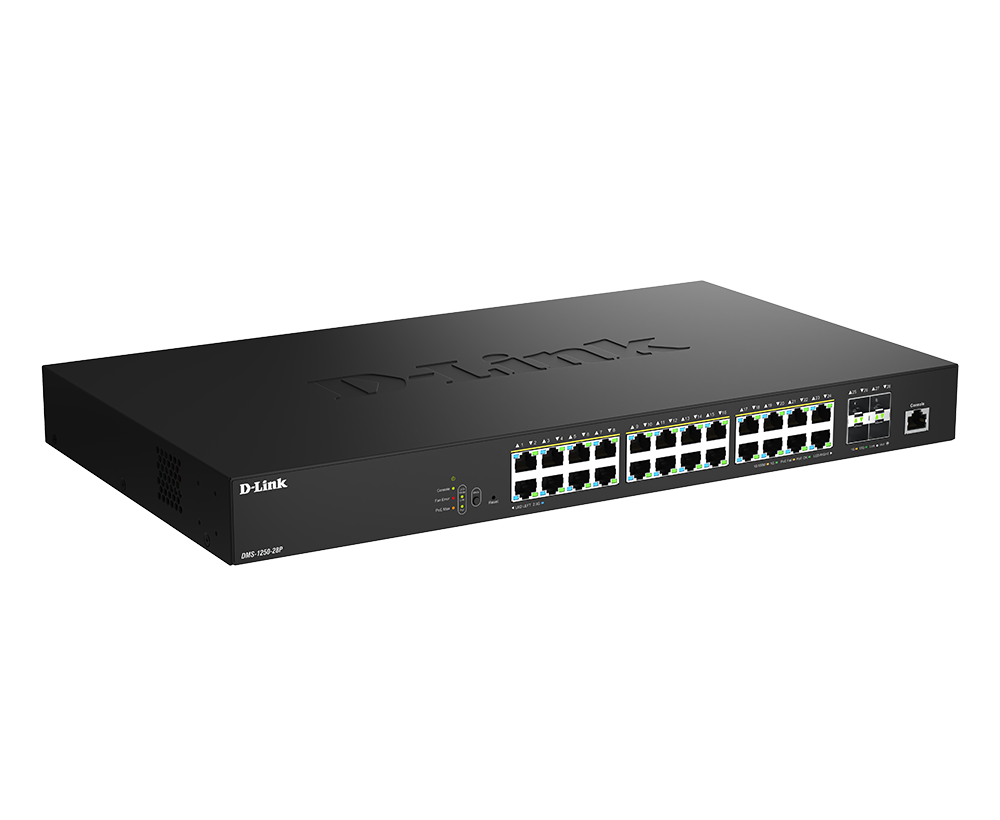

D-Link DMS-1250-28P 28-Port 2.5G Smart Managed PoE Switch
PRODUCT DESCRIPTION
D-Link DMS-1250-28P 28-Port 2.5G Smart Managed PoE Switch (DMS-1250-28P) - 5 Years Local Warranty
Multi-Gigabit 2.5G PoE with 10G Uplinks
The D-Link DMS-1250-28P is part of D-Link's DMS-1250 series of multi-gigabit smart managed switches. It provides 24 x 2.5G PoE RJ45 ports (IEEE 802.3bt, up to 90 W per port, 475 W budget) and 4 x 10G SFP+ uplinks. All 2.5-Gigabit Ethernet ports carry 6 kV surge protection (IEC 61000-4-5).
Performance
D-Link rates the DMS-1250-28P at 200 Gbps switching capacity and 148.81 Mpps maximum forwarding rate, with a 32K-entry MAC address table and jumbo frames up to 12,000 bytes.
L2+ Features and Static Routing
STP/RSTP/MSTP, Ethernet Ring Protection Switching (ERPS), link aggregation, Q-in-Q and Auto Surveillance/Voice VLAN are supported, and static routing (128 IPv4 / 64 IPv6 entries) lets the switch route between VLANs.
Security and Management
ACLs, 802.1X, DHCP server screening, ARP inspection, AAA/RADIUS/TACACS+ and the D-Link Safeguard Engine protect the network. Manage it through the web GUI, full CLI (console port included) and SNMP, or centrally through D-Link Nuclias Connect / the Nuclias Network Controller.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs and we will size it for you.
D-Link DMS-1250-28P Datasheet — Technical Specifications
General
| Product Name | D-Link DMS-1250-28P 28-Port 2.5G Smart Managed PoE Switch |
| Part Number | DMS-1250-28P |
| Series | DMS-1250 Multi-Gigabit Smart Managed Switches |
| Hardware Version | A1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 2.5G PoE Ports | 24 x 100/1000/2.5GBASE-T RJ45 PoE |
| 10G Uplink Ports | 4 x 10G SFP+ |
| Console Port | Supported |
| Surge Protection | 6 kV (IEC 61000-4-5) on all 2.5-Gigabit Ethernet ports |
Performance
| Switching Capacity | 200 Gbps |
| Maximum Forwarding Rate | 148.81 Mpps |
| MAC Address Table | 32K entries |
| Jumbo Frames | Up to 12,000 bytes |
Power over Ethernet
| PoE Standard | IEEE 802.3af/at/bt, up to 90 W per port |
| PoE Power Budget | 475 W |
Physical & Environmental
| Dimensions | 440 x 250 x 44 mm |
| Weight | 4.179 kg (per datasheet; D-Link product page lists 4.165 kg) |
| Power Input | 100–240 VAC, 50/60 Hz, internal power supply |
| Max Power Consumption | 592.19 W (PoE on); 49.91 W (PoE off) |

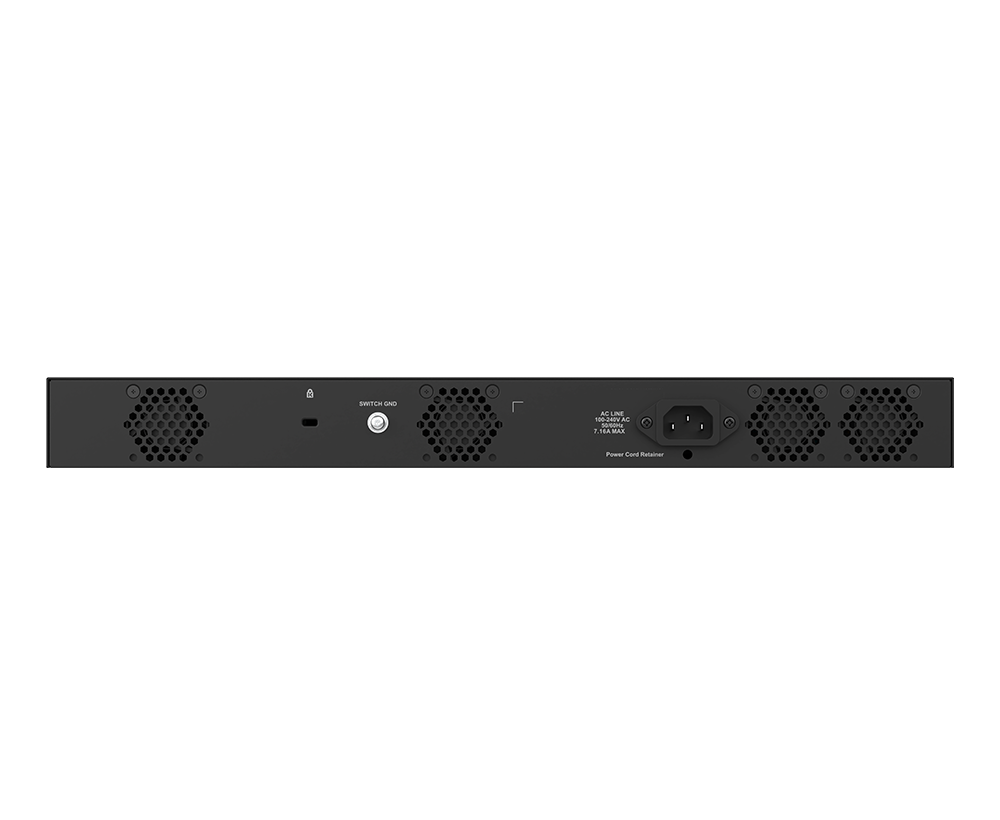

| Cooling | 4 internal fans |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 0% to 95% non-condensing (operating and storage) |
Certifications
| EMI | CE, FCC, IC, RCM, VCCI (Class A) |
| Safety | CB, UL, BSMI |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | Up to 4094 static VLANs; Auto Surveillance VLAN and Auto Voice VLAN; Q-in-Q; STP/RSTP/MSTP; ERPS; link aggregation (LACP); IGMP/MLD snooping; LLDP; port mirroring; flow control |
| Static Routing | 128 IPv4 and 64 IPv6 static route entries |
| QoS | 8 queues per port; strict priority, WRR and WFQ scheduling; DSCP marking |
| Security | ACL (up to 768 IPv4/MAC and 384 IPv6 entries); 802.1X; DHCP server screening; ARP inspection; port security (64 MACs per port); AAA/RADIUS/TACACS+; D-Link Safeguard Engine |
| Management | Web GUI, full CLI, Telnet, SNMP v1/v2c/v3, dual configuration and dual firmware image |
| Central Management | D-Link Nuclias Connect (v1.3.0 or later, including the DNH-1000 and DNH-3000 hubs) per datasheet; Nuclias Network Controller per D-Link product page |
Compatible D-Link Transceivers (per datasheet)
| 1G SFP | DEM-310GT (1000BASE-LX, 10 km), DEM-311GT (1000BASE-SX, 550 m), DEM-314GT (1000BASE-LHX, 50 km) — ask us before using third-party modules |
| 10G SFP+ | DEM-431XT (10GBASE-SR), DEM-432XT (10GBASE-LR) |
| 10G DAC | DEM-CB100S (1 m), DEM-CB300S (3 m) |
Package Contents & DMS-1250 Series Ordering Information
DMS-1250 Series Models
| Model | Ports | PoE Budget |
| DMS-1250-12 | 8 x 2.5G + 2 x 10GBASE-T + 2 x 10G SFP+ | — |
| DMS-1250-18 | 16 x 2.5G + 2 x 10G SFP+ | — |
| DMS-1250-18P | 16 x 2.5G PoE + 2 x 10G SFP+ | 370 W |
| DMS-1250-28 | 24 x 2.5G + 4 x 10G SFP+ | — |
| DMS-1250-28P (this listing) | 24 x 2.5G PoE + 4 x 10G SFP+ | 475 W |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DMS-1250 Series Datasheet (PDF) |
| D-Link product page | DMS-1250-28P on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMS-1250-28P.
Frequently Asked Questions — D-Link DMS-1250-28P
What speeds do the ports support?
The 2.5G RJ45 ports run at 100 Mbps, 1 Gbps or 2.5 Gbps. The SFP+ ports take 10G SFP+ modules or DAC cables.
How much PoE power is available?
475 W in total, IEEE 802.3af/at/bt with up to 90 W per port.
Does it route between VLANs?
Yes, with static routing: up to 128 IPv4 and 64 IPv6 static routes. Dynamic routing protocols are not listed in D-Link's datasheet.
Can DMS-1250 switches be stacked?
Physical stacking is not listed in D-Link's datasheet. For central management use Nuclias Connect or the Nuclias Network Controller.
Is it fanless?
No. D-Link lists 4 internal fans.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
