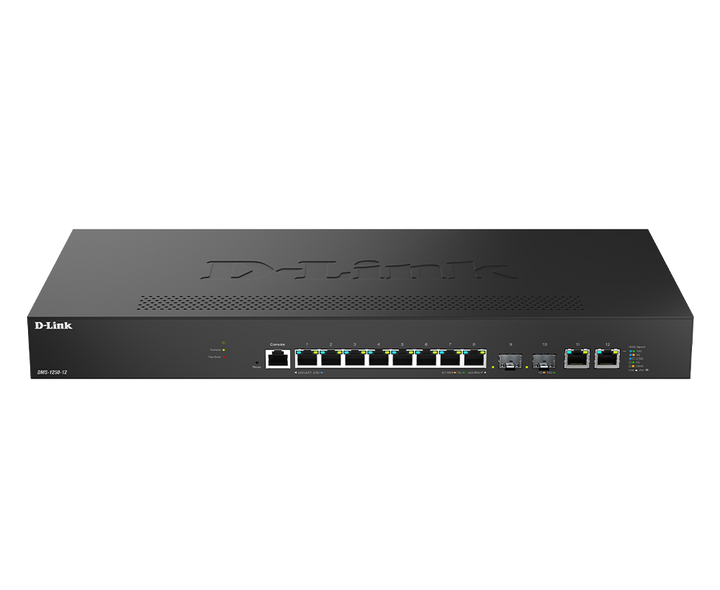

D-Link DMS-1250-12 12-Port 2.5G Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DMS-1250-12 12-Port 2.5G Smart Managed Switch (DMS-1250-12) - 5 Years Local Warranty
Multi-Gigabit 2.5G Access with 10G Uplinks
The D-Link DMS-1250-12 is part of D-Link's DMS-1250 series of multi-gigabit smart managed switches. It provides 8 x 2.5G RJ45 ports, 2 x 10GBASE-T RJ45 ports and 2 x 10G SFP+ ports. All 2.5-Gigabit Ethernet ports carry 6 kV surge protection (IEC 61000-4-5).
Performance
D-Link rates the DMS-1250-12 at 120 Gbps switching capacity and 89.29 Mpps maximum forwarding rate, with a 16K-entry MAC address table and jumbo frames up to 12,000 bytes.
L2+ Features and Static Routing
STP/RSTP/MSTP, Ethernet Ring Protection Switching (ERPS), link aggregation, Q-in-Q and Auto Surveillance/Voice VLAN are supported, and static routing (128 IPv4 / 64 IPv6 entries) lets the switch route between VLANs.
Security and Management
ACLs, 802.1X, DHCP server screening, ARP inspection, AAA/RADIUS/TACACS+ and the D-Link Safeguard Engine protect the network. Manage it through the web GUI, full CLI (console port included) and SNMP, or centrally through D-Link Nuclias Connect / the Nuclias Network Controller.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs and we will size it for you.
D-Link DMS-1250-12 Datasheet — Technical Specifications
General
| Product Name | D-Link DMS-1250-12 12-Port 2.5G Smart Managed Switch |
| Part Number | DMS-1250-12 |
| Series | DMS-1250 Multi-Gigabit Smart Managed Switches |
| Hardware Version | A1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 2.5G Ports | 8 x 100/1000/2.5GBASE-T RJ45 |
| 10G Copper Ports | 2 x 100/1000/2.5G/5G/10GBASE-T RJ45 |
| 10G Uplink Ports | 2 x 10G SFP+ |
| Console Port | Supported |
| Surge Protection | 6 kV (IEC 61000-4-5) on all 2.5-Gigabit Ethernet ports |
Performance
| Switching Capacity | 120 Gbps |
| Maximum Forwarding Rate | 89.29 Mpps |
| MAC Address Table | 16K entries |
| Jumbo Frames | Up to 12,000 bytes |
Physical & Environmental
| Dimensions | 330 x 200 x 44 mm (per datasheet) |
| Power Input | 100–240 VAC, 50/60 Hz, internal power supply |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 0% to 95% non-condensing (operating and storage) |
Certifications
| EMI | CE, FCC, IC, RCM, VCCI (Class A) |
| Safety | CB, UL, BSMI |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | Up to 4094 static VLANs; Auto Surveillance VLAN and Auto Voice VLAN; Q-in-Q; STP/RSTP/MSTP; ERPS; link aggregation (LACP); IGMP/MLD snooping; LLDP; port mirroring; flow control |
| Static Routing | 128 IPv4 and 64 IPv6 static route entries |
| QoS | 8 queues per port; strict priority, WRR and WFQ scheduling; DSCP marking |
| Security | ACL (up to 768 IPv4/MAC and 384 IPv6 entries); 802.1X; DHCP server screening; ARP inspection; port security (64 MACs per port); AAA/RADIUS/TACACS+; D-Link Safeguard Engine |
| Management | Web GUI, full CLI, Telnet, SNMP v1/v2c/v3, dual configuration and dual firmware image |
| Central Management | D-Link Nuclias Connect (v1.3.0 or later, including the DNH-1000 and DNH-3000 hubs) per datasheet; Nuclias Network Controller per D-Link product page |
Compatible D-Link Transceivers (per datasheet)
| 1G SFP | DEM-310GT (1000BASE-LX, 10 km), DEM-311GT (1000BASE-SX, 550 m), DEM-314GT (1000BASE-LHX, 50 km) — ask us before using third-party modules |
| 10G SFP+ | DEM-431XT (10GBASE-SR), DEM-432XT (10GBASE-LR) |
| 10G DAC | DEM-CB100S (1 m), DEM-CB300S (3 m) |
Package Contents & DMS-1250 Series Ordering Information
DMS-1250 Series Models
| Model | Ports | PoE Budget |
| DMS-1250-12 (this listing) | 8 x 2.5G + 2 x 10GBASE-T + 2 x 10G SFP+ | — |
| DMS-1250-18 | 16 x 2.5G + 2 x 10G SFP+ | — |
| DMS-1250-18P | 16 x 2.5G PoE + 2 x 10G SFP+ | 370 W |
| DMS-1250-28 | 24 x 2.5G + 4 x 10G SFP+ | — |
| DMS-1250-28P | 24 x 2.5G PoE + 4 x 10G SFP+ | 475 W |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DMS-1250 Series Datasheet (PDF) |
| D-Link product page | DMS-1250-12 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMS-1250-12.
Frequently Asked Questions — D-Link DMS-1250-12
What speeds do the ports support?
The 2.5G RJ45 ports run at 100 Mbps, 1 Gbps or 2.5 Gbps, and the two 10GBASE-T ports at 100 Mbps up to 10 Gbps. The SFP+ ports take 10G SFP+ modules or DAC cables.
Does it route between VLANs?
Yes, with static routing: up to 128 IPv4 and 64 IPv6 static routes. Dynamic routing protocols are not listed in D-Link's datasheet.
Can DMS-1250 switches be stacked?
Physical stacking is not listed in D-Link's datasheet. For central management use Nuclias Connect or the Nuclias Network Controller.
Why are the weight and power figures not listed?
D-Link's datasheet and product page publish different figures for this model, so we have left them out. Ask us and we will confirm before you plan rack space and power.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
