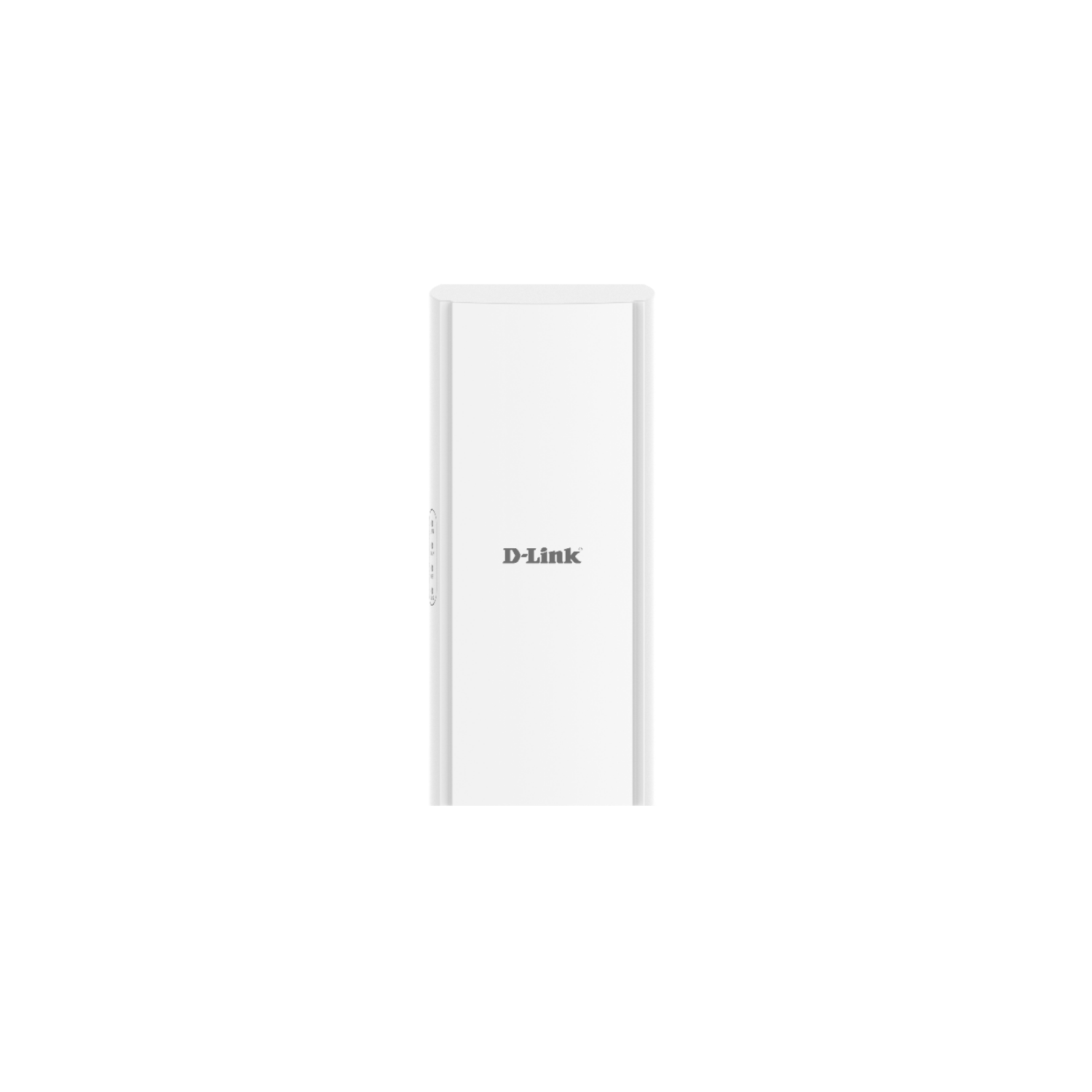

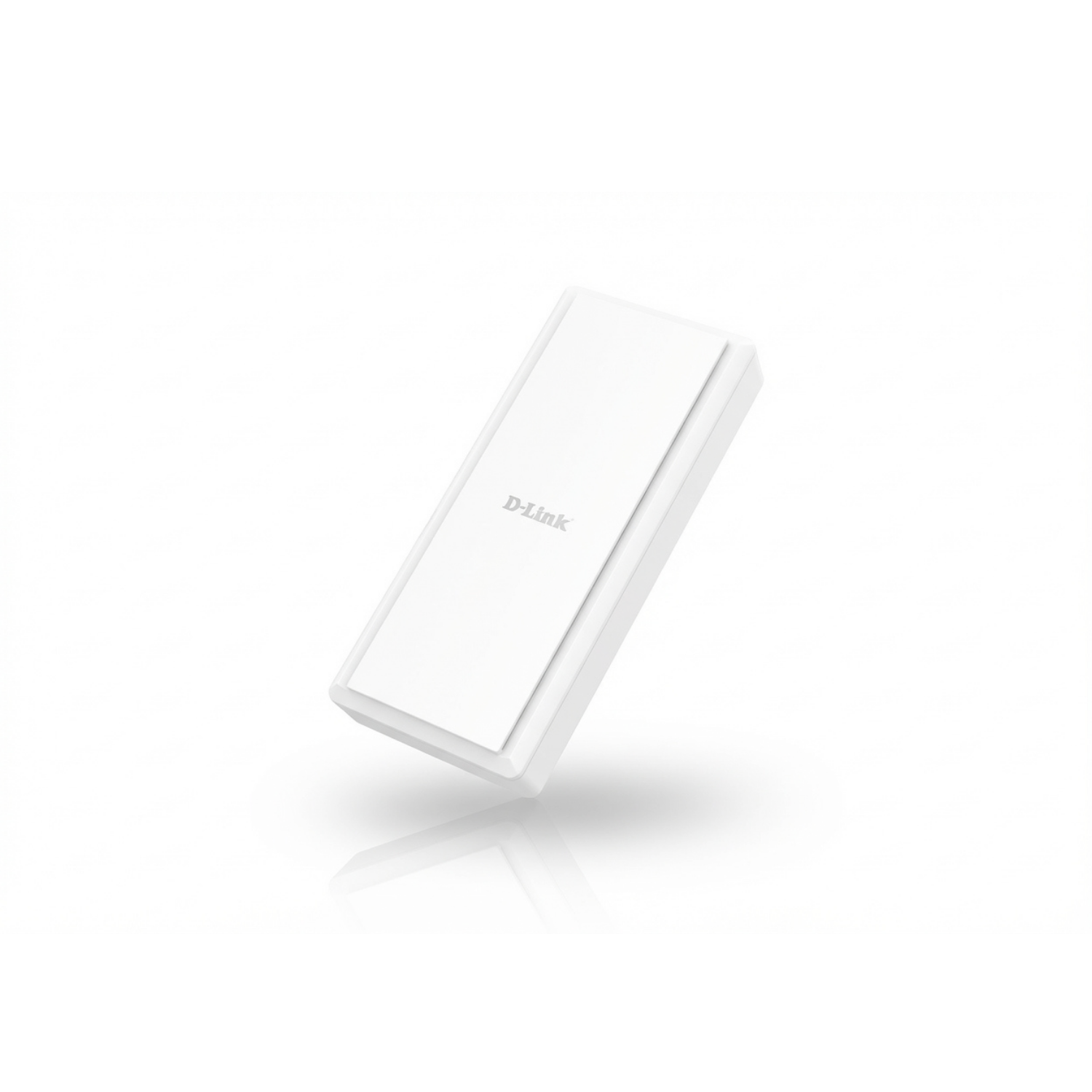

D-Link DLA-X303 D-Lite Cloud-Managed AX3000 Wi-Fi 6 Outdoor Access Point
PRODUCT DESCRIPTION
D-Link DLA-X303 D-Lite Cloud-Managed AX3000 Wi-Fi 6 Outdoor Access Point (DLA-X303) - 5 Years Local Warranty
Cloud-Managed Wi-Fi 6 for Outdoor Areas
The D-Link DLA-X303 is a dual-band 2x2 IEEE 802.11ax (Wi-Fi 6) outdoor access point in D-Link's D-Lite cloud-managed range, delivering up to 573.5 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for courtyards, car parks, warehouses and campus walkways.
Built for the Weather
An IP67-rated housing and an operating range of -30 to 60 °C let it run outdoors on a wall or pole, powered over a single cable by IEEE 802.3at PoE or a 12 V DC supply.
Zero-Touch Cloud Management
Deploy and monitor from the D-Lite cloud platform and app with zero-touch deployment, over-the-air firmware upgrades, band steering, bandwidth optimisation, automatic channel management, automated alerts and AI diagnostics.
Secure Guest Access
WEP/WPA/WPA2/WPA3, 192-bit enterprise encryption, RADIUS and a captive portal with Google, e-mail and self-registration authentication. D-Link rates the AP for 500+ concurrent Wi-Fi clients.
Need help choosing? Email sales@sourceit.com.sg with your outdoor coverage area and we will plan the D-Lite AP layout for you.
D-Link DLA-X303 Datasheet — Technical Specifications
General
| Product Name | D-Link DLA-X303 D-Lite Cloud-Managed AX3000 Outdoor Access Point |
| Part Number | DLA-X303 |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Hardware
| Chipset | IPQ5018 + QCN6102 + QCA8337 |
| CPU | Quad-core 1 GHz |
| Memory / Flash | 512 MB DDR3L / 128 MB NAND |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radios | 2T2R 2.4 GHz 802.11b/g/n/ac/ax, 573.5 Mbps; 2T2R 5.8 GHz 802.11a/n/ac/ax, 2402 Mbps |
| Frequency | 2.400–2.4835 GHz; 5.150–5.350, 5.470–5.725 and 5.725–5.850 GHz |
| Transfer Rate | 2.4 GHz HE20 286.8 / HE40 576.5 Mbps; 5 GHz HE20 286.8 / HE40 576.5 / HE80 1201 / HE160 2402 Mbps |
| Modulation | OFDM: BPSK, QPSK, 16/64/256/1024-QAM; DSSS: DBPSK, DQPSK, CCK |
| Max Transmit Power | 29 dBm (26 dBm per chain), 2.4 GHz and 5 GHz |
| RX Sensitivity | 2.4 GHz: 11n -71 / 11ac -63 / 11ax -59 dBm; 5 GHz: 11n -71 / 11ac -61 / 11ax -56 (HE80), -53 dBm (HE160) |
| Antennas | 2 x 5 dBi internal 2.4 GHz; 2 x 7 dBi internal 5.8 GHz |
| Concurrent Clients | 500+ |
Interfaces & Power
| Ethernet | 1 x RJ45 10/100/1000M WAN (PoE); 1 x RJ45 10/100/1000M LAN |
| Other | 1 x reset button, 1 x power jack |
| Power Input | IEEE 802.3at PoE or 12 V / 1 A DC |
Security & Management
| Security | 192-bit Enterprise and 128-bit Personal encryption; WEP/WPA/WPA2/WPA3; captive portal (Google, e-mail auth, self-registration); RADIUS client |
| Management | D-Lite cloud, zero-touch deployment, web GUI, app, SSH, OTA firmware upgrades |
Physical & Environmental
| Dimensions | 235.5 x 100.7 x 70 mm |
| Weight | 530 g |
| Ingress Protection | IP67 (minimum) |
| Mounting | Wall / pole |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -30 to 70 °C |
| Humidity | 5% to 95% (typical) |
| MTBF | >250,000 hours |
| Certifications | CE, UL, RoHS |
Compatibility & Software Support
Management
D-Lite cloud platform and mobile app: zero-touch deployment, multi-tenant role-based administration, map view, event and change logs, real-time traffic reporting, automated monitoring and alerts, AI diagnostics. Local web GUI and SSH are also available.
Typical Use
Outdoor dining, car parks, yards, campus walkways and warehouse perimeters, managed alongside indoor D-Lite APs and D-Lite PoE switches from one dashboard.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DLA-X301 | AX3000 Wi-Fi 6 indoor AP, 2 x GE (1 x PoE-in) |
| DLA-X303 (this listing) | AX3000 Wi-Fi 6 outdoor AP, IP67, 2 x GE |
| DLA-BE36 | BE3600 Wi-Fi 7 ceiling AP, 2 x 2.5GE |
| DLA-BE96 | BE9500 tri-band Wi-Fi 7 AP, 2 x 2.5GE |
| DGS-F1100-18PSD-SI | 18-port L2 Gigabit cloud-managed PoE switch, 350 W |
| DGS-F1100-26PSD-SI | 26-port L2 Gigabit cloud-managed PoE switch, 350 W |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included pole/wall mounting kit and power supply.
Datasheet & Downloads
| D-Link datasheet | DLA-X303 Datasheet (PDF) |
| D-Link Singapore product page | DLA-X303 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DLA-X303.
Frequently Asked Questions — D-Link DLA-X303
Is the DLA-X303 weatherproof?
Yes. D-Link rates the housing IP67 (minimum) and the operating range at -30 to 60 °C.
How is it powered?
By IEEE 802.3at PoE on the WAN port, or a 12 V / 1 A DC supply.
How is it mounted?
On a wall or a pole.
How many clients does it support?
D-Link rates it for 500+ concurrent Wi-Fi client devices.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
