D-Link DLA-X301 D-Lite Cloud-Managed AX3000 Wi-Fi 6 Access Point
PRODUCT DESCRIPTION
D-Link DLA-X301 D-Lite Cloud-Managed AX3000 Wi-Fi 6 Access Point (DLA-X301) - 5 Years Local Warranty
Wi-Fi 6 Managed from the D-Lite Cloud

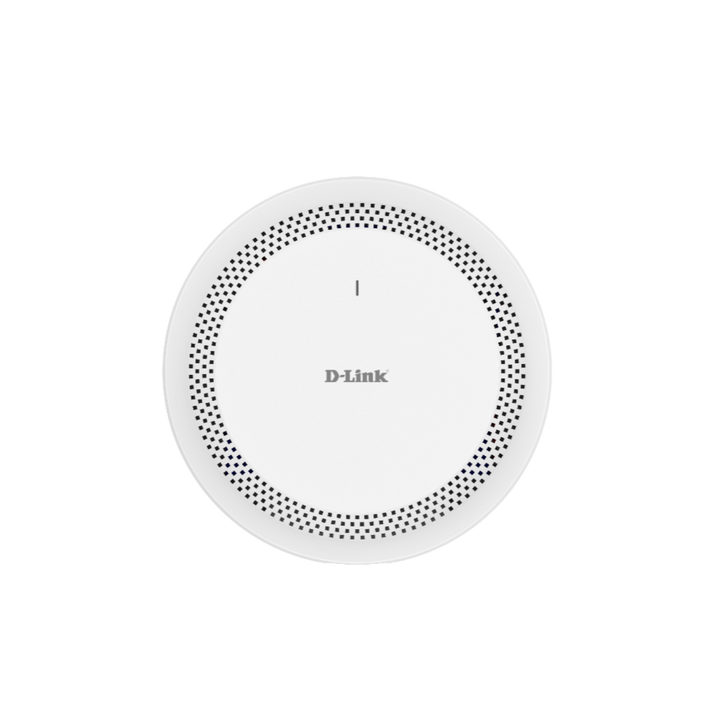

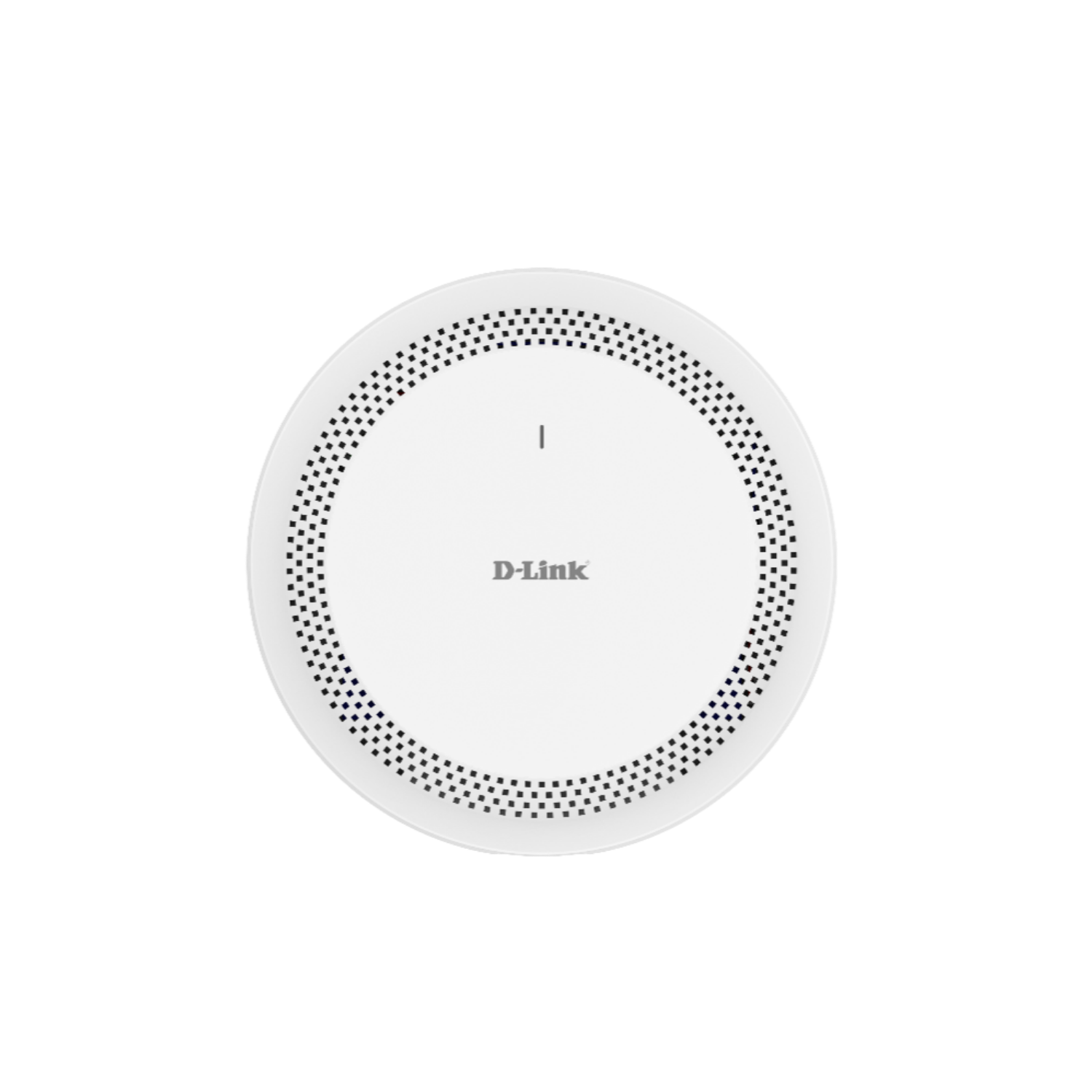

The D-Link DLA-X301 is an indoor dual-band IEEE 802.11ax (Wi-Fi 6) access point in D-Link's D-Lite cloud-managed range. It delivers up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz (up to 3 Gbps combined) and, per D-Link, supports 500+ concurrent Wi-Fi client devices.
Zero-Touch Deployment
APs are added from the D-Lite mobile app by QR code and managed from a centralised multi-site dashboard, with over-the-air firmware upgrades, automated monitoring and alerts, band steering, bandwidth optimisation and automatic channel management.
Secure Guest and Staff Wi-Fi
Up to 16 SSIDs (8 per band), WPA3 SAE / 192-bit enterprise encryption, RADIUS, MAC filtering, SSID/guest/station isolation and a customisable captive portal with social login for guest access.
Flexible Installation
Power it from an IEEE 802.3at PoE switch or the optional 12 V DC adapter, and mount it on a ceiling, a wall or a desktop. Power draw is under 12 W.
Need help choosing? Email sales@sourceit.com.sg with your site size and user count and we will plan the D-Lite AP and switch mix for you.
D-Link DLA-X301 Datasheet — Technical Specifications
General
| Product Name | D-Link DLA-X301 D-Lite Cloud-Managed AX3000 Access Point |
| Part Number | DLA-X301 |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Data Rate | 2.4 GHz up to 574 Mbps; 5 GHz up to 2402 Mbps (up to 3 Gbps combined) |
| Channel Width | 2.4 GHz 20/40 MHz; 5 GHz 20/40/80/160 MHz |
| Max Output Power | 23 dBm (2.4 GHz and 5 GHz) |
| Antennas | Internal omni-directional: 2 x 3 dBi 2.4 GHz, 2 x 3 dBi 5 GHz |
| SSIDs | Up to 16 (8 per band) |
| Concurrent Clients | 500+ |
Interfaces & Power
| Ethernet | 1 x 10/100/1000 Mbps PoE port (LAN 1); 1 x 10/100/1000 Mbps port |
| Power Input | IEEE 802.3at PoE on LAN 1, or 12 V DC 1.5 A adapter |
| Power Consumption | <12 W (PoE or adapter) |
Security
| Encryption | 192-bit Enterprise and 128-bit Personal; 802.11 128-bit AES with SAE |
| Access Control | RADIUS, MAC filtering, customisable captive portal, SSID/guest/station isolation |
Physical & Environmental
| Dimensions | 200.6 x 200.6 x 40 mm |
| Weight | 491 g (without mount) |
| Mounting | Ceiling, wall or desktop |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -30 to 70 °C |
| Humidity | 5% to 95% non-condensing |
| MTBF | >400,000 hours |
| Certifications | CE Class B, FCC Class B, UL 2043, IC Class B |
Compatibility & Software Support
Management
D-Lite cloud platform and D-Lite mobile app (QR-code quick setup, zero-touch deployment, multi-site dashboard, multi-tenant role-based administration, map view, event and change logs, AI diagnostics, real-time traffic reporting), plus local web interface (HTTP/HTTPS).
Typical Use
Offices, retail, cafés, classrooms and multi-site SMBs that want cloud-managed Wi-Fi 6 with guest captive portal, paired with D-Lite cloud-managed PoE switches.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DLA-X301 (this listing) | AX3000 Wi-Fi 6 indoor AP, 2 x GE (1 x PoE-in) |
| DLA-X303 | AX3000 Wi-Fi 6 outdoor AP, IP67, 2 x GE |
| DLA-BE36 | BE3600 Wi-Fi 7 ceiling AP, 2 x 2.5GE |
| DLA-BE96 | BE9500 tri-band Wi-Fi 7 AP, 2 x 2.5GE |
| DGS-F1100-18PSD-SI | 18-port L2 Gigabit cloud-managed PoE switch, 350 W |
| DGS-F1100-26PSD-SI | 26-port L2 Gigabit cloud-managed PoE switch, 350 W |
Package contents are not listed in D-Link's datasheet — ask us to confirm whether a mounting kit and power adapter are included.
Datasheet & Downloads
| D-Link datasheet | DLA-X301 Datasheet (PDF) |
| D-Link Singapore product page | DLA-X301 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DLA-X301.
Frequently Asked Questions — D-Link DLA-X301
How is the DLA-X301 powered?
By IEEE 802.3at PoE on LAN 1, or a 12 V DC 1.5 A adapter. It draws under 12 W.
How many users can it handle?
D-Link rates it for 500+ concurrent Wi-Fi client devices and up to 16 SSIDs.
Do I need a controller?
No hardware controller — it is managed from the D-Lite cloud platform and mobile app, with a local web interface as well.
Can it be used outdoors?
No, it is an indoor AP (0–40 °C). For outdoor use see the IP67 DLA-X303.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
