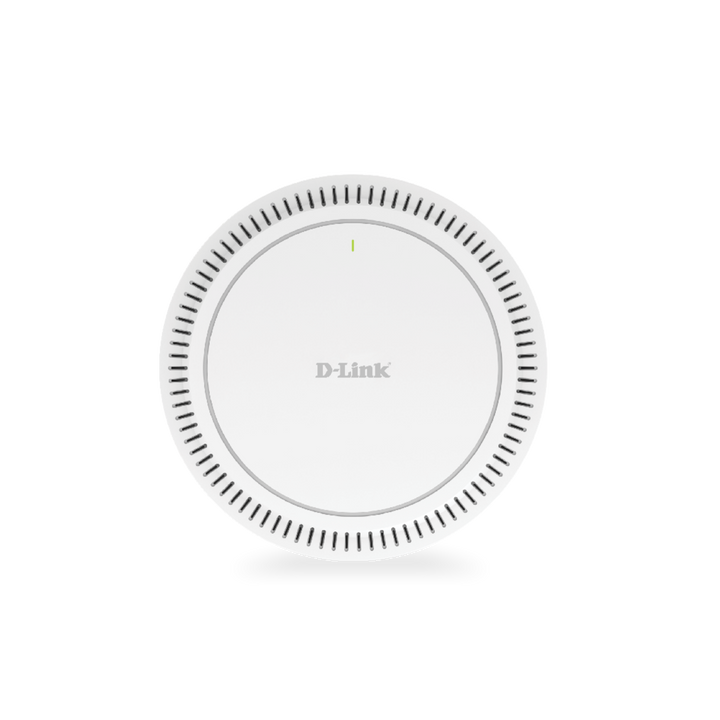

D-Link DLA-BE96 D-Lite Cloud-Managed BE9500 Tri-Band Wi-Fi 7 Access Point
PRODUCT DESCRIPTION
D-Link DLA-BE96 D-Lite Cloud-Managed BE9500 Tri-Band Wi-Fi 7 Access Point (DLA-BE96) - 5 Years Local Warranty
Tri-Band Wi-Fi 7 with 6 GHz
The D-Link DLA-BE96 is the flagship access point in D-Link's D-Lite cloud-managed range: an IEEE 802.11be (Wi-Fi 7) tri-band AP with 2.4 GHz (688.5 Mbps, HE40), 5 GHz (2882.5 Mbps, HE240) and 6 GHz (5764.5 Mbps, HE320) radios.
Dual 2.5G Ports
Two 2.5G RJ45 ports (LAN1 with PoE) give the AP a multi-gigabit uplink, and it can also run from a 12 V / 3 A adapter.
Easy Cloud Deployment
Easy-to-configure APs and switches, rapid deployment, multi-site management from an intuitive dashboard, unlimited scalability and the D-Lite app for deployment and monitoring.
Enterprise-Grade Security
192-bit enterprise and 128-bit personal encryption, WPA/WPA2/WPA3, SSID/guest/station isolation and IP/MAC address filtering.
Need help choosing? Email sales@sourceit.com.sg with your site and device count and we will plan the Wi-Fi 7 rollout for you.
D-Link DLA-BE96 Datasheet — Technical Specifications
General
| Product Name | D-Link DLA-BE96 D-Lite Cloud-Managed BE9500 Tri-Band Wi-Fi 7 Access Point |
| Part Number | DLA-BE96 |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Hardware
| Chipset | IPQ5332 + QCN6432 + QCN6432 + QCA8385 |
| CPU | Quad-core Cortex-A53 @ 1.5 GHz |
| Memory / Flash | 1024 MB DDR4 / 256 MB NAND |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency Bands | 2.4 GHz 688.5 Mbps (HE40); 5 GHz 2882.5 Mbps (HE240); 6 GHz 5764.5 Mbps (HE320) |
| Max Output Power | 30 dBm (24 dBm per chain) on 2.4, 5 and 6 GHz |
| Antennas | 2 x 5 dBi internal per band (2.4 GHz, 5.8 GHz, 6 GHz) |
Interfaces & Power
| Ethernet | 1 x RJ45 10/100/1000M/2.5G LAN1 (with PoE); 1 x RJ45 10/100/1000M/2.5G LAN2 |
| Other | 1 x reset button, 1 x power jack |
| Power Input | 12 V / 3 A DC or PoE (datasheet lists “PoE++, IEEE 802.3at PoE”) |
| Max Power Consumption | 26 W |
Security
| Security | 192-bit Enterprise and 128-bit Personal encryption; WPA/WPA2/WPA3/WEP; SSID/guest/station isolation; IP/MAC address filtering |
Physical & Environmental
| Dimensions | 220 x 218.8 x 37 mm |
| Weight | 840 g |
| Mounting | Ceiling |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -30 to 70 °C |
| Humidity | 5% to 95% non-condensing |
| MTBF | 400,000 hours |
| Certifications | CE, UL, RoHS |
Compatibility & Software Support
Management
D-Lite cloud platform with multi-site management, intuitive dashboard and the D-Lite app for deployment and monitoring; APs and D-Lite switches are managed together.
Typical Use
High-density offices, meeting rooms and premium hospitality spaces that want 6 GHz Wi-Fi 7 capacity, fed from a 2.5G PoE switch port.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DLA-X301 | AX3000 Wi-Fi 6 indoor AP, 2 x GE (1 x PoE-in) |
| DLA-X303 | AX3000 Wi-Fi 6 outdoor AP, IP67, 2 x GE |
| DLA-BE36 | BE3600 Wi-Fi 7 ceiling AP, 2 x 2.5GE |
| DLA-BE96 (this listing) | BE9500 tri-band Wi-Fi 7 AP, 2 x 2.5GE |
| DGS-F1100-18PSD-SI | 18-port L2 Gigabit cloud-managed PoE switch, 350 W |
| DGS-F1100-26PSD-SI | 26-port L2 Gigabit cloud-managed PoE switch, 350 W |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included ceiling bracket and power adapter.
Datasheet & Downloads
| D-Link datasheet | DLA-BE96 Datasheet (PDF) |
| D-Link Singapore product page | DLA-BE96 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DLA-BE96.
Frequently Asked Questions — D-Link DLA-BE96
Does the DLA-BE96 support 6 GHz?
Yes. It is tri-band: 2.4 GHz, 5 GHz and 6 GHz, with up to 5764.5 Mbps on 6 GHz using 320 MHz channels.
What ports does it have?
Two 2.5G RJ45 ports; LAN1 supports PoE.
How much power does it need?
Up to 26 W, from PoE or a 12 V / 3 A adapter. Ask us to confirm the PoE class your switch must provide.
How is it mounted?
D-Link lists ceiling mounting.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
