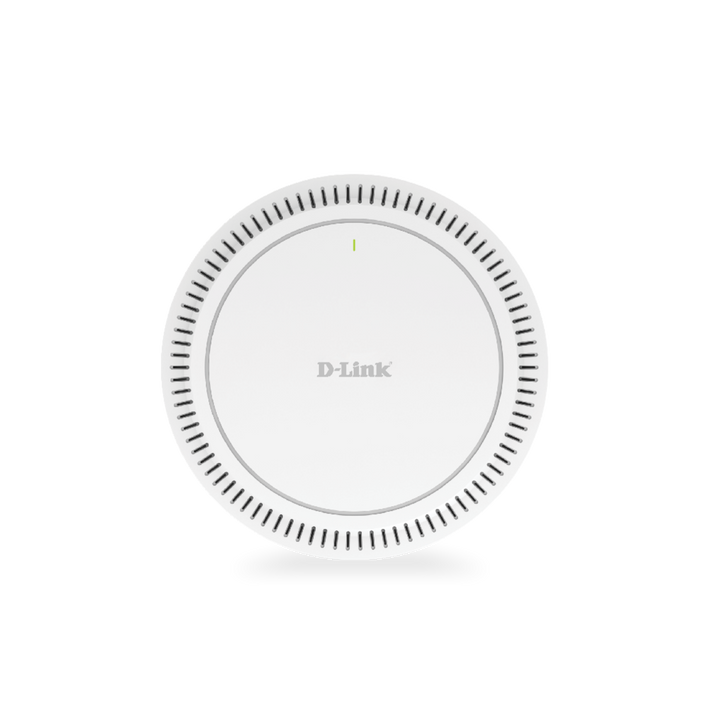

D-Link DLA-BE36 D-Lite Cloud-Managed BE3600 Wi-Fi 7 Ceiling Access Point
PRODUCT DESCRIPTION
D-Link DLA-BE36 D-Lite Cloud-Managed BE3600 Wi-Fi 7 Ceiling Access Point (DLA-BE36) - 5 Years Local Warranty
Wi-Fi 7 Performance for Busy Spaces
The D-Link DLA-BE36 is a dual-band 2x2 IEEE 802.11be (Wi-Fi 7) ceiling access point in D-Link's D-Lite cloud-managed range. It delivers up to 688.5 Mbps on 2.4 GHz and 2882.5 Mbps on 5.8 GHz, with 4096-QAM, Multi-Link Operation (MLO), MU-MIMO and 240 MHz channel width for low-latency multi-device use.
2.5G Uplink with PoE
Two 2.5G RJ45 ports (LAN1 with PoE-in) carry data and power over a single cable, so the AP's Wi-Fi 7 throughput is not held back by a Gigabit uplink.
Stable Coverage
Two internal 5 dBi 2.4 GHz and two internal 5 dBi 5.8 GHz antennas with beamforming reduce dead zones; D-Link quotes an ideal range of 100 m.
Management & Security
Manage from the D-Lite cloud and app, web GUI, SSH or Telnet. D-Link lists QoS, firewall, filtering, VPN, user isolation, guest SSIDs, parental controls, DoS/ARP attack defence and WEP/WPA/WPA2/WPA3 security.
Need help choosing? Email sales@sourceit.com.sg with your floor area and device count and we will plan the Wi-Fi 7 rollout for you.
D-Link DLA-BE36 Datasheet — Technical Specifications
General
| Product Name | D-Link DLA-BE36 D-Lite Cloud-Managed BE3600 Wi-Fi 7 Ceiling Access Point |
| Part Number | DLA-BE36 |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Hardware
| Chipset | IPQ5332 + QCN6432 |
| CPU | Quad-core Cortex-A53 @ 1.5 GHz |
| Memory / Flash | 1 GB DDR4 / 256 MB NAND |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Radios | 2T2R 2.4 GHz 802.11b/g/n/ac/ax/be, 688.5 Mbps; 2T2R 5.8 GHz 802.11a/n/ac/ax/be, 2882.5 Mbps |
| Channel Width | Up to 240 MHz |
| Modulation | OFDM: BPSK, QPSK, 16/64/256/1024/4096-QAM; DSSS: DBPSK, DQPSK, CCK |
| Wi-Fi 7 Features | 4096-QAM, MLO, MU-MIMO, beamforming |
| Antennas | 2 x 5 dBi internal 2.4 GHz; 2 x 5 dBi internal 5.8 GHz |
| Ideal Range | 100 m |
| Security | WEP/WPA/WPA2/WPA3 |
Interfaces & Power
| Ethernet | 1 x RJ45 10/100/1000M/2.5G LAN1 (PoE in); 1 x RJ45 10/100/1000M/2.5G LAN2 |
| Other | 1 x reset button, 1 x power jack |
| Power Input | 12 V / 1.5 A DC or PoE |
| Power Consumption | ≤25 W |
Physical & Environmental
| Dimensions | 220 x 220 x 39 mm |
| Weight | 840 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -30 to 70 °C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL |
Compatibility & Software Support
Management
D-Lite cloud platform and app, web GUI, Telnet, SSH and HTTP/HTTPS. Features listed by D-Link: QoS, firewall, filtering, VPN, user isolation, guest SSIDs, parental controls and DoS/ARP attack defence.
Typical Use
Offices, classrooms, clinics and hospitality spaces upgrading to Wi-Fi 7, ideally fed from a 2.5G PoE switch port.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DLA-X301 | AX3000 Wi-Fi 6 indoor AP, 2 x GE (1 x PoE-in) |
| DLA-X303 | AX3000 Wi-Fi 6 outdoor AP, IP67, 2 x GE |
| DLA-BE36 (this listing) | BE3600 Wi-Fi 7 ceiling AP, 2 x 2.5GE |
| DLA-BE96 | BE9500 tri-band Wi-Fi 7 AP, 2 x 2.5GE |
| DGS-F1100-18PSD-SI | 18-port L2 Gigabit cloud-managed PoE switch, 350 W |
| DGS-F1100-26PSD-SI | 26-port L2 Gigabit cloud-managed PoE switch, 350 W |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included ceiling bracket and power adapter.
Datasheet & Downloads
| D-Link datasheet | DLA-BE36 Datasheet (PDF) |
| D-Link Singapore product page | DLA-BE36 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DLA-BE36.
Frequently Asked Questions — D-Link DLA-BE36
Is the DLA-BE36 Wi-Fi 7?
Yes, IEEE 802.11be dual-band (2.4 and 5.8 GHz) with 4096-QAM, MLO and 240 MHz channels. It does not list a 6 GHz radio — see the tri-band DLA-BE96 for that.
What uplink does it need?
It has two 2.5G RJ45 ports; LAN1 accepts PoE. A 2.5G switch port lets it use its full Wi-Fi 7 speed.
How much power does it draw?
Up to 25 W, from PoE or a 12 V / 1.5 A adapter.
How is it managed?
From the D-Lite cloud and app, or locally by web GUI, SSH or Telnet.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
