D-Link DIS-100G-06 6-Port Industrial Gigabit Unmanaged Switch
PRODUCT DESCRIPTION
D-Link DIS-100G-06 Industrial 4-Port 1G + 2-Port 1G SFP Unmanaged Switch (DIS-100G-06) - 5 Years Local Warranty
Compact Gigabit with Fibre Uplinks

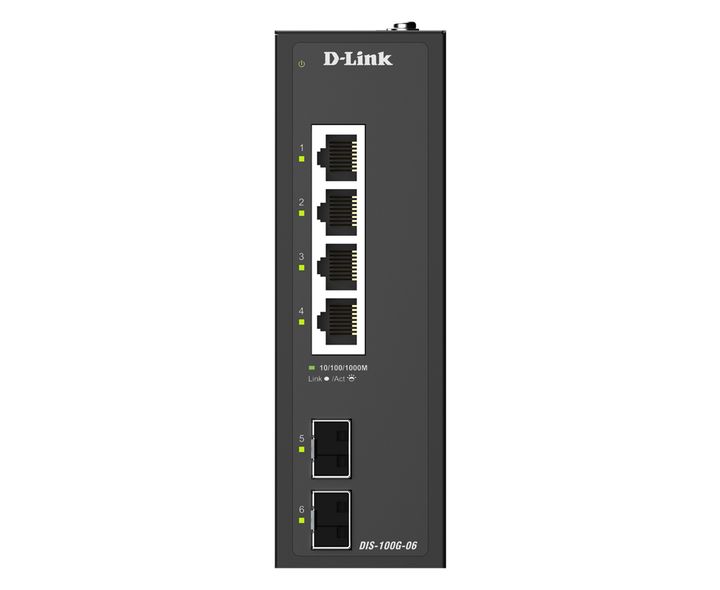

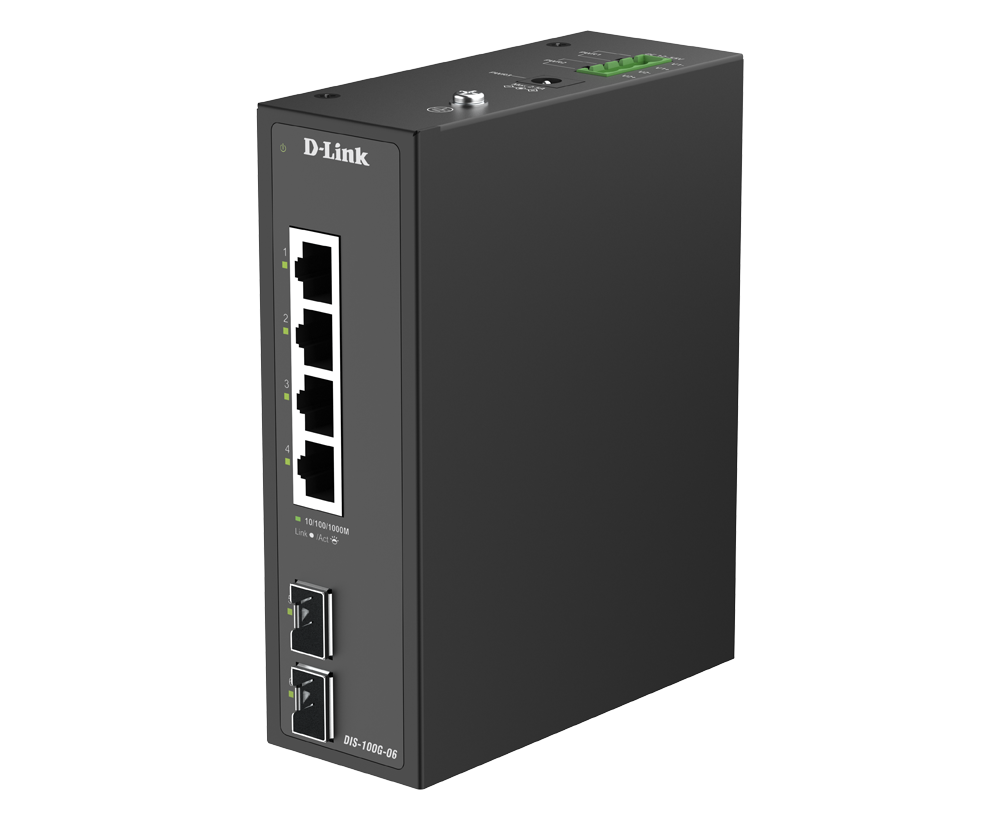

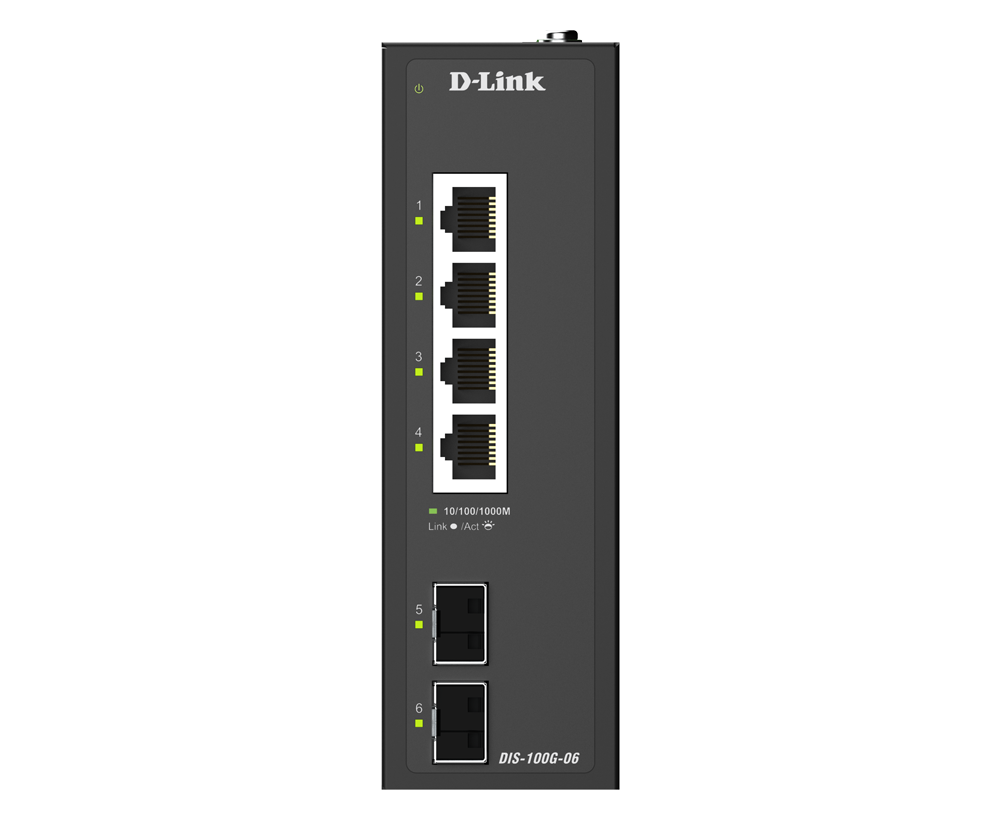

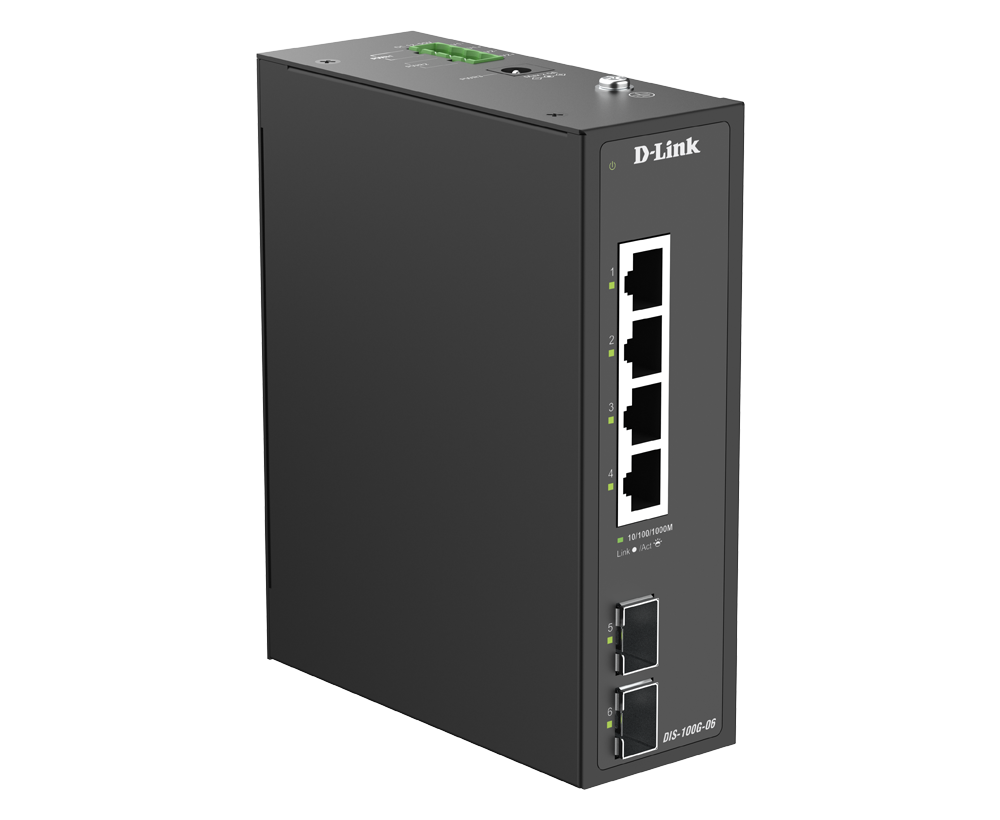

The D-Link DIS-100G-06 is an industrial unmanaged switch with 4 x Gigabit Ethernet ports and 2 x 1G SFP ports for fibre uplinks, delivering 12 Gbps switching capacity with no configuration needed.
Built for Harsh Environments
A fanless IP40-rated metal casing operates from -40 to 75 °C, with built-in 6 kV surge protection on the copper ports. It mounts on a DIN rail inside control cabinets.
Redundant, Wide-Range Power

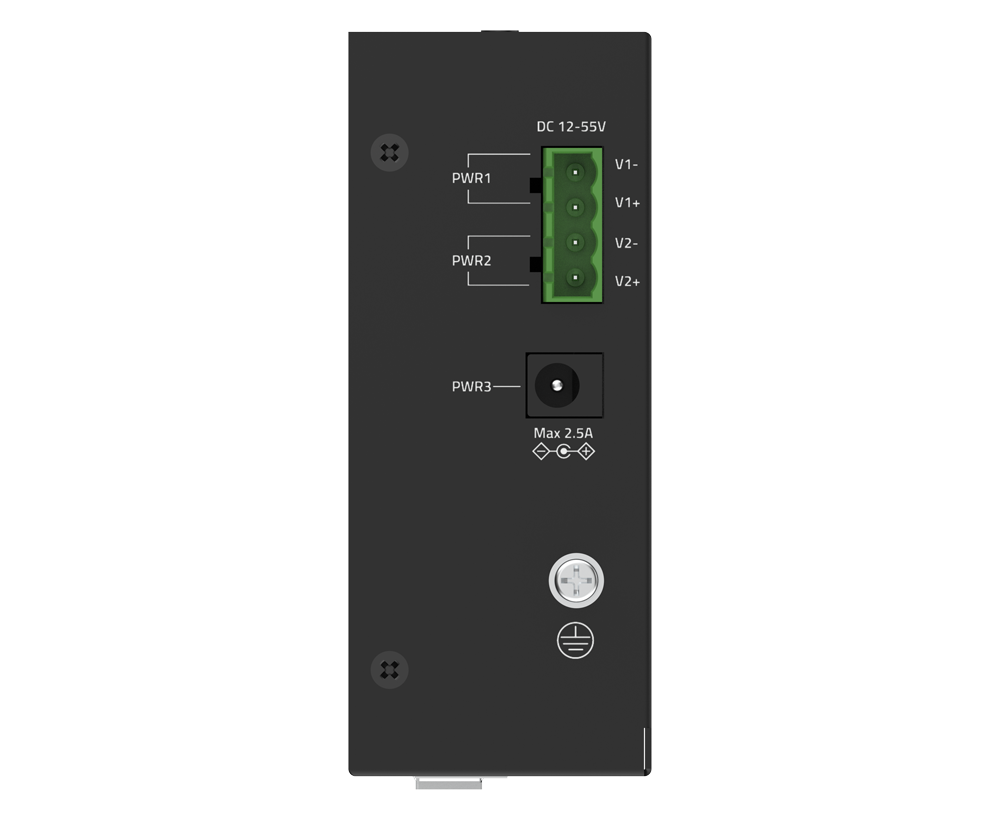

Dual 12–55 VDC terminal-block inputs provide power redundancy and work with a wide range of DC sources, while IEEE 802.3az Energy-Efficient Ethernet cuts power draw.
Need help choosing? Email sales@sourceit.com.sg with your port count, fibre distances and power source and we will recommend the right switch, SFPs and power supply.
D-Link DIS-100G-06 Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-100G-06 Industrial 4-Port 1G + 2-Port 1G SFP Unmanaged Switch |
| Part Number | DIS-100G-06 |
| Hardware Version | A1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces & Standards
| Copper Ports | 4 x Gigabit Ethernet, auto-MDI/MDIX |
| SFP Ports | 2 x 1G SFP |
| Standards | IEEE 802.3, 802.3u, 802.3z, 802.3az EEE |
| PoE | Not supported |
| LEDs | Power; link/activity/speed per port |
Performance
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.92 Mpps (64-byte packets) |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 MB |
| Flash / DRAM | 16 MB / 128 MB |
| Transmission Method | Store-and-forward |
| Jumbo Frames | 9K |
Power
| Input | 12–55 VDC terminal block, dual input |
| Max. Power Consumption | 6.3 W |
| Standby Power | 2.49 W |
| Heat Dissipation | 21.5 BTU/hr |
| Surge Protection | 6 kV on copper ports |
Physical & Environmental
| Dimensions | 138 x 108 x 44 mm |
| Weight | 0.61 kg |
| Enclosure | IP40-rated metal casing, fanless |
| Mounting | DIN rail |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5% to 95% RH |
| MTBF | > 200,000 hours |
Certifications
| Safety | cUL, CB, CE, BSMI |
| EMI | CE Class A, VCCI Class A, FCC Class A, IC, BSMI, RCM |
Compatibility & Software Support
Management
Unmanaged, plug-and-play — no configuration or software required.
Optional SFP Modules (per D-Link)
D-Link lists its industrial SFP range DIS-S301SX to DIS-S380ZX (550 m to 80 km, -40 to 85 °C), for example DIS-S301SX and DIS-S310LX.
Power
The switch is DC-powered; an industrial DIN-rail power supply is needed on AC sites — ask us which one suits your cabinet.
Package Contents & DIS-100G Ordering Information
DIS-100G Models
| Model | Ports | PoE |
| DIS-100G-06 (this listing) | 4 x GE + 2 x 1G SFP | — |
| DIS-100G-06P | 4 x GE PoE + 2 x 1G SFP | 120 W |
| DIS-100G-10 | 8 x GE + 2 x 1G SFP | — |
| DIS-100G-10P | 8 x GE PoE + 2 x 1G SFP | 240 W |
| DIS-100G-8W | 8 x GE | — |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Power supply and SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DIS-100G-06 Datasheet (PDF) |
| D-Link product page | DIS-100G-06 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-100G-06.
Frequently Asked Questions — D-Link DIS-100G-06
Does it need configuring?
No, it is an unmanaged plug-and-play switch.
Does it supply PoE?
No. The DIS-100G-06P adds 802.3af/at PoE on its 4 copper ports (120 W budget).
What power does it need?
12–55 VDC on dual terminal-block inputs, up to 6.3 W.
What temperatures can it handle?
-40 to 75 °C operating, in a fanless IP40 metal housing.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
