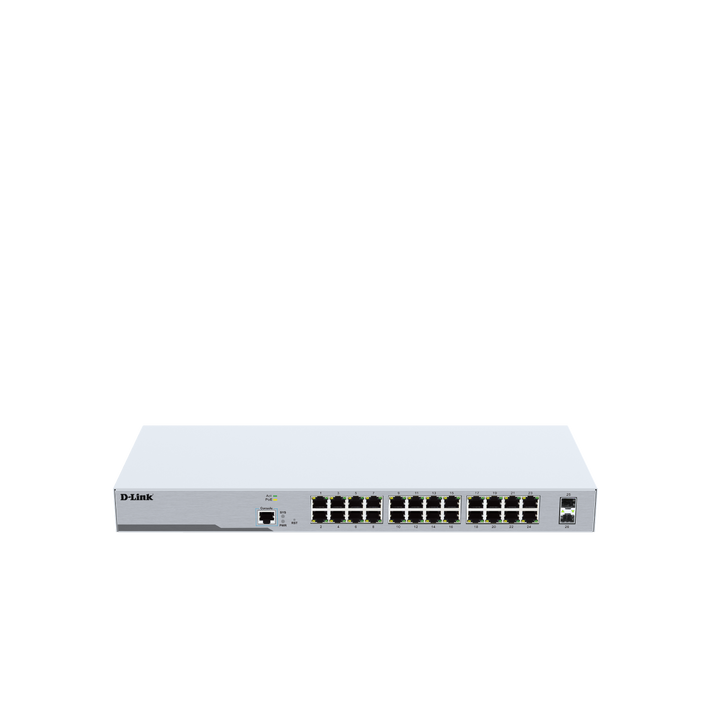

D-Link DGS-F1100-26PSD-SI D-Lite 26-Port Gigabit Cloud Managed PoE Switch
PRODUCT DESCRIPTION
D-Link DGS-F1100-26PSD-SI D-Lite 26-Port Layer 2 Gigabit Cloud Managed PoE Switch (DGS-F1100-26PSD-SI) - 5 Years Local Warranty
24 PoE+ Ports with a 350 W Budget
The D-Link DGS-F1100-26PSD-SI is a 26-port Layer 2 Gigabit cloud managed PoE switch in D-Link's D-Lite range. Ports 1–24 deliver IEEE 802.3af/at PoE at up to 30 W per port from a 350 W total budget, plus 1 x Gigabit RJ45 and 2 x Gigabit SFP uplinks.
Gigabit Performance
D-Link rates it at 52 Gbps switching capacity and 38.688 Mpps forwarding, with an 8K MAC table, 4.1 Mbit packet buffer and 4K VLANs.
Cloud, Web or CLI Management
Manage it with D-Lite APs from the D-Lite cloud, or locally through the web GUI (HTTP, SSL V3) and CLI (Telnet, SSH V1/V2, local serial port).
Layer 2 and Security Features
STP/RSTP/MSTP, link aggregation, port mirroring, IGMP snooping, storm suppression, DHCP snooping, 802.1X authentication, port isolation and access control lists. 6 kV lightning protection is built in.
Need help choosing? Email sales@sourceit.com.sg with your PoE device count and we will size the D-Lite switch for you.
D-Link DGS-F1100-26PSD-SI Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-F1100-26PSD-SI 26-Port Layer 2 Gigabit Cloud Managed PoE Switch |
| Part Number | DGS-F1100-26PSD-SI |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 24 x 10/100/1000 Mbps (ports 1–24) |
| Gigabit RJ45 Port | 1 x 1000 Mbps |
| SFP Ports | 2 x Gigabit SFP |
PoE
| PoE Standard | IEEE 802.3af (up to 15.4 W) / 802.3at (up to 30 W) |
| PoE Budget | 350 W |
Performance
| Switching Capacity | 52 Gbps |
| Packet Forwarding | 38.688 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Memory / Flash | DDR3 128 MB / 32 MB |
| VLAN | 4K VLANs; MAC, IP and protocol VLAN; VLAN translation |
Physical & Environmental
| Dimensions | 440 x 180 x 44 mm |
| Cooling | 1 fan |
| Power Input | AC 100–240 V, 50/60 Hz |
| Lightning Protection | 6 kV |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -10 to 70 °C |
| Humidity | Operating 10%–90%, storage 5%–95% (non-condensing) |
| Certifications | CE |
Standards
| IEEE | 802.3 family through 802.3z, 802.3ad, 802.1p, 802.1d, 802.1s, 802.1w, 802.3af, 802.3at |
Compatibility & Software Support
Management
D-Lite cloud management; web GUI (HTTP, SSL V3); CLI via Telnet, SSH V1/V2 and local serial port.
Layer 2 & Security Software
STP, RSTP, MSTP; link aggregation; port mirroring; IGMP snooping; storm suppression; DHCP snooping; 802.1X; port isolation; ACLs; IEEE 802.3x flow control and auto MDI/MDIX.
Typical Use
Powering up to 24 IP cameras, Wi-Fi APs or IP phones, managed alongside D-Lite access points from one cloud dashboard.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DGS-F1100-18PSD-SI | 16 x GE PoE + 1 x GE + 2 x SFP, 350 W |
| DGS-F1100-26PSD-SI (this listing) | 24 x GE PoE + 1 x GE + 2 x SFP, 350 W |
| DLA-X301 | AX3000 Wi-Fi 6 indoor AP |
| DLA-X303 | AX3000 Wi-Fi 6 outdoor AP, IP67 |
| DLA-BE36 | BE3600 Wi-Fi 7 ceiling AP |
| DLA-BE96 | BE9500 tri-band Wi-Fi 7 AP |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-F1100-26PSD-SI Datasheet (PDF) |
| D-Link Singapore product page | DGS-F1100-26PSD-SI on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-F1100-26PSD-SI.
Frequently Asked Questions — D-Link DGS-F1100-26PSD-SI
How much PoE power does it provide?
350 W in total, up to 30 W per port on ports 1–24 (IEEE 802.3af/at).
Does it have fibre uplinks?
Yes, 2 x Gigabit SFP ports, plus 1 x Gigabit RJ45.
Is it fanless?
No. D-Link lists one fan.
How is it managed?
From the D-Lite cloud, or locally by web GUI and CLI (Telnet/SSH/serial).
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
