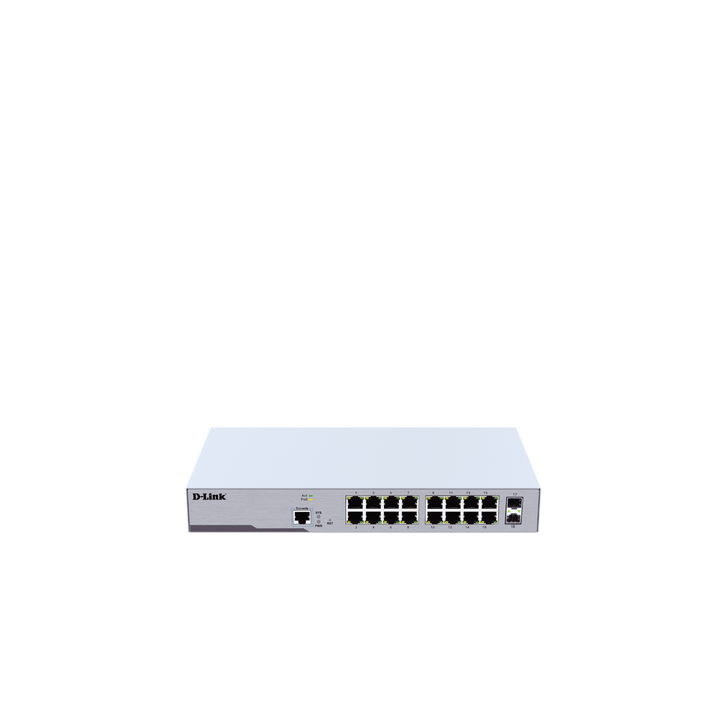

D-Link DGS-F1100-18PSD-SI D-Lite 18-Port Gigabit Cloud Managed PoE Switch
PRODUCT DESCRIPTION
D-Link DGS-F1100-18PSD-SI D-Lite 18-Port Layer 2 Gigabit Cloud Managed PoE Switch (DGS-F1100-18PSD-SI) - 5 Years Local Warranty
16 PoE+ Ports with a 350 W Budget
The D-Link DGS-F1100-18PSD-SI is an 18-port Layer 2 Gigabit cloud managed PoE switch in D-Link's D-Lite range. Ports 1–16 deliver IEEE 802.3af/at PoE at up to 30 W per port from a 350 W total budget, plus 1 x Gigabit RJ45 and 2 x Gigabit SFP uplinks.
Gigabit Performance
D-Link rates it at 36 Gbps switching capacity and 26.79 Mpps forwarding, with an 8K MAC table, 4.1 Mbit packet buffer and 4K VLANs.
Cloud, Web or CLI Management
Manage it with D-Lite APs from the D-Lite cloud, or locally through the web GUI (HTTP, SSL V3) and CLI (Telnet, SSH V1/V2, local serial port).
Layer 2 Features
STP/RSTP/MSTP, static and dynamic link aggregation (up to 8 groups), port mirroring and RSPAN, 8 QoS queues per port, storm suppression, IGMP snooping, LLDP, SNMP v1/v2 and RMON. 6 kV lightning protection is built in.
Need help choosing? Email sales@sourceit.com.sg with your PoE device count and we will size the D-Lite switch for you.
D-Link DGS-F1100-18PSD-SI Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-F1100-18PSD-SI 18-Port Layer 2 Gigabit Cloud Managed PoE Switch |
| Part Number | DGS-F1100-18PSD-SI |
| Series | D-Lite Cloud-Managed Solution |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 16 x 10/100/1000 Mbps (ports 1–16) |
| Gigabit RJ45 Port | 1 x 1000 Mbps |
| SFP Ports | 2 x Gigabit SFP |
PoE
| PoE Standard | IEEE 802.3af (up to 15.4 W) / 802.3at (up to 30 W), ports 1–16 |
| PoE Budget | 350 W |
Performance
| Switching Capacity | 36 Gbps |
| Packet Forwarding | 26.79 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Memory / Flash | DDR3 128 MB / 32 MB |
| VLAN | 4K VLANs; MAC, IP and protocol VLAN; VLAN translation |
Physical & Environmental
| Dimensions | 320 x 180 x 44 mm |
| Housing | Metal |
| Cooling | 1 fan |
| Power Input | AC 100–240 V, 50/60 Hz |
| Lightning Protection | 6 kV |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -10 to 70 °C |
| Humidity | Operating 10%–90%, storage 5%–95% (non-condensing) |
| Certifications | CE |
Standards
| IEEE | 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1p, 802.1d, 802.1s, 802.1w, 802.3af, 802.3at |
Compatibility & Software Support
Management
D-Lite cloud management; web GUI (HTTP, SSL V3); CLI via Telnet, SSH V1/V2 and local serial port; SNMP v1/v2; RMON; LLDP.
Layer 2 Software
STP, RSTP, MSTP; static/dynamic link aggregation up to 8 groups; port mirroring and RSPAN; 8 queues per port QoS; multicast/broadcast/unknown-unicast storm suppression; IGMP snooping; automatic MAC learning and ageing with static entries.
Typical Use
Powering up to 16 IP cameras, Wi-Fi APs or IP phones in a small site, managed alongside D-Lite access points from one cloud dashboard.
Package Contents & D-Lite Ordering Information
D-Lite Cloud-Managed Models
| Part No. | Description |
| DGS-F1100-18PSD-SI (this listing) | 16 x GE PoE + 1 x GE + 2 x SFP, 350 W |
| DGS-F1100-26PSD-SI | 24 x GE PoE + 1 x GE + 2 x SFP, 350 W |
| DLA-X301 | AX3000 Wi-Fi 6 indoor AP |
| DLA-X303 | AX3000 Wi-Fi 6 outdoor AP, IP67 |
| DLA-BE36 | BE3600 Wi-Fi 7 ceiling AP |
| DLA-BE96 | BE9500 tri-band Wi-Fi 7 AP |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-F1100-18PSD-SI Datasheet (PDF) |
| D-Link Singapore product page | DGS-F1100-18PSD-SI on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-F1100-18PSD-SI.
Frequently Asked Questions — D-Link DGS-F1100-18PSD-SI
How much PoE power does it provide?
350 W in total, up to 30 W per port on ports 1–16 (IEEE 802.3af/at).
Does it have fibre uplinks?
Yes, 2 x Gigabit SFP ports, plus 1 x Gigabit RJ45.
Is it fanless?
No. D-Link lists one fan.
How is it managed?
From the D-Lite cloud, or locally by web GUI and CLI (Telnet/SSH/serial).
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
