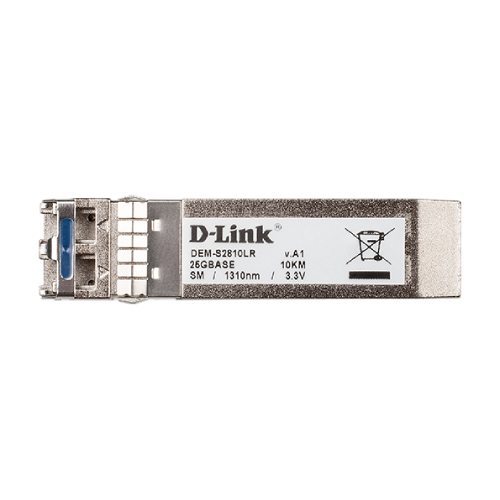

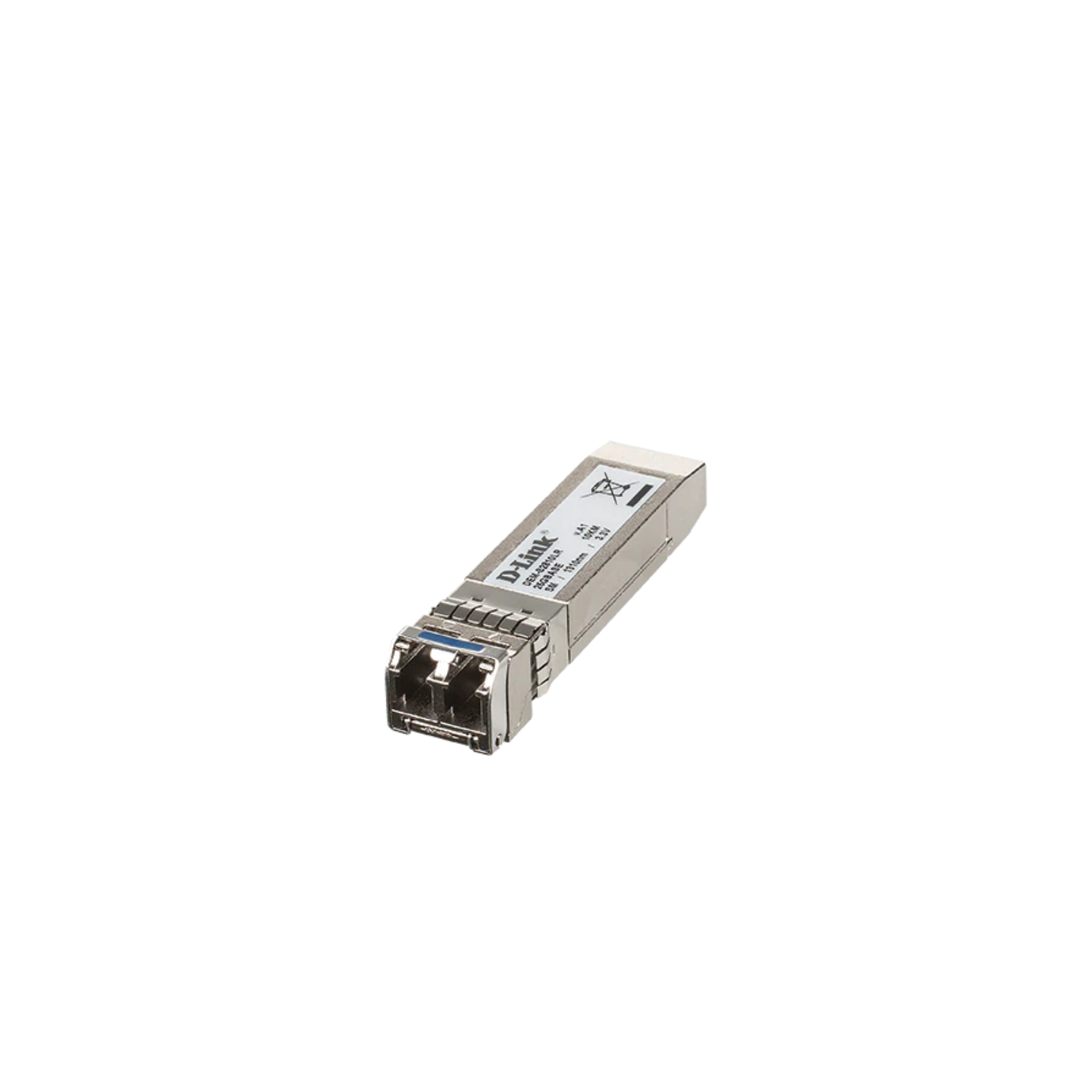

D-Link DEM-S2810LR 25GBASE-LR Single-Mode SFP28 Transceiver (10 km)
PRODUCT DESCRIPTION
D-Link DEM-S2810LR 25GBASE-LR Single-Mode SFP28 Transceiver, 10 km (DEM-S2810LR) - 5 Years Local Warranty
25G Links up to 10 km
The D-Link DEM-S2810LR is a 25GBASE-LR SFP28 transceiver carrying 25 Gb/s over a single lane. It uses a 1310 nm laser over 9/125 µm single-mode fibre with a duplex LC connector for links of up to 10 km between buildings or data halls.
Industry Compliant and Hot Pluggable
The module complies with IEEE 802.3cc and the SFP28 MSA, runs on 3.3 V, and is hot pluggable so links can be added without taking the switch down.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will match the right module for you.
D-Link DEM-S2810LR Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-S2810LR 25GBASE-LR Single-Mode SFP28 Transceiver (10 km) |
| Part Number | DEM-S2810LR |
| Series | DEM-S28 Series 25G SFP28 Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3cc 25GBASE-LR |
| Data Rate | 25 Gb/s over a single lane |
| Connector | Duplex LC |
| Media | Single-mode fibre 9/125 µm |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km |
Module, Environmental & Certifications
| Form Factor | SFP28, 57.3 x 13.7 x 8.5 mm |
| Weight | 25 g |
| Power Supply | 3.3 V |
| Hot Pluggable | Yes |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing (operating and storage) |
| Certifications | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, LVD |
Compatibility & Software Support
Host Ports
Plugs into a 25G SFP28 slot. D-Link's datasheet does not publish a host compatibility list — send us your switch or NIC model and we will confirm before you order.
Diagnostics
Digital Diagnostic Monitoring (DDM) is not listed in D-Link's datasheet for this model.
Package Contents & DEM-S28 25G SFP28 Ordering Information
D-Link 25G SFP28 Transceivers (DEM-S28 Series)
| Model | Standard | Media | Distance | Part No. |
| DEM-S2801SR | 25GBASE-SR, 850 nm | Multi-mode OM3/OM4, duplex LC | 70 m OM3 / 100 m OM4 | DEM-S2801SR |
| DEM-S2810LR (this listing) | 25GBASE-LR, 1310 nm | Single-mode 9/125 µm, duplex LC | 10 km | DEM-S2810LR |
Ask us for current availability of either model.
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-S28 Series 25G SFP28 Datasheet (PDF) |
| D-Link product page | DEM-S2810LR on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-S2810LR.
Frequently Asked Questions — D-Link DEM-S2810LR
How far can the DEM-S2810LR reach?
Up to 10 km on single-mode fibre, per D-Link's datasheet.
Can I use it on multi-mode fibre?
No — it is a single-mode optic. For multi-mode OM3/OM4 fibre choose the DEM-S2801SR.
What connector does it use?
Duplex LC.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
