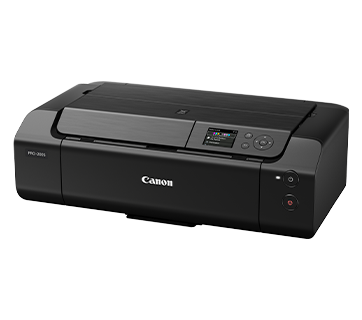

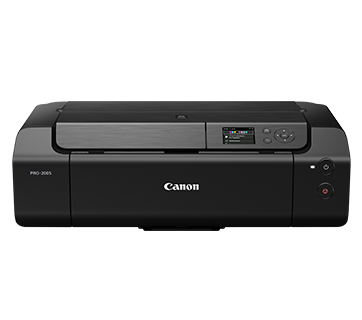

Canon PIXMA PRO-200S A3+ Professional Photo Printer
PRODUCT DESCRIPTION
Canon PIXMA PRO-200S A3+ Professional Photo Printer (6875C012AA) - 1 Year Local Warranty
The Canon PIXMA PRO-200S is Canon's high-Performance A3+ Photo Printer Designed for Photography Enthusiasts. It has a rated print speed of 2 min 50 sec / 1 min 30 sec, with Wi-Fi, Ethernet and USB connectivity.
3.0" Colour LCD Display
A 3" colour LCD display panel enables easy navigation of printer functions and provides a quick overview of ink levels, making operation smooth and simple.
Reliable Paper Feeding
An automatic skew correction function prevents mistakes in paper alignment and reduces paper wastage.
Mobile and Cloud Printing
Print from smartphones, tablets, laptops and cloud storage with the Canon PRINT and Easy-PhotoPrint Editor apps.
Compatible with Wide Range of Paper Media and Sizes
The PRO-200S supports your creative vision with options to customise border margins for perfect framing requirements, panorama size paper at 210 x 594 mm as well as the ability to print on long paper lengths up to 990.6 mm.
Advanced Media Handling
This system supports three types of paper feeding: a top tray, a manual feed tray, and a multi-purpose tray, which allows for direct printing on discs with printable surfaces.
Ideal For
Photographers, designers, studios, schools and print shops in Singapore that need gallery-grade colour and fine-art or photo output in-house, without sending work out to a lab. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
PIXMA PRO-200S Datasheet — Technical Specifications
General
| Model | PIXMA PRO-200S |
| Official Product Name | PIXMA PRO-200S |
| Canon Product Code | 6875C012AA |
| EAN / UPC | 4549292240078 |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year on-site warranty by Canon Singapore |
| Print Head / Number of Nozzles | Total 6,144 nozzles |
| Ink Cartridges (Type/Colours) | CLI-65 (Dye-based Ink/Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Light Grey, Black) |
| Maximum Print Resolution | 4,800 (Horizontal) x 2,400 (Vertical) dpi |
| Print Speed (Approx.) - Photo (A3+, Bordered) Mono/Colour, PT-101 | 2 min 50 sec / 1 min 30 sec |
| Print Speed (Approx.) - Photo (4 x 6", Borderless) Colour, PT-101 | 35 sec |
Paper Handling
| Printable Width - Top Tray | Up to 322.2 mm; Borderless Printing: Up to 329 mm |
| Printable Width - Manual Feed | Up to 323.4 mm; Borderless Printing: Up to 329 mm |
| Print Margin - Borderless Printing | Top/Bottom/Left/Right: 0 mm |
| Print Margin - Bordered Printing | Top: 3 mm, Bottom: 5 mm, Left/Right: each 3.4 mm |
| Print Margin - Recommended for Fine Art Paper | Top/Bottom/Left/Right: 25 mm |
| Supported Media - Top Tray | Plain Paper (64 - 105 g/m²); Canon: Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Plus Semi-Gloss (SG-201), Photo Paper Pro Luster (LU-101), Photo Paper Pro Platinum (PT-101), Matte Photo Paper (MP-101), High Resolution Paper (HR-101N), Canon Oce Office Colour Paper 80 g/m²; Others: Canvas, Cardstock, Hagaki, Heavyweight Fine Art Paper, Inkjet Greeting Card, Japanese Paper Washi, Lightweight Photo Paper, Red Label Superior 80 g/m², Envelope, T-shirt Transfer |
| Supported Media - Manual Feed | Canon: Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Plus Semi-Gloss (SG-201), Photo Paper Pro Luster (LU-101), Photo Paper Pro Platinum (PT-101), Photo Paper Pro Premium Matte (PM-101), Premium Fine Art Rough (FA-RG1), Matte Photo Paper (MP-101); Others: Canvas, Cardstock, Inkjet Greeting Card, Japanese Paper Washi, Lightweight Photo Paper, Heavyweight Photo Paper, Heavyweight Fine Art Paper, Extra Heavyweight Fine Art Paper |
| Supported Media - Multi-Purpose Tray | Printable Disc |
| Paper Size - Top Tray | A3+, A3, A4, A5, B4, B5, LTR, LGL, LDR, Hagaki, L, 2L, 4 x 6", 7 x 10", 8 x 10", 10 x 12", 12 x 12", Square (127 x 127 mm), 210 x 594 mm, Envelope (COM10, DL); Custom Size: Width: 89 - 329 mm, Length: 127 - 990.6 mm |
| Paper Size - Manual Feed | A3+, A3, A4, B4, LTR, LGL, LDR, 8 x 10", 10 x 12", 12 x 12", 210 x 594 mm; Custom Size: Width: 203.2 - 330.2 mm, Length: 254 - 990.6 mm |
| Paper Size - Multi-Purpose Tray | 120 x 120 mm |
| Borderless Printing | A3+, A3, A4, LTR, LDR, Hagaki, L, 2L, 4 x 6", 5 x 7", 7 x 10", 8 x 10", 10 x 12", 12 x 12", Square (127 x 127 mm), 210 x 594 mm |
| Maximum Capacity - Top Tray - Plain Paper | A5, A4, B5, LTR = 100; A3, B4, LGL, LDR = 50 |
| Maximum Capacity - Top Tray - Photo Paper Plus Glossy II (PP-201) | A3 = 10; A3+ = 1 |
| Maximum Capacity - Top Tray - Photo Paper Plus Glossy II (PP-208) | 4 x 6" = 20; A4 = 10 |
| Maximum Capacity - Top Tray - Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6" = 20 |
| Maximum Capacity - Top Tray - Matte Photo Paper (MP-101) | 4 x 6" = 20; A4, A3 = 10 |
| Maximum Capacity - Top Tray - Photo Paper Pro Platinum (PT-101) | 4 x 6" = 20; A4, A3 = 10; A3+ = 1 |
| Maximum Capacity - Top Tray - Photo Paper Pro Luster (LU-101) | A4, A3 = 10; A3+ = 1 |
| Maximum Capacity - Top Tray - High Resolution (HR-101N) | A4 = 80 |
| Maximum Capacity - Manual Feed | PP-201: A3, A3+ = 1; PP-208: A4 = 1; MP-101: A4, A3 = 1; LU-101 / PM-101 / PT-101 / FA-RG1: A4, A3, A3+ = 1 |
| Maximum Capacity - Multi-Purpose Tray | 1 |
| Paper Weight - Top Tray | Plain Paper: 64 - 105 g/m²; Canon Genuine Paper (max.): approx. 380 g/m² |
| Paper Weight/Thickness - Manual Feed | Canon Genuine Paper (max.): approx. 380 g/m²; Paper Thickness: 0.1 ~ 0.6 mm or less |
Network
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| TLS | 1.3/1.2/1.1/1.0 |
| Wired LAN - Type | IEEE 802.3 (10BASE-T) / IEEE 802.3u (100BASE-TX) |
| Wired LAN - Data Rate | 100 Mbps / 10 Mbps (auto switchable) |
| Wireless LAN - Type | IEEE 802.11b/g/n; 2.4 GHz, Supported Channels: 1 - 13 |
| Wireless LAN - Security | WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| Canon Printing Apps - Mobile | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - Others | PosterArtist Lite, PosterArtist (Web), Professional Print & Layout, Media Configuration Tool |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet) |
System Requirements
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.10 ~ 14 or later, ChromeOS |
General Specifications
| Operation Panel - Display | 3.0" Colour LCD Display |
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) | Plain Paper: 42.5 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) | OFF: 0.05 W; Standby (USB connection to PC): 1.1 W; Operation: 17 W |
| Dimensions (W x D x H) | Factory Configuration: 639 x 379 x 200 mm |
| Weight | 14.1 kg |
Page Yield
| Photo Paper (PT-101) A3+ Mono | CLI-65 BK: 43; GY: 35; LGY: 44; C: 181; M: 270; Y: 250; PC: 78; PM: 108 sheets |
| Photo Paper (PT-101) A3+ Colour | CLI-65 BK: 69; GY: 96; LGY: 139; C: 51; M: 77; Y: 55; PC: 59; PM: 54 sheets |
| Photo Paper (PT-101) 4 x 6" Colour | CLI-65 BK: 860; GY: 595; LGY: 965; C: 482; M: 610; Y: 295; PC: 275; PM: 320 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the PIXMA PRO-200S. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN - Type | IEEE 802.11b/g/n; 2.4 GHz, Supported Channels: 1 - 13 |
| Canon Printing Apps - Mobile | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - Others | PosterArtist Lite, PosterArtist (Web), Professional Print & Layout, Media Configuration Tool |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet) |
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.10 ~ 14 or later, ChromeOS |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | PIXMA PRO-200S |
| Canon Product Code | 6875C012AA |
| EAN / UPC | 4549292240078 |
| Recommended Retail Price (incl. GST) | S$649.00 |
| Consumables | CLI-65 dye-based ink, 8 colours: CLI-65 BK, C, M, Y, PC, PM, GY, LGY (RRP SGD 33.00 each on sg.canon). Yields (PT-101 photo paper): A3+ colour BK 69 / GY 96 / LGY 139 / C 51 / M 77 / Y 55 / PC 59 / PM 54 sheets; 4x6" colour BK 860 / GY 595 / LGY 965 / C 482 / M 610 / Y 295 / PC 275 / PM 320 sheets; A3+ mono BK 43 / GY 35 / LGY 44 / C 181 / M 270 / Y 250 / PC 78 / PM 108 sheets. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
