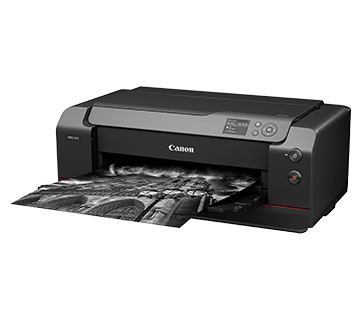

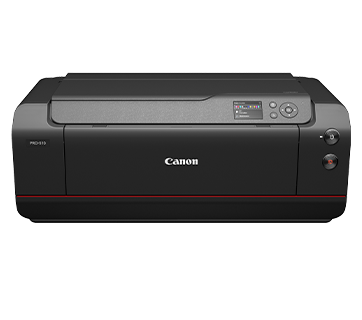

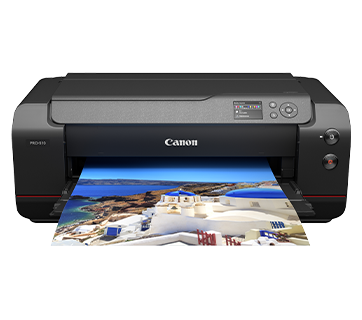

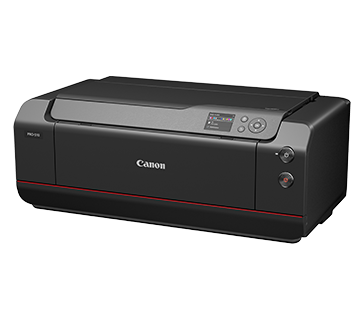

Canon imagePROGRAF PRO-510 A2 Professional Photo Printer
PRODUCT DESCRIPTION
Canon imagePROGRAF PRO-510 A2 Professional Photo Printer (6856C008AA) - 1 Year Local Warranty
The Canon imagePROGRAF PRO-510 is Canon's unleash Photographic Brilliance with the A2 PRO Photo Printer for Large Format Archival Prints. It has a rated print speed of 8 min 40 sec / 6 min, with Wi-Fi, Ethernet and USB connectivity.
12-colour Ink System
Elevate your print with the all new LUCIA PRO II ink. Designed to deliver exceptional colour accuracy and longevity.
Colour LCD Display
A 3" colour LCD display panel allows easy navigation of printer functions as well as monitoring ink level status at a glance.
Custom Bordered Prints and Panoramas
PRO-510 empowers your creativity by allowing you to print panoramic images on long paper, with lengths of up to 3 m.
Mobile and Cloud Printing
Print from smartphones, tablets, laptops and cloud storage with the free Canon PRINT and Easy-PhotoPrint Editor apps.
Compatible with Wide Range of Paper Media and Sizes
Users can enjoy compatibility with speciality inkjet print media from different paper manufacturers.
Easy Maintenance
The easy-to-replace maintenance cartridge makes maintenance fuss-free and extends printer lifespan.
Ideal For
Photographers, designers, studios, schools and print shops in Singapore that need gallery-grade colour and fine-art or photo output in-house, without sending work out to a lab. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imagePROGRAF PRO-510 Datasheet — Technical Specifications
General
| Model | imagePROGRAF PRO-510 |
| Official Product Name | imagePROGRAF PRO-510 |
| Canon Product Code | 6856C008AA |
| EAN / UPC | 4549292240900 |
| Brand | Canon |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year on-site warranty by Canon Singapore |
| Number of Nozzles | Total 18,432 nozzles |
| Ink Tank (Type/Colours) | PFI-4810 (Pigment Ink/Matte Black, Photo Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer) |
| Ink Capacity | 80 ml |
| Level Detection | Detected by dot count and electrode (empty) |
| Maintenance Cartridge | MC-20 |
| Maximum Printing Resolution | 2,400 (Horizontal) x 1,200 (Vertical) dpi |
| Print Speed - Photo A2 Mono/Colour, PT-101 (High) | 8 min 40 sec / 6 min |
| Print Speed - Photo A2 Mono/Colour, LU-101 (Standard/High) | 3 min 40 sec / 6 min |
| Print Speed - Photo A2 Mono/Colour, PM-101 (High/Highest) | 5 min 35 sec / 7 min 30 sec |
| Print Speed - Photo A3+, PP-201 (Standard) | 2 min 25 sec |
| Print Speed - Photo A3+, LU-101 (Standard) | 2 min 25 sec |
Paper Handling
| Print Margin - Borderless Printing | Top/Bottom/Left/Right: 0 mm |
| Print Margin - Bordered Printing - Printable Area | Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm (LTR, LGL: Left: 6.4 mm, Right: 6.3 mm) |
| Print Margin - Bordered Printing - Recommended Area | Top: 57 mm, Bottom: 55 mm, Left/Right: 3.4 mm (LTR/LGL: Left: 6.4 mm, Right: 6.3 mm) |
| Supported Media - Top Tray | Plain Paper (64 - 105 g/m²); Canon: Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Plus Semi-Gloss (SG-201), Photo Paper Pro Luster (LU-101), Photo Paper Pro Platinum (PT-101), Matte Photo Paper (MP-101); Others: Photo Paper Pro Crystal Grade, Inkjet Hagaki, Hagaki A, Lightweight Photo Paper, Heavyweight Fine Art Paper, Japanese Paper Washi, Canvas, Photo Paper (Greyscale Printing), Photo Paper (Long-Form Printing), Fine Art Paper (Long-Form Printing), Special 1-10 |
| Supported Media - Manual Feed | Canon: Photo Paper Plus Glossy II (PP-201, PP-208), Photo Paper Plus Semi-Gloss (SG-201), Photo Paper Pro Luster (LU-101), Photo Paper Pro Platinum (PT-101), Matte Photo Paper (MP-101), Premium Fine Art Rough (FA-RG1), Premium Fine Art Smooth (FA-SM2); Others: Photo Paper Pro Crystal Grade, Photo Paper Pro Premium Matte A, Lightweight Photo Paper, Heavyweight Photo Paper, Heavyweight Fine Art Paper, Extra Heavyweight Fine Art Paper, Highest Density Fine Art Paper, Japanese Paper Washi, Canvas, Baryta Photo Paper, Photo Paper (Greyscale Printing), Fine Art Paper (Greyscale Printing), Photo Paper (Long-Form Printing), Fine Art Paper (Long-Form Printing), Special 1-10 |
| Paper Size - Top Tray | A5, A4, A3, A3+, A2, B5, B4, B3, LTR, LGL, LDR, Hagaki, Return Hagaki, L, 2L, 4 x 6", 5 x 7", 9 x 13", 11 x 14", 13 x 19" Super B, US Photo 16 x 20", 17 x 22", 17 x 25", 7 x 10", 8 x 10", 10 x 12", 12 x 12", 14 x 17" |
| Paper Size - Manual Feed | A4, A3, A3+, A2, B4, B3, LTR, LGL, LDR, 9 x 13", 11 x 14", 13 x 19" Super B, US Photo 16 x 20", 17 x 22", 17 x 25", 8 x 10", 10 x 12", 12 x 12", 14 x 17" |
| Borderless Printing | A4, A3, A3+, A2, B4, LGL, LTR, Hagaki, L, 2L, 4 x 6", 5 x 7", 13 x 19" Super B, 17 x 22", 17 x 25", 8 x 10", 10 x 12", 14 x 17", 210 x 594 mm |
| Paper Thickness - Top Tray | 0.1 - 0.3 mm: Plain Paper (64 - 105 g/m²), Special Paper (64 - 300 g/m²) |
| Paper Thickness - Manual Feed | 0.1 - 0.7 mm: Special Paper (64 - 400 g/m²) |
| Paper Width - Top Tray | 89 - 432 mm |
| Paper Width - Manual Feed | 203.2 - 432 mm |
| Minimum Printable Paper Length - Top Tray | 127 mm |
| Minimum Printable Paper Length - Manual Feed | 254 mm |
| Maximum Printable Paper Length | 3,276.7 mm |
| Media Storage Capacity (Max.) | 35 |
| Maximum Capacity - Top Tray - Plain Paper | A5, A4, A3, B5, B4, LTR, LGL, LDR = 150; A2, B3 = 20 |
| Maximum Capacity - Top Tray - Photo Paper Plus Glossy II (PP-201) | A3, A3+ = 10 |
| Maximum Capacity - Top Tray - Photo Paper Plus Glossy II (PP-208) | 4 x 6" = 20; A4 = 10 |
| Maximum Capacity - Top Tray - Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6" = 20 |
| Maximum Capacity - Top Tray - Matte Photo Paper (MP-101) | A4, A3 = 10 |
| Maximum Capacity - Top Tray - Photo Paper Pro Platinum (PT-101) | 4 x 6" = 20; A4, A3, A3+ = 10; A2 = 1 |
| Maximum Capacity - Top Tray - Photo Paper Pro Luster (LU-101) | A4, A3, A3+ = 10; A2 = 1 |
| Maximum Capacity - Manual Feed - Photo Paper Plus Glossy II (PP-201, PP-208) | A4, A3, A3+ = 1 |
| Maximum Capacity - Manual Feed - Matte Photo Paper (MP-101) | A4, A3 = 1 |
| Maximum Capacity - Manual Feed - LU-101 / PT-101 / PM-101 / FA-RG1 / FA-SM2 | A4, A3, A3+, A2 = 1 |
Network
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| Wired LAN - Type | IEEE 802.3ab (1000BASE-T) / IEEE 802.3u (100BASE-TX) / IEEE 802.3 |
| Wired LAN - Data Rate | 1,000 Mbps / 100 Mbps / 10 Mbps (auto switchable) |
| Wired LAN - Security | IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP) |
| Wireless LAN - Type | IEEE 802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 |
| Wireless LAN - Security | WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| Canon Printing Apps - Mobile | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - Others | PosterArtist Lite, PosterArtist (Web), Professional Print & Layout, Media Configuration Tool, Easy-Layout Editor |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct |
System Requirements
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.10 ~ 14 or later, ChromeOS |
General Specifications
| Operation Panel - Display | 3.0" Colour LCD Display |
| Interface | USB 2.0 |
| Operating Environment | Temperature: 5 - 35°C; Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment | Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) - Photo Paper Pro Platinum, PT-101 (4 x 6", Colour Borderless) | 43.0 dB(A) |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) | OFF: 0.1 W; Standby (Sleep): 1.2 W; Operation: 38 W |
| Dimensions (W x D x H) - Factory Configuration | 723 x 435 x 285 mm |
| Weight | 32.4 kg |
Page Yield
| Photo Paper (LU-101) - A2 Mono | PFI-4810 MBK: 1,310; PBK: 170; GY: 90; PGY: 230; PC: 1,160; C: 700; PM: 960; M: 1,430; Y: 1,070; R: 1,970; B: 830; CO: 480 sheets |
| Photo Paper (LU-101) - A2 Colour | PFI-4810 MBK: 1,640; PBK: 200; GY: 130; PGY: 320; PC: 540; C: 660; PM: 380; M: 1,020; Y: 280; R: 740; B: 850; CO: 510 sheets |
| Photo Paper (LU-101) - A3+ Colour | PFI-4810 MBK: 2,240; PBK: 300; GY: 200; PGY: 500; PC: 830; C: 1,010; PM: 590; M: 1,500; Y: 440; R: 1,140; B: 1,310; CO: 970 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imagePROGRAF PRO-510. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Wireless LAN - Type | IEEE 802.11b/g/n, 2.4 GHz, Supported Channels: 1 - 13 |
| Canon Printing Apps - Mobile | Canon PRINT, Easy-PhotoPrint Editor |
| Canon Printing Apps - Others | PosterArtist Lite, PosterArtist (Web), Professional Print & Layout, Media Configuration Tool, Easy-Layout Editor |
| Mobile/Cloud Printing Solutions | AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct |
| OS Compatibility | Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.10 ~ 14 or later, ChromeOS |
| Interface | USB 2.0 |
Package Contents & Ordering Information
Ordering Information
| Model | imagePROGRAF PRO-510 |
| Canon Product Code | 6856C008AA |
| EAN / UPC | 4549292240900 |
| Recommended Retail Price (incl. GST) | S$1,999.00 |
| Consumables | PFI-4810 pigment ink tanks (LUCIA PRO II), 80 ml each, 12 colours: MBK, PBK, C, M, Y, PC, PM, GY, PGY, R, B, CO (Chroma Optimizer). Maintenance cartridge: MC-20. Yields (LU-101 photo paper, sheets) - A2 colour: MBK 1,640 / PBK 200 / GY 130 / PGY 320 / PC 540 / C 660 / PM 380 / M 1,020 / Y 280 / R 740 / B 850 / CO 510; A3+ colour: MBK 2,240 / PBK 300 / GY 200 / PGY 500 / PC 830 / C 1,010 / PM 590 / M 1,500 / Y 440 / R 1,140 / B 1,310 / CO 970. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imagePROGRAF PRO-510
What warranty does the imagePROGRAF PRO-510 come with?
1 Year Local Warranty from Canon Singapore: 1 year on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imagePROGRAF PRO-510 use?
PFI-4810 pigment ink tanks (LUCIA PRO II), 80 ml each, 12 colours: MBK, PBK, C, M, Y, PC, PM, GY, PGY, R, B, CO (Chroma Optimizer). Maintenance cartridge: MC-20. Yields (LU-101 photo paper, sheets) - A2 colour: MBK 1,640 / PBK 200 / GY 130 / PGY 320 / PC 540 / C 660 / PM 380 / M 1,020 / Y 280 / R 740 / B 850 / CO 510; A3+ colour: MBK 2,240 / PBK 300 / GY 200 / PGY 500 / PC 830 / C 1,010 / PM 590 / M 1,500 / Y 440 / R 1,140 / B 1,310 / CO 970. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imagePROGRAF PRO-510?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT, Easy-PhotoPrint Editor; AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
