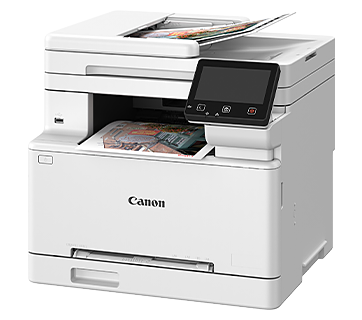

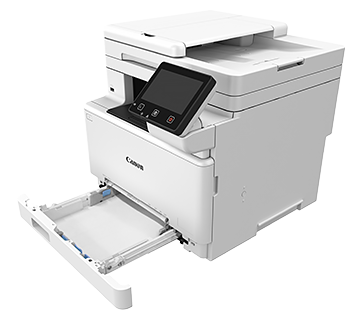

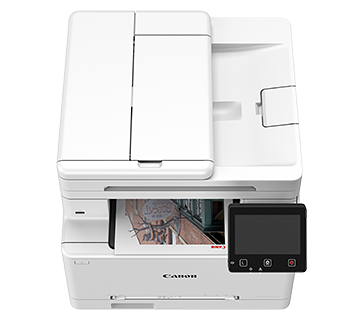

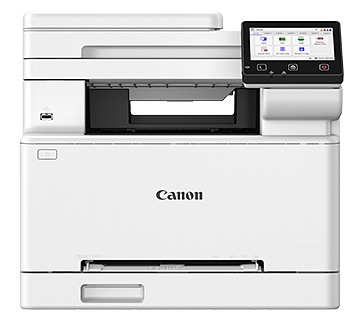

Canon imageCLASS MF664Cdw Wireless Colour Laser All-in-One Printer
PRODUCT DESCRIPTION
Canon imageCLASS MF664Cdw Wireless Colour Laser All-in-One Printer (6928C010AA) - 3 Years Local Warranty
The Canon imageCLASS MF664Cdw is Canon's drive Efficiency with the Compact 3-in-1 Colour Multifunction Printer. It has a rated print speed of 25 / 25 ppm, with Wi-Fi, Ethernet and USB connectivity.
V² Colour Profile
Create impactful business documents with beautiful colours that complement razor-sharp quality text. Canon's V² colour technology delivers vivid and vibrant professional looking printout.
Auto Document Feeder
A 50-sheet Auto Document Feeder (ADF) performs automated batch copying and scanning of multi-page document originals.
5" Colour LCD Touchscreen
Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.
Application Library
The Application Library helps you work smarter and more efficiently. You can print frequently-used forms directly from the device with just a tap of the button. With Standby Slide function, a series of images or running text is displayed on the operation panel, ensuring sharing of important information or announcement.
Built-In PCL Language
In addition to Canon's proprietary UFR II print language, industry standard PCL6 print language is available, enabling the printer to work with a wide range of business applications.
Auto Duplex Printing
Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.
Canon PRINT App
With Canon's latest mobile business solution, you can print and scan documents, photos, web pages and emails all with just one app.
Key Highlights
- Print Speed: Up to 25 / 25 ppm (Mono/Colour)
- 50-sheet Auto Document Feeder
- 5" Touchscreen LCD
- Auto 2-sided Printing
- Wi-Fi, LAN, Direct Wireless, AirPrint®, Mopria® Print Service
- Mobile Printing
- Print & Scan to/from USB
- Secure Print
Ideal For
Small and medium offices in Singapore that want colour laser printing, scanning and copying (and fax where fitted) from one managed multifunction device. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS MF664Cdw Datasheet — Technical Specifications
General
| Model | imageCLASS MF664Cdw |
| Official Product Name | imageCLASS MF664Cdw |
| Canon Product Code | 6928C010AA |
| EAN / UPC | 4549292242164 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
General
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5" LCD Touchscreen |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) - Operation | 580 W (max. 980 W) |
| Power Consumption (Approx.) - Standby | 12 W |
| Power Consumption (Approx.) - Sleep | 1 W |
| Operating Environment - Temperature | 10 - 30°C |
| Operating Environment - Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle | 30,000 pages |
| Dimensions (W x D x H) | 425 x 461 x 397 mm |
| Weight (Approx.) | 18.71 kg |
| Toner Cartridge - Standard - Cartridge 075 BK | 1,400 pages (Bundled: 1,400 pages) |
| Toner Cartridge - Standard - Cartridge 075 C/M/Y | 1,300 pages (Bundled: 500 pages) |
| Toner Cartridge - High - Cartridge 075H BK | 3,500 pages |
| Toner Cartridge - High - Cartridge 075H C/M/Y | 2,500 pages |
| Printing Method | Colour Laser Beam Printing |
| Print Speed A4 (Mono/Colour) | 25 / 25 ppm |
| Print Speed Letter (Mono/Colour) | 26 / 26 ppm |
| Print Speed 2-Sided, A4 (Mono/Colour) | 15 / 15 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 13 sec or less |
| First Print Out Time (FPOT) A4 (Mono/Colour) | 10.4 / 10.5 sec |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right Margin: 5 mm; Top/Bottom/Left/Right Margin: 10 mm (Envelope) |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
Copy
| Copy Speed A4 (Mono/Colour) | 25 / 25 ppm |
| Copy Resolution | Up to 600 x 600 dpi |
| First Copy Out Time (FCOT) (Approx.) - Platen Glass A4 (Mono/Colour) | 11.0 / 11.2 sec |
| First Copy Out Time (FCOT) (Approx.) - ADF A4 (Mono/Colour) | 10.5 / 10.6 sec |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy |
Scan
| Scan Resolution - Optical | Up to 600 x 600 dpi |
| Scan Resolution - Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size - Platen Glass | Up to 216 x 297 mm |
| Maximum Scan Size - Auto Document Feeder | Up to 216 x 356 mm |
| Scan Speed - Platen Glass, A4 (Mono/Colour) | 1.8 / 1.9 sec |
| Scan Speed - Auto Document Feeder, A4 (Mono/Colour) | 1-Sided: 50 / 40 ipm |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Send
| SEND Method | SMB, Email, FTP |
| Colour Mode | Full Colour, Greyscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG (single page), TIFF, PDF, Compact PDF, PDF (OCR) |
Paper Handling
| Input Tray Capacity (Plain Paper, 80 g/m²) - Standard Cassette | 250 sheets |
| Input Tray Capacity (Plain Paper, 80 g/m²) - Standard Manual Feed Slot | 1 sheet |
| Input Tray Capacity (Plain Paper, 80 g/m²) - Standard Auto Document Feeder | 50 sheets |
| Input Tray Capacity (Plain Paper, 80 g/m²) - Maximum | 251 sheets (Cassette + 1 Manual Feed Slot) |
| Output Tray Capacity (Plain Paper, 80 g/m²) | 100 sheets |
| Media Size - Cassette | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| Media Size - Manual Feed Slot | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm) |
| Media Size - Auto Document Feeder | A4, A5, A6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm); Business Card: 48 x 85 mm |
| Media Size - 2-Sided Printing | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 182.0 x 257.0 mm to max. 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight - Cassette | 60 - 200 g/m² |
| Media Weight - Manual Feed Slot | 60 - 200 g/m² |
| Media Weight - Auto Document Feeder | 50 - 105 g/m² (Business Card: 80 - 209 g/m²) |
Connectivity & Software
| Standard Interface - Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Standard Interface - Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network Protocol - Print | LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) |
| Network Protocol - Scan | Email, SMB, WSD-Scan (IPv4, IPv6), FTP, OAuth 2.0 |
| Network Protocol - TCP/IP Application Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Network Protocol - Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security - Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Network Security - Wireless | Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES); Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Skip Blank Page, Application Library |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS MF664Cdw. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Scan Resolution - Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| Mobile Solution | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible Operating System | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS MF664Cdw |
| Canon Product Code | 6928C010AA |
| EAN / UPC | 4549292242164 |
| Recommended Retail Price (incl. GST) | S$619.00 |
| Consumables | Cartridge 075 BK 1,400 pages (SGD 109.00); Cartridge 075 C / M / Y 1,300 pages each (SGD 125.00 each); high-yield Cartridge 075H BK 3,500 pages, 075H C / M / Y 2,500 pages each (SGD 169.00 each). Bundled (starter) cartridges: BK 1,400 pages, C/M/Y 500 pages. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS MF664Cdw
What warranty does the imageCLASS MF664Cdw come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS MF664Cdw use?
Cartridge 075 BK 1,400 pages (SGD 109.00); Cartridge 075 C / M / Y 1,300 pages each (SGD 125.00 each); high-yield Cartridge 075H BK 3,500 pages, 075H C / M / Y 2,500 pages each (SGD 169.00 each). Bundled (starter) cartridges: BK 1,400 pages, C/M/Y 500 pages. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS MF664Cdw?
Yes. Canon lists the following mobile and cloud printing support: MF Scan Utility; Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
