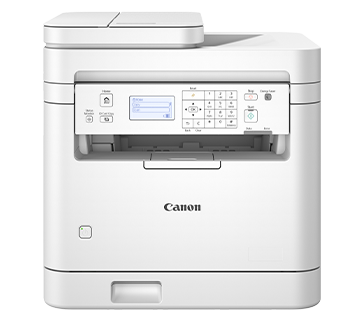

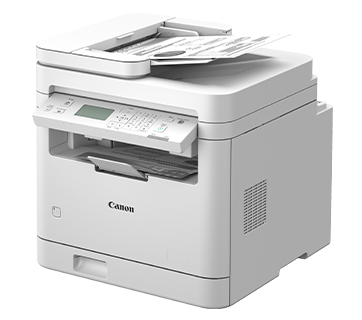

Canon imageCLASS MF284dw Wireless Mono Laser All-in-One Printer
PRODUCT DESCRIPTION
Canon imageCLASS MF284dw Wireless Mono Laser All-in-One Printer (6354C017AA) - 3 Years Local Warranty
The Canon imageCLASS MF284dw is Canon's monochrome Multifunction for Small Business. It has a rated print speed of 33 ppm, with Wi-Fi, Ethernet and USB connectivity.
5-Line LCD Display
Navigate and configure the printer settings easily with the 5-line LCD display. Information can be displayed at a glance, facilitating easy device management and maintenance.
Flexible Connectivity
Connect the printer to your office network wirelessly or utilise the printer's built-in Access Point Mode for direct connection to mobile devices without additional router.
Auto Duplex Printing
Maximise productivity and ease of use with automatic 2-sided printing. Ideal for businesses and eco-conscious users, this feature delivers streamlined efficiency while reducing paper waste and supporting sustainability.

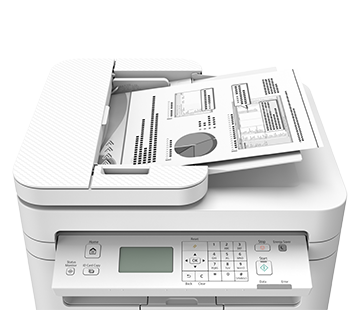

Auto Document Feeder
Enhance your productivity with our 35-sheet Auto Document Feeder! Enjoy fast, efficient batch scanning and copying, saving you time on every project.
Minimal Maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. Standard and high yield option Cartridge 072 and Cartridge 072H are available to meet the different requirement in print volume.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.
Ideal For
Small and medium offices in Singapore that need fast mono laser printing plus scanning and copying (and fax where fitted) from one compact, managed device. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS MF284dw Datasheet — Technical Specifications
General
| Model | imageCLASS MF284dw |
| Official Product Name | imageCLASS MF284dw |
| Canon Product Code | 6354C017AA |
| EAN / UPC | 4549292225358 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed A4*1 | 33 ppm |
| Print Speed Letter*1 | 35 ppm |
| Print Speed 2-Sided, A4 | 20.9 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time (From Power On) | 15 sec or less |
| First Print Out Time (FPOT*2) (Approx.) A4 | 5.0 sec |
| Recovery Time (From Sleep Mode) | 3.2 sec or less |
| Print Language | UFR II, PCL 6 |
| Auto Duplex Print | Yes |
| Print Margins Top/Bottom/Left/Right | 5 mm |
| Print Margins Top/Bottom/Left/Right (Envelope) | 10 mm |
Copy
| Copy Speed A4 | 33 ppm |
| Copy Resolution | 300 x 600 dpi; 600 x 600 dpi |
| First Copy Time, A4 (Approx.) Platen Glass | 7.3 sec |
| First Copy Time, A4 (Approx.) Auto Document Feeder | 8.6 sec |
| Maximum Number of Copies | Up to 999 copies |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Collate, 2-on-1, 4-on-1, ID Card Copy, Passport Copy |
Scan
| Scan Resolution Optical | Up to 600 x 600 dpi |
| Scan Resolution Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size Platen Glass | Up to 215.9 x 297 mm |
| Maximum Scan Size Feeder | Up to 215.9 x 355.6 mm |
| Scan Speed*3 Platen Glass | 2.7 sec (mono), 3.5 sec (colour) |
| Scan Speed*3 Feeder | 20 ipm (mono), 15 ipm (colour) |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Paper Handling
| Input Tray Capacity (Plain Paper, 80 g/m²) Cassette | 250 sheets |
| Input Tray Capacity (Plain Paper, 80 g/m²) Auto Document Feeder | 35 sheets |
| Output Tray Capacity (Plain Paper, 75 g/m²) | 100 sheets |
| Media Size Cassette | A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76 x 127 mm to max. 216 x 356 mm). Note: The cassette may not fully close when loaded with paper longer than A4 size. |
| Media Size Auto Document Feeder (ADF) | A4, B5, A5, B6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm) |
| Media Size 2-Sided Printing | A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 210 x 279 mm to max. 215 x 356 mm) |
| Media Type | Plain Paper, Recycled Paper, Label, Postcard, Envelope |
| Media Weight Cassette | 60 - 163 g/m² |
| Media Weight 2-Sided Printing | 60 - 105 g/m² |
| Media Weight Auto Document Feeder | 50 - 105 g/m² |
Connectivity & Software
| Standard Interfaces Wired | USB 2.0, 10Base-T/100Base-TX |
| Standard Interfaces Wireless | IEEE 802.11b/g/n (Infrastructure Mode, WPS, Access Point Mode) |
| Network Protocol Print | TCP/IP (LPD, RAW, IPP, IPPS, WSD) |
| Network Protocol TCP/IP Application Services | Bonjour (mDNS), DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Network Protocol Management | SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Network Security Wired | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE 802.1X, TLS 1.3 |
| Network Security Wireless | Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES), IEEE 802.1X; Access Point Mode: WPA2-PSK (AES) |
| Mobile Solution | Canon PRINT, Canon Print Service, AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Compatible Operating Systems*4 | Windows 10/11, Windows Server 2016/2019/2022, macOS 10.14 or later, Linux, Chrome OS |
| Available Software | Printer Driver, Scanner Driver, MF Scan Utility, Toner Status |
General
| Device Memory | 256 MB |
| Display | 5-Line LCD |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption*5 (Approx.) Operation | 410 W (max. 1,020 W) |
| Power Consumption*5 (Approx.) Standby | 3.9 W |
| Power Consumption*5 (Approx.) Sleep | 0.6 W |
| Operating Environment Temperature | 10 - 30°C |
| Operating Environment Humidity | 20% - 80% RH (no condensation) |
| Monthly Duty Cycle*6 | 50,000 pages |
| Dimensions (W x D x H) (Approx.) | 390 x 399 x 394 mm |
| Weight*7 (Approx.) | 12.5 kg |
| Toner Cartridge*8 Standard | Cartridge 072: 1,400 pages (bundled: 1,000 pages) |
| Toner Cartridge*8 High | Cartridge 072H: 4,100 pages |
Footnotes
| *1 | Print speed measured based on internal testing using A4/LTR size paper printed with 100% print ratio to original on one-sided paper. Continuous printing of same one page content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction. |
| *2 | First print out time measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection. |
| *3 | Scan resolution 300 x 300 dpi. |
| *4 | Latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from https://asia.canon/en/support website when available. |
| *5 | Power consumption based on internal test procedure and may vary. |
| *6 | Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month. |
| *7 | Excluding toner cartridge. |
| *8 | Toner cartridge yield in accordance with ISO/IEC 19752. |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS MF284dw. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Scan Resolution Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| Mobile Solution | Canon PRINT, Canon Print Service, AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Compatible Operating Systems*4 | Windows 10/11, Windows Server 2016/2019/2022, macOS 10.14 or later, Linux, Chrome OS |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS MF284dw |
| Canon Product Code | 6354C017AA |
| EAN / UPC | 4549292225358 |
| Recommended Retail Price (incl. GST) | S$279.00 |
| Consumables | Cartridge 072 Black: 1,400 pages (bundled: 1,000 pages), RRP SGD 85.00; Cartridge 072H Black: 4,100 pages, RRP SGD 169.00 (ISO/IEC 19752). |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS MF284dw
What warranty does the imageCLASS MF284dw come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS MF284dw use?
Cartridge 072 Black: 1,400 pages (bundled: 1,000 pages), RRP SGD 85.00; Cartridge 072H Black: 4,100 pages, RRP SGD 169.00 (ISO/IEC 19752). Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS MF284dw?
Yes. Canon lists the following mobile and cloud printing support: MF Scan Utility; Canon PRINT, Canon Print Service, AirPrint®, Mopria® Print Service, Microsoft Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
