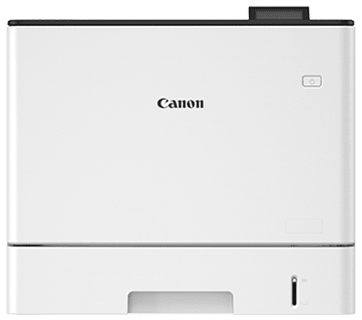

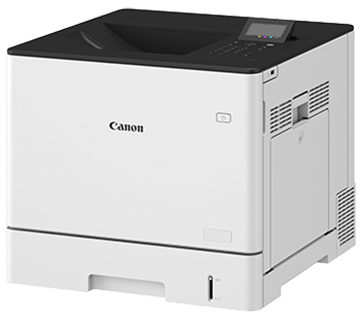

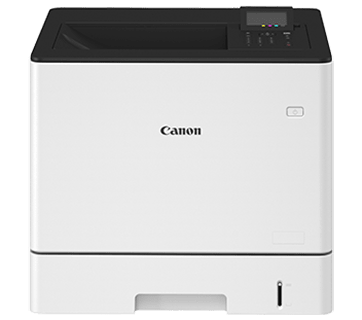

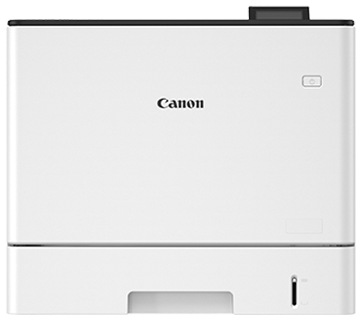

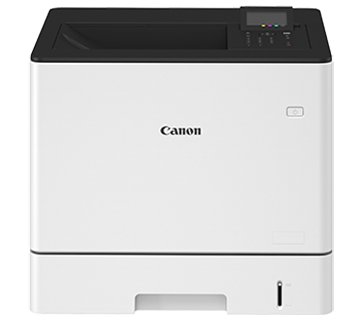

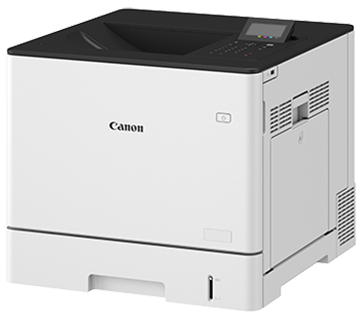

Canon imageCLASS LBP732Cx High-Speed Colour Laser Printer
PRODUCT DESCRIPTION
Canon imageCLASS LBP732Cx High-Speed Colour Laser Printer (6173C007AA) - 3 Years Local Warranty
The Canon imageCLASS LBP732Cx is Canon's robust Networking Capabilities And Vibrant Business Printouts. It has a rated print speed of 38 / 38 ppm, with Wi-Fi, Ethernet and USB connectivity.
5-line LCD Display
Navigate and configure the printer settings easily with the 5-line LCD display. Information can be displayed at a glance, facilitating easy device management and maintenance.
Flexible Connectivity
Connect the printer to your office network wirelessly or utilise the printer's built-in Access Point Mode for direct connection to mobile devices without additional router.
Auto Duplex Printing
Do your part for the environment with automatic duplex printing. Print on both sides, to eliminate paper waste while reducing carbon footprint and operating costs.
Expandable Paper Capacity
In addition to the standard 550-sheet cassette and 100-sheet multi-purpose tray, the imageCLASS LBP732Cx has several paper options that expand paper capacity up to 2,300 sheets, minimizing the frequency of paper refills — a time-saving solution for high-volume jobs or for a variety of paper sizes and types.
V2 Colour Profile
Create impressive business document with beautiful colours that complement the razor-sharp quality text. Canon's V² colour technology delivers vivid and vibrant professional quality prints.
Minimal Maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. Standard and high yield option Cartridge 064 and Cartridge 064H are available to meet the different requirement in print volume.
Enhanced Data Security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.
Ideal For
Offices and workgroups in Singapore that need crisp colour laser output for proposals, reports and marketing collateral, with business-grade security and management. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS LBP732Cx Datasheet — Technical Specifications
General
| Model | imageCLASS LBP732Cx |
| Official Product Name | imageCLASS LBP732Cx |
| Canon Product Code | 6173C007AA |
| EAN / UPC | 4549292221671 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Colour Laser Beam Printing |
| Print Speed A4 (Mono/Colour) | 38 / 38 ppm |
| Print Speed Letter (Mono/Colour) | 40 / 40 ppm |
| 2-Sided Print Speed A4 (Mono/Colour) | 38 / 38 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality (Image Refinement) | 1,200 dpi x 1,200 dpi (equivalent) |
| Warm-Up Time | 22 sec |
| First Print Out Time A4 (Mono/Colour) | 5.3 / 6.3 sec |
| Recovery Time from Sleep Mode | 6 sec or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right: 5 mm; Envelope: 10 mm |
| USB Direct Print Formats | JPEG, TIFF, PDF |
Paper Handling
| Standard Cassette Capacity | 550 sheets |
| Multi-Purpose Tray Capacity | 100 sheets |
| Optional Paper Feeder Capacity | 550 sheets |
| Maximum Total Capacity | 2,300 sheets (Standard + 3 Paper Feeders) |
| Output Tray Capacity | 200 sheets |
| Cassette Media Sizes | A4, A5, A6, B5, B6, Letter, Executive, Statement, Government Letter, Custom (101.6 x 148 mm to 216 x 297 mm) |
| Paper Feeder Media Sizes | A4, A5, A6, B5, B6, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Custom (101.6 x 148 mm to 216 x 297 mm) |
| Multi-Purpose Tray Media Sizes | A4, A5, A6, B5, B6, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (76.2 x 127 mm to 216 x 355.6 mm) |
| 2-Sided Printing Sizes | A4, A5, B5, Legal, Letter, Executive, Foolscap, Government Letter, Government Legal, Indian Legal, Custom (148 x 210 mm to 216 x 355.6 mm) |
| Media Type | Plain Paper, Recycled Paper, Label, Postcard, Envelope |
| Media Weight (Cassette/Paper Feeder) | 60 – 163 g/m² |
| Media Weight (Multi-Purpose Tray) | 60 – 216 g/m² |
Connectivity & Software
| Wired Interfaces | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, WPS, Direct Connection) |
| Network Protocol (Print) | TCP/IP (LPD/RAW/IPP/IPPS/FTP/WSD) |
| Network Security (Wired) | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3, Dual Network Support |
| Network Security (Wireless Infrastructure) | WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) |
| Network Security (Access Point Mode) | WPA2-PSK (AES) |
| Network Security (Wi-Fi Direct Mode) | WPA2-PSK (AES) |
| Mobile/Cloud Printing Solutions | Canon PRINT app, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Operating System Compatibility | Windows 10/11, Windows Server 2016/2019/2022, macOS 10.13 or later, Linux, ChromeOS |
| Other Features | Force Hold Print, Department ID, Secure Print |
| Available Software | Printer Driver, Toner Status |
General
| Device Memory | 2 GB |
| Display | 5-Line LCD with vari-angle |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Operation) | 640 W (max. 1,500 W) |
| Power Consumption (Standby) | 30.1 W |
| Power Consumption (Sleep) | 0.9 W |
| Operating Temperature | 10 - 30°C |
| Operating Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle | 80,000 pages |
| Dimensions (W x D x H) | 458 x 464 x 388 mm |
| Weight | 24.5 kg |
Consumables
| Cartridge 064 Black | 6,000 pages (Bundled: 6,000 pages) |
| Cartridge 064 C/M/Y | 5,000 pages (Bundled: 3,200 pages) |
| Cartridge 064H Black (High Yield) | 13,400 pages |
| Cartridge 064H C/M/Y (High Yield) | 10,400 pages |
| Waste Toner WT-B1 | 54,000 pages |
Optional Accessories
| Cassette Feeding Unit-AV1 | 550 sheets cassette pedestal |
| Paper Feeder PF-D1 | 550 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS LBP732Cx. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Mobile/Cloud Printing Solutions | Canon PRINT app, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print |
| Operating System Compatibility | Windows 10/11, Windows Server 2016/2019/2022, macOS 10.13 or later, Linux, ChromeOS |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS LBP732Cx |
| Canon Product Code | 6173C007AA |
| EAN / UPC | 4549292221671 |
| Recommended Retail Price (incl. GST) | S$2,199.00 |
| Consumables | Cartridge 064 Black 6,000 pages; Cartridge 064 Cyan/Magenta/Yellow 5,000 pages each; high yield Cartridge 064H Black 13,400 pages; Cartridge 064H Cyan/Magenta/Yellow 10,400 pages each. Bundled starter toners: Black 6,000 pages, C/M/Y 3,200 pages. Waste Toner WT-B1: 54,000 pages. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS LBP732Cx
What warranty does the imageCLASS LBP732Cx come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS LBP732Cx use?
Cartridge 064 Black 6,000 pages; Cartridge 064 Cyan/Magenta/Yellow 5,000 pages each; high yield Cartridge 064H Black 13,400 pages; Cartridge 064H Cyan/Magenta/Yellow 10,400 pages each. Bundled starter toners: Black 6,000 pages, C/M/Y 3,200 pages. Waste Toner WT-B1: 54,000 pages. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS LBP732Cx?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT app, Canon Print Service (Android), AirPrint®, Mopria® Print Service, Microsoft Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
