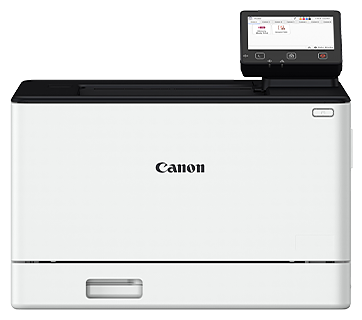

Canon imageCLASS LBP674Cx II Wireless Colour Laser Printer
PRODUCT DESCRIPTION
Canon imageCLASS LBP674Cx II Wireless Colour Laser Printer (7186C004AA) - 3 Years Local Warranty
The Canon imageCLASS LBP674Cx II is Canon's productivity Meets Vivid Colour. It has a rated print speed of 33 / 33 ppm, with Wi-Fi, Ethernet and USB connectivity.
V² Colour Profile
Create an impactful business document with beautiful colours that complement the razor-sharp quality text. Canon's V² colour technology delivers vivid and vibrant professional looking printout.
Intuitive Touchscreen Display
Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.
Support Multiple Printing Environments
In addition to Canon's proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are available for seamless integration with a wide range of business applications.
Application Library
The Application Library helps you work smarter and more efficiently. You can print frequently-used forms directly from the device with just a tap of the button. With Standby Slide function, a series of images or running text is displayed on the operation panel, ensuring sharing of important information or announcement.
Minimal Maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 069H is available to meet high print volume requirement.
Canon PRINT App
With Canon's latest mobile print application, you can print and scan documents, photos, web pages and emails all with just one app.
Auto Duplex Printing
Print on both sides to effectively lower paper usage while reducing carbon footprint and operating costs.
Ideal For
Offices and workgroups in Singapore that need crisp colour laser output for proposals, reports and marketing collateral, with business-grade security and management. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
imageCLASS LBP674Cx II Datasheet — Technical Specifications
General
| Model | imageCLASS LBP674Cx II |
| Official Product Name | imageCLASS LBP674Cx II |
| Canon Product Code | 7186C004AA |
| EAN / UPC | 4549292250473 |
| Brand | Canon |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years on-site warranty by Canon Singapore |
| Printing Method | Colour Laser Beam Printing |
| Print Speed A4 (Mono/Colour) | 33 / 33 ppm |
| Print Speed Letter (Mono/Colour) | 35 / 35 ppm |
| 2-Sided Print Speed A4 (Mono/Colour) | 29 / 29 ipm |
| Print Resolution | 600 x 600 dpi |
| Print Quality (Image Refinement) | 1,200 x 1,200 dpi (equivalent) |
| Warm-Up Time | 14 sec or less |
| First Print Out Time A4 (Mono/Colour) | 7.1 / 7.1 sec |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Print Margins | Top/Bottom/Left/Right: 5 mm; Envelope: 10 mm |
| USB Direct Print Formats | JPEG, TIFF, PDF |
Paper Handling
| Standard Cassette Capacity | 250 sheets |
| Multi-Purpose Tray Capacity | 50 sheets |
| Optional Paper Feeder Capacity | 550 sheets |
| Maximum Input | 850 sheets (with optional paper feeder) |
| Output Tray Capacity | 150 sheets |
| Cassette Media Sizes | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Envelopes (COM10, Monarch, DL, C5), Custom (98.0 x 148.0 mm to 216.0 x 356.0 mm) |
| Paper Feeder Media Sizes | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (100.0 x 148.0 mm to 216.0 x 356.0 mm) |
| Multi-Purpose Tray Media Sizes | A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelopes (COM10, Monarch, DL, C5), Custom (76.0 x 127.0 mm to 216.0 x 356.0 mm) |
| 2-Sided Printing Sizes | A4, A5, Legal, Letter, Foolscap, Indian Legal, Custom (148.0 x 148.0 mm to 216.0 x 356.0 mm) |
| Media Type | Plain Paper, Recycled Paper, Colour Paper, Bond Paper |
| Media Weight (Cassette/Paper Feeder) | 60 - 200 g/m² |
| Media Weight (Multi-Purpose Tray) | 60 - 200 g/m² |
Connectivity & Software
| Wired Interface | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Print Protocols | LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6) |
| TCP/IP Services | mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP |
| Wired Security | IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3 |
| Wireless Security (Infrastructure) | WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) |
| Wireless Security (Access Point) | WPA2-PSK(AES), WPA3-SAE(AES) |
| Mobile Solutions | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible OS | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Other Features | Department ID, Secure Print, Application Library |
| Available Software | Printer Driver, Toner Status |
General
| Device Memory | 1 GB |
| Storage (eMMC) | 2 GB |
| Display | 5" LCD Touchscreen |
| Power Requirements | AC 220 - 240 V, 50/60 Hz |
| Power Consumption (Operation) | 700 W (max. 1,380 W) |
| Power Consumption (Standby) | 24 W |
| Power Consumption (Sleep) | 1 W |
| Operating Temperature | 10 - 30°C |
| Operating Humidity | 20 - 80% RH (no condensation) |
| Monthly Duty Cycle | 50,000 pages |
| Dimensions (W x D x H) | 425 x 427 x 380 mm |
| Weight (approx., excluding toner) | 16.1 kg |
Consumables
| Cartridge 069 Black | 2,100 pages (Bundled: 1,200 pages) |
| Cartridge 069 C/M/Y | 1,900 pages (Bundled: 1,100 pages) |
| Cartridge 069H Black (High Yield) | 7,600 pages |
| Cartridge 069H C/M/Y (High Yield) | 5,500 pages |
Optional Accessories
| Paper Feeder PF-K1 | 550 sheets |
Compatibility & Software Support
Compatibility details below are taken from Canon Singapore's published specification for the imageCLASS LBP674Cx II. Drivers, utilities and firmware are available from Canon Singapore's support site (see Datasheet & Downloads).
| Mobile Solutions | Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print |
| Compatible OS | Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
Package Contents & Ordering Information
Ordering Information
| Model | imageCLASS LBP674Cx II |
| Canon Product Code | 7186C004AA |
| EAN / UPC | 4549292250473 |
| Recommended Retail Price (incl. GST) | S$1,399.00 |
| Consumables | Cartridge 069 Black 2,100 pages; Cartridge 069 Cyan/Magenta/Yellow 1,900 pages each; high yield Cartridge 069H Black 7,600 pages; Cartridge 069H Cyan/Magenta/Yellow 5,500 pages each. Bundled starter toners: Black 1,200 pages, C/M/Y 1,100 pages. |
Canon Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — imageCLASS LBP674Cx II
What warranty does the imageCLASS LBP674Cx II come with?
3 Years Local Warranty from Canon Singapore: 3 years on-site warranty by Canon Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the imageCLASS LBP674Cx II use?
Cartridge 069 Black 2,100 pages; Cartridge 069 Cyan/Magenta/Yellow 1,900 pages each; high yield Cartridge 069H Black 7,600 pages; Cartridge 069H Cyan/Magenta/Yellow 5,500 pages each. Bundled starter toners: Black 1,200 pages, C/M/Y 1,100 pages. Always use genuine Canon consumables to protect print quality and warranty coverage. SourceIT can supply them together with the printer.
Can I print from my phone to the imageCLASS LBP674Cx II?
Yes. Canon lists the following mobile and cloud printing support: Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print
Is stock held locally?
SourceIT holds fast-moving Canon models in Singapore. Anything not in local stock is ordered through Canon Singapore's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the printers together with consumables, with local warranty and GST invoice.
