ATEN CL3700NW 18.5" FHD Ultra Short Depth Single Rail LCD Console (USB, HDMI)
PRODUCT DESCRIPTION
ATEN CL3700NW 18.5" FHD Ultra Short Depth Single Rail LCD Console (USB, HDMI) - 2 Years Local Warranty
Full HD Console for Short-Depth Racks

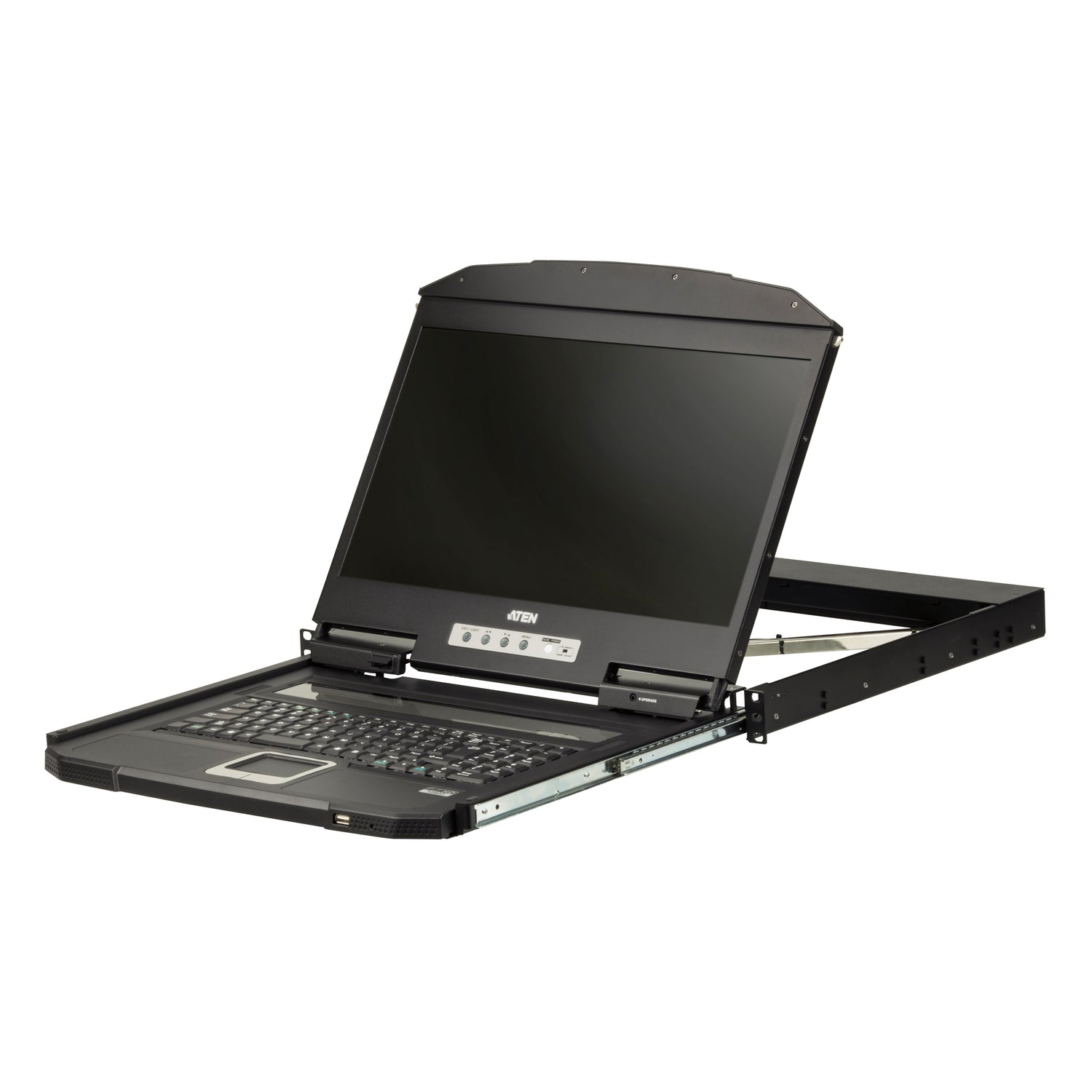

The CL3700NW is an ultra short depth 1U rack console at just 47.7 cm deep, so it fits wall-mount and network cabinets where standard consoles will not. It combines an 18.5" widescreen LCD, keyboard and touchpad in a single rail drawer.
HDMI and Full HD
The 18.5" panel runs at 1920 x 1080 at 60 Hz with 178° viewing angles and 350 cd/m² brightness, and accepts HDMI input up to 1920 x 1200 at 60 Hz. The KVM connection is HDMI plus USB, matching modern servers and PCs.
Rugged and Lockable
ATEN lists the CL3700 as MIL-STD-810G tested for temperature, vibration and shock. Console lock keeps the drawer secured in the rack, and the LED illumination light helps in dim cabinets.
External Console Support
External HDMI and USB console ports plus a front USB port let you add an outside monitor, keyboard, mouse or peripheral.
Fitting consoles into shallow network or edge cabinets? Email sales@sourceit.com.sg for a project quote.
ATEN CL3700NW Datasheet — Technical Specifications
General
| Product Name | ATEN Ultra Short Depth Single Rail WideScreen LCD Console (USB, HDMI) |
| Model | CL3700NW (18.5" FHD) |
| Order Code | CL3700NW-ATA-AE |
| Keyboard | US English keyboard layout (-ATA-AE order code) |
| Local Warranty (Singapore) | 2 years carry-in warranty |

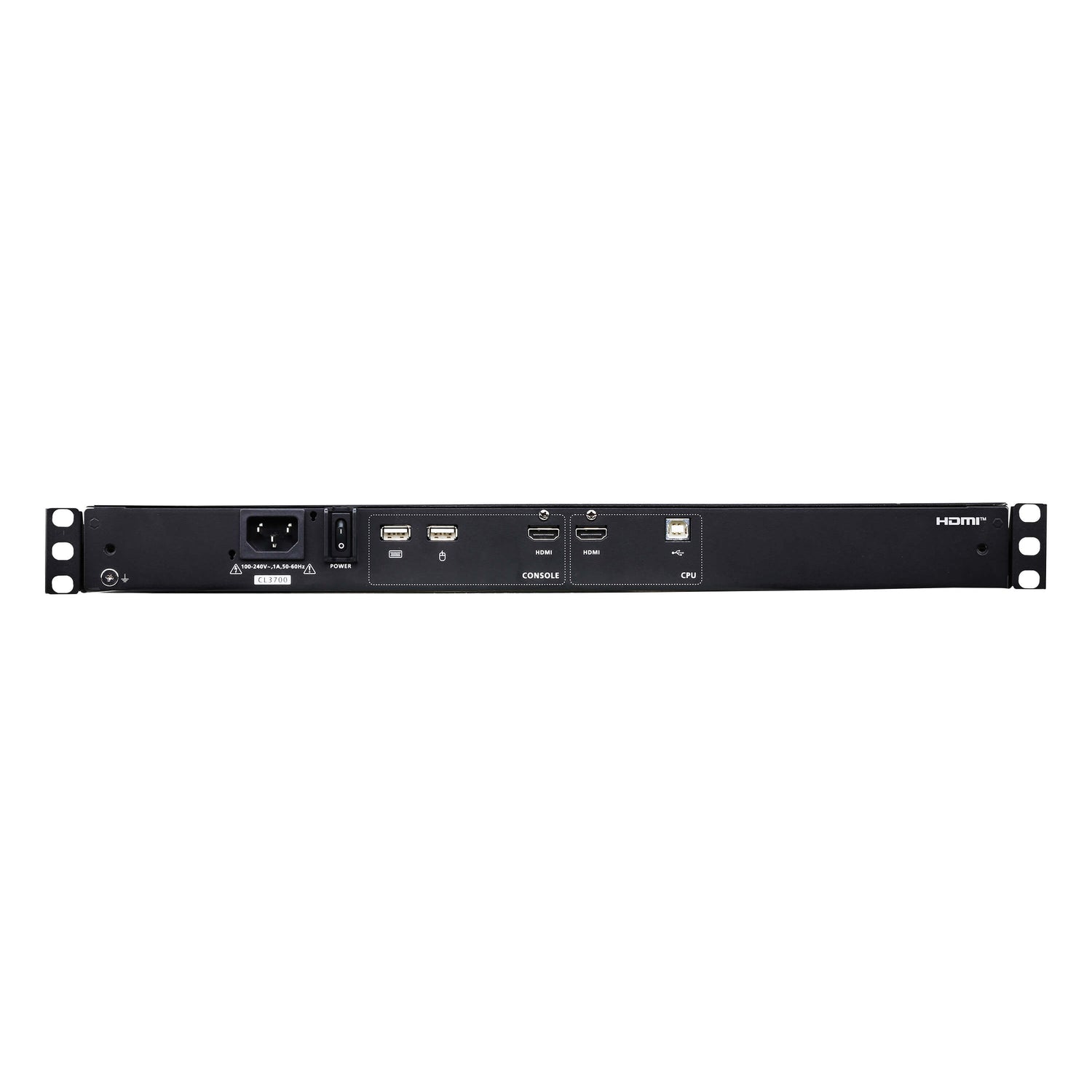

Connectors
| KVM Ports | 1 x HDMI Female; 1 x USB Type-B Female |
| Audio | 1 x 3.5 mm audio jack Female |
| External Console | 1 x HDMI Female; 2 x USB Type-A Female |
| External Mouse / Peripheral | 1 x USB Type-A Female (front) |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| LCD Module | 18.5" widescreen TFT-LCD, LED-backlit |
| Native Resolution | 1920 x 1080 @ 60 Hz |
| Response Time | 20 ms |
| Viewing Angle | 178° (H), 178° (V) |
| Pixel Pitch | 0.213 x 0.213 mm |
| Colours | 16.77 M |
| Contrast Ratio | 1000:1 |
| Luminance | 350 cd/m² |
Video
| Input Resolution | Up to 1920 x 1200 @ 60 Hz; 1920 x 1080 @ 60 Hz; DDC2B |
Durability
| Testing | MIL-STD-810G (temperature, vibration, shock) |
| Console Lock | Yes |
Power & Environmental
| Input Power | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | 23.3 W (AC110V); 23.9 W (AC220V) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal + plastic |
| Rail Type | Single rail, 1U, ultra short depth |
| Weight | 9.01 kg |
| Dimensions (L x W x H) | 48.06 x 47.70 x 4.28 cm |
Compatibility & Applications
Typical Connections
A server, PC or appliance with HDMI and USB, or the console side of an HDMI KVM switch such as the CS17916 or CS18208.
Typical Use
Wall-mount and network cabinets, edge computing and branch racks, broadcast and industrial cabinets with limited depth.
Selection Tip
Measure your cabinet: the CL3700NW is 47.7 cm deep versus about 54–69 cm for standard ATEN consoles. It is a console only; pair it with an HDMI KVM switch to control several computers.
Package Contents & ATEN LCD Console Ordering Information
In the Box
1 x CL3700NW LCD KVM console with standard rack mount kit, 1 x USB HDMI KVM cable, 1 x firmware upgrade cable, 1 x power cord, 1 x user instructions.
ATEN LCD KVM Console Models
| Model | Key feature |
| CL1000M | 17" single rail LCD console (PS/2-USB, VGA) |
| CL6700MW | 17.3" FHD single rail LCD console (USB, HDMI / DVI / VGA) |
| CL3700NW (this listing) | 18.5" FHD ultra short depth LCD console (USB, HDMI) |
| CL5800N | 19" dual rail LCD console (PS/2-USB, VGA) |
| CL5716M | 17" 16-port VGA single rail LCD KVM switch |
| CL1308N | 19" 8-port VGA single rail LCD KVM switch |
| CL3108NX | 18.5" 8-port VGA widescreen single rail LCD KVM switch |
| CL5808N | 19" 8-port VGA dual rail LCD KVM switch |
| KL1108VN | 19" 8-port Cat 5 dual rail LCD KVM over IP switch |
| CL5708IN | 19" 8-port VGA LCD KVM over IP switch |
Datasheet & Downloads
| Datasheet | CL3700 Datasheet (PDF) |
| User manual | CL3800 / CL3700 / CL3100 User Manual (PDF) |
| Quick start guide | CL3700 Quick Start Guide (PDF) |
| ATEN product page | CL3700 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CL3700NW-ATA-AE.
Frequently Asked Questions — ATEN CL3700NW
How deep is it?
47.70 cm, which ATEN describes as ultra short depth for shallow racks.
What is the screen resolution?
18.5" widescreen at 1920 x 1080 (Full HD), 60 Hz.
Does it connect by VGA?
No. The KVM connection is HDMI and USB.
Does it have a built-in KVM switch?
No. It is a single-port console; connect it to an HDMI KVM switch to control multiple computers.
Is it rugged?
ATEN lists MIL-STD-810G testing for temperature, vibration and shock.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
