ASUS ExpertCenter P400 AiO P440VA-BPD046X U7-240H/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
ASUS ExpertCenter P400 AiO P440VA-BPD046X (90PT03X6-M0CNE0) - Core 7 240H / 16GB / 512GB SSD - 3 Years Onsite Warranty

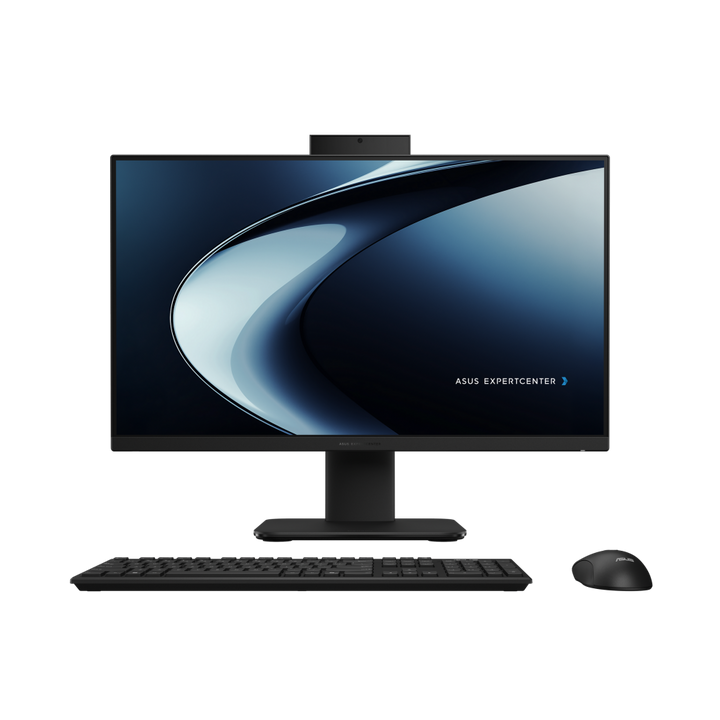

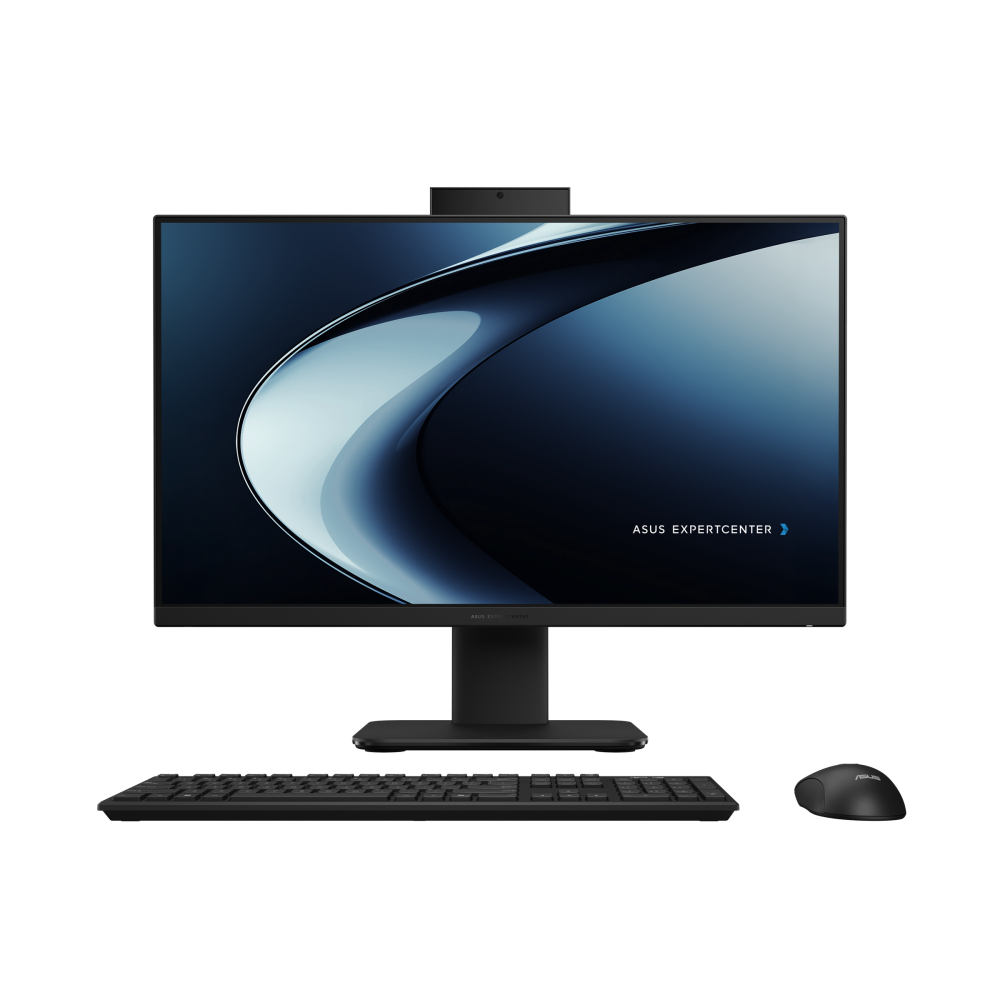

23.8-inch All-in-One Business PC with Touch Screen
The ASUS ExpertCenter P400 AiO P440VA-BPD046X (90PT03X6-M0CNE0) is a 23.8-inch all-in-one business PC with a Full HD touch screen, built around the Intel Core 7 240H processor with 16GB of DDR5 memory and a 512GB PCIe 4.0 NVMe SSD, running Windows 11 Pro. The complete system sits behind the display on a height-adjustable stand, so a Singapore office, clinic counter or reception desk gets a full desktop PC with a single power connection and no separate tower.
Intel Core 7 240H H-Series Processor
The Intel Core 7 240H is an H-series processor with 10 cores and 16 threads, a 2.5 GHz base clock boosting up to 5.2 GHz, and 24MB of cache, paired with integrated Intel Graphics. It suits day-to-day business workloads such as office applications, browser-based and cloud software, video meetings and running several applications side by side.
Full HD Touch Display at 75Hz
The 23.8-inch LCD panel runs at Full HD 1920 x 1080 with a 75Hz refresh rate, 250 nits brightness, 100% sRGB colour coverage, 1000:1 contrast and 178/178-degree wide viewing angles. An anti-glare finish helps under office lighting, and a 93% screen-to-body ratio keeps the bezels slim. This configuration has a touch screen, which is useful for front-desk check-in, kiosk-style forms and hands-on presentations at the desk.

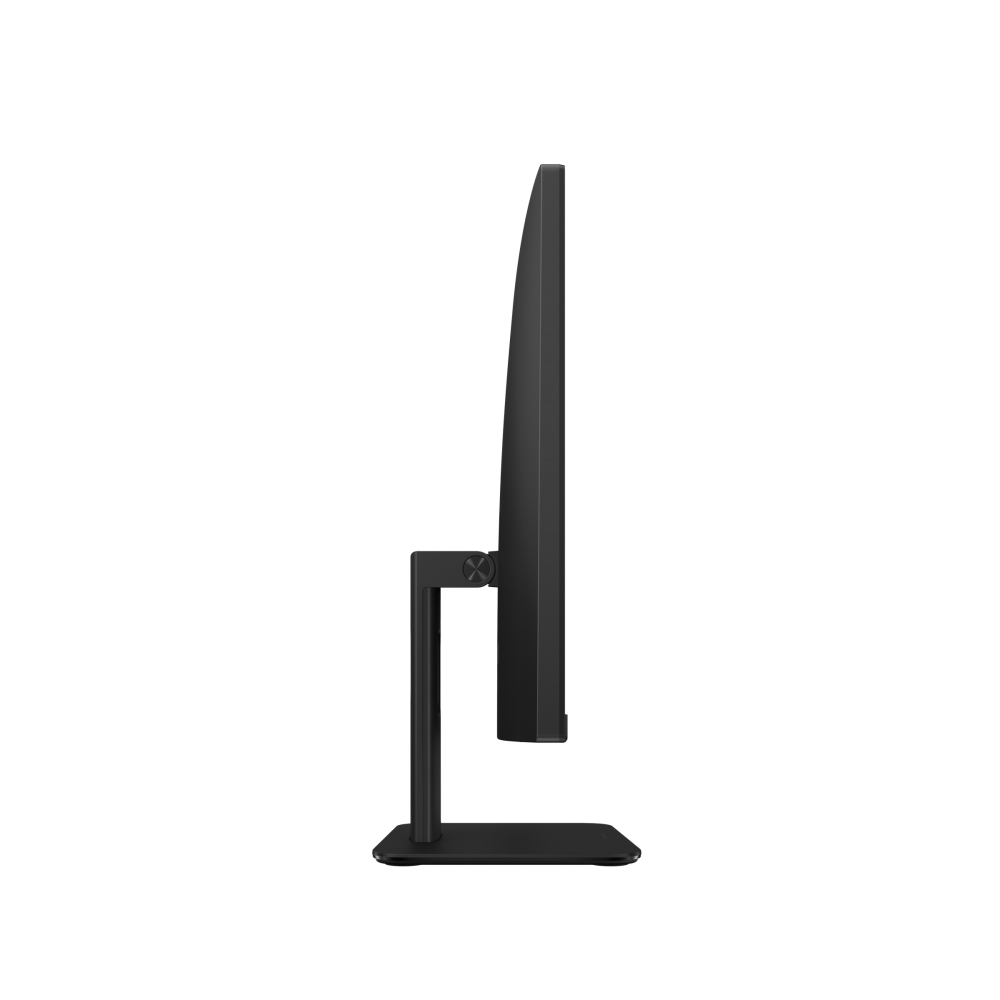

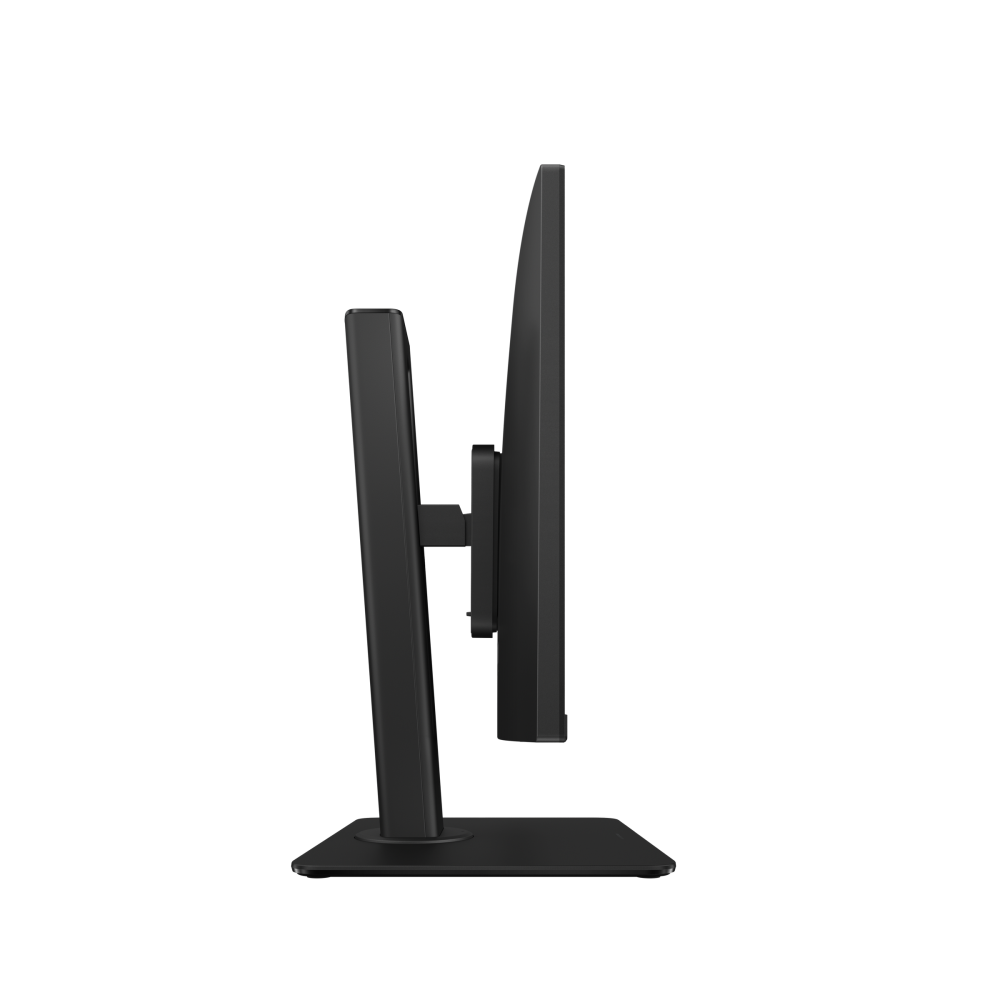

Height-Adjustable Stand, IR Camera and Privacy Shutter
The height-adjustable stand lets each user set the screen to a comfortable eye level, and the unit also supports VESA mounting for arm or wall installations. A 1080p FHD camera with IR supports Windows Hello face sign-in, and a physical privacy shutter covers the lens when it is not in use. A built-in array microphone and speakers cover video calls without extra peripherals.
Wi-Fi 7, Gigabit Ethernet and Everyday Ports

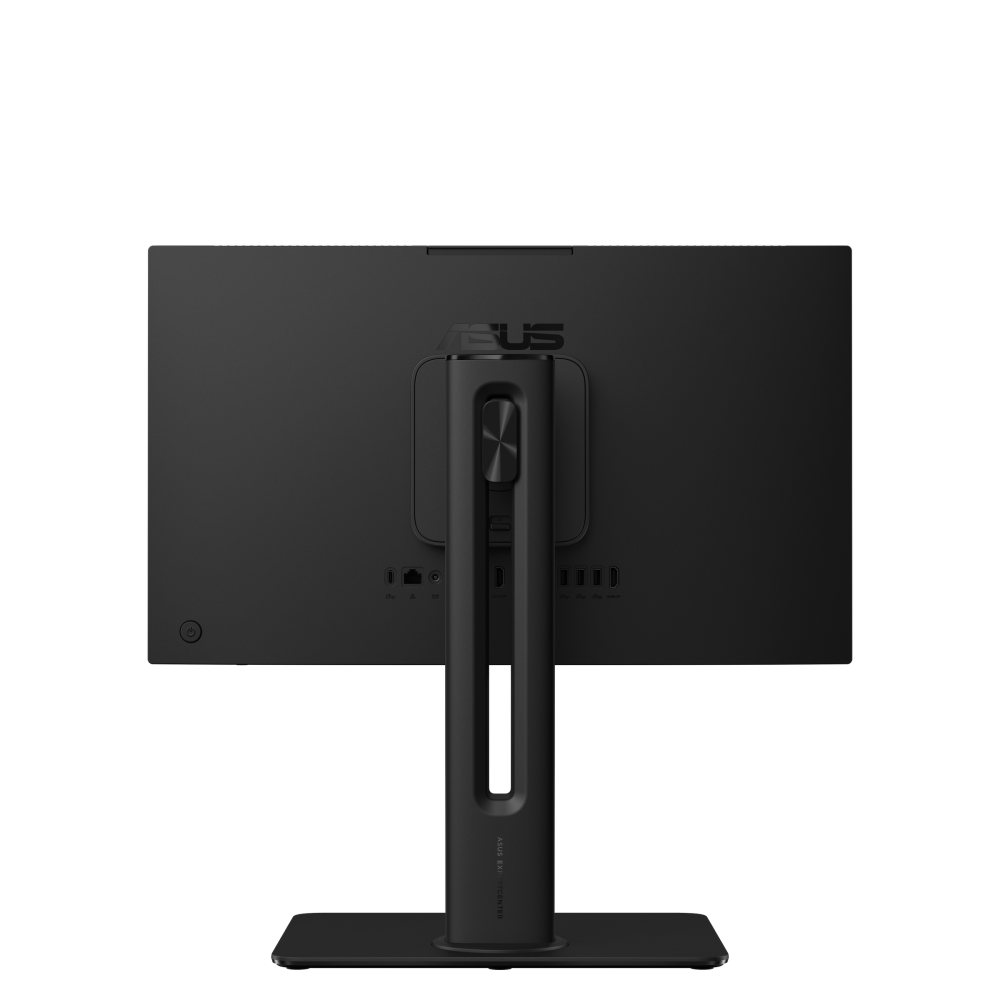

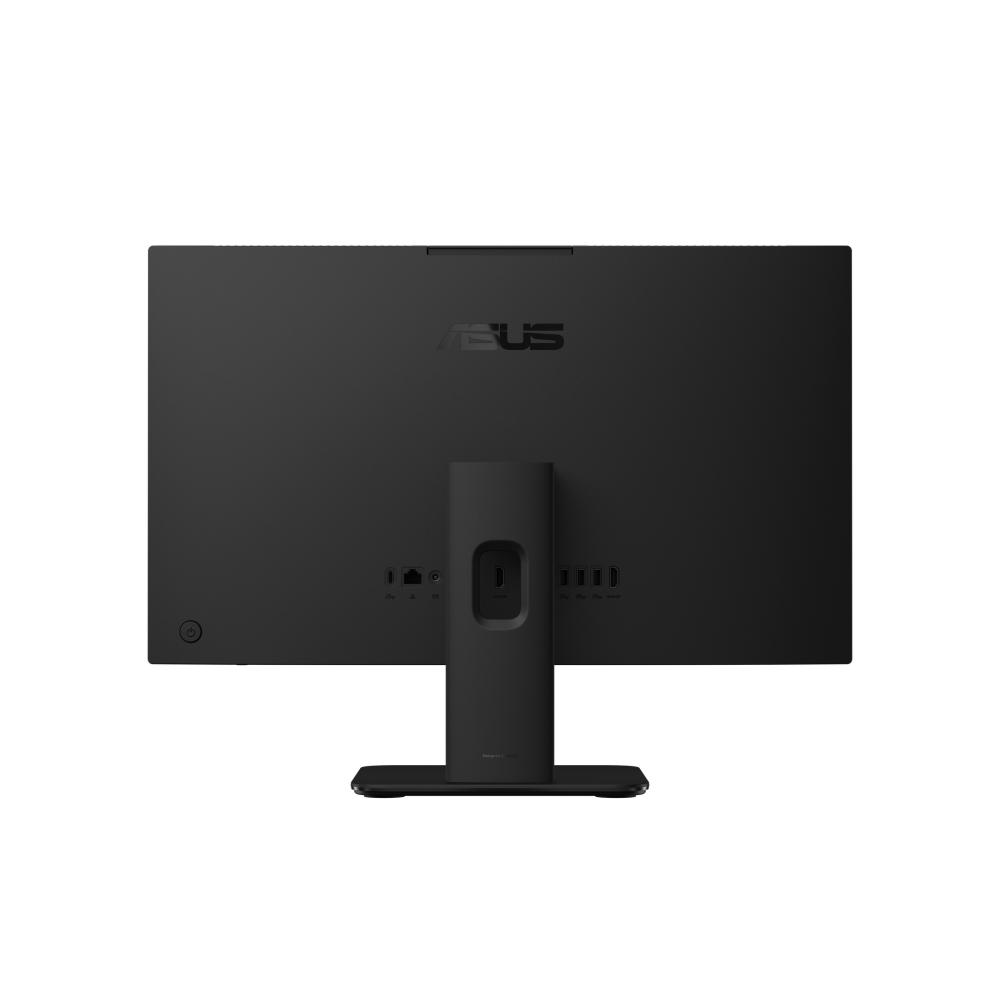

Wireless connectivity is Wi-Fi 7 (802.11be, triple band, 2x2) with Bluetooth 5.4, alongside Realtek Gigabit Ethernet for a wired desk connection. The rear panel has three USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 1 Type-C port, HDMI 1.4 output and RJ45; the side panel adds a USB 2.0 Type-A port, a 3.5mm combo audio jack and a Kensington lock slot.
Business Security, Software and Sustainability
TPM 2.0, BIOS boot and HDD user password protection and the Kensington Security Slot cover the standard business security baseline. ASUS includes MyASUS, ASUS Business Manager and AI ExpertMeet, plus McAfee for 3 years. The rear and base covers use 65% post-consumer recycled (PCR) plastic, and ASUS lists EPEAT Gold, ENERGY STAR 9.0, REACH and RoHS for this model.
3 Years Onsite Warranty in Singapore
The P440VA-BPD046X comes with a 3-year onsite service warranty from ASUS, and a wired USB keyboard and mouse are included in the box. For volume orders, deployment questions or a quotation, email sales@sourceit.com.sg.
ASUS P440VA-BPD046X Datasheet — Technical Specifications
General
| Product Name | ASUS ExpertCenter P400 AiO (P440VA) |
| Part No (SKU) | 90PT03X6-M0CNE0 |
| Model | P440VA-BPD046X |
| Form Factor | All-in-One PC, 23.8-inch |
| Colour | Black |
| Operating System | Windows 11 Pro |
| Warranty | 3 Years Onsite Service |
Display
| Panel Size | 23.8-inch |
| Panel Type | LCD, wide viewing angle |
| Resolution | Full HD 1920 x 1080 (16:9) |
| Refresh Rate | 75Hz |
| Brightness | 250 nits |
| Colour Gamut | 100% sRGB |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angle (H/V) | 178 / 178 |
| Response Time (Typ/Max) | 14 / 25 ms |
| Screen-to-Body Ratio | 93% |
| Surface | Anti-glare |
| Touch | Touch screen |
Stand, Camera & Audio
| Stand | Height-adjustable stand (HAS), VESA mount supported |
| Camera | 1080p FHD camera with IR, supports Windows Hello face sign-in |
| Privacy Shutter | Yes, physical camera shutter |
| Microphone | Built-in array microphone |
| Speakers | Built-in speakers |
Processor & Graphics
| Processor | Intel Core 7 Processor 240H, 2.5 GHz base, up to 5.2 GHz (24MB cache, 10 cores, 16 threads) |
| Cores / Threads | 10 cores / 16 threads |
| Base / Max Frequency | 2.5 GHz / up to 5.2 GHz |
| Cache | 24MB |
| Graphics | Integrated Intel Graphics |
Memory & Storage
| Memory Installed | 16GB DDR5 SO-DIMM |
| Memory Slots | 2 x DDR5 SO-DIMM |
| Maximum Memory | Up to 32GB DDR5 (per ASUS) |
| Storage | 512GB M.2 NVMe PCIe 4.0 SSD |
Ports & Connectivity
| Rear I/O | 1 x DC-in, 1 x RJ45 Gigabit Ethernet, 1 x HDMI 1.4 out, 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A |
| Side I/O | 1 x USB 2.0 Type-A, 1 x 3.5mm combo audio jack, 1 x Kensington lock |
| Wireless | Wi-Fi 7 (802.11be) triple band 2x2 + Bluetooth 5.4 |
| Ethernet | Realtek RTL8111H 10/100/1000 Mbps |
Power
| Power Adapter | 120W AC adapter, 4.5mm connector; output 20V DC, 6.0A; input 100-240V AC, 50/60Hz |
Physical
| Dimensions (W x H x D) | 54.1 x 41.6 x 1.7 ~ 21.0 cm (21.30 x 16.38 x 0.67 ~ 8.27 in); 54.1 x 55.1 x 1.7 ~ 26.0 cm, as published by ASUS |
| Weight | 9.00 kg (19.84 lbs) |
| Sustainable Materials | 65% PCR plastic rear cover and base cover; 55% total PCR recycled plastic |
| Ecolabels & Compliance | EPEAT Gold, ENERGY STAR 9.0, REACH, RoHS |
Security & Software
| TPM | Trusted Platform Module (TPM) 2.0 |
| Security | BIOS booting user password protection, HDD user password protection, Kensington Security Slot |
| Pre-installed Software | MyASUS, ASUS Business Manager, AI ExpertMeet |
| Antivirus | McAfee, 3 years |
Package Contents
| In the Box | ExpertCenter P400 AiO unit with height-adjustable stand, 120W AC adapter, wired USB keyboard (English), wired USB optical mouse |
Connectivity, Setup & Expansion
Getting Started
Set the unit on the desk, connect the 120W adapter to the DC-in port on the rear, plug the included USB keyboard and mouse into the USB ports, and connect Gigabit Ethernet or join Wi-Fi 7. Windows 11 Pro is preinstalled, and Windows Hello face sign-in can be set up with the IR camera on first use.
Second Display and Peripherals
The HDMI 1.4 output on the rear panel connects an external monitor for a dual-screen desk. Three USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 1 Type-C port on the rear handle docks, storage and headsets, and the side USB 2.0 port and 3.5mm combo jack keep a headset or flash drive within easy reach.
Stand and Mounting
The height-adjustable stand raises or lowers the screen to suit each user. For a monitor arm or wall installation, the P400 AiO supports VESA mounting; confirm your arm or bracket against the ASUS specification before ordering.
Memory Expansion
The system has two DDR5 SO-DIMM slots with 16GB installed, and ASUS lists a maximum of 32GB DDR5 for this model.
Security Features
TPM 2.0 supports Windows security features such as BitLocker and Windows Hello. BIOS and HDD password protection guard against unauthorised access, the Kensington Security Slot secures the unit to the desk, and the camera privacy shutter physically covers the lens. ASUS Business Manager and MyASUS provide system diagnosis and device settings, and McAfee is included for 3 years.
Package Contents & Ordering Information
In the Box
ASUS ExpertCenter P400 AiO unit with height-adjustable stand, 120W AC adapter, wired USB keyboard (English layout) and wired USB optical mouse.
ASUS ExpertCenter P400 AiO (P440VA) Family — Ordering Information
| 90PT03X6-M09830 (P440VAK-BPCJ22X) | Intel Core 5 210H, 16GB / 512GB SSD, 23.8" FHD non-touch (100Hz), height-adjustable stand, IR camera, Wi-Fi 7 |
| 90PT03X6-M0CNE0 (P440VA-BPD046X) | Intel Core 7 240H, 16GB / 512GB SSD, 23.8" FHD touch screen (75Hz), height-adjustable stand, IR camera, Wi-Fi 7 — this listing |
Both configurations share the same 23.8-inch chassis, height-adjustable stand, IR camera with privacy shutter, Wi-Fi 7 and port layout. The differences are the processor and the display: the P440VAK-BPCJ22X has a non-touch 100Hz panel with the Core 5 210H, and the P440VA-BPD046X has a 75Hz touch screen with the Core 7 240H.
Ordering
Order quoting part number 90PT03X6-M0CNE0. For volume orders, a formal quotation or deployment questions, email sales@sourceit.com.sg.
Datasheet & Downloads
Official ASUS resources for the ExpertCenter P400 AiO (P440VA):
| ASUS Singapore product page | ASUS ExpertCenter P400 AiO (P440VA) — Overview |
| ASUS Singapore specifications | ASUS ExpertCenter P400 AiO (P440VA) — Tech Specs |
| Drivers, BIOS & manuals | ASUS ExpertCenter P400 AiO (P440VA) — Support & Downloads |
The ASUS pages cover the whole P440VA range; the specifications listed above are for part number 90PT03X6-M0CNE0.
Frequently Asked Questions — ASUS P440VA-BPD046X
Is this a complete PC or just a monitor?
It is a complete Windows 11 Pro PC: the Intel Core 7 240H processor, 16GB DDR5 memory and 512GB NVMe SSD are built into the 23.8-inch display unit. A wired USB keyboard and mouse are included.
Does it have a touch screen?
Yes. The P440VA-BPD046X has a touch screen.
Is the stand height adjustable?
Yes. It ships with a height-adjustable stand, and the unit also supports VESA mounting for monitor arms or wall brackets.
Does the camera support Windows Hello and have a privacy cover?
Yes. The 1080p FHD camera has IR for Windows Hello face sign-in, and a physical privacy shutter covers the lens.
Can I connect a second monitor?
Yes. The rear HDMI 1.4 output connects an external display.
Can the memory be upgraded?
There are two DDR5 SO-DIMM slots with 16GB installed, and ASUS lists a maximum of 32GB.
What wireless does it support?
Wi-Fi 7 (802.11be, triple band, 2x2) with Bluetooth 5.4, plus Gigabit Ethernet for a wired connection.
What is the difference between the P440VA-BPD046X and the P440VAK-BPCJ22X?
The P440VAK-BPCJ22X uses the Intel Core 5 210H with a 100Hz non-touch display; the P440VA-BPD046X uses the Intel Core 7 240H with a 75Hz touch screen. Memory, storage, stand, camera, Wi-Fi 7 and ports are the same.
What warranty does it come with?
3 years onsite service from ASUS.
