AOC AM406G Single Monitor Arm for 17"–40" Monitors, 4–12 kg (Grey)
PRODUCT DESCRIPTION
AOC AM406G Single Monitor Arm for 17"–40" Monitors, 4–12 kg (Grey) - 5 years carry-in warranty
Built for larger, heavier screens
A single monitor arm for monitors from 17" to 40" weighing 4 to 12 kg, in grey aluminium alloy.
Mechanical spring support
A mechanical spring adjustment system with built-in cable management keeps your monitor steady and your desk tidy.
Full range of motion
Up to 495 mm maximum height with 250 mm height adjustment, 250 mm stretch, -15°/+90° tilt, -90°/+90° swivel and 360° pivot.
Fits thick desks

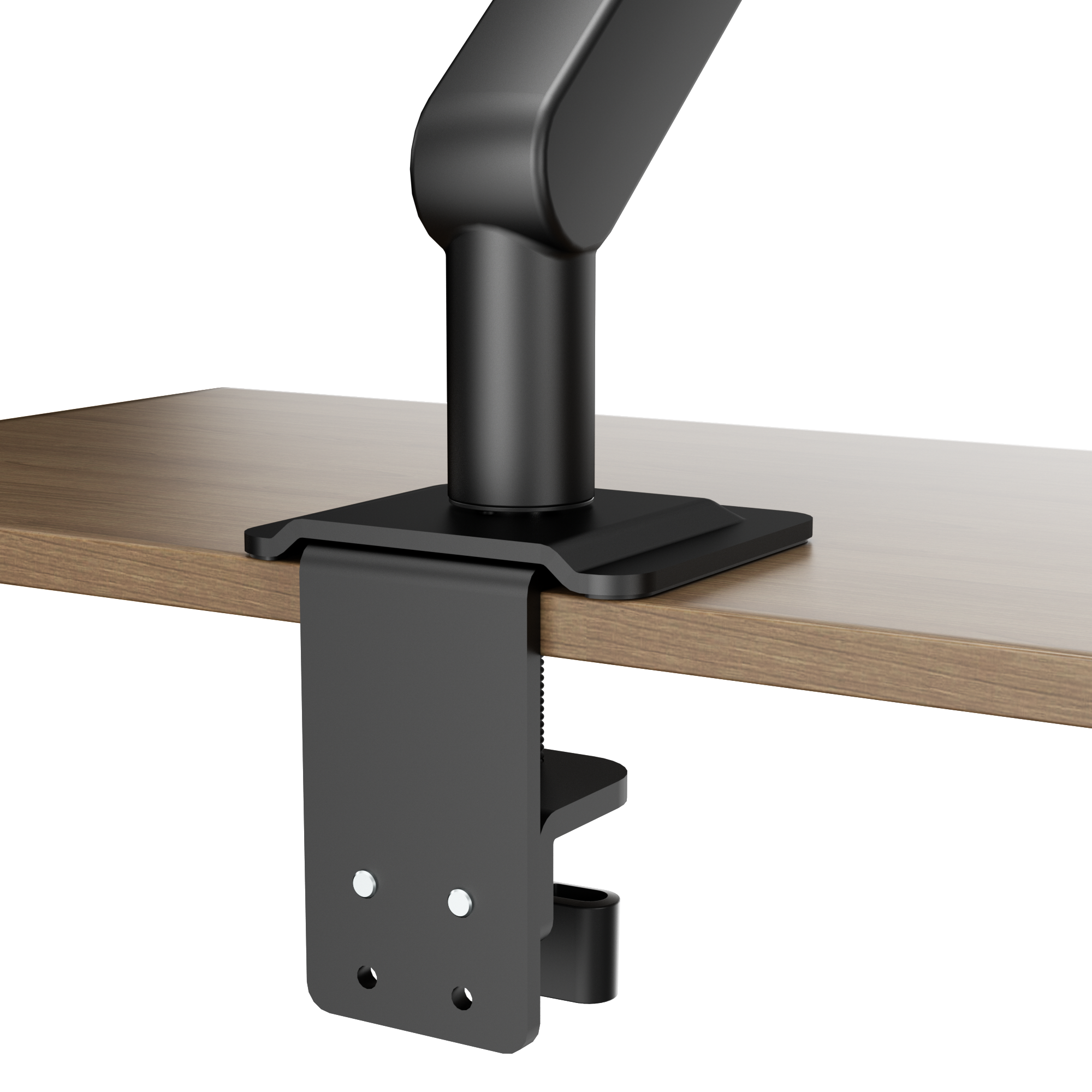

C-clamp mounting for desks 1.5 to 8 cm thick, or grommet mounting through a hole from 1.2 cm wide in desks up to 8 cm thick.
Need monitor arms for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AM406G Datasheet — Technical Specifications
General
| Product Name | AOC AM406G Single Monitor Arm for 17"–40" Monitors, 4–12 kg (Grey) |
| Model | AM406G |
| Brand / Series | AOC Monitor Arms |
| Local Warranty (Singapore) | 5 years carry-in warranty (AOC Peripherals counter, Sim Lim Square Level 5; end-user invoice required) |
| EAN | 6973985232305 |
Monitor Compatibility
| Supported monitor size | 17" – 40" |
| Weight capacity | 4 – 12 kg |
| Number of monitors | 1 |
| VESA plate monitor mount | 75 x 75 mm, 100 x 100 mm |
Range of Motion
| Maximum height | 495 mm |
| Height adjustment range | 250 mm |
| Stretch length | 250 mm |
| Tilt | -15° / +90° |
| Swivel | -90° / +90° |
| Pivot | 360° |
Desk Mounting
| Desk mount base | C-Clamp, Grommet mount |
| C-clamp desk surface thickness | 0.59" – 3.15" (1.5 – 8 cm) |
| Grommet mounting | Surface hole from 0.47" (1.2 cm) wide, desk up to 3.15" (8 cm) thick |
Design
| Ergonomic adjustment system | Mechanical spring |
| Built-in cable management | Yes |
| Material | Aluminium alloy |
| Colour | Grey |
Dimensions & Weight
| Packaging (L x W x H) | 408 x 200 x 120 mm |
| Net weight | 2.59 kg |
| Gross weight | 3.16 kg |
Specifications per AOC Singapore's official store page for the AM406G (sgstore.aoc.com).
Compatibility & Installation
Monitor Compatibility
Fits monitors from 17" to 40" weighing 4 to 12 kg — suited to larger and ultrawide screens. Check your monitor's weight without its stand before ordering.
VESA Mounting
Your monitor needs 75 x 75 mm or 100 x 100 mm VESA mounting holes on the back.
Desk Mounting
Install with the C-clamp on a desk 1.5 to 8 cm thick, or through a grommet hole from 1.2 cm wide in a desk up to 8 cm thick.
Cable Management
Built-in cable management routes power and signal cables along the arm for a tidy setup.
Package Contents & AOC Monitor Arms Ordering Information
In the Box
AM406G monitor arm with C-clamp and grommet mounting options. Contents may vary by AOC Singapore pack — email us to confirm before ordering.
AOC Monitor Arms
| Model | Key feature |
| AM420B | Dual Monitor Arm, 17"-34", 2-9kg (per Arm), Black |
| AM400B | Single Monitor Arm, 17"-34", 2-9kg, Black |
| AM400G | Single Monitor Arm, 17"-34", 2-9kg, Grey |
| AM400P | Single Monitor Arm, 17"-34", 2-9kg, Pink |
| AM400W | Single Monitor Arm, 17"-34", 2-9kg, White |
| AM406G (this listing) | Single Monitor Arm, 17"-40", 4-12kg, For 15-80mm Desktop Thickness, Grey |
| AM406W | Single Monitor Arm, 17"-40", 4-12kg, For 15-80mm Desktop Thickness, White |
Datasheet & Downloads
| AOC product page | AM406G on aoc.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AM406G.
Frequently Asked Questions — AOC AM406G
What monitor sizes and weights does the AM406G support?
Monitors from 17" to 40" weighing 4 to 12 kg.
Will it fit my monitor's VESA mount?
It supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
How thick can my desk be?
The C-clamp fits desks 1.5 to 8 cm thick; grommet mounting needs a hole from 1.2 cm wide in a desk up to 8 cm thick.
How is the AM406G different from the AM400?
The AM406 takes larger, heavier monitors (17"–40", 4–12 kg vs 17"–34", 2–9 kg) and thicker desks (up to 8 cm vs 5 cm).
What warranty do I get?
5 years carry-in warranty (AOC Peripherals counter, Sim Lim Square Level 5; end-user invoice required). Supplied by SourceIT with a GST invoice.
