AMD Ryzen Threadripper PRO 9965WX 24-Core 48-Thread sTR5 Workstation Processor
PRODUCT DESCRIPTION
AMD Ryzen Threadripper PRO 9965WX 24-Core 48-Thread sTR5 Workstation Processor (100-100000724WOF) - 3 Years Local Warranty
24 Cores for Professional Workstations
The AMD Ryzen Threadripper PRO 9965WX brings 24 Zen 5 cores and 48 threads to the sTR5 platform, with 128 MB of L3 cache and clocks from 4.2 GHz up to 5.4 GHz. It is built for rendering, simulation, compilation, AI development and other heavily threaded work that outgrows mainstream desktops.
sTR5 Platform
It installs in sTR5 motherboards (WRX90, TRX50, Pro 695) and supports 8-channel DDR5 RDIMM memory, with PCIe 5.0 connectivity (144 usable lanes from the CPU). Base clock is 4.2 GHz, boost reaches up to 5.4 GHz, and default TDP is 350 W.
Discrete Graphics Required
This processor has no integrated graphics, so a discrete graphics card is required for display output. AMD PRO technologies add manageability and security features for business fleets.
Building workstations or buying for a team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen Threadripper PRO 9965WX Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen Threadripper PRO 9965WX |
| Boxed Part Number (OPN) | 100-100000724WOF |
| Tray Part Number | 100-000000724 |
| Series | Ryzen Threadripper PRO 9000 WX-Series (former codename Shimada Peak) |
| Launch Date | 23 July 2025 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 5 |
| Cores / Threads | 24 / 48 (SMT) |
| Base Clock | 4.2 GHz |
| Max. Boost Clock | Up to 5.4 GHz |
| L1 Cache | 1920 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350 W |
| Process | TSMC 4nm FinFET (CPU cores); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Memory Type | DDR5 RDIMM, 8 channels |
| Max. Memory Speed | Up to 6400 MT/s |
| ECC Support | Yes (Default Enabled) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 148 total / 144 usable / 128 PCIe 5.0 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 5, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps) |
| Native SATA Ports | 4 |
Graphics
| Integrated Graphics | None, discrete graphics card required |
Security & Manageability
| AMD PRO Technologies | Yes |
| DASH Manageability | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| Windows Secured-core PC | Yes |
| Virtualisation | AMD-V, AMD-Vi (IOMMU), SLAT, AVIC |
Cooling
| Thermal Solution in Box | Not included |
Compatibility & Software Support
Motherboard
Requires an sTR5 motherboard (WRX90, TRX50, Pro 695). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 RDIMM memory only (registered ECC DIMMs), 8 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit, Windows 10 64-bit.
Software
AMD Ryzen Master, the AMD Chipset Driver and AMD PRO manageability tools (DASH) from AMD Drivers & Support.
Typical Use
Workstations for 3D rendering, VFX, simulation, CAD/CAE, software builds, data science and AI development.
Package Contents & AMD Ryzen Threadripper 9000 & PRO 9000 WX-Series Ordering Information
In the Box

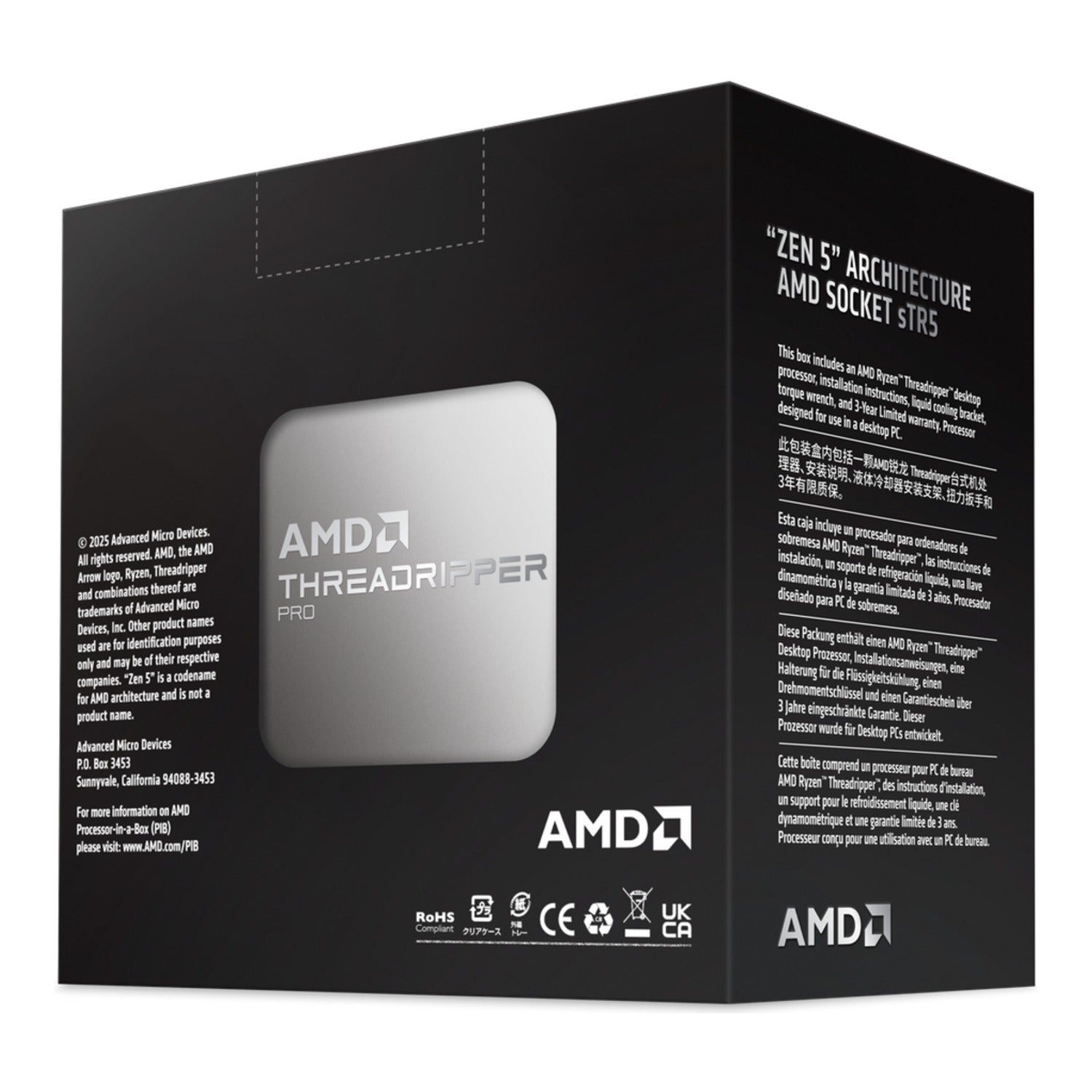

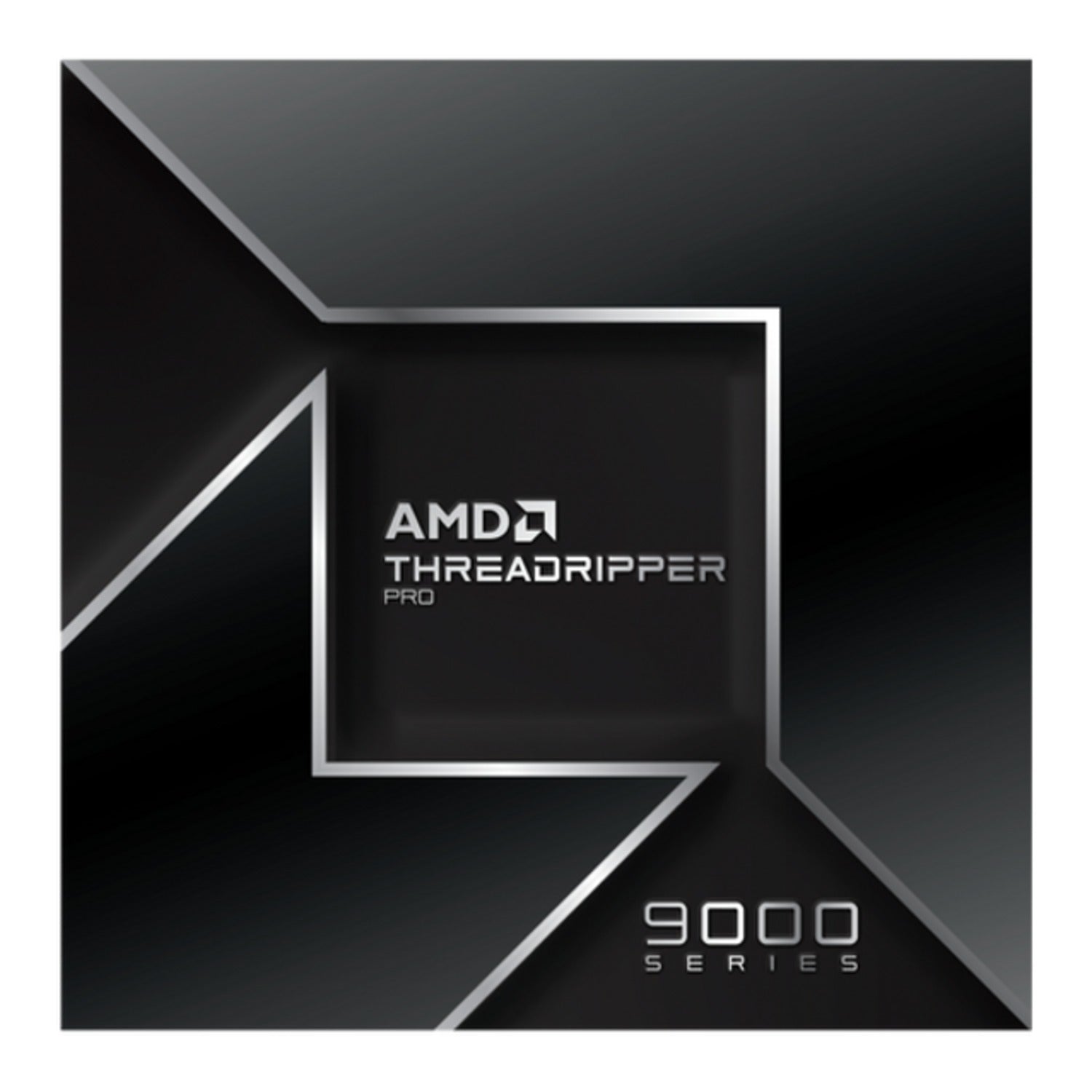

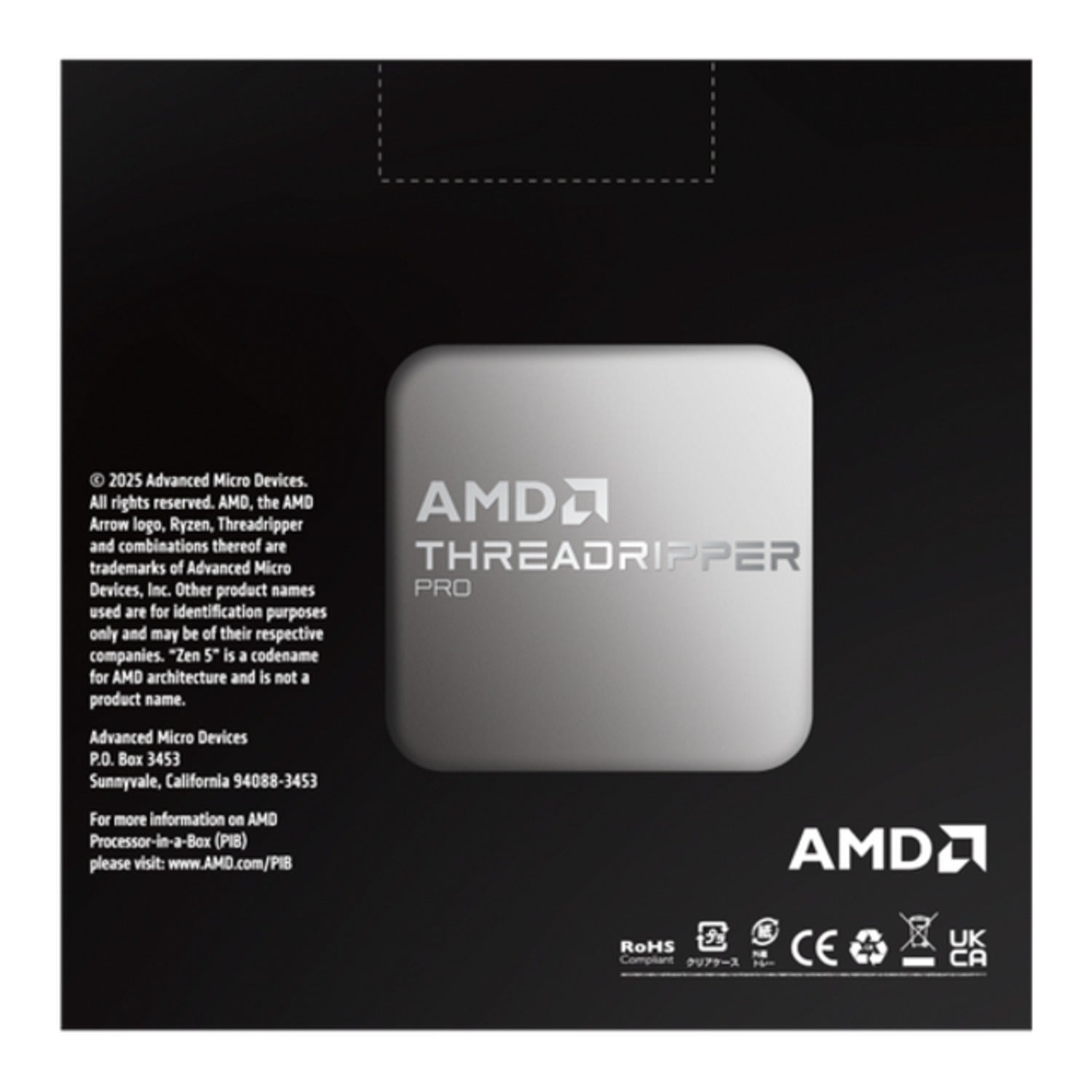

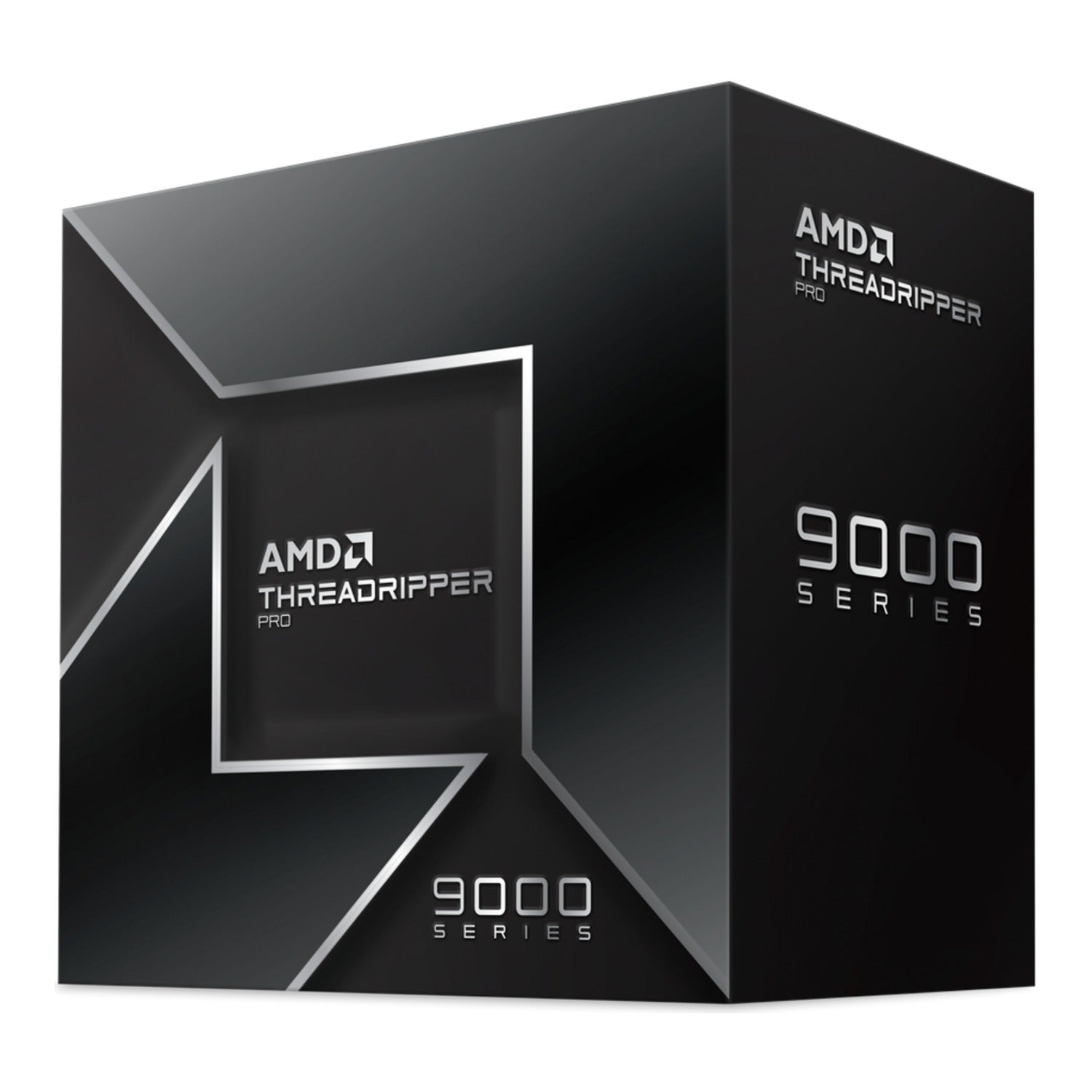

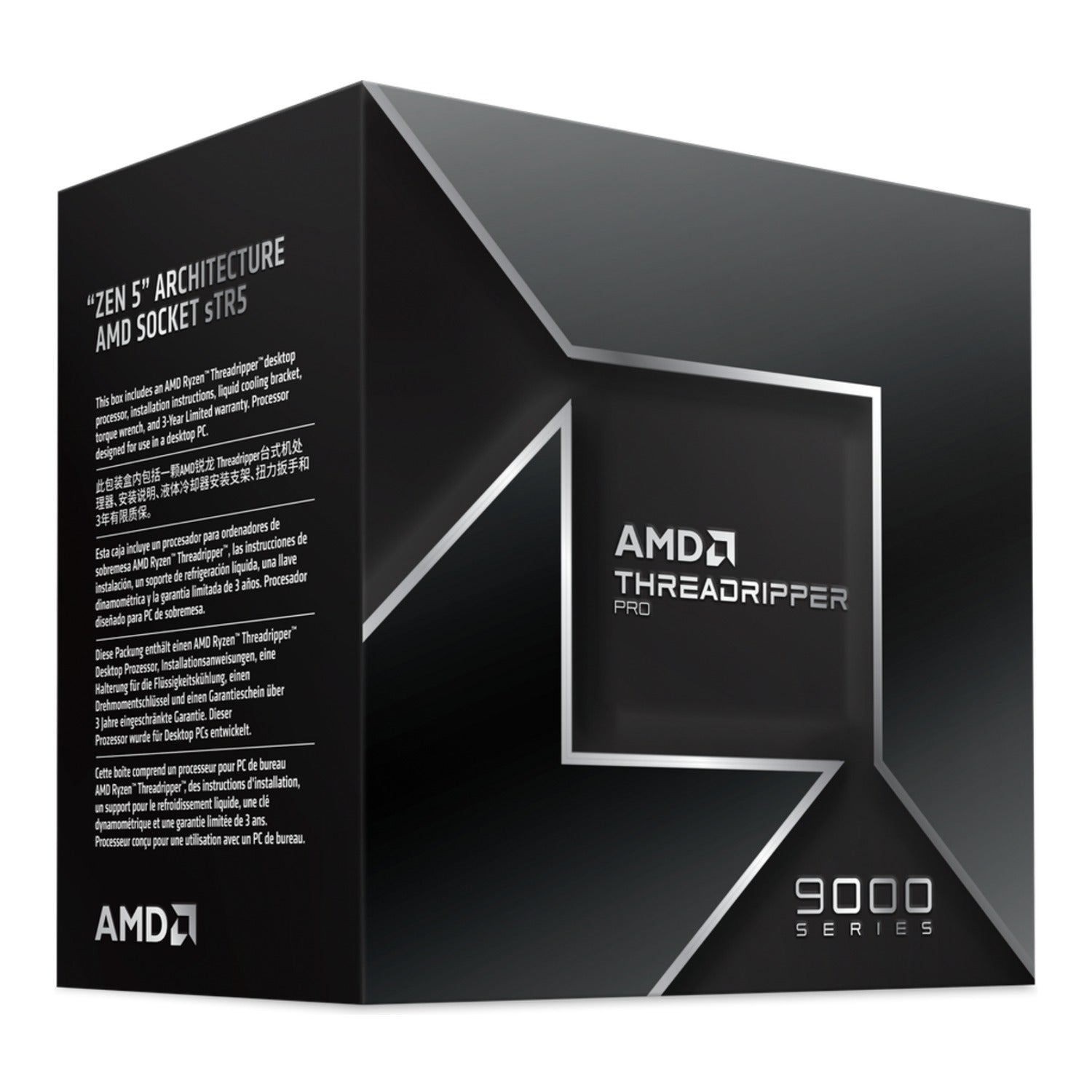

AMD Ryzen Threadripper PRO 9965WX processor in retail packaging. No CPU cooler is included, so budget for a compatible cooler.
AMD Ryzen Threadripper 9000 & PRO 9000 WX-Series
| Model | Key feature |
| Ryzen Threadripper PRO 9995WX | 96C/192T, up to 5.4 GHz, 350W |
| Ryzen Threadripper PRO 9985WX | 64C/128T, up to 5.4 GHz, 350W |
| Ryzen Threadripper PRO 9975WX | 32C/64T, up to 5.4 GHz, 350W |
| Ryzen Threadripper PRO 9965WX (this listing) | 24C/48T, up to 5.4 GHz, 350W |
| Ryzen Threadripper PRO 9955WX | 16C/32T, up to 5.4 GHz, 350W |
| Ryzen Threadripper 9980X | 64C/128T, up to 5.4 GHz, 350W |
| Ryzen Threadripper 9970X | 32C/64T, up to 5.4 GHz, 350W |
| Ryzen Threadripper 9960X | 24C/48T, up to 5.4 GHz, 350W |
Datasheet & Downloads
| AMD product page | AMD Ryzen Threadripper PRO 9965WX specifications on amd.com |
| Drivers & software | AMD Ryzen Threadripper PRO 9965WX drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9965WX.
Frequently Asked Questions — AMD Ryzen Threadripper PRO 9965WX
Does the 9965WX come with a cooler?
No. The boxed 9965WX ships without a cooler.
Which motherboards does it fit?
sTR5 motherboards (WRX90, TRX50, Pro 695). It does not fit AM5 or older Threadripper sockets.
Does it have integrated graphics?
No. A discrete graphics card is required for display output.
What memory does it support?
8-channel DDR5 RDIMM, up to 6400 MT/s.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
