AMD Ryzen Threadripper PRO 7995WX 96-Core 192-Thread sTR5 Workstation Processor
PRODUCT DESCRIPTION
AMD Ryzen Threadripper PRO 7995WX 96-Core 192-Thread sTR5 Workstation Processor (100-100000884WOF) - 3 Years Local Warranty
96 Cores for Professional Workstations
The AMD Ryzen Threadripper PRO 7995WX brings 96 Zen 4 cores and 192 threads to the sTR5 platform, with 384 MB of L3 cache and clocks from 2.5 GHz up to 5.1 GHz. It is built for rendering, simulation, compilation, AI development and other heavily threaded work that outgrows mainstream desktops.
sTR5 Platform
It installs in sTR5 motherboards (WRX90, TRX50, Pro 695) and supports 8-channel DDR5 RDIMM memory, with PCIe 5.0 connectivity (144 usable lanes from the CPU). Base clock is 2.5 GHz, boost reaches up to 5.1 GHz, and default TDP is 350 W.
Discrete Graphics Required
This processor has no integrated graphics, so a discrete graphics card is required for display output. AMD PRO technologies add manageability and security features for business fleets.
Building workstations or buying for a team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen Threadripper PRO 7995WX Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen Threadripper PRO 7995WX |
| Boxed Part Number (OPN) | 100-100000884WOF |
| Tray Part Number | 100-000000884 |
| Series | Ryzen Threadripper PRO 7000 WX-Series (former codename Storm Peak) |
| Launch Date | 19 October 2023 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 4 |
| Cores / Threads | 96 / 192 (SMT) |
| Base Clock | 2.5 GHz |
| Max. Boost Clock | Up to 5.1 GHz |
| L1 Cache | 6144 KB |
| L2 Cache | 96 MB |
| L3 Cache | 384 MB |
| Default TDP | 350 W |
| Process | TSMC 5nm FinFET (CPU cores); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Memory Type | DDR5 RDIMM, 8 channels |
| Max. Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes (Default Enabled) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 148 total / 144 usable / 128 PCIe 5.0 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps) |
| Native SATA Ports | 4 |
Graphics
| Integrated Graphics | None, discrete graphics card required |
Security & Manageability
| AMD PRO Technologies | Yes |
| DASH Manageability | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| Windows Secured-core PC | Yes |
| Virtualisation | AMD-V, AMD-Vi (IOMMU), SLAT, AVIC |
Cooling
| Thermal Solution in Box | Not included |
Compatibility & Software Support
Motherboard
Requires an sTR5 motherboard (WRX90, TRX50, Pro 695). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 RDIMM memory only (registered ECC DIMMs), 8 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master, the AMD Chipset Driver and AMD PRO manageability tools (DASH) from AMD Drivers & Support.
Typical Use
Workstations for 3D rendering, VFX, simulation, CAD/CAE, software builds, data science and AI development.
Package Contents & AMD Ryzen Threadripper 7000 & PRO 7000 WX-Series Ordering Information
In the Box

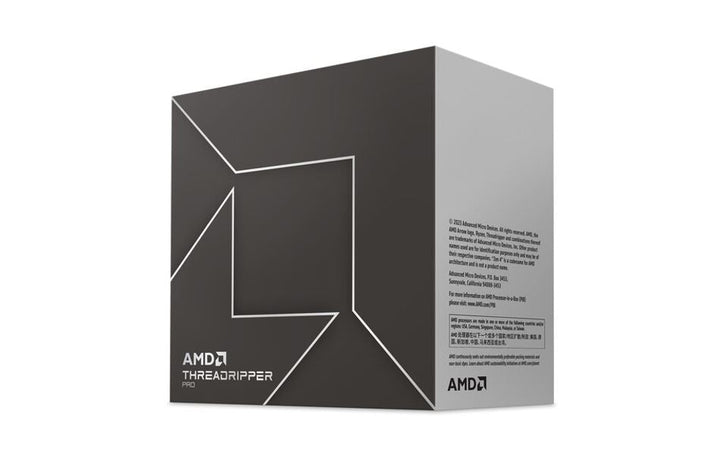

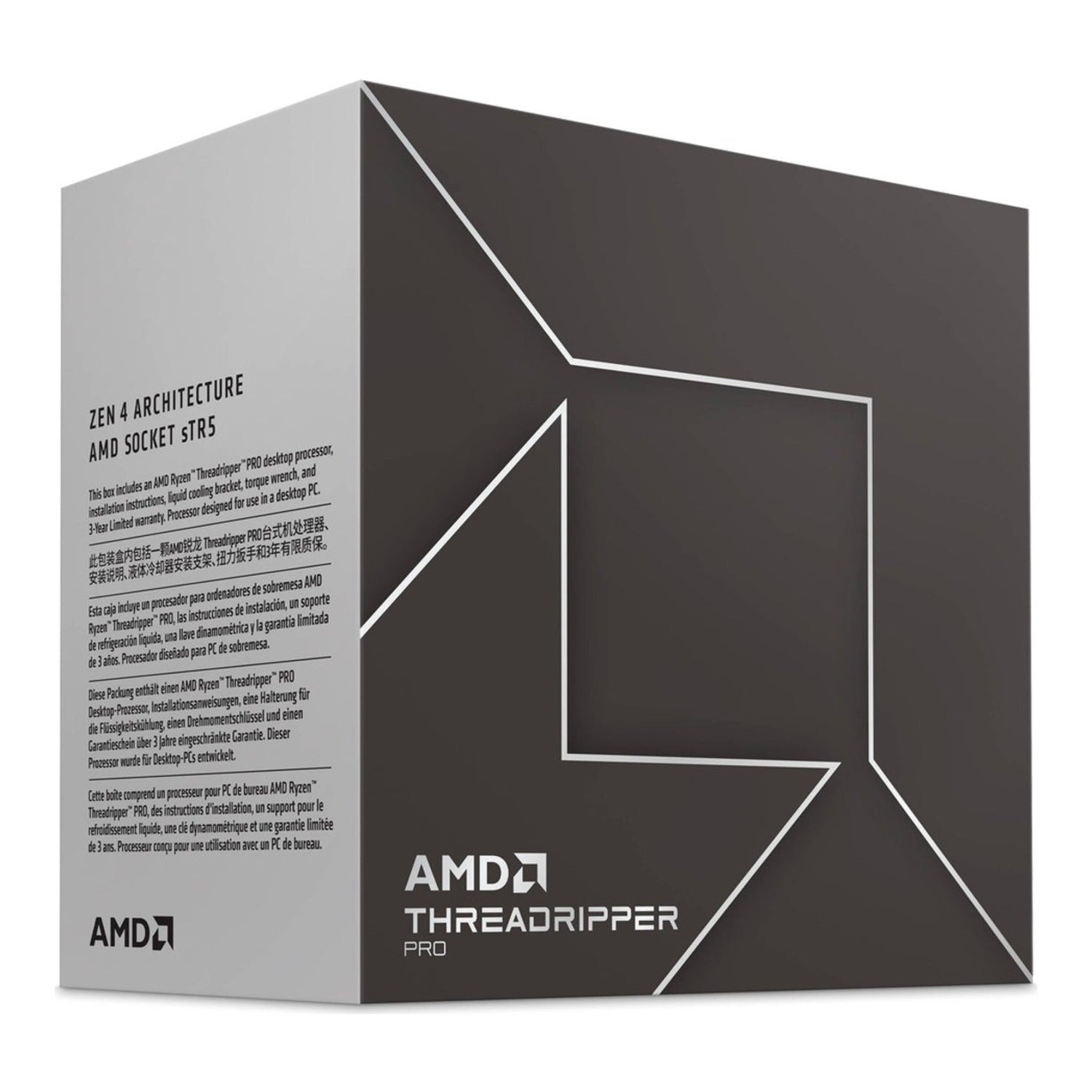

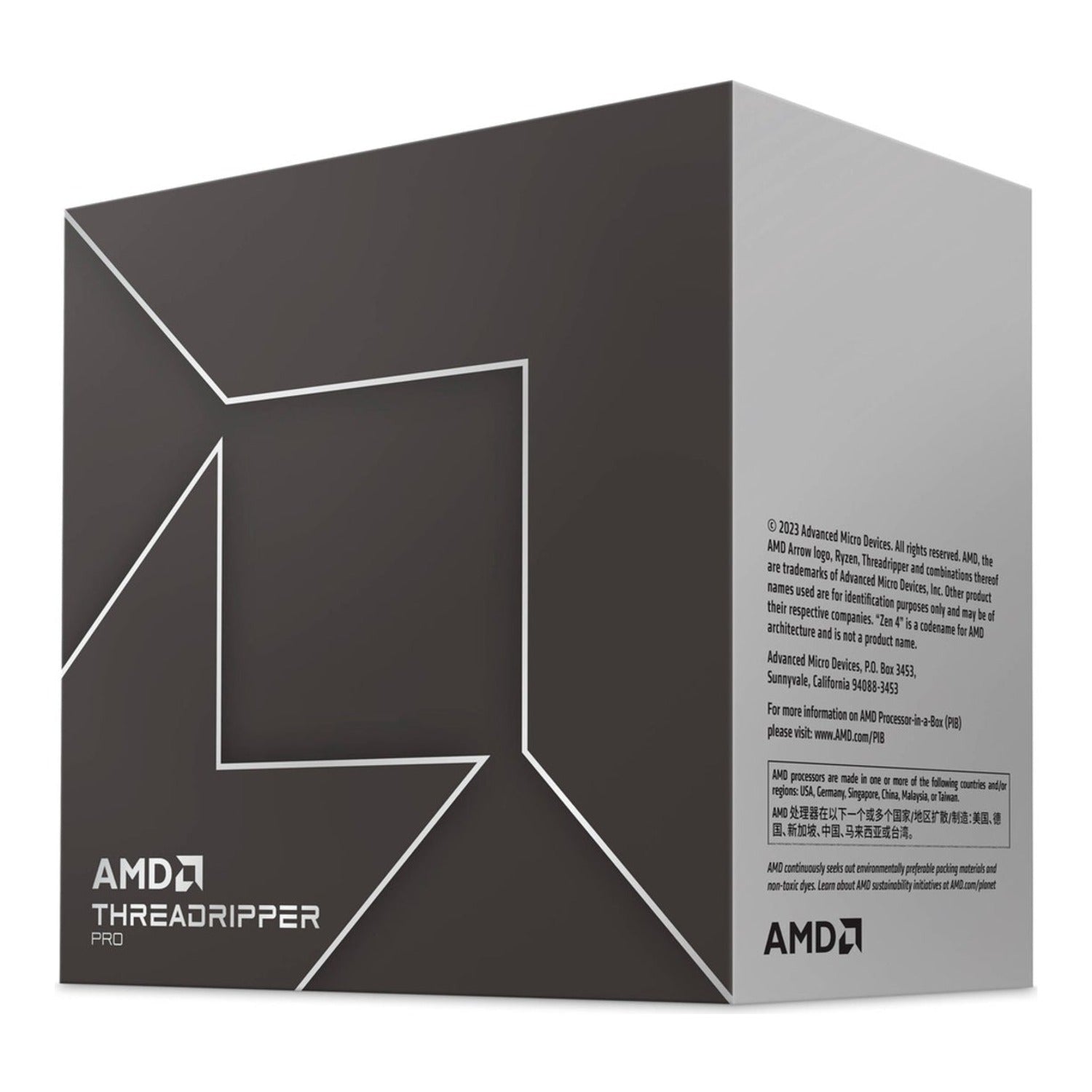

AMD Ryzen Threadripper PRO 7995WX processor in retail packaging. No CPU cooler is included, so budget for a compatible cooler.
AMD Ryzen Threadripper 7000 & PRO 7000 WX-Series
| Model | Key feature |
| Ryzen Threadripper PRO 7995WX (this listing) | 96C/192T, up to 5.1 GHz, 350W |
| Ryzen Threadripper PRO 7985WX | 64C/128T, up to 5.1 GHz, 350W |
| Ryzen Threadripper PRO 7975WX | 32C/64T, up to 5.3 GHz, 350W |
| Ryzen Threadripper PRO 7965WX | 24C/48T, up to 5.3 GHz, 350W |
| Ryzen Threadripper 7980X | 64C/128T, up to 5.1 GHz, 350W |
| Ryzen Threadripper 7970X | 32C/64T, up to 5.3 GHz, 350W |
| Ryzen Threadripper 7960X | 24C/48T, up to 5.3 GHz, 350W |
Datasheet & Downloads
| AMD specifications & drivers | AMD Ryzen Threadripper PRO 7995WX specifications and drivers on amd.com |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 7995WX.
Frequently Asked Questions — AMD Ryzen Threadripper PRO 7995WX
Does the 7995WX come with a cooler?
No. The boxed 7995WX ships without a cooler.
Which motherboards does it fit?
sTR5 motherboards (WRX90, TRX50, Pro 695). It does not fit AM5 or older Threadripper sockets.
Does it have integrated graphics?
No. A discrete graphics card is required for display output.
What memory does it support?
8-channel DDR5 RDIMM, up to 5200 MT/s.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
