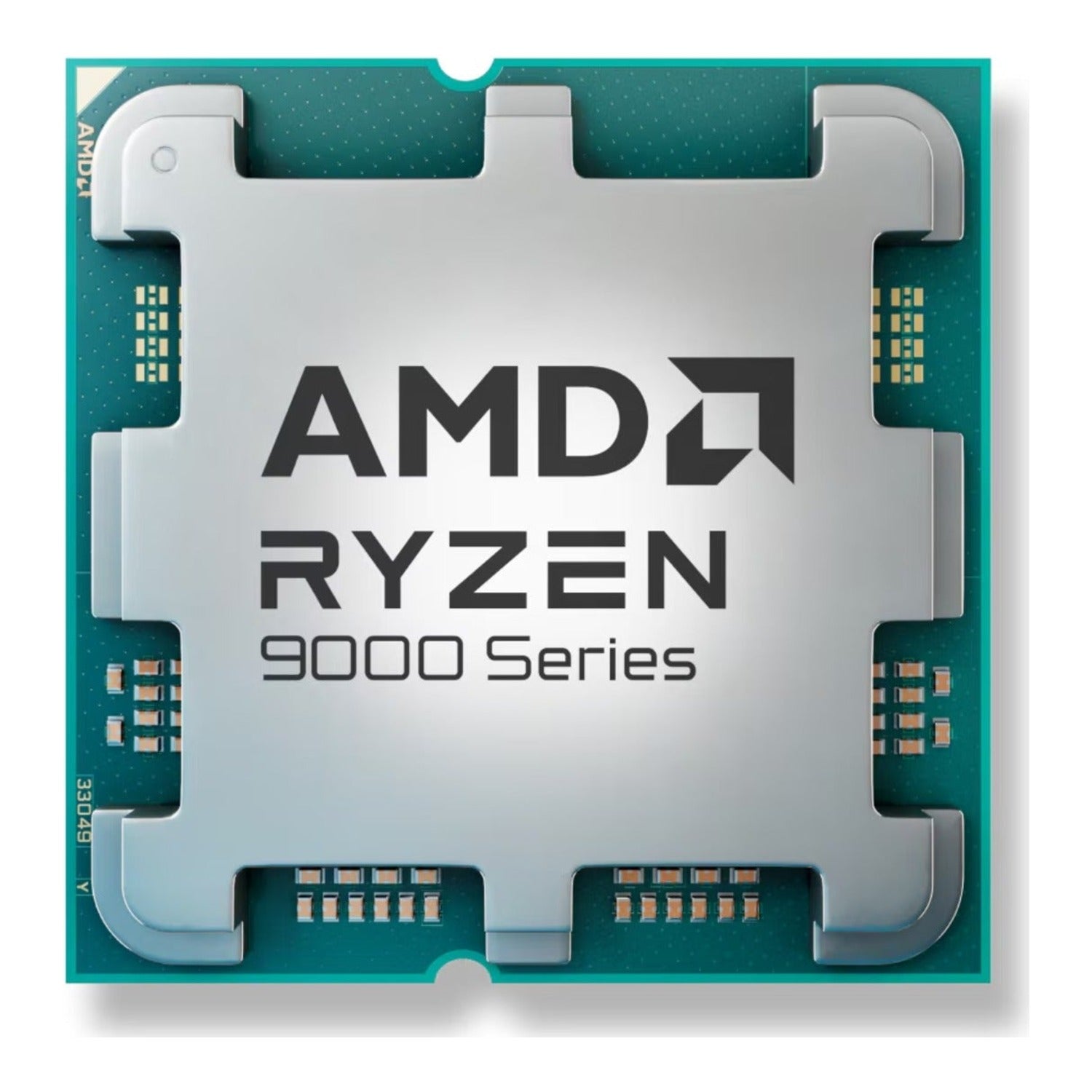

AMD Ryzen 7 9850X3D 8-Core 16-Thread AM5 Desktop Processor with 3D V-Cache
PRODUCT DESCRIPTION
AMD Ryzen 7 9850X3D 8-Core 16-Thread AM5 Desktop Processor with 3D V-Cache (100-100001973WOF) - 3 Years Local Warranty
96 MB L3 Cache with AMD 3D V-Cache
The AMD Ryzen 7 9850X3D combines 8 Zen 5 cores and 16 threads with AMD 3D V-Cache technology, giving the processor 96 MB of L3 cache. Games and other latency-sensitive workloads keep more of their data on-chip, which is why AMD builds its X3D parts for gaming.
AM5 Platform
It installs in AM5 motherboards (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850) and supports 2-channel DDR5 UDIMM memory up to 256 GB, with PCIe 5.0 connectivity (24 usable lanes from the CPU). Base clock is 4.7 GHz, boost reaches up to 5.6 GHz, and default TDP is 120 W.
Integrated Graphics
Integrated AMD Radeon Graphics (2 graphics cores at 2200 MHz) provides display output without a discrete card.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 7 9850X3D Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 7 9850X3D |
| Boxed Part Number (OPN) | 100-100001973WOF |
| Tray Part Number | 100-000001973 |
| Series | Ryzen 9000 Series (former codename Granite Ridge) |
| Market Segment | Enthusiast Desktop |
| Launch Date | 29 January 2026 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 5 |
| Cores / Threads | 8 / 16 (SMT) |
| Base Clock | 4.7 GHz |
| Max. Boost Clock | Up to 5.6 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB (AMD 3D V-Cache) |
| Default TDP | 120 W |
| Process | TSMC 4nm FinFET (CPU cores); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Type | DDR5 UDIMM, 2 channels |
| Max. Memory | 256 GB |
| Max. Memory Speed | 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 28 total / 24 usable |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 5, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 |
Graphics
| Graphics Model | AMD Radeon Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alt Mode | Yes |
Security & Manageability
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| Windows Secured-core PC | Yes |
| Virtualisation | AMD-V, AMD-Vi (IOMMU), SLAT, AVIC |
Cooling
| Thermal Solution in Box | Not included |
| Recommended Cooler | Liquid cooler recommended for optimal performance (AMD) |
Compatibility & Software Support
Motherboard
Requires an AM5 motherboard (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 UDIMM memory only, 2 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
High-refresh gaming PCs, gaming and streaming rigs, and enthusiast builds where gaming performance matters most.
Package Contents & AMD Ryzen 9000 Series (AM5) Ordering Information
In the Box

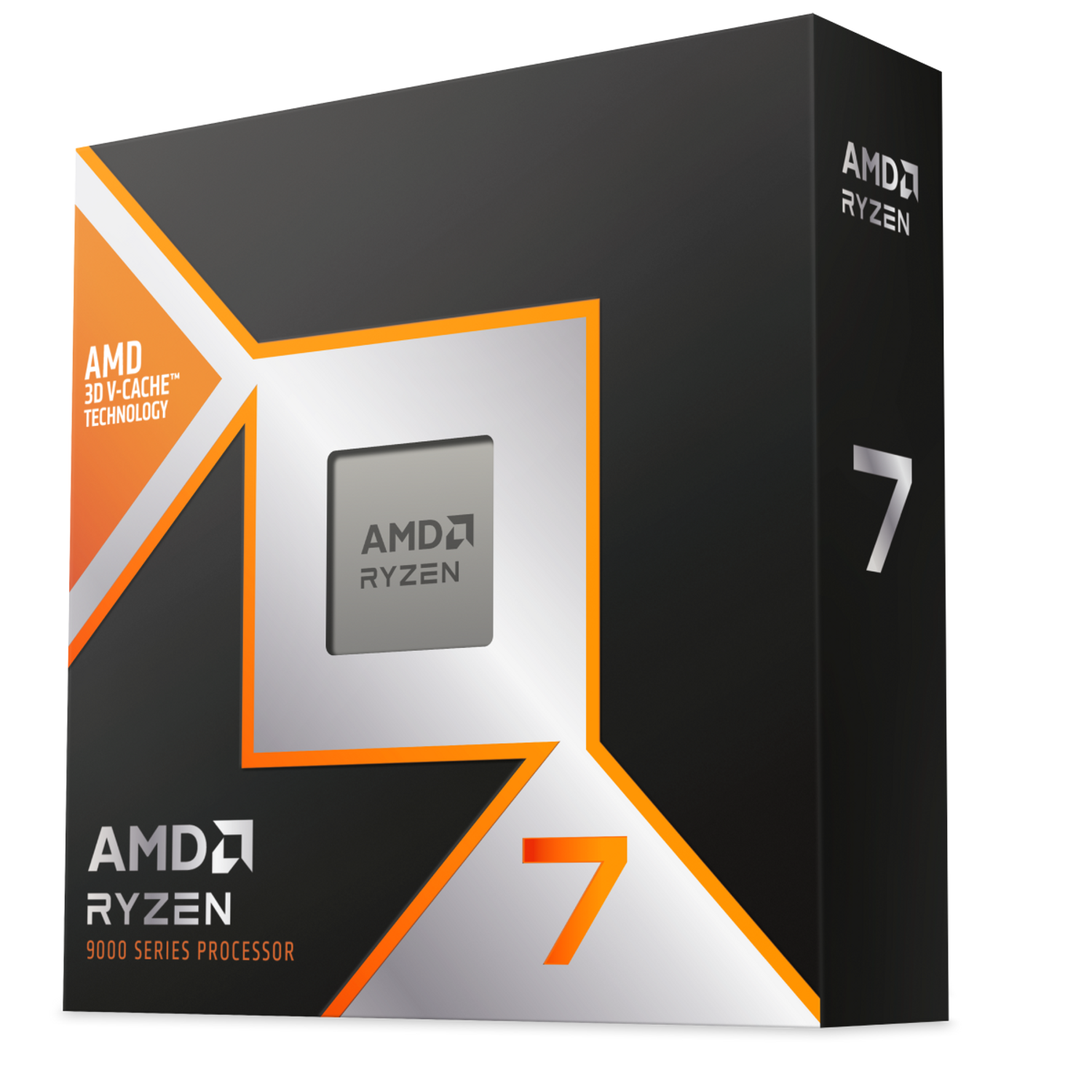

AMD Ryzen 7 9850X3D processor in retail packaging. No CPU cooler is included; AMD recommends a liquid cooler for optimal performance.
AMD Ryzen 9000 Series (AM5)
| Model | Key feature |
| Ryzen 9 9950X3D2 Dual Edition | 16C/32T, 3D V-Cache, 192 MB L3, 200W |
| Ryzen 9 9950X3D | 16C/32T, 3D V-Cache, 128 MB L3, 170W |
| Ryzen 9 9900X3D | 12C/24T, 3D V-Cache, 128 MB L3, 120W |
| Ryzen 7 9850X3D (this listing) | 8C/16T, 3D V-Cache, 96 MB L3, 120W |
| Ryzen 7 9800X3D | 8C/16T, 3D V-Cache, 96 MB L3, 120W |
| Ryzen 9 9950X | 16C/32T, up to 5.7 GHz, 170W |
| Ryzen 9 9900X | 12C/24T, up to 5.6 GHz, 120W |
| Ryzen 7 9700X | 8C/16T, up to 5.5 GHz, 65W |
| Ryzen 5 9600X | 6C/12T, up to 5.4 GHz, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 7 9850X3D specifications on amd.com |
| Drivers & software | AMD Ryzen 7 9850X3D drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9850X3D.
Frequently Asked Questions — AMD Ryzen 7 9850X3D
Does the 9850X3D come with a cooler?
No. The boxed 9850X3D ships without a cooler; AMD recommends a liquid cooler for optimal performance.
Will it work on my AM4 motherboard?
No. The 9850X3D uses the AM5 socket and DDR5 memory, so it needs an AM5 motherboard such as B650, X670, B850 or X870.
Does it have integrated graphics?
Yes, AMD Radeon Graphics. A discrete graphics card is still recommended for demanding games.
What memory does it support?
2-channel DDR5 UDIMM up to 256 GB, rated to DDR5-5600.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
