AMD Ryzen 7 9700X 8-Core 16-Thread AM5 Desktop Processor
PRODUCT DESCRIPTION
AMD Ryzen 7 9700X 8-Core 16-Thread AM5 Desktop Processor (100-100001404WOF) - 3 Years Local Warranty
8 Cores, 16 Threads on Zen 5
The AMD Ryzen 7 9700X runs 8 Zen 5 cores and 16 threads at a 3.8 GHz base clock with boost up to 5.5 GHz, backed by 8 MB of L2 and 32 MB of L3 cache, in a 65 W default TDP.
AM5 Platform
It installs in AM5 motherboards (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850) and supports 2-channel DDR5 UDIMM memory up to 256 GB, with PCIe 5.0 connectivity (24 usable lanes from the CPU).
Integrated Graphics
Integrated AMD Radeon Graphics (2 graphics cores at 2200 MHz) provides display output without a discrete card.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 7 9700X Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 7 9700X |
| Boxed Part Number (OPN) | 100-100001404WOF |
| Tray Part Number | 100-000001404 |
| Series | Ryzen 9000 Series (former codename Granite Ridge) |
| Market Segment | Enthusiast Desktop |
| Launch Date | 8 August 2024 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 5 |
| Cores / Threads | 8 / 16 (SMT) |
| Base Clock | 3.8 GHz |
| Max. Boost Clock | Up to 5.5 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| Process | TSMC 4nm FinFET (CPU cores); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Type | DDR5 UDIMM, 2 channels |
| Max. Memory | 256 GB |
| Max. Memory Speed | 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 28 total / 24 usable |
| Additional Lanes from Chipset | X870E 8x Gen4, X870 4x Gen4, X670E 12x Gen4, X670 12x Gen4, B650E 8x Gen4, B650 8x Gen4 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 5, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 |
Graphics
| Graphics Model | AMD Radeon Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alt Mode | Yes |
Cooling
| Thermal Solution in Box | Not included |
| Recommended Cooler | Premium air cooler recommended for optimal performance (AMD) |
Compatibility & Software Support
Motherboard
Requires an AM5 motherboard (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 UDIMM memory only, 2 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
Gaming PCs, content creation, office and home desktops.
Package Contents & AMD Ryzen 9000 Series (AM5) Ordering Information
In the Box

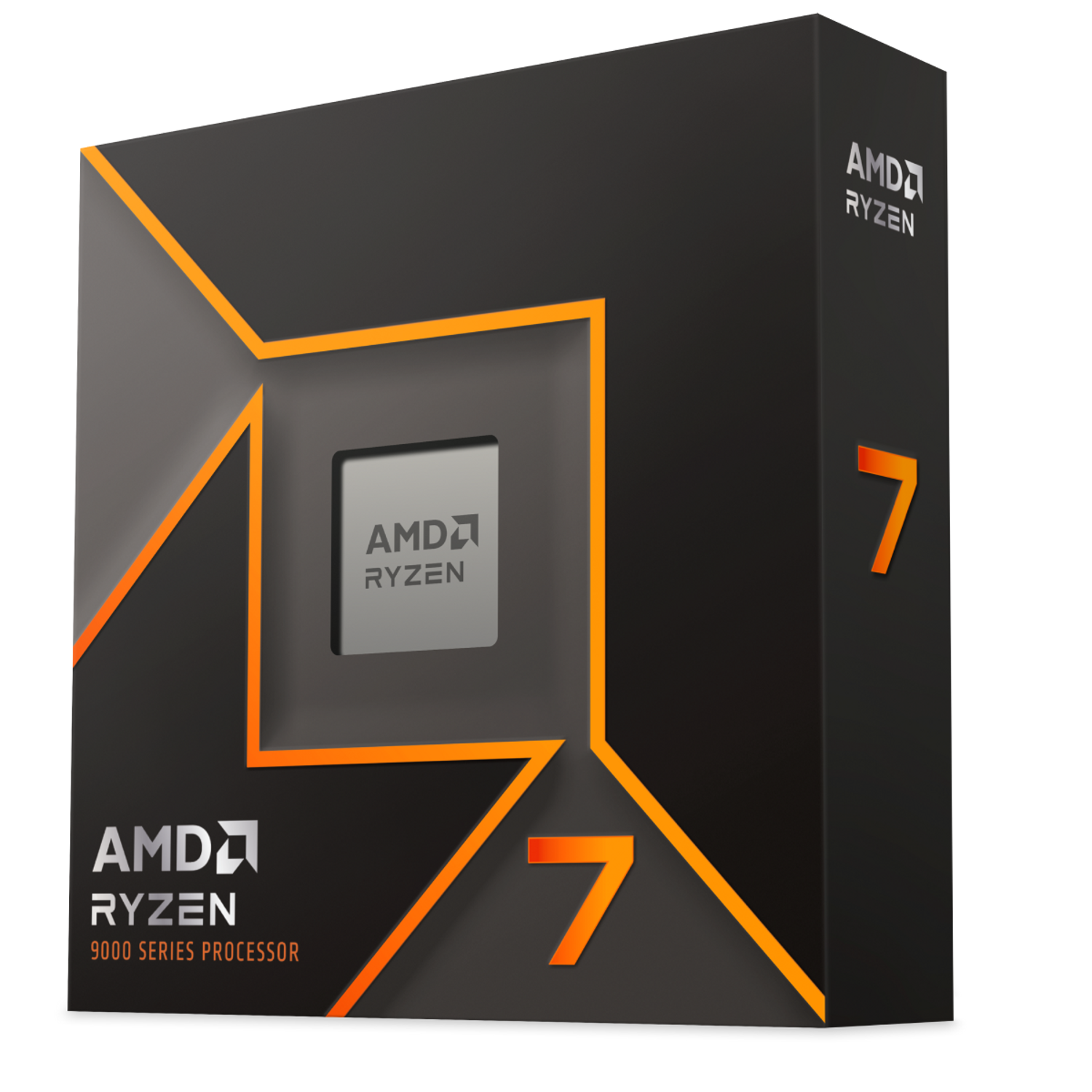

AMD Ryzen 7 9700X processor in retail packaging. No CPU cooler is included; AMD recommends a premium air cooler for optimal performance.
AMD Ryzen 9000 Series (AM5)
| Model | Key feature |
| Ryzen 9 9950X3D2 Dual Edition | 16C/32T, 3D V-Cache, 192 MB L3, 200W |
| Ryzen 9 9950X3D | 16C/32T, 3D V-Cache, 128 MB L3, 170W |
| Ryzen 9 9900X3D | 12C/24T, 3D V-Cache, 128 MB L3, 120W |
| Ryzen 7 9850X3D | 8C/16T, 3D V-Cache, 96 MB L3, 120W |
| Ryzen 7 9800X3D | 8C/16T, 3D V-Cache, 96 MB L3, 120W |
| Ryzen 9 9950X | 16C/32T, up to 5.7 GHz, 170W |
| Ryzen 9 9900X | 12C/24T, up to 5.6 GHz, 120W |
| Ryzen 7 9700X (this listing) | 8C/16T, up to 5.5 GHz, 65W |
| Ryzen 5 9600X | 6C/12T, up to 5.4 GHz, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 7 9700X specifications on amd.com |
| Drivers & software | AMD Ryzen 7 9700X drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9700X.
Frequently Asked Questions — AMD Ryzen 7 9700X
Does the 9700X come with a cooler?
No. The boxed 9700X ships without a cooler; AMD recommends a premium air cooler for optimal performance.
Will it work on my AM4 motherboard?
No. The 9700X uses the AM5 socket and DDR5 memory, so it needs an AM5 motherboard such as B650, X670, B850 or X870.
Does it have integrated graphics?
Yes, AMD Radeon Graphics. A discrete graphics card is still recommended for demanding games.
What memory does it support?
2-channel DDR5 UDIMM up to 256 GB, rated to DDR5-5600.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
