AMD Ryzen 7 7800X3D 8-Core 16-Thread AM5 Desktop Processor with 3D V-Cache
PRODUCT DESCRIPTION
AMD Ryzen 7 7800X3D 8-Core AM5 Desktop Processor with 3D V-Cache (100-100000910WOF) - 3 Years Local Warranty
96MB L3 Cache with AMD 3D V-Cache
The Ryzen 7 7800X3D stacks AMD 3D V-Cache on top of its Zen 4 compute die, giving 8 cores and 16 threads access to 96MB of L3 cache (104MB of L2 + L3 combined). Games that are sensitive to memory latency keep more of their working data on-chip, which is why AMD positions it as a gaming-focused processor.
Zen 4 on the AM5 Platform
The CPU runs at a 4.2GHz base clock and boosts up to 5.0GHz within a 120W default TDP. It drops into any AM5 motherboard (A620, B650/B650E, X670/X670E, B840/B850 and X870/X870E), with dual-channel DDR5 support, AMD EXPO memory profiles and PCIe 5.0 for the latest graphics cards and NVMe SSDs.
Built-in Display Output
AMD Radeon Graphics (2 compute units at 2,200MHz) is integrated, so the system can boot and drive a display without a discrete card for setup, troubleshooting or light desktop use.
Building a workstation or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 7 7800X3D Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen™ 7 7800X3D |
| Boxed Part Number (OPN) | 100-100000910WOF |
| Tray Part Number | 100-000000910 |
| Series | Ryzen 7000 Series (former codename Raphael) |
| Market Segment | Enthusiast desktop |
| Launch Date | 6 April 2023 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 4 |
| Cores / Threads | 8 / 16 (SMT) |
| Base Clock | 4.2 GHz |
| Max. Boost Clock | Up to 5.0 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB (AMD 3D V-Cache) |
| Default TDP | 120 W |
| Process | TSMC 5nm FinFET (CPU die); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 89 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking Support | Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master |
| Instruction Set | x86-64; AES, AMD-V, AVX, AVX2, AVX-512, FMA3, SHA, SSE4.2 |
Platform & Memory
| CPU Socket | AM5 |
| Supporting Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| Memory Type | DDR5 UDIMM, dual channel |
| Max. Memory | 128 GB |
| Max. Memory Speed | DDR5-5200 (2 DIMMs); DDR5-3600 (4 DIMMs) |
| ECC Support | Yes (requires motherboard support) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total / Usable) | 28 / 24 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 |
Integrated Graphics
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2,200 MHz |
| USB Type-C DisplayPort Alt Mode | Yes |
Cooling
| Thermal Solution in Box | Not included |
| Recommended Cooler | Liquid cooler recommended for optimal performance (AMD) |
Compatibility & Software Support
Motherboard
Requires an AM5 motherboard. All AM5 chipsets listed above are supported; older boards may need a BIOS update to recognise the processor, so check the motherboard vendor's CPU support list before installing.
Memory
DDR5 only (DDR4 is not supported on AM5). For best results use an AMD EXPO-rated DDR5 kit in two DIMM slots.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, Red Hat Enterprise Linux x86 64-bit and Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
High-refresh gaming PCs, streaming and gaming rigs, and compact enthusiast builds where strong gaming performance per watt matters.
Package Contents & AMD Ryzen 7000 Series (AM5) Ordering Information
In the Box

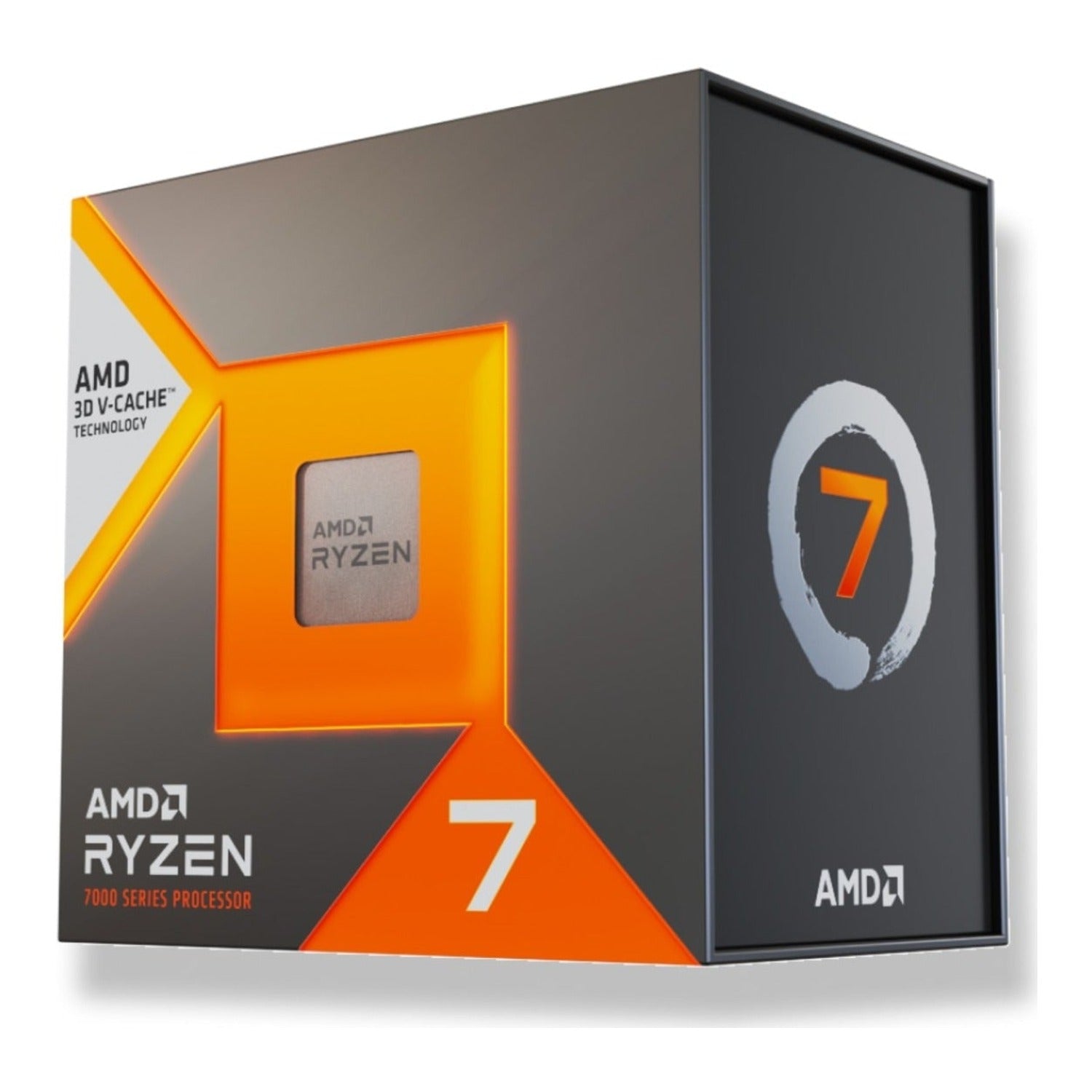

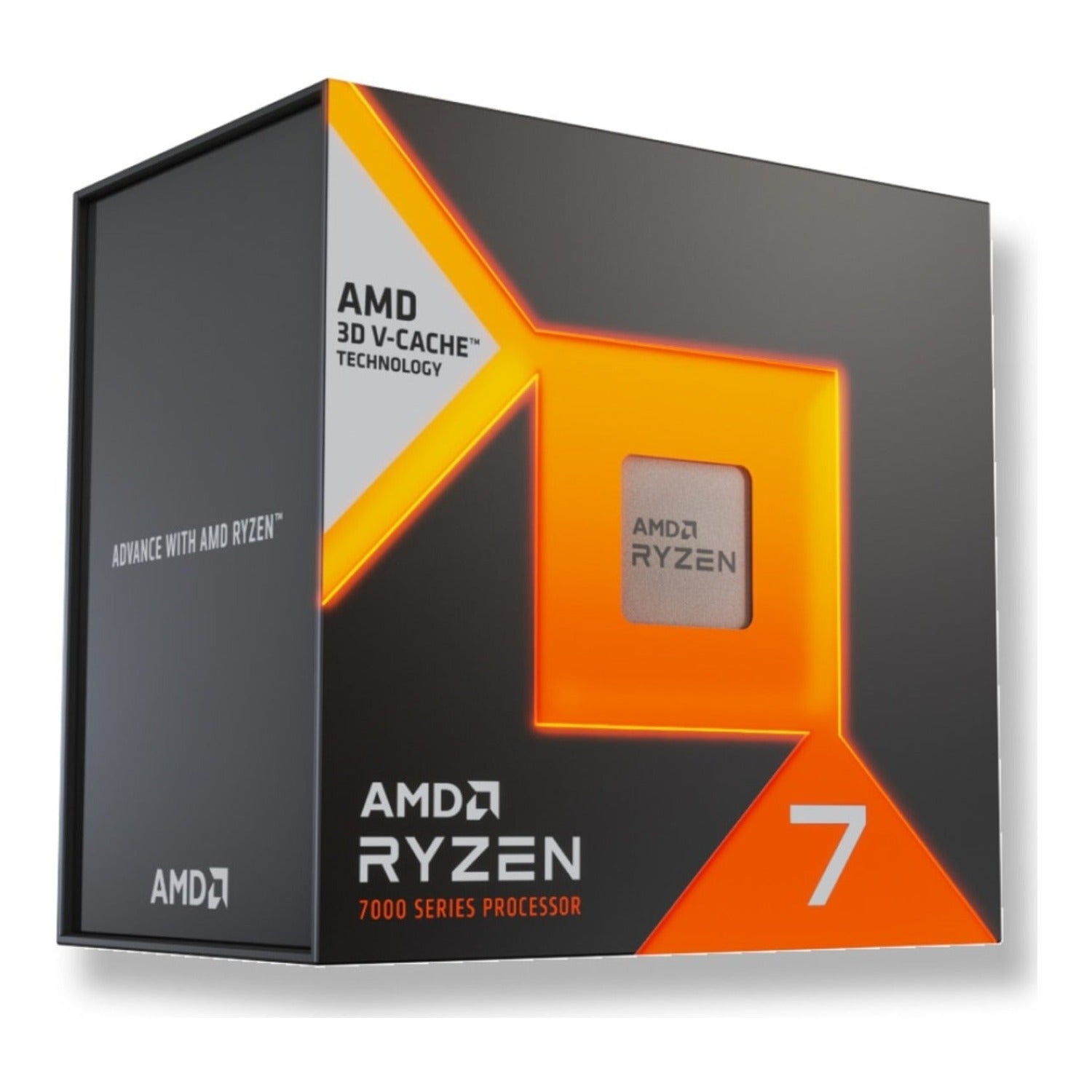

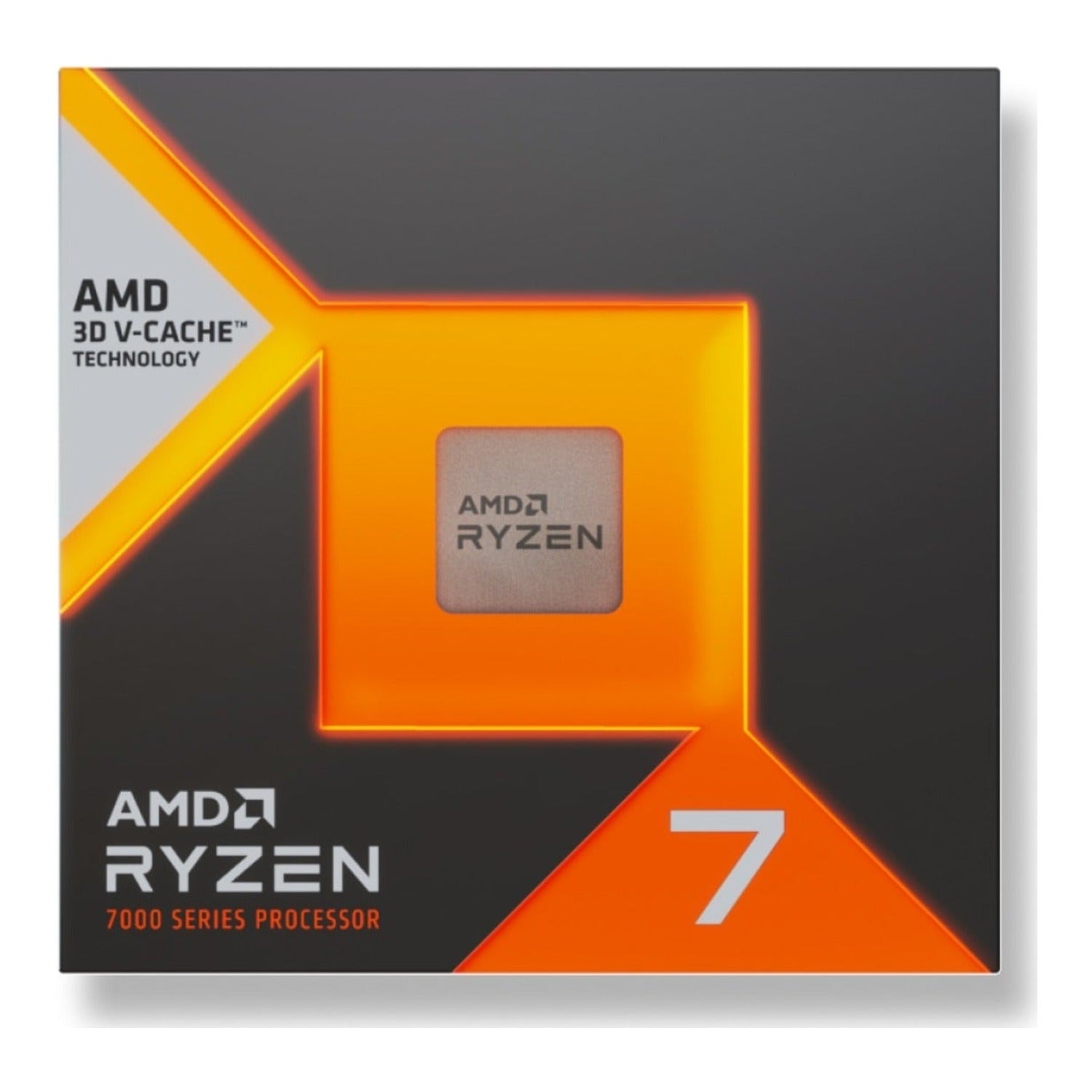

AMD Ryzen 7 7800X3D processor in retail packaging (processor in box, WOF). No CPU cooler is included; budget for an AM5-compatible cooler, ideally a liquid cooler as AMD recommends.
AMD Ryzen 7000 Series (AM5)
| Model | Key feature |
| Ryzen 9 7950X3D | 16C/32T, 3D V-Cache, 128MB L3 |
| Ryzen 9 7950X | 16C/32T, up to 5.7GHz |
| Ryzen 9 7900X | 12C/24T, 170W |
| Ryzen 9 7900 | 12C/24T, 65W |
| Ryzen 7 7800X3D (this listing) | 8C/16T, 3D V-Cache, 96MB L3 |
| Ryzen 7 7700X | 8C/16T, 105W |
| Ryzen 7 7700 | 8C/16T, 65W |
| Ryzen 5 7600X | 6C/12T, 105W |
| Ryzen 5 7600 | 6C/12T, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 7 7800X3D specifications on amd.com |
| Drivers & software | AMD Ryzen 7 7800X3D drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 7800X3D.
Frequently Asked Questions — AMD Ryzen 7 7800X3D
Does the Ryzen 7 7800X3D come with a cooler?
No. The boxed 7800X3D (100-100000910WOF) ships without a cooler. AMD recommends a liquid cooler for optimal performance.
Will it work on my AM4 motherboard?
No. The 7800X3D uses the AM5 socket and DDR5 memory. It needs an AM5 motherboard such as B650, X670, B850 or X870.
Does it have integrated graphics?
Yes, basic AMD Radeon Graphics (2 compute units) for display output. A discrete graphics card is still recommended for gaming.
What memory does it support?
Dual-channel DDR5 up to 128GB, rated to DDR5-5200 with two DIMMs, with AMD EXPO profiles supported.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
