AMD Ryzen 5 8600G 6-Core 12-Thread AM5 Desktop Processor
PRODUCT DESCRIPTION
AMD Ryzen 5 8600G 6-Core 12-Thread AM5 Desktop Processor (100-100001237BOX) - 3 Years Local Warranty
6 Cores, 12 Threads on Zen 4
The AMD Ryzen 5 8600G runs 6 Zen 4 cores and 12 threads at a 4.3 GHz base clock with boost up to 5 GHz, backed by 6 MB of L2 and 16 MB of L3 cache, in a 65 W default TDP.
AM5 Platform
It installs in AM5 motherboards (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850) and supports 2-channel DDR5 UDIMM memory up to 256 GB, with PCIe 4.0 connectivity (16 usable lanes from the CPU).
Integrated Graphics
Integrated AMD Radeon 760M (8 graphics cores at 2800 MHz) provides display output without a discrete card, and AMD rates the chip at up to 16 TOPS of AI performance.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 5 8600G Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 5 8600G |
| Boxed Part Number (OPN) | 100-100001237BOX |
| Tray Part Number | 100-000001237 |
| Series | Ryzen 8000 Series (former codename Phoenix) |
| Launch Date | Q1 2024 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 4 |
| Cores / Threads | 6 / 12 (SMT) |
| Base Clock | 4.3 GHz |
| Max. Boost Clock | Up to 5 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65 W |
| Configurable TDP (cTDP) | 45-65W |
| Process | TSMC 4nm FinFET |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Type | DDR5 UDIMM, 2 channels |
| Max. Memory | 256 GB |
| Max. Memory Speed | 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes | 20 total / 16 usable |
| NVMe Support | Boot, RAID 0, RAID 1 |
| Native USB | 2 x USB4 (40Gbps), 2 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 |
Graphics
| Graphics Model | AMD Radeon 760M |
| Graphics Cores | 8 |
| Graphics Frequency | 2800 MHz |
| DisplayPort / HDMI | DisplayPort 2.1, HDMI 2.1 |
| Max. Displays | 4 |
| USB Type-C DisplayPort Alt Mode | Yes |
| AI Performance (AMD rated) | Up to 16 TOPS |
Cooling
| Thermal Solution in Box | AMD Wraith Stealth |
Compatibility & Software Support
Motherboard
Requires an AM5 motherboard (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 UDIMM memory only, 2 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
Compact and budget office or home PCs, HTPCs and entry gaming builds that run without a graphics card.
Package Contents & AMD Ryzen 8000 Series (AM5) Ordering Information
In the Box

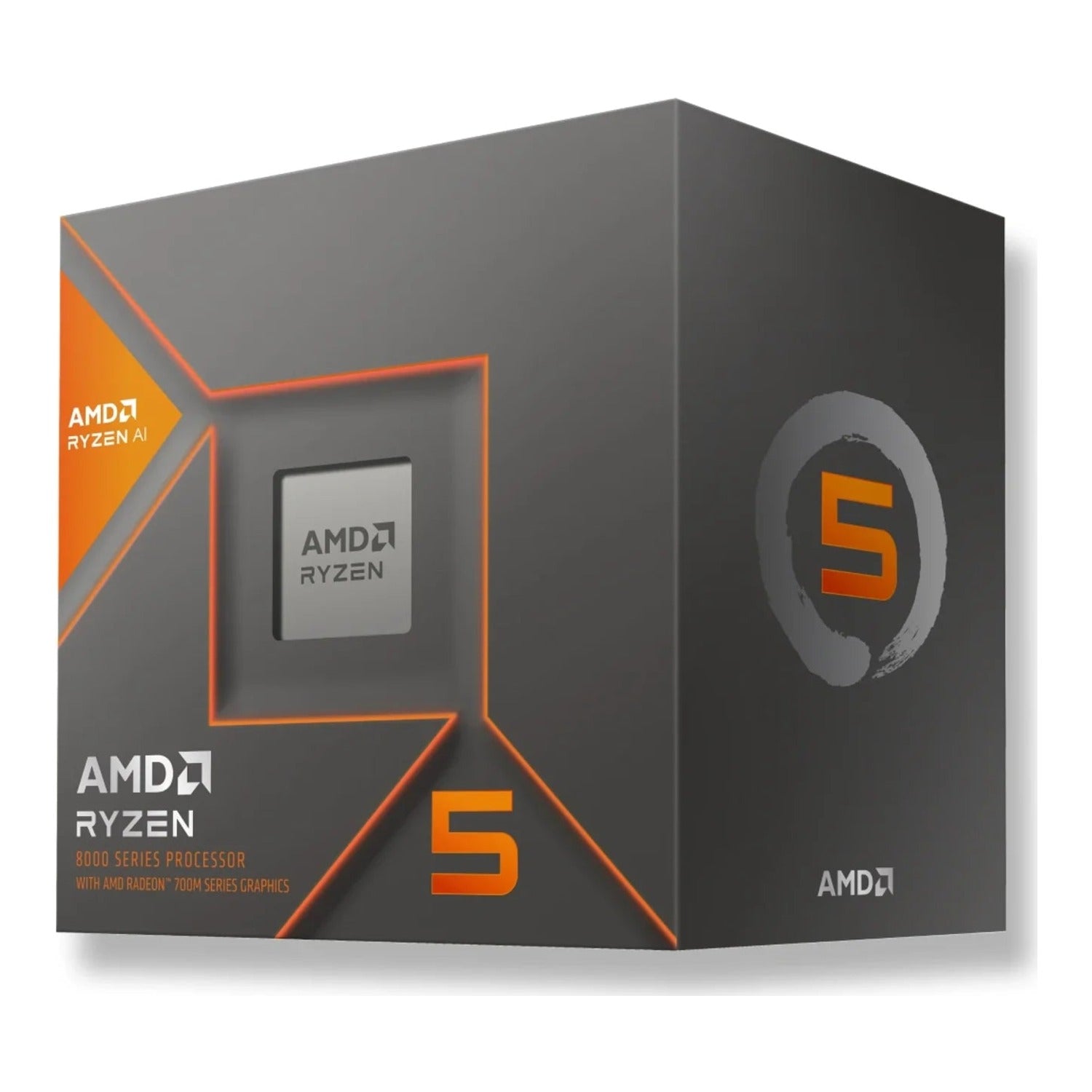

AMD Ryzen 5 8600G processor in retail packaging with the AMD Wraith Stealth cooler.
AMD Ryzen 8000 Series (AM5)
| Model | Key feature |
| Ryzen 7 8700G | 8C/16T, up to 5.1 GHz, 65W |
| Ryzen 7 8700F | 8C/16T, up to 5 GHz, 65W |
| Ryzen 5 8600G (this listing) | 6C/12T, up to 5 GHz, 65W |
| Ryzen 5 8500G | 6C/12T, up to 5 GHz, 65W |
| Ryzen 5 8400F | 6C/12T, up to 4.7 GHz, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 5 8600G specifications on amd.com |
| Drivers & software | AMD Ryzen 5 8600G drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 8600G.
Frequently Asked Questions — AMD Ryzen 5 8600G
Does the 8600G come with a cooler?
Yes. The boxed 8600G includes the AMD Wraith Stealth cooler.
Will it work on my AM4 motherboard?
No. The 8600G uses the AM5 socket and DDR5 memory, so it needs an AM5 motherboard such as B650, X670, B850 or X870.
Does it have integrated graphics?
Yes, AMD Radeon 760M.
What memory does it support?
2-channel DDR5 UDIMM up to 256 GB, rated to DDR5-5200.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
