AMD Ryzen 5 7500F 6-Core 12-Thread AM5 Desktop Processor
PRODUCT DESCRIPTION
AMD Ryzen 5 7500F 6-Core 12-Thread AM5 Desktop Processor (100-100000597BOX) - 3 Years Local Warranty
6 Cores, 12 Threads on Zen 4
The AMD Ryzen 5 7500F runs 6 Zen 4 cores and 12 threads at a 3.7 GHz base clock with boost up to 5 GHz, backed by 6 MB of L2 and 32 MB of L3 cache, in a 65 W default TDP.
AM5 Platform
It installs in AM5 motherboards (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850) and supports 2-channel DDR5 UDIMM memory up to 128 GB, with PCIe 5.0 connectivity (24 usable lanes from the CPU).
Discrete Graphics Required
This processor has no integrated graphics, so a discrete graphics card is required for display output.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 5 7500F Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 5 7500F |
| Boxed Part Number (OPN) | 100-100000597BOX |
| Tray Part Number | 100-000000597 |
| Series | Ryzen 7000 Series (former codename Raphael) |
| Market Segment | Enthusiast Desktop |
| Launch Date | 22 July 2023 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 4 |
| Cores / Threads | 6 / 12 (SMT) |
| Base Clock | 3.7 GHz |
| Max. Boost Clock | Up to 5 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| Process | TSMC 5nm FinFET (CPU cores); TSMC 6nm FinFET (I/O die) |
| Max. Operating Temperature (Tjmax) | 95 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Type | DDR5 UDIMM, 2 channels |
| Max. Memory | 128 GB |
| Max. Memory Speed | 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Memory Overclocking | AMD EXPO Technology |
Connectivity
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 28 total / 24 usable |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 |
Graphics
| Integrated Graphics | None, discrete graphics card required |
Cooling
| Thermal Solution in Box | AMD Wraith Stealth |
Compatibility & Software Support
Motherboard
Requires an AM5 motherboard (A620, X670E, X670, B650E, B650, X870E, X870, B840, B850). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR5 UDIMM memory only, 2 channels. AMD EXPO memory profiles are supported.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
Gaming PCs, content creation, office and home desktops.
Package Contents & AMD Ryzen 7000 Series (AM5) Ordering Information
In the Box

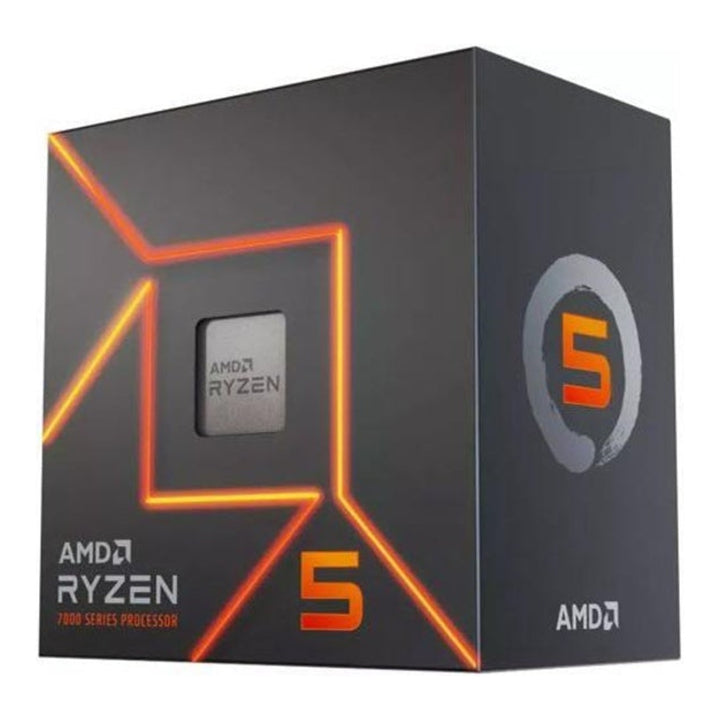

AMD Ryzen 5 7500F processor in retail packaging with the AMD Wraith Stealth cooler.
AMD Ryzen 7000 Series (AM5)
| Model | Key feature |
| Ryzen 9 7950X3D | 16C/32T, 3D V-Cache, 128 MB L3, 120W |
| Ryzen 7 7800X3D | 8C/16T, 3D V-Cache, 96 MB L3, 120W |
| Ryzen 9 7950X | 16C/32T, up to 5.7 GHz, 170W |
| Ryzen 9 7900X | 12C/24T, up to 5.6 GHz, 170W |
| Ryzen 7 7700X | 8C/16T, up to 5.4 GHz, 105W |
| Ryzen 5 7600X | 6C/12T, up to 5.3 GHz, 105W |
| Ryzen 9 7900 | 12C/24T, up to 5.4 GHz, 65W |
| Ryzen 7 7700 | 8C/16T, up to 5.3 GHz, 65W |
| Ryzen 5 7600 | 6C/12T, up to 5.1 GHz, 65W |
| Ryzen 5 7500X3D | 6C/12T, 3D V-Cache, 96 MB L3, 65W |
| Ryzen 5 7500F (this listing) | 6C/12T, up to 5 GHz, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 5 7500F specifications on amd.com |
| Drivers & software | AMD Ryzen 5 7500F drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 7500F.
Frequently Asked Questions — AMD Ryzen 5 7500F
Does the 7500F come with a cooler?
Yes. The boxed 7500F includes the AMD Wraith Stealth cooler.
Will it work on my AM4 motherboard?
No. The 7500F uses the AM5 socket and DDR5 memory, so it needs an AM5 motherboard such as B650, X670, B850 or X870.
Does it have integrated graphics?
No. A discrete graphics card is required for display output.
What memory does it support?
2-channel DDR5 UDIMM up to 128 GB, rated to DDR5-5200.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
